VigilLink VLEX-HT2150DPK-TR HDBaseT 2.0 4k@60Hz 4:4:4 DP 1.2 Extender with KVM - 21.6Gbps - 492 Foot/150m

ITEM #: VLEX-HT2150DPKTR MFG #: VLEX-HT2150DPK-TR

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
VigilLink
Free Shipping with $49 Minimum Order

Our Price:

$601.00

Add to Wish ListLeasing Options
Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

VLEX-HT2150DPK-TR - Overview

Experience seamless and high-quality video transmission with VigilLink's VLEX-HT2150DPK-TR 4K60 DP Extender, capable of extending DisplayPort (DP) signals, bi-directional IR control signals, bi-directional RS-232 signals, and USB KVM signals over impressive distances. Transmit visually lossless, highly detailed 4K Ultra HD resolutions up to 328ft/100m for 4K60 signals or 492ft/150m for 1080P signals using just a single CAT6 cable.

Designed to convert DP signals to standard HDBaseT signals and transmit them through LAN cables, this extender offers unparalleled versatility and functionality. With support for DisplayPort 1.2, enjoy captivating digital signage or detailed content in medical setups with ease. Plus, experience enhanced audio with support for lossless formats like DolbyTrueHD and DTS-HD, adding depth and realism to your viewing experience. Thanks to USB KVM connectivity, take full control of a DisplayPort PC from a local console, ensuring consistent and secure video content delivery while maintaining optimal conditions.

Ideal for a wide range of applications, from medical environments to digital signage setups, VigilLink's 4K60 DP Extender is the perfect solution for your video extension needs.

  • Features:

    • DP 1.2a and HDCP 2.2 compliant for seamless compatibility
    • Supports an impressive 21.6Gbps video bandwidth
    • Capable of delivering stunning video resolution up to 4K2K@60Hz YUV 4:4:4
    • Extend signal transmission distances up to 328ft/100m for 4K60 signals or 492ft/150m for 1080P signals via a single CAT6 cable
    • Supports LPCM2.0 (96KHz), Dolby Digital Plus 5.1CH, and DTS-HD Master 7.1CH for immersive audio experiences
    • Utilizes smart compression methods for visually lossless transmission quality
    • Enables control of a single DisplayPort PC, keyboard, and mouse via KVM function
    • Supports bi-directional IR, RS-232, and USB KVM signal pass-through for enhanced connectivity
    • Features bi-directional Power over Cable (POC) function for added convenience
    • Offers advanced EDID management for optimal display settings
    • Boasts a compact design for effortless and flexible installation options


  • Specifications:

      Technical
    • DP Compliance: DP 1.2a
    • HDCP Compliance: HDCP 2.2
    • Video Bandwidth: 21.6Gbps
    • Video Resolution: Up to 4K @ 60Hz YUV 4:4:4
    • USB Compliance: USB 1.1
    • IR Level: 5Vp-p
    • IR Frequency: Wideband 20kHz - 60kHz
    • Transmission Distance:
      - 1080p @ 60 - 492ft (150m)
      - 4K60 - 328ft(100m)
    • Color Space: RGB, YCbCr_4:4:4, YCbCr_4:2:2, YCbCr_4:2:0
    • Color Depth: 8/10/12bit
    • HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Audio Format: LPCM2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH
    • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

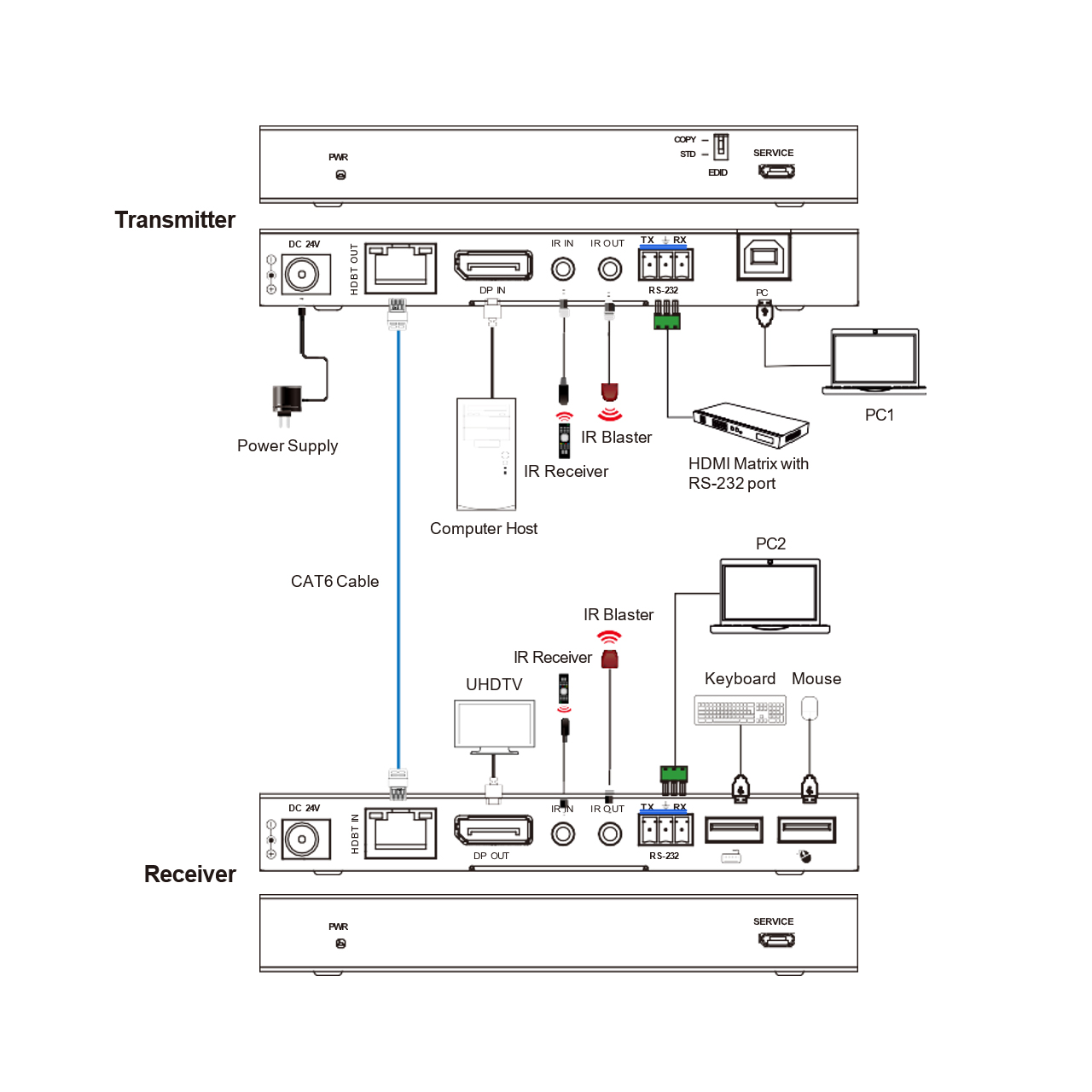

      Connection

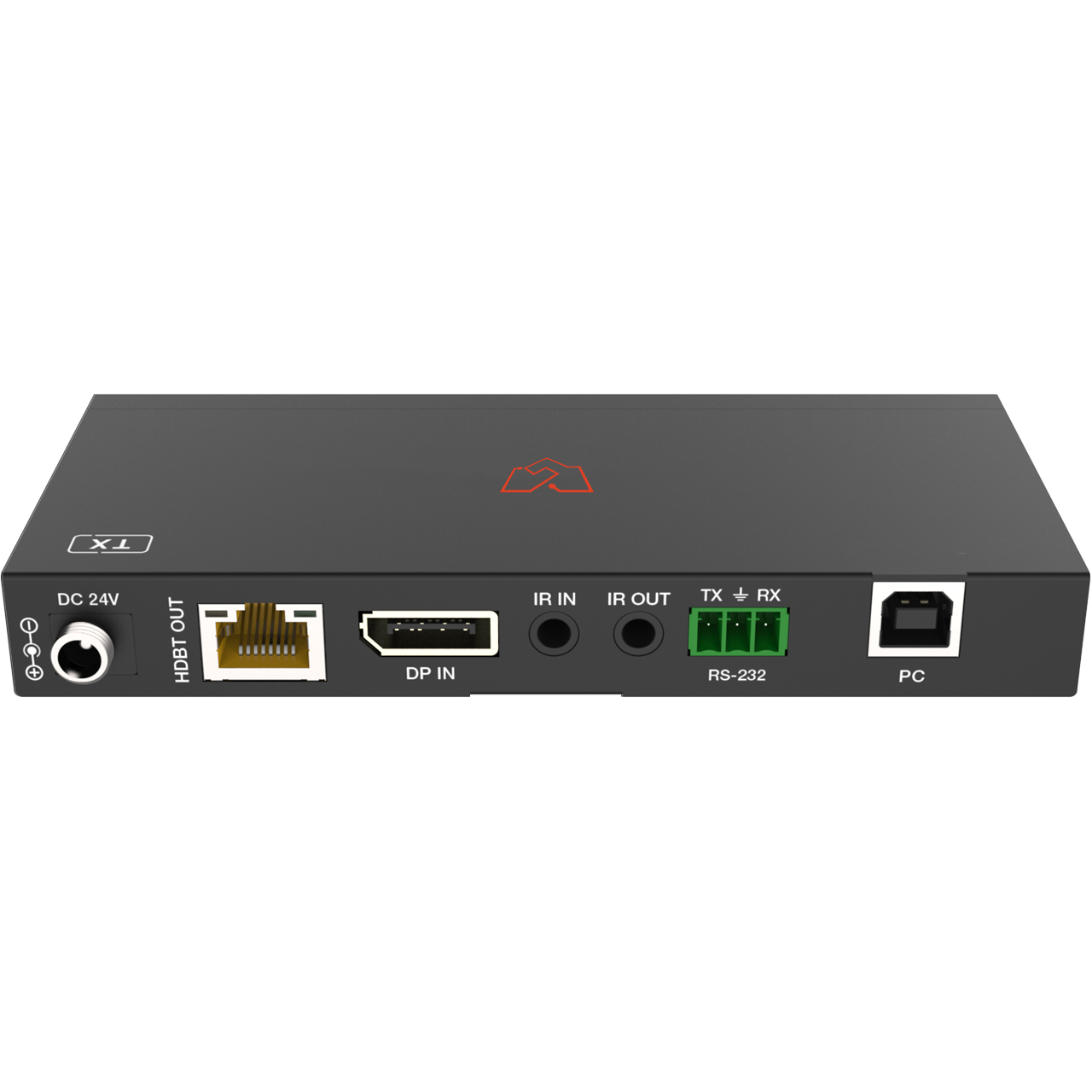

    • Transmitter Inputs: 1x DP IN (20-pin female)
    • Transmitter Outputs: 1x HDBaseT OUT (RJ45 connector, 8-pin female)
    • Transmitter Controls:
      - 1x IR IN (3.5mm Stereo Mini-jack)
      - 1x IR OUT (3.5mm Stereo Mini-jack)
      - 1x RS-232 (3pin-3.81mm Phoenix jack)
      - 1x PC (USB-B, 4-pin female)
      - 1x SERVICE (Micro USB)

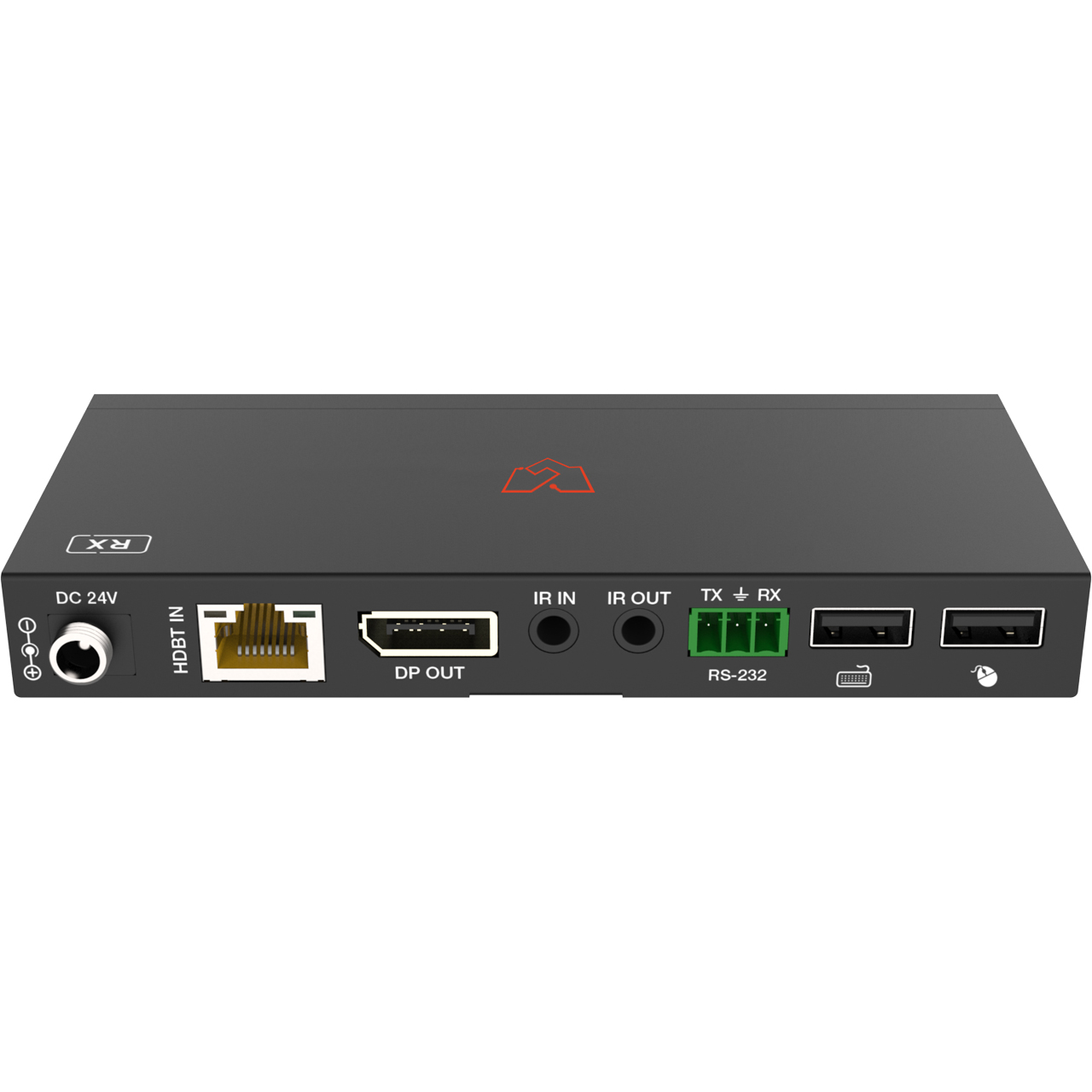

    • Receiver Inputs: 1x HDBaseT IN (RJ45, 8-pin female)
    • Receiver Outputs: 1x DP OUT (20-pin female)
    • Receiver Controls:
      - 1x IR IN (3.5mm Stereo Mini-jack)
      - 1x IR OUT (3.5mm Stereo Mini-jack)
      - 1x RS-232 (3pin-3.81mm Phoenix jack)
      - 1x SERVICE (Micro USB)
      - 2x USB 1.1 (USB-A, 4-pin female)

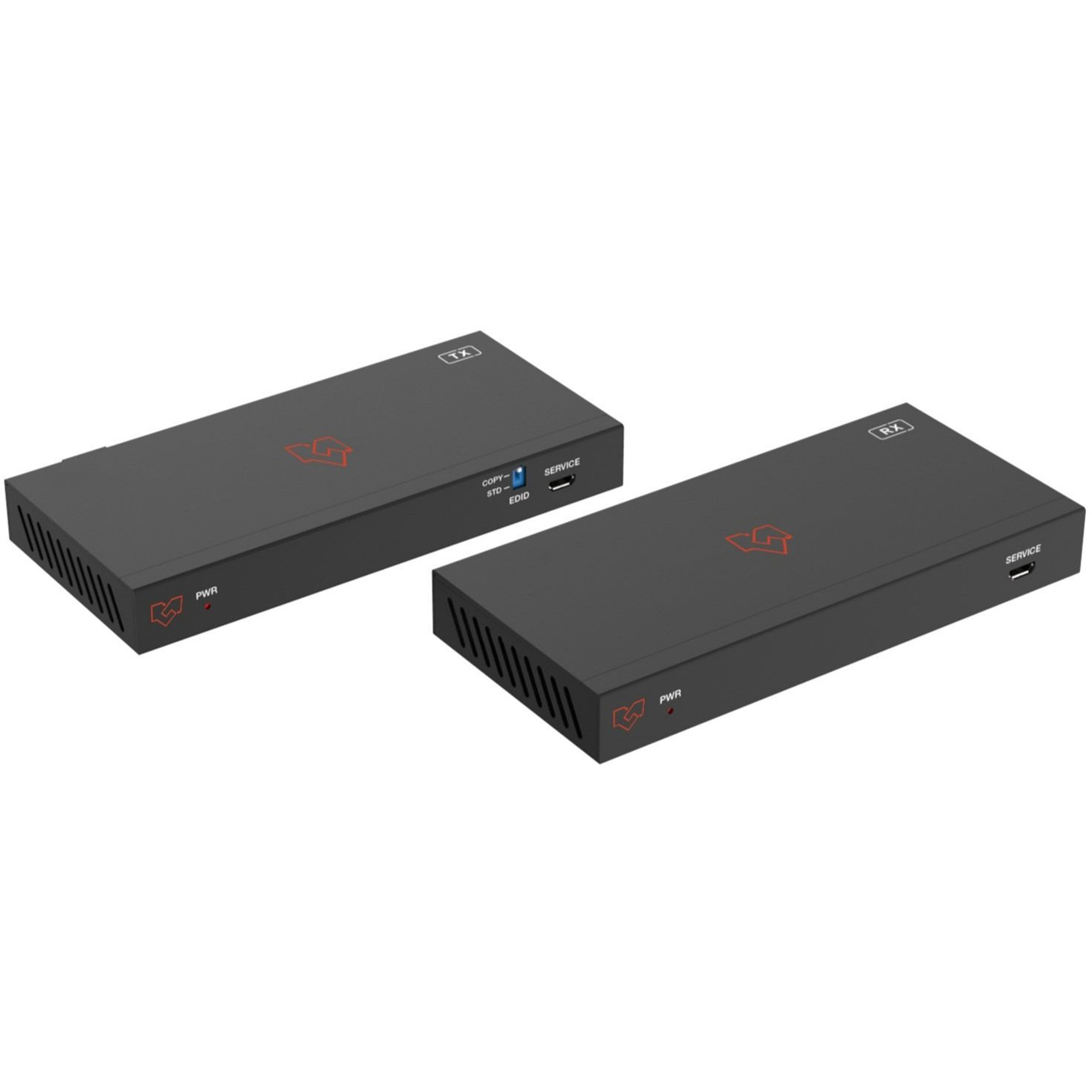

    • EDID Setting:
      - EDID DIP switch is used for EDID setting (Dial to COPY by default)
      - COPY: Copy the EDID of the DP OUT port of Receiver
      - STD: Default 1080P 2CH

      Mechanical
    • Housing: Metal Enclosure
    • Color: Black
    • Dimensions: 5.77" x 2.81" x 0.82" (144mm x 78mm x 23mm)
    • Weight: 0.71lbs
    • Power Supply: DC 24V/1A; Support bi-directional POC function
    • Power Consumption: 13.2W (Max.)
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20% - 90% RH (non-condensing)


  • Item Includes:

    • 1x 4K60 DP Extender Extender (Transmitter)
    • 1x 4K60 DP Extender Extender (Receiver)
    • 1x IR Blaster Cable (1.5m)
    • 1x IR Wideband Receiver Cable (1.5m)
    • 2x 3pin-3.81mm Phoenix Connector
    • 1x USB2.0 Cable (USB-A to USB-B, 1.5m)
    • 4x Mounting Ear
    • 8x Machine Screw (KM3*4)
    • 1x 24V/1A Locking Power Supply
    • 1x User Manual


  • Warranty:

    • 6 Years
