Imagine VTM4150PKG-EJ3 VTM Series Rasterizer Package Supporting Four Picture Display with 3G/HD/SD Advanced Jitter Eye

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Imagine VTM4150PKG-EJ3 VTM Series Rasterizer Package Supporting Four Picture Display with 3G/HD/SD Advanced Jitter Eye

    Manufacturer: Imagine Communications

    Item #: VTM4150PKG-EJ3   •   MFG #: VTM4150PKG-EJ3




    Our Price:$16,995.00

    free ship


    Availability: Usually ships in 3-10 business days
    i
    This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




      Share!

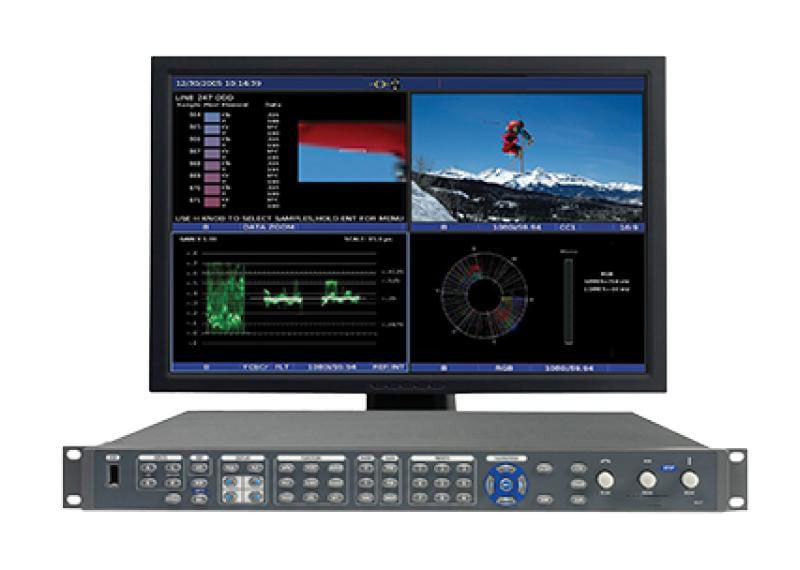

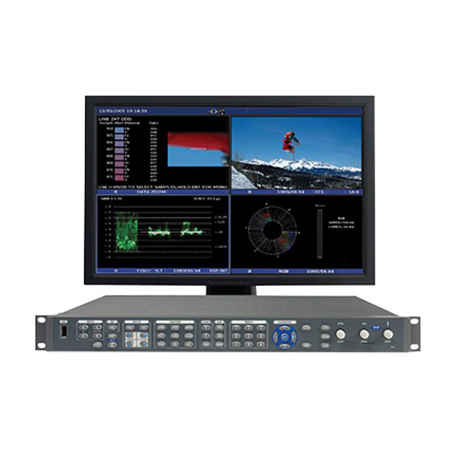

      Videotek VTM4150 packages are predefined module groupings designed to quickly deliver the onscreen monitoring solution you need. Select among 3 Gb/s, HD/SD-SDI, SD-SDI, analog composite and ASI video monitoring, advanced physical layer jitter analysis, Dolby, advanced audio and lip sync monitoring options to build a system customized to your requirements.

      The perfect solution for today's multiformat environments, the VTM4150PKG features the first user-configurable, field-upgradeable, multiformat test and measurement console. The innovative modular platform makes the VTM series fully customizable and affords broadcasters unprecedented flexibility.

      When fully equipped, the VTM Series is the only test instrument of its kind that monitors and displays as many as four inputs simultaneously. The Imagine Communications proprietary graphic display engines enable multiple input configurations to accommodate any environment. 3 Gb/s, HD/SD, DVB-ASI/SMPTE 310M and composite analog inputs options are available. Users can mix and match the appropriate options, such as eye pattern with jitter display and audio packages featuring Dolby decoding, to create the ideal tool for their specific application. A further benefit is a clear upgrade path when monitoring requirements change.


      • Features

        • User-configurable hardware
        • Dual auto-detecting inputs for 3G/HD/SD-SDI or analog composite
        • Single-input ASI monitoring option
        • Standards: SMPTE 424M, SMPTE 292M, SMPTE 259M-C, NTSC/PAL
        • Multiple reference inputs
        • Simultaneous display of up to four pictures
        • Simultaneous display of up to four different inputs
        • Customizable display functions, including screen location and multiple displays
        • Patented video relative timing display
        • Patented gamut display
        • Ancillary data processing (including AFD, WSS, SourceID, VITC, LTC, and ANC TC)
        • Pixel locator/data word analyzer
        • Multiple-picture thumbnail
        • A/B parade and overlay
        • 608, 708 closed-caption detect, alarm, display
        • Teletext and OP-47 detect, alarm, display
        • Comprehensive alarm set with peak level report
        • 16 direct-access user presets
        • Illuminated controls and indicators
        • DVI-I output
        • Front and back USB ports for data transfer
        • Bypass function enable
        • 10/100Base-T Ethernet, SNMP agent
        • Web server
        • SpyderWeb II remote control and logging software
        • GPI and router control

      • Specifications

        • Video
        • Data Rate: 270 Mb/s, 1.485 Gb/s, auto-detect
        • Connectors: 4 BNCs, Hi-Z passive looping
        • Level: 800 mV, nominal
        • Input EQ: 270 Mb/s: 250 m of 8281; 1.485 Gb/s: 100 m of 8281
        • Return Loss: ≤-15 dB, 5 MHz to 1.485 GHz
        • SDI Monitor Output: Follows the selected digital input
        • Data Rate: 270 Mb/s and 1.485 Gb/s
        • Connector: BNC
        • Level: 800 mV, nominal
        • Input Impedance: 75 ohms, active looping
          Audio
        • Inputs (Analog): 8 monophonic or four stereo channels, balanced or unbalanced
        • Maximum Input Level: +24 dBu
        • Input Connector: 37-pin D-sub, male
        • Impedance: >20 k ohms
        • Inputs (Digital): 16 embedded audio channels, 4 or 8 AES/EBU serial digital pairs, (option dependent) Optional Dolby E or AC-3 stream
        • Input Connectors: 4 or 8, BNC, female
        • Impedance: 75 ohms
        • Outputs (Analog): 8 monophonic or 4 stereo channels, balanced or unbalanced, follows selected audio input; Dolby inputs produce a 2-channel mix down and/or full 8-channel decode
        • Output Level: +24 dBu max; +6 to -50 dB adjustable; For digital audio, -20 dBFS produces a +4 dBu analog output level
        • Output Connector: 37-pin D-sub, male, shared with inputs
        • Impedance: 10 ohms unbalanced or 20 ohms balanced, nominal
        • Signal To Noise: Outputs (Digital): 100 dB (relative to signal level out of +24 dBu), typical 4 AES/EBU and one Dolby Digital, Dolby E, or AES stream embedded in the selected digital video source
        • Output Connector: 4 BNC, female shared with input
        • Impedance: 75 ohms
          Control
        • GPI: 9 total with 4 input and 5 preset recall selections or individually user configured
        • GPO: 2 alarms, user-configured
        • Connector: 26-pin HD (high-density) D-sub, female
        • Input Impedance: 10 k ohms returned to 5 VDC
        • Alarm Output: Relay closure
        • Maximum Relay Current: 350 mA @30 VDC
        • External Router Control: 1 RJ-11 female, for use with Videotek RS-12A router for input expansion
        • Peripheral Interface: USB 1.1 supporting storage devices, and keyboard
        • Connector: USB 1.1, Type A, female
        • Communications: Ethernet port - 10/100Base-T
        • Connector: RJ-45 Ethernet female
          Physical
        • Power Input: 90 to 260 VAC, 50/60 Hz
        • Power Consumption: 180 VA
        • Dimensions (H x W x D): 1.75 x 19.0 x 19.0 in.
        • Operating Temperature: 32° to 113° F
        • Storage Temperature: -40° to 149° F
        • Humidity: 85% maximum (non-condensing)
        • Operating Altitude: To 6,562 ft (2,000 m) above sea level
        • Polution Degree: 2
