Ward-Beck IMP-16F/10 Impedance Transformer Panel - 16 XLR Female to BNC 1 Rack Unit with 10dB Loss Pad
  • Ward-Beck IMP-16F/10 Impedance Transformer Panel - 16 XLR Female to BNC 1 Rack Unit with 10dB Loss Pad
  • Ward-Beck IMP-16F/10 Impedance Transformer Panel - 16 XLR Female to BNC 1 Rack Unit with 10dB Loss Pad
  • Ward-Beck IMP-16F/10 Impedance Transformer Panel - 16 XLR Female to BNC 1 Rack Unit with 10dB Loss Pad

Questions? Ask a Markertek Expert:
800-522-2025 Email

Ward-Beck IMP-16F/10 Impedance Transformer Panel - 16 XLR Female to BNC 1 Rack Unit with 10dB Loss Pad

Manufacturer: Ward-Beck Systems Ltd.

Item #: WARD-IMP-16F-10   •   MFG #: IMP-16F/10



List Price:$720.00
Our Price:$690.49

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

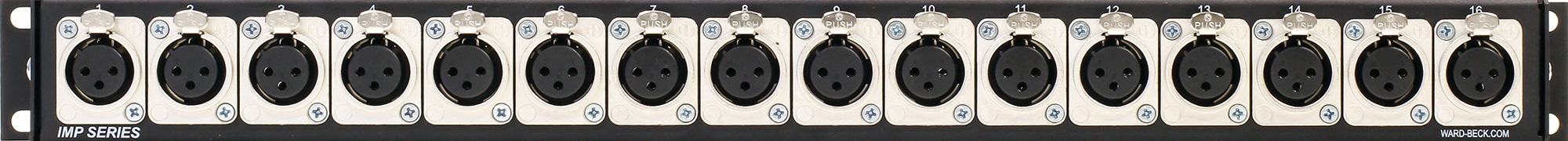

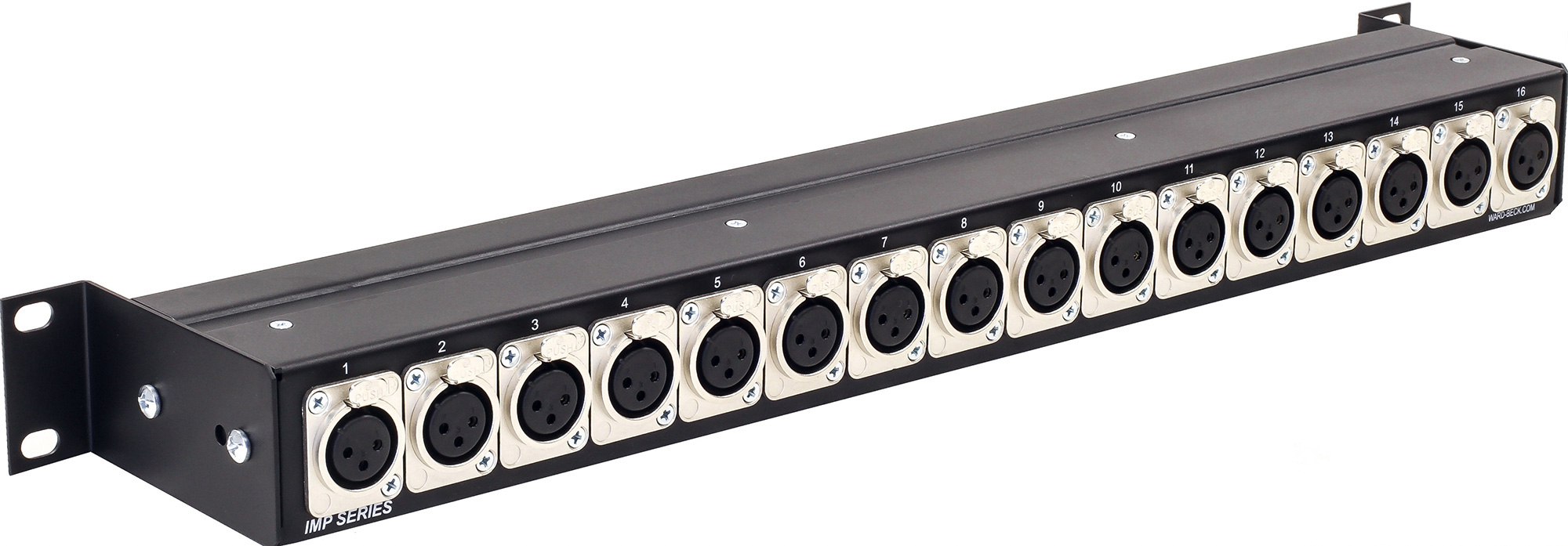

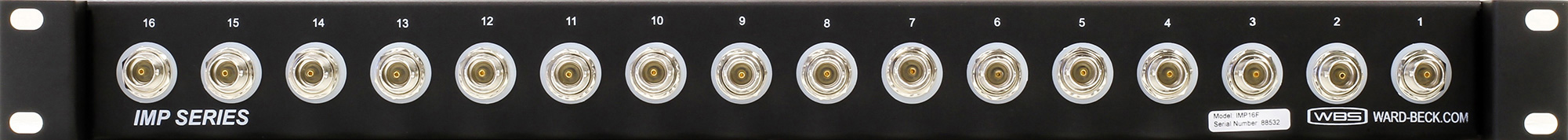

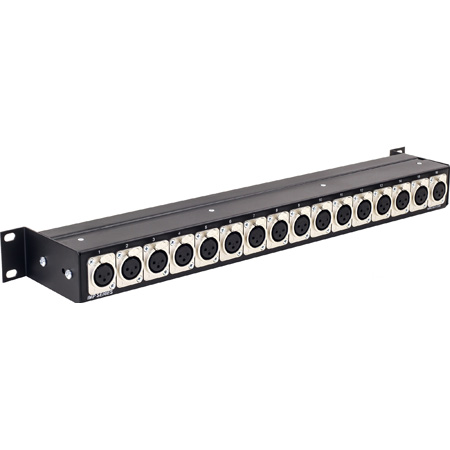

    The IMP-16F is part of Ward-Beck's IMP-16 series of high density Rack Mount impedance converter panels. It allows 75 Ohm coaxial transmission of AES/EBU digital audio signals. The conversion transformer changes a balanced 110 Ohm signal on XLR to an unbalanced 75 Ohm signal on a BNC type connector. The IMP-16F is a conveniently packaged one rack unit high panel that features sixteen 3 pin female XLR connectors on one side and sixteen BNC coaxial type connectors on the opposite side. At an additional cost, customers have the option to have 10 dB loss pads included when converting from 110 to 75 Ohms (Order code for this option: IMP-16F/10).


    • Features

      • Sixteen 110 to 75 Ohm converters in 1RU
      • Ideal for use where multiple XLR-3 type AES connectors are required
      • Occupies 1 RU
      • Panel mounted connectors promotes a neat and tidy installation
      • Rack mounting ears may be oriented in either direction to facilitate installation

    • Specifications

      • Input Level: 0.2 - 7.0 Vp-p
      • Input Impedance: 110 Ohm, Transformer balanced
      • Output Level: 0.1-4.3 Vp-p
      • Output Impedance: 75 Ohm AES/EBU unbalanced
      • Sampling Frequency: 32, 44.1, 48, 96 or 192 kHz
      • Jitter: Less than 5 ns
