Ward-Beck IMP-16M Impedance Transformer Panel - 16 XLR Male to BNC 1 RU

Manufacturer: Ward-Beck Systems Ltd.

Item #: WARD-IMP-16M   •   MFG #: IMP-16M



List Price:$600.00
Our Price:$599.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Special Order Item: non-cancelable, non-returnable, non-refundable.

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The IMP-16M is part of Ward-Beck's IMP-16 series of high density Rack Mount impedance converter panels. It allows 75 Ohm coaxial transmission of AES/EBU digital audio signals. The conversion transformer changes an unbalanced 75 Ohm signal on BNC type connector to a balanced 110 Ohm signal on an XLR male type connector.

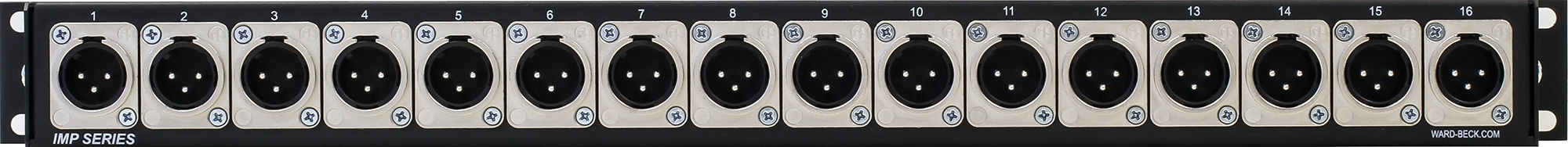

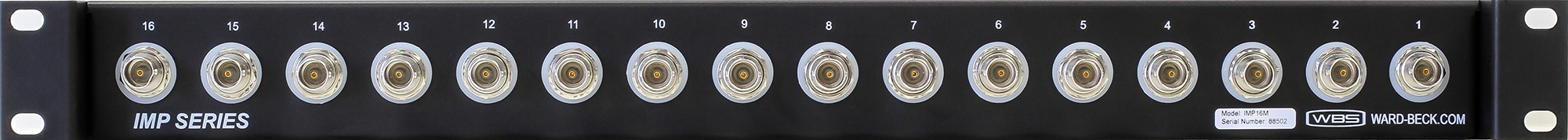

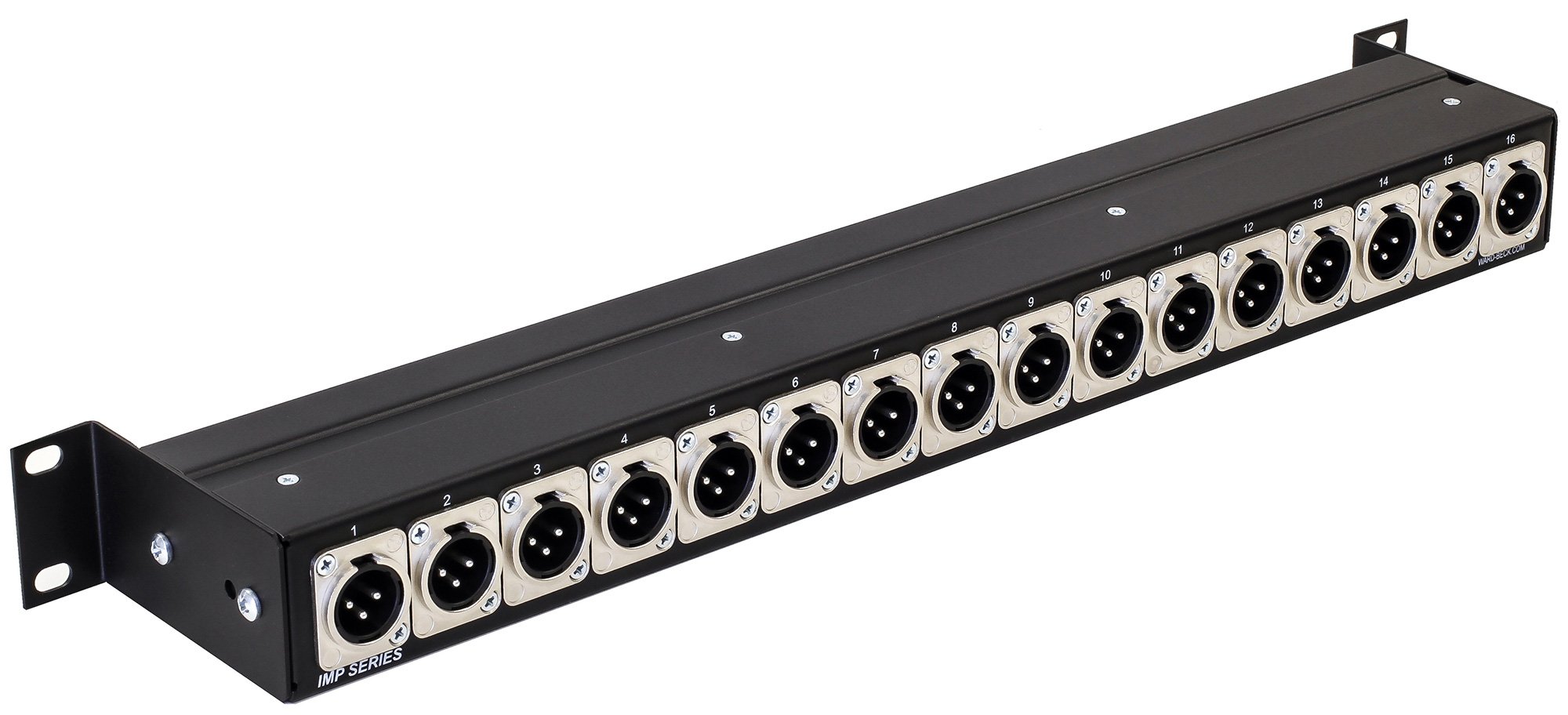

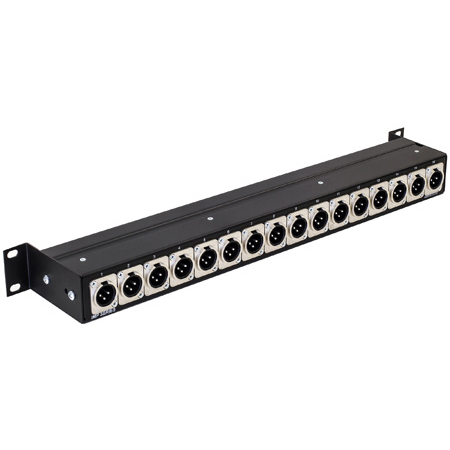

The IMP-16M is a conveniently packaged 1 Rack Unit high panel that features sixteen 3 pin male XLR connectors on one side and sixteen BNC coaxial type connectors on the opposite side. Ideal for use where multiple XLR-3 type AES connectors are required.


  • Features

    • Sixteen 75 to 110 Ohm converters in 1RU
    • ideal for use where multiple XLR-3 type AES connectors are required
    • panel mounted connectors promotes a neat and tidy installation
    • rack mounting ears may be oriented in either direction to facilitate installation

  • Specifications

    • Input Level: 0.32-1.2 Vp-p
    • Input Impedance: 75 Ohm unbalanced
    • Output Level: 0.37-1.4 Vp-p
    • Output Impedance: 110 Ohm, Transformer balanced
    • Sampling Frequency: 32, 44.1, 48, 96 or 192kHz
    • Jitter: Less than 5 ns
