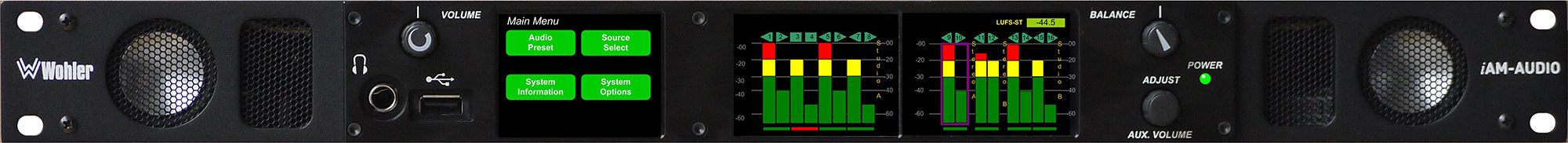

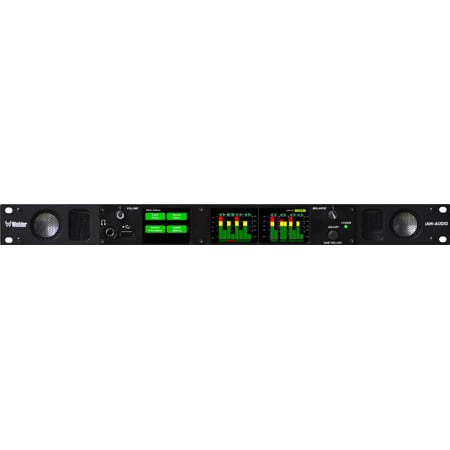

Wohler iAM-AUDIO-1 Versatile Audio Monitoring from Multiple Sources with Touch Screen Control and Graphical Metering

ITEM #: WOH-IAM-AUDIO-1 MFG #: IAM-AUDIO-1

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

800-522-2025Email

Items similar to the WOH-IAM-AUDIO-1

IAM-AUDIO-1 - Overview

Flexible. Adaptable. Future Proof.
Specifically designed for fast-paced OB, studio and live-to-air production environments, Wohler's iAM-MIX provides intuitive audio signal monitoring with instant access to signals or to user-definable presets of any individual signal source or a mix of sources for monitoring and mixing. Signal options include the latest IP formats: SMPTE 2110, SMPTE 2022, RavennaTM/AES67 and DanteTM

Choose from either 8 or 16 level controls, both with an independent master level control and instant mute capability and push-for-solo capability. Individual OLED display indicators show status, presence metering and channel name - which can be manually edited or automatically read from a network connected router.

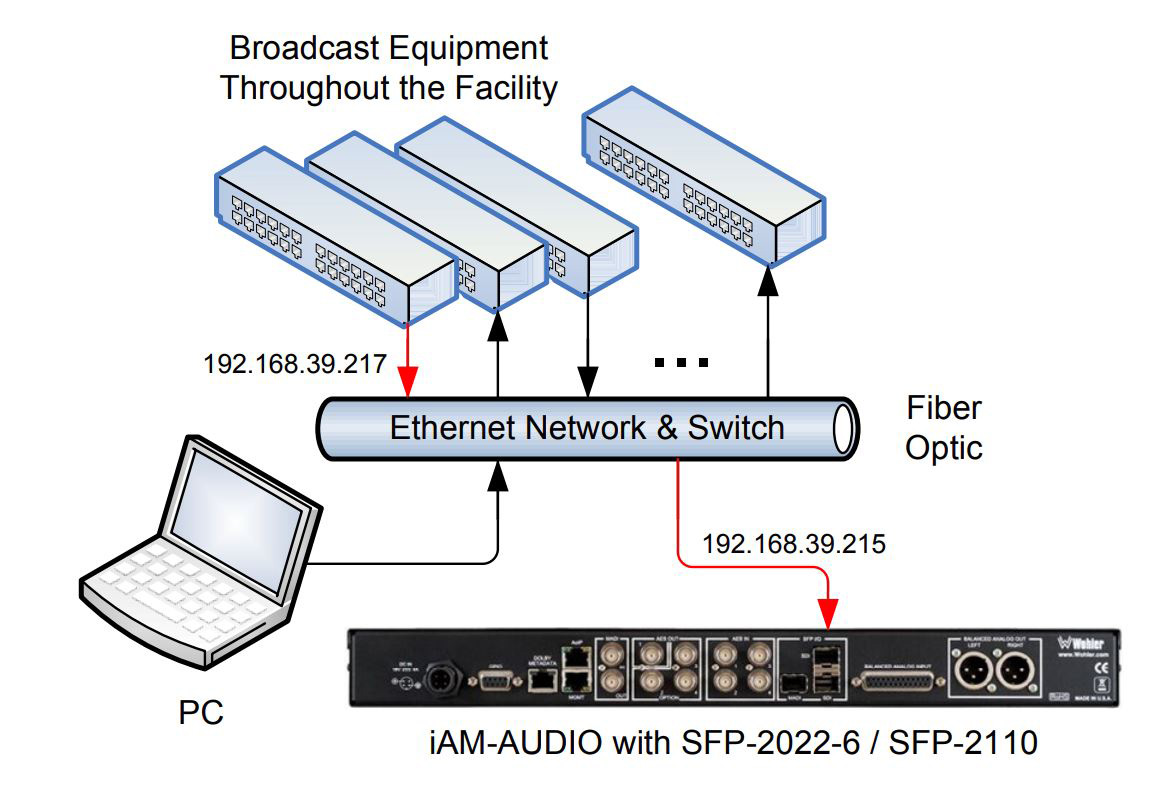

Multiple units on the same network can be controlled via a browser-based user interface that supports fast configuration with role-based authentication to protect critical setups. In short, iAM-MIX is the perfect solution for any application that requires a simple, compact solution for monitoring a range of audio signals.

Please note! Both the iAM MIX8 and MIX16 are analog ready meaning you do not need a software key for the DB25 balanced analog audio input or the 2 XLR balanced analog outputs.

  • Features:

    • Fast selection and summing of up to 8 audio channels, allowing quick muting and hold-for-solo
    • Master volume control that also provides a master mute/unmute
    • Channel names can be displayed for each input or pulled from a router
    • Built-in speakers, headphone jack, USB and Ethernet ports

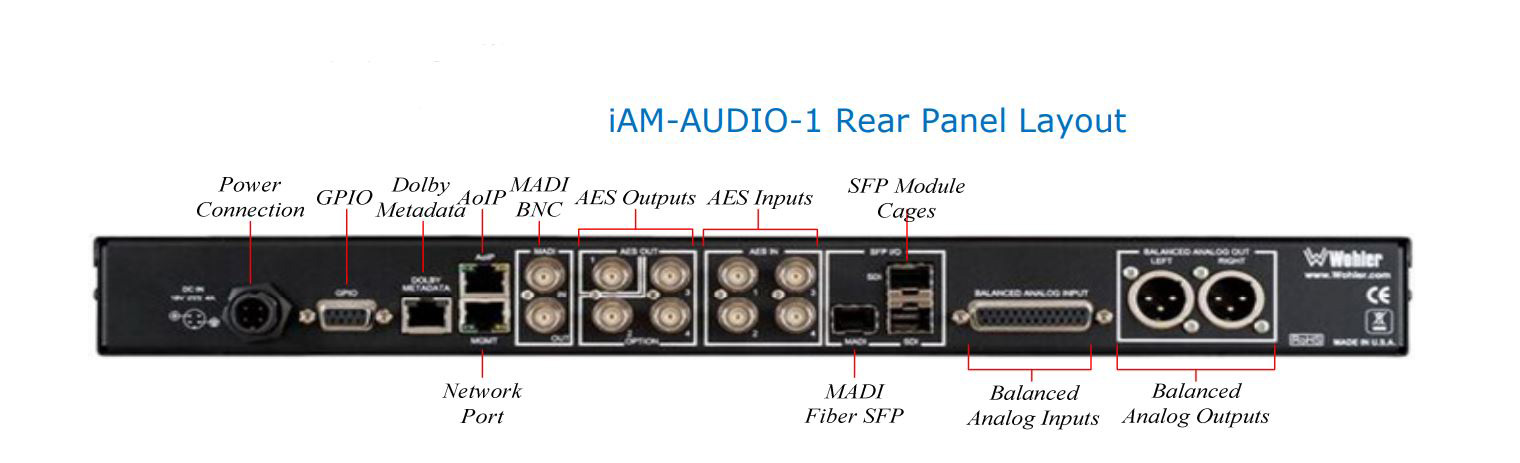

    • A range of included and optional connectors and signal processing options, including SFP slots for future I/O and Ethernet inputs for IP-based I/O
    • Store and retrieve presets up to 64 presets (16 accessible on front panel)
    • Software upgradeable via USB or network, upgrade multiple units at once
    • APIs included for remote control

  • Specifications:

    • AES Input Sampling Rate: 48 kHZ
    • Analog Input Impedance: 40k Ohms balanced
    • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
    • Hum and Noise: Better than -68 dB below full output
    • Peak Acoustic Output @ 2 feet: 90 dB SPL @ 2 feet
    • Power Output: RMS Each Side: 12W Continuous/24W Peak
    • Level Meters: OLEDx16
    • Audio Channels (max): 16
    • Front Panel Controls: 16 Channel Volume/Mute Encoders, Preset/Configuration Switch; 16 Activity Display Strips
    • Rack Height: 1RU
    • Dimension Width: 19.0" (483mm)
    • Dimension Height: 1.75" (45mm)
    • Dimension Depth: 7.5" (191 mm)
    • Speakers: Yes
    • Net Weight: 6.5 lbs. (2.9 kg)
    • Shipping Weight: 8.5 lbs (3.9 kg)
    • Power Consumption: 30 Watts typical
    • Power Supply: External 18VDC to 100-240 VAC ± 10%, 50/60 Hz,CE & UL approved.

  • Warranty:

    • 2 Years
