Wohler OPT-OUTPUT ROUTING Number 829159 - Software Activation Key For IAM-MIX16 Only


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Software Download
iAvailability Description Popup
  • The link of this software download is generated by the brand manufacturer. Please allow processing time usually within 24 hours.
  • This item is not returnable. See Terms & Conditions for details.

IAM-MIX16OUT - Overview

Enables the ability to flexibly route input signals to various outputs. Requires a software activation key.

The iAM-MIX16-OUT is an option for iAM Series products. This option enables the ability to flexibly route input signals to various outputs. Requires a software activation key. The Common Output Routing licensed feature allows channels to be routed or combined and routed in custom ways to various destination outputs. Common Output routing is applied to signals monitored using "Input Source select" from the Front Panel, and presets that have been created to apply the COR. Any change to the COR will affect the Presets that have "Apply COR" selected.

For example, multiple channels of an 7.1 channel program can be combined and directed to the left or right internal speakers. Six or eight channels could be directed to the AES outputs, which could feed an external surround sound system. Contact Wohler Sales to purchase the license for this feature. If Common Output Routing is not licensed, then any of the iAM-MIX inputs can be monitored in stereo or mono only through the internal speakers. The headphone jack, the analog XLR outputs, and the first AES output will follow whatever is directed to the speakers.

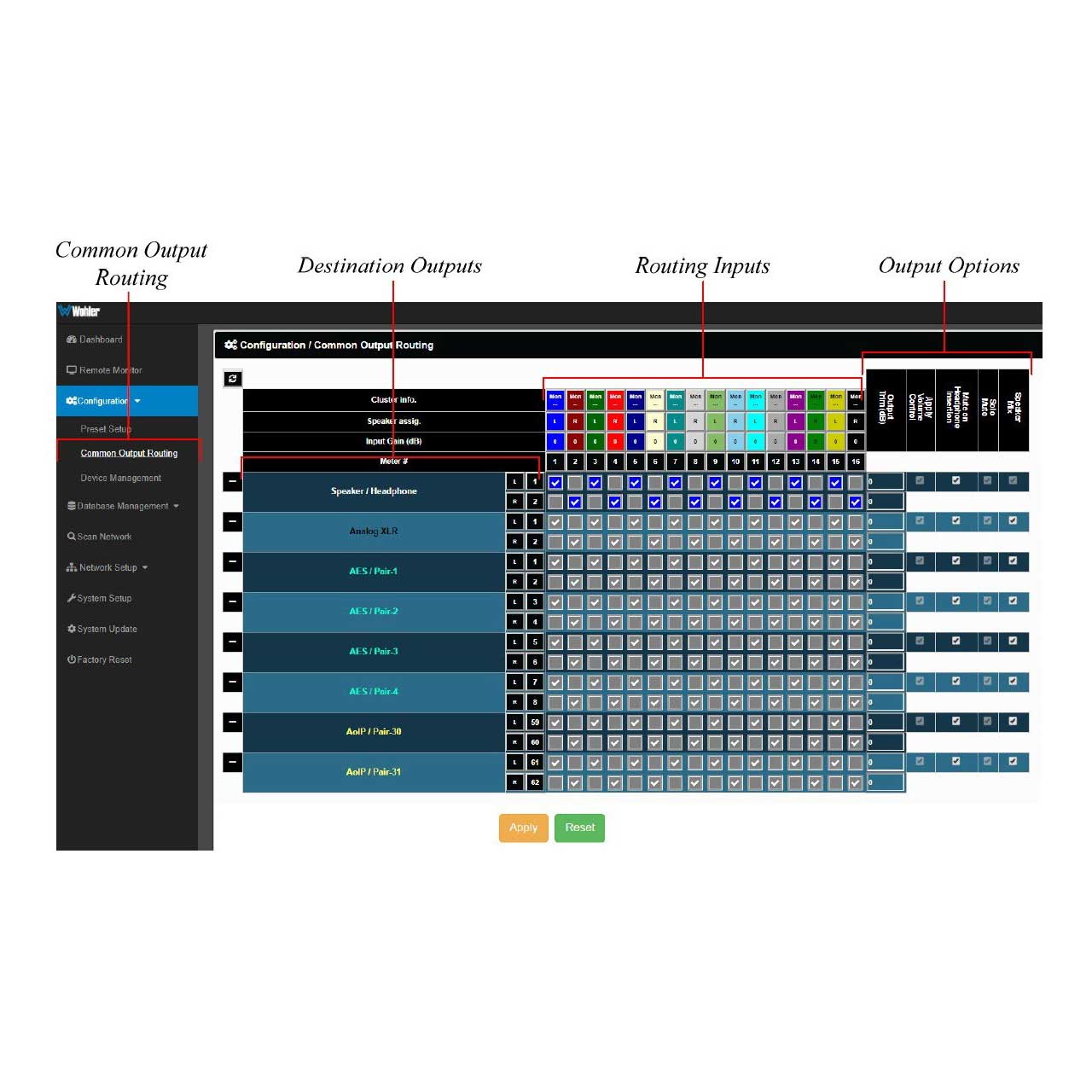

When licensed, select Common Output Routing under Configuration. This will display the Common Output Routing (COR) screen. This screen contains a matrix which forms an easy way for you to set up the wide variety of input to output routing and mixing capabilities. Software activation key can be purchased separately for the the iAM Series iAM-MIX8 and iAM-MIX16.

  • Specifications:

    • 3G/HD/SD-SDI Output: OPTIONAL: SFP-SDI (829089): 3G/HD/SD-SDI single video receiver w/ active loopback, HD-BNC
    • AES3 Output: 1 AES output pair on BNC of mix to speakers
    • Analog Output: 2 on XLR of Mix to speakers
    • Presets: Yes
