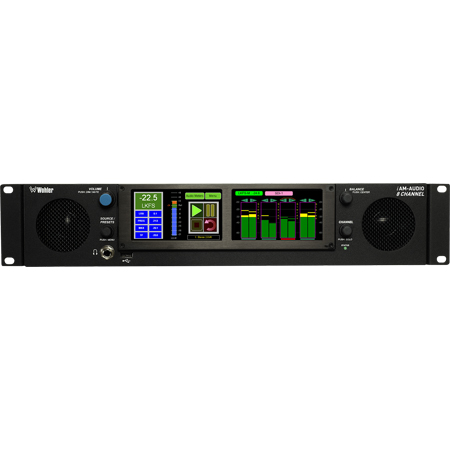

Wohler iAM2-8 2RU Dual Screen 8 Channel Dual Input 3G/HD/SD-SDI Audio Monitor with Touch Screen Controls

ITEM #: WOH-IAM-AUDIO2-8 MFG #: IAM2-8

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the WOH-IAM-AUDIO2-8

IAM2-8 - Overview

An Audio Monitor that provides Value for Money!
The Wohler iAM2-8 is an easy to use 8 channel IP ready audio monitor which comes standard with 3G-SDI and Analog inputs, loudness monitoring and phase status. It is intended for those end users who only need 8 channels of monitoring and want a price break from our fuller-featured units. License other signal formats and processing options, including Dolby, AoIP, Toslink and 8 channel Analog, as and when needed, either initially or after purchase.

Flexible. Adaptable. Future Proof.
iAM2-8 is designed to be easy to operate, providing fast access to meters, menus and presets. Options for additional signals, including AES3, MADI64, DanteTM, RavennaTM, SMPTE-2110 and SMPTE-2022-7.

All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored and controlled via a browser-based user interface that supports fast configuration with role-based authentication that protects critical configurations from unauthorized alteration.

  • Features:

    • Audio monitoring (up to 8 channels) from multiple sources
    • Up to 64 presets

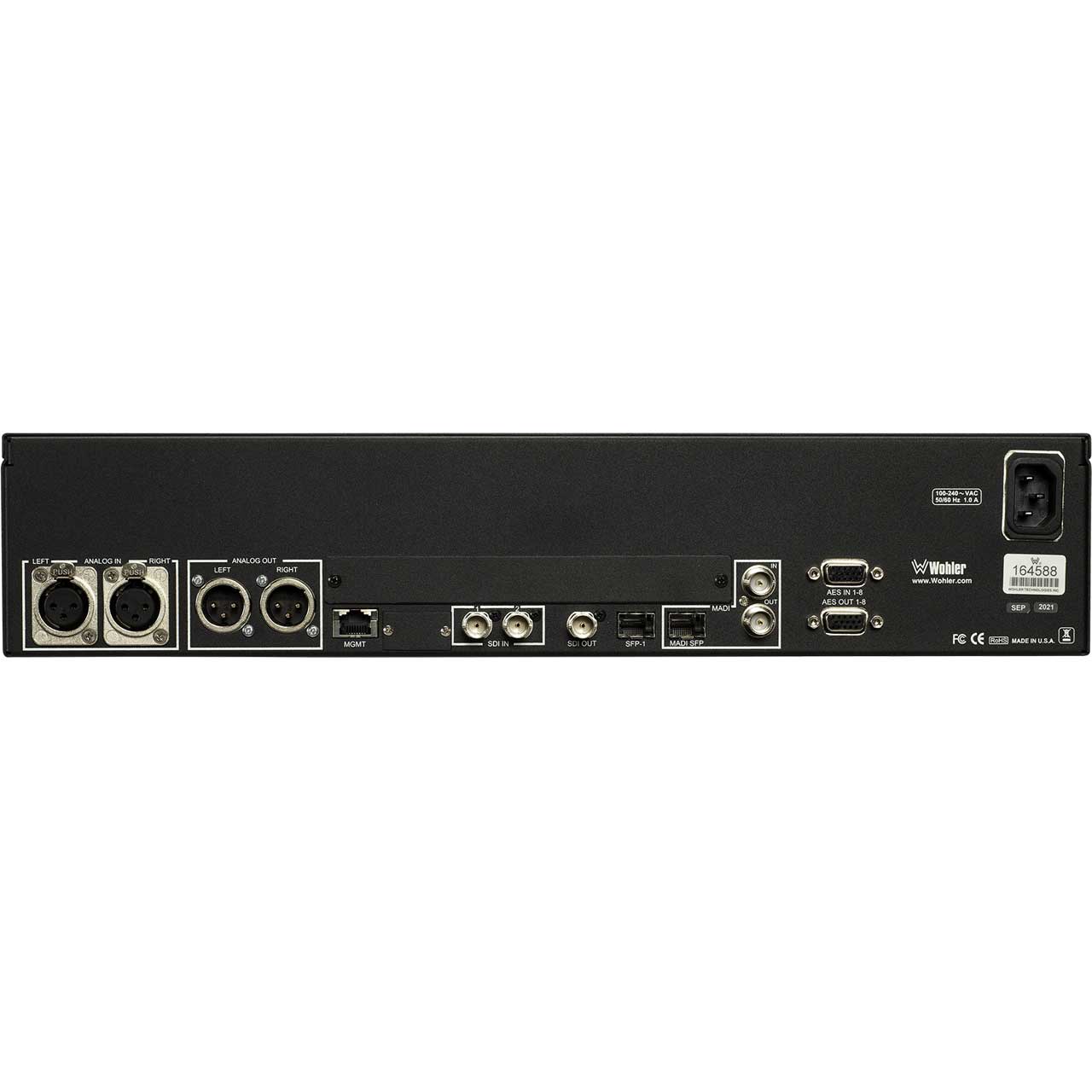

    • 2 x 3G-SDI Inputs on BNC; 1 x 3G-SDI Output on BNC + 1 pair Analog in/out on XLR
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Optional I/O for AES3 on HD-15 (incl selected audio source converted to AES3 out),
    • MADI on BNC (looped out), and SMPTE 2110 or SMPTE 2022 via SFP
    • Phase status + Measure Audio Loudness using ITU-R BS.1770 or EBU R128 standards
    • Option cards for AoIP or an additional 8 channels of analog inputs and outputs
    • Software upgradeable via USB or network
    • APIs for remote management


  • Specifications:

    • Speaker Power Output: RMS Each Side: 15W Continuous/30W Peak
    • Peak Acoustic Output @ 2 feet: 104 dB SPL @ 2ft
    • AES Input Sampling Rate: 48 kHZ
    • Analog Input Impedance: 40k Ohms balanced
    • Frequency Response: 150 Hz to 16 kHz (+/-dB) acoustic, 40 Hz to 20 kHz (+/-1dB) electrical
    • Hum and Noise: Better than -75 dB below full output
    • Meter Dynamics: Simultaneous VU & PPM
    • Display Type: Capacitive LCD Touchscreen
    • Number of screens: 2
    • Diagonal Display Size: 4.3" (109 mm) LCD Capacitive Touchscreen x 2
    • Display Resolution (HxV): 480Hx272V
    • Viewing Angle: 160 (H) x 160 (V)
    • Rack Height: 2RU
    • Power Consumption: 60 Watts typical
    • Power Supply: Internal 100-240 VAC ± 10%, 50/60 Hz, CE & UL approved.
    • Dimension Width: 19.0" (483mm)
    • Dimension Height: 3.5" (90mm)
    • Dimension Depth: 5.5" (140mm)
    • Net Weight: 12.0 lbs. (5.5 kg)
    • Shipping Weight: 12.0 lbs (5.5 kg)
    • Shipping Dimensions: 23 x 12 x 7.5 in (LxWxH)


  • Item Includes:

    • 1x Wohler iAM2-8 2RU Dual Screen 8 Channel Dual Input 3G/HD/SD-SDI Audio Monitor with Touch Screen Controls
