Wohler iAM1-MIX8-12G 8 Channel or 8 Pair 12G-SDI and Analog Audio Monitor and Mixer with Optional 2022-6 Support

ITEM #: WOH-IAM1-MIX812G MFG #: 8121-0420

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$8,295.00

Our Price:

$7,465.50

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


8121-0420 - Overview

Flexible. Adaptable. Future Proof.

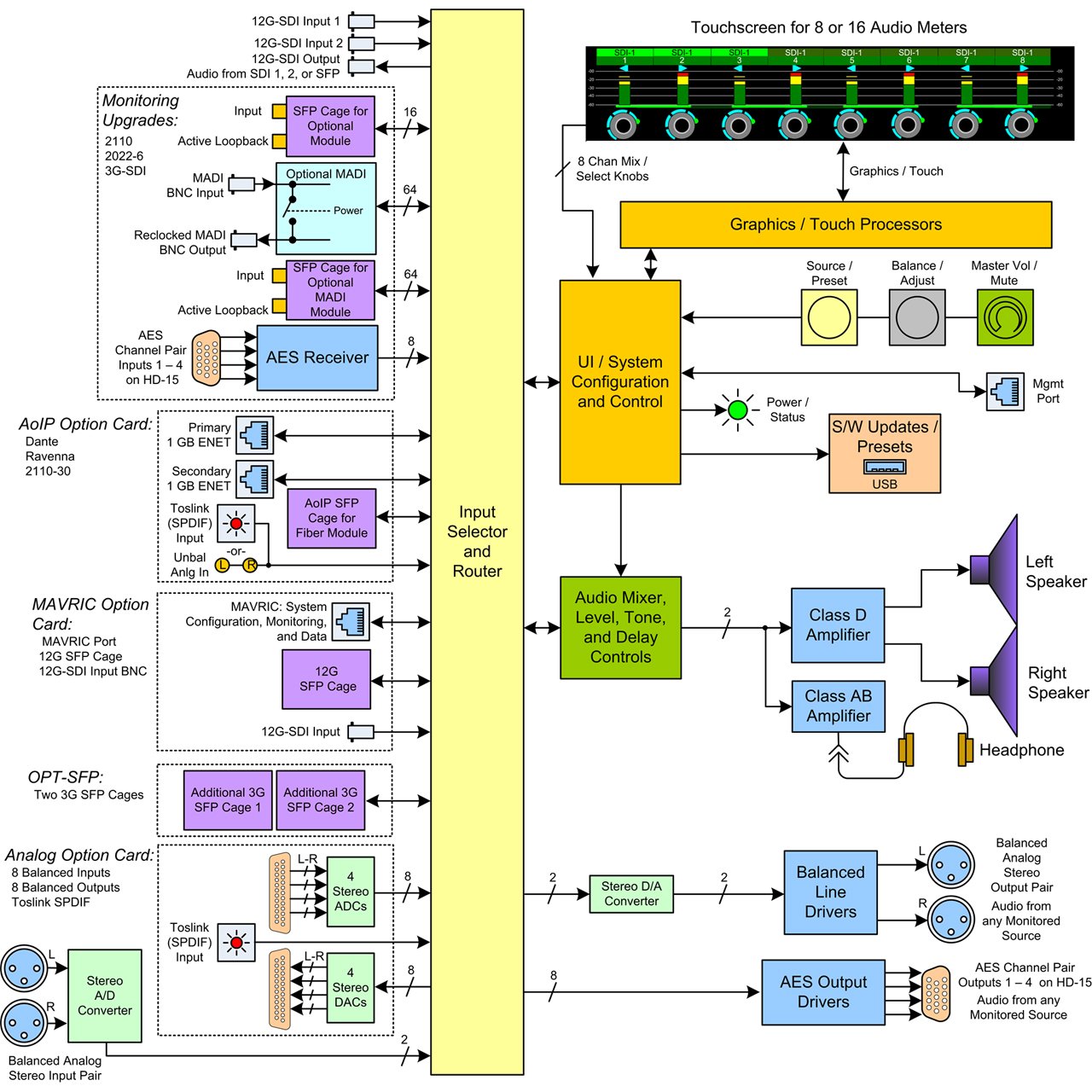

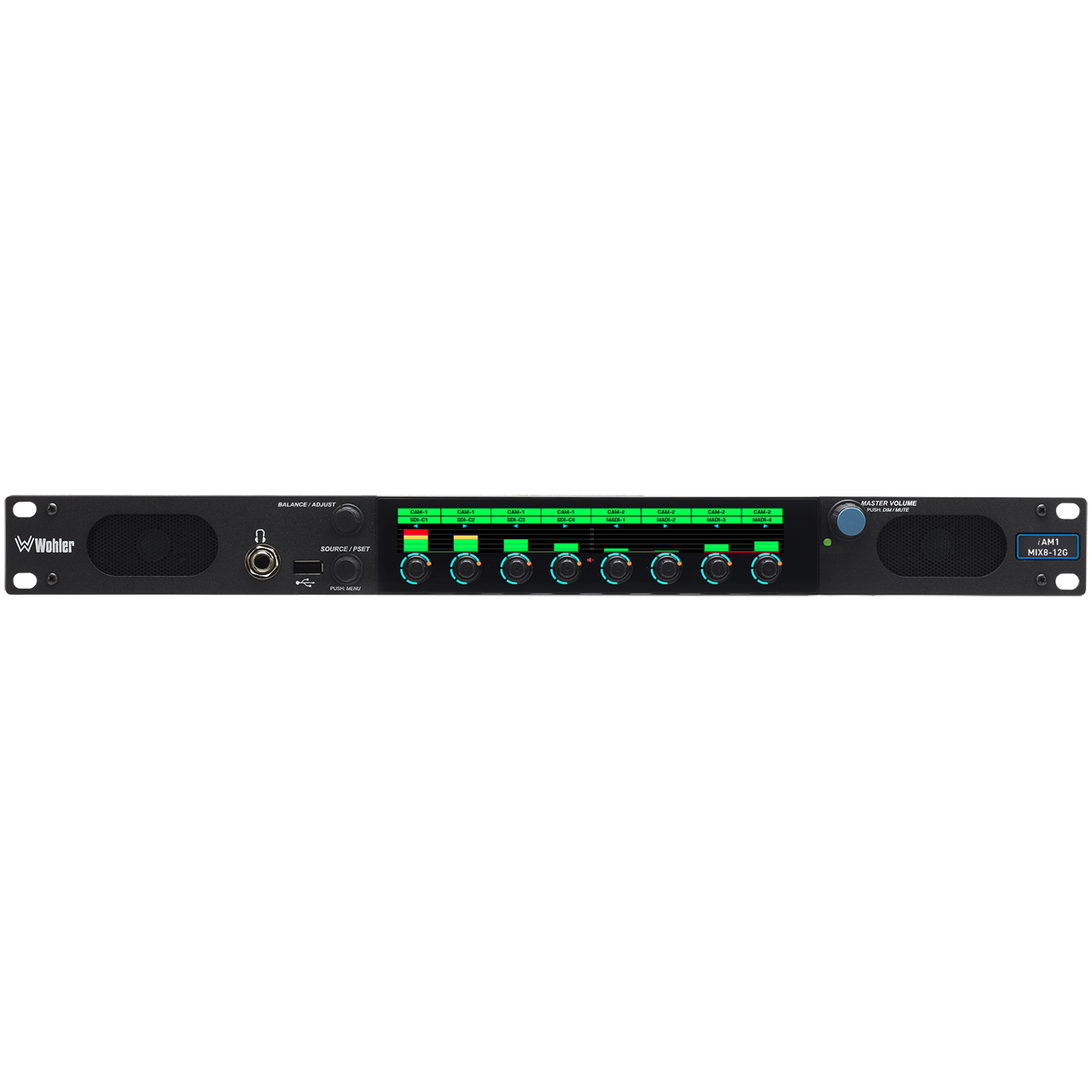

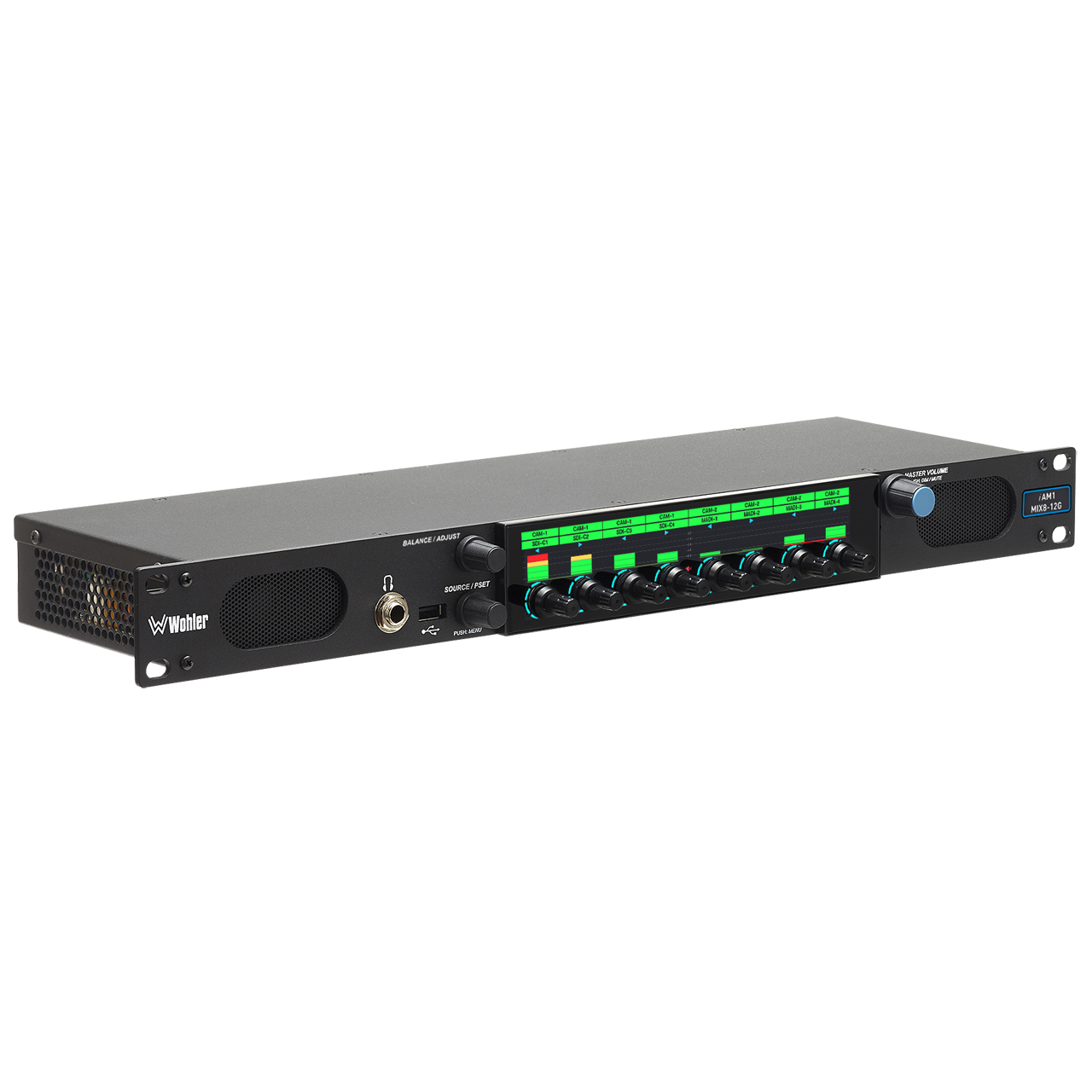

The Wholer iAM1-MIX8-12G is a 1RU single 7" touchscreen 8 channel Dual Input, 12G/3G/HD/SD-SDI, Audio Monitor with touch screen control and 8 hardware encoders. The design emphasizes individual mechanical controls for sum, mute and solo operations. This latest model of the MIX series has been enhanced with upgraded screen graphics and includes a touch screen, while retaining the individual channel rotary encoders. As part of the iSeries product line, it is a well featured and competitively priced IP ready audio monitor and mixer. The iAM-MIX8 can be configured to operate in either single channel (8 channel) or pair mode (16 channel).

Standard features include 12G-SDI and a pair of Analog inputs and outputs. Upgrade/license other signal formats and processing options, as and when needed, either initially or after purchase.

The unit includes built-in support for remote monitoring provided by our MAVRIC software applications suite. All iAM Series monitors contain an onboard web server. Multiple units on the same network can be updated, monitored, and controlled via a web-based user interface.

  • Features:

    • Fast selection and summing of up to 8 channels or 8 pairs (16 channels)
    • Master volume control that also provides a master mute/unmute
    • Channel names can be displayed for each input or pulled from a router
    • HDMI output of the monitored video source included.
    • Choose between AoIP, an additional 8 channels of analog inputs and outputs, 2 additional SFP cages, or a 12G/MAVRIC option card.
    • Store and retrieve up to 64 presets
    • Optional Output routing enables the flexibility to route input signals to various outputs
    • Built-in speakers, headphone jack, USB and Ethernet ports.
    • APIs for remote management and easy integration with 3rd party control systems.

  • Specifications:

    • Dimensions (WxHxD):
      - 1RU in Standard 19" Rack: 19" x 1.75" x 5.5" (483mm x 45mm x 140mm)
      - Shipping Dimensions: 23" x 6" x 12"
    • Shipping Weight: 8.0lbs (3.6kg)
    • Net Weight: 5.5lbs (2.5kg)
    • Power Consumption/Supply: 65W Typical, 18V DC, 100V - 240V AC ± 10%, 50-60Hz, CE & UL approved
    • Display Type/Resolution: 7" (178mm) LCD Capacitive Touchscreen; 1242H x 280V
    • Viewing Angle: 160° (H) x 160° (V)
    • Audio Channels: 8 or 16

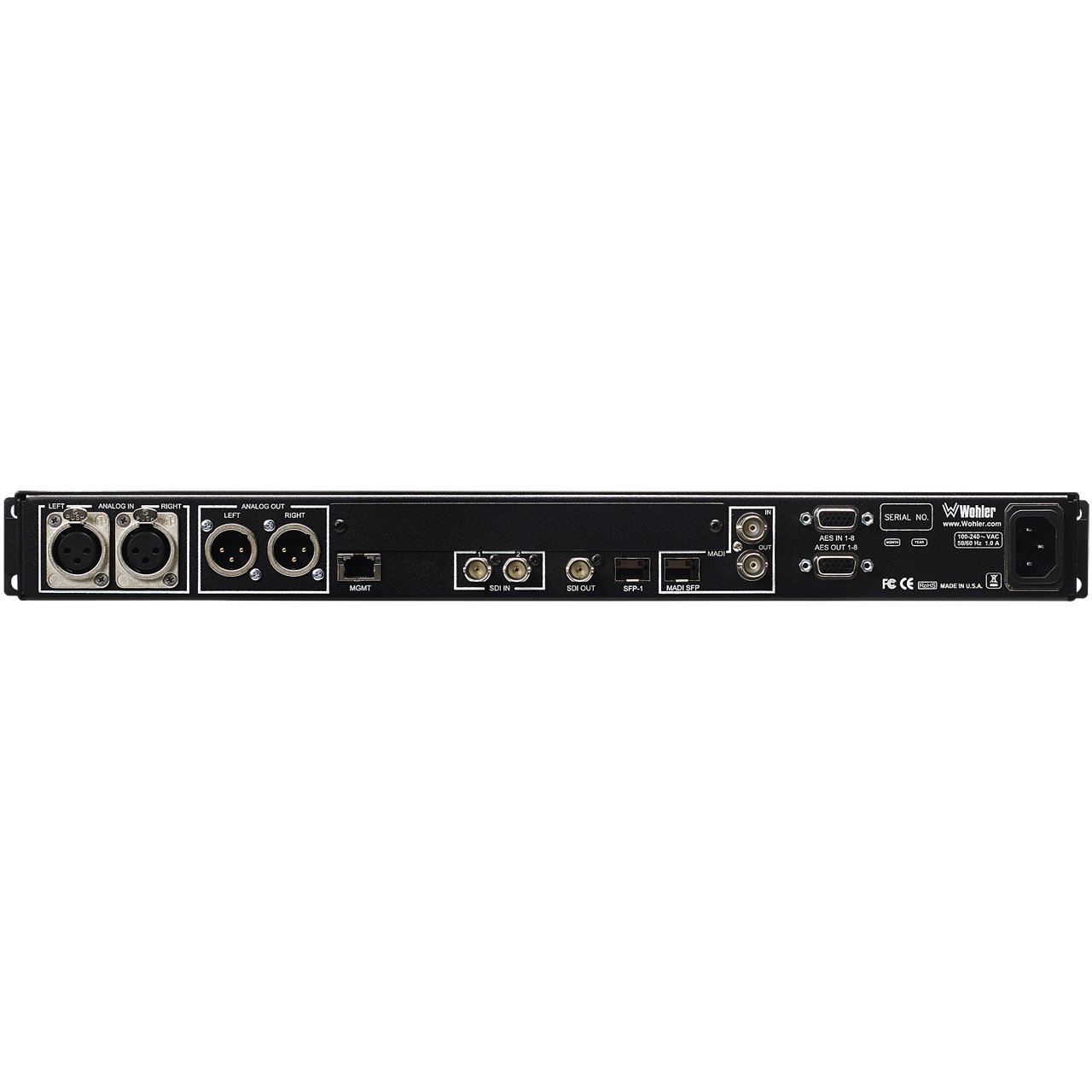

    • Standard I/O:
      - 2x 12G-SDI Inputs on BNC
      - 1x 3G-SDI Output on BNC + 1 pair Analog I/O on XLR.
      - HDMI Output of the Mnitored Video Source Included
    • Optional I/O:
      - For AES3 on HD-15
      - MADI on BNC (looped out)
      - SMPTE 2110 or SMPTE 2022 via SFP
    • Hum & Noise: Better than -68dB below full output
    • Peak Acoustic Output: 90dB SPL @ 2 feet
    • Speaker Power Output: 5W RMS per side, 12W Peak
    • Presets: Up to 64 programmable/nameable. Can be copied from unit to unit via USB or GUI software and Ethernet
    • Upgrades: Via USB or GUI
    • Router Integrations: Units support Evertz, Grass Valley & Tallyman protocols for automated display of channel labels
    • APIs: Get Available Presets; Get Preset Information; Get Active Preset; Apply Preset; Set Mute/Unmute Channel; Set Solo Channel; Source Select

  • Item Includes:

    • 1x Wohler iAM1-MIX8-12G 8 Channel and 8 pair 12G-SDI and Analog Audio Monitor and Mixer
    • 1x Power Cord

  • Warranty:

    • 1 Year Limited Warranty
