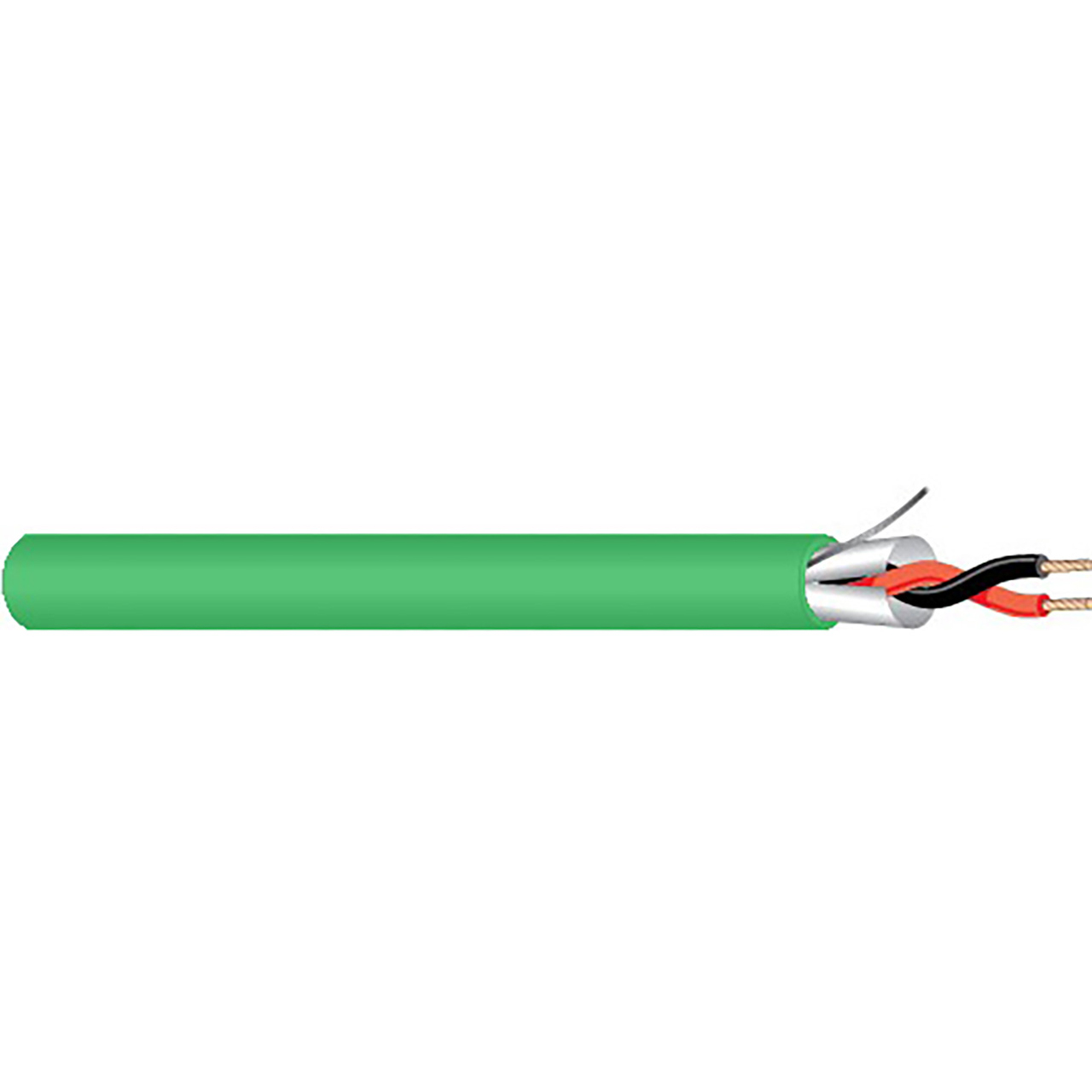

West Penn 25291B Flexible Twisted Pair Plenum Audio Cable - 1000 Foot - Green

25291BGN1000 - Overview

Flexible Twisted Pair Plenum Audio Cable 1000 ft Black

• Specifications:

  Conduction Parameter
  • Number of Conductors: 2
  • AWG Size: 22
  • Conductor Stranding: 7x32
  • Conductor Type: Bare copper
  • Nominal DCR: 17.5Ω/1000ft
  • Cabling Lay Length: 2.5"
  • Twists/Foot 4.8 twist/f

    Insulation Parameter
  • Insulation Type: Plenum PVC
  • Insulation Thickness: 0.008"
  • Insulation Color Code: 1. Black 2.Red

    Shielding Parameter
  • Shield Type: Overall 100% Aluminum Foil
  • Drain Wire Type: Tinned Copper
  • Drain Wire AWG: 24 AWG

    Electrical Characteristics
  • Nom. Cap. Between Conductors: 54pF/ft
  • Nom. Cap. Conductor to Shield: 97pF/ft

    Overall Construction
  • Jacket Type: Flexible Plenum
  • Jacket Thickness: 0.015"
  • Nominal Cable O.D.: 0.116"
  • Plenum: Yes
  • NEC UL Rating: CMP
  • RoHS Compliant: Yes
  • Pull Tension: 28lbs
  • Bend Radius: 1.044"
  • Cable Weight: 11lbs

    Overall Electrical & Optical Characteristics
  • UL Flammability: NFPA 262 Plenum
  • Operating Range: 32°F - 140°F (0°C - 60°C)
  • UL Voltage Rating: 300


• Item Includes:

  • 1x West Penn Wire 25291BGN1000 1000' cable
