West Penn 25Q841 RG6/U Type CATV Coaxial Cable Plenum - Black - 500 Foot

ITEM #: WP-25Q841-500BK MFG #: 25Q841BK0500

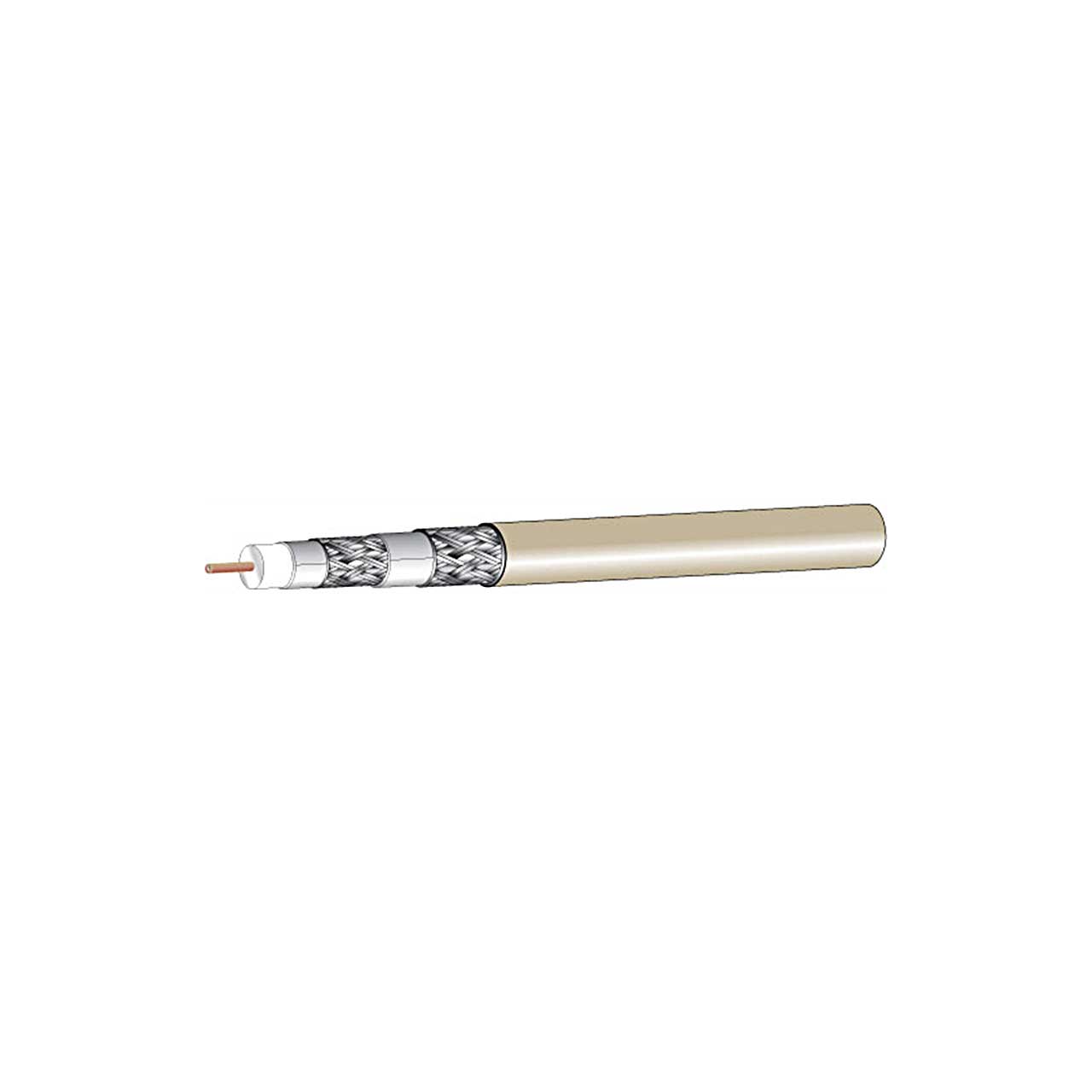

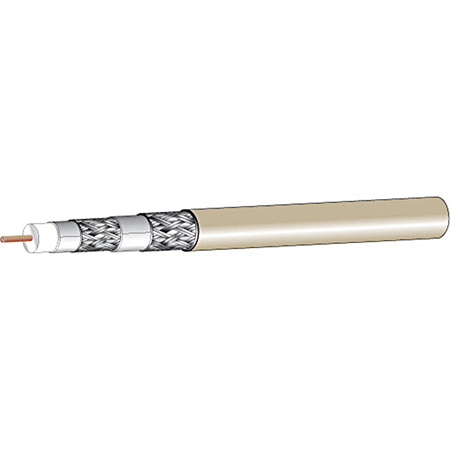

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$347.65

Our Price:

$339.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


25Q841BK0500 - Overview

RG6/U – 1 Conductor 18 AWG Solid, Quad-Shield and an overall Plenum PVC Jacket.

  • Specifications:

    • Construction Parameters
    • Conductor: 18 AWG Bare Copper
    • Stranding: Solid
    • Insulation Material: Foam FEP
    • Insulation Thickness: .170” Nom.
    • Number of Conductors: 1 Center Conductor
    • Shield: Quad-Shield- 100% Al foil + 65% Al. Braid + 100% Al. Foil + 55% Al. Braid
    • Jacket Material: Flexible Plenum PVC
    • Overall Cable Diameter: 0.273" Nom.
    • Approximate Cable Weight: 36 Lbs/1M' Nom.
    • Flame Rating: NFPA 262
      Electrical and Environmental Properties
    • Temperature Rating: -20°C to 60°C
    • Max.Capacitance Between Conductors at 1 KHz: 16.2 pf/ft Nom.
    • Velocity of Propagation: 82% Nom.
    • Impedance: 75 ohms Nom.
    • DC Resistance per Conductor at 20°C: 6.5 Ohms/1M' Nom.
    • Jacket Color: Ivory
    • RoHS Compliant: Yes
      Mechanical Properties
    • Maximum Recommended Pull Tension: 125 lbs.
    • Minimum Bend Radius (Install): 2.7”

  • GTIN:

    0612825044819


25Q841BK0500 - Required Accessories
