Yamaha DBR Series DBR12 1000 Watt Class-D Powered Loudspeaker - 12in LF - 1.4in HF Compression Driver - 2-Channel Mixer

ITEM #: YMH-DBR12 MFG #: DBR12

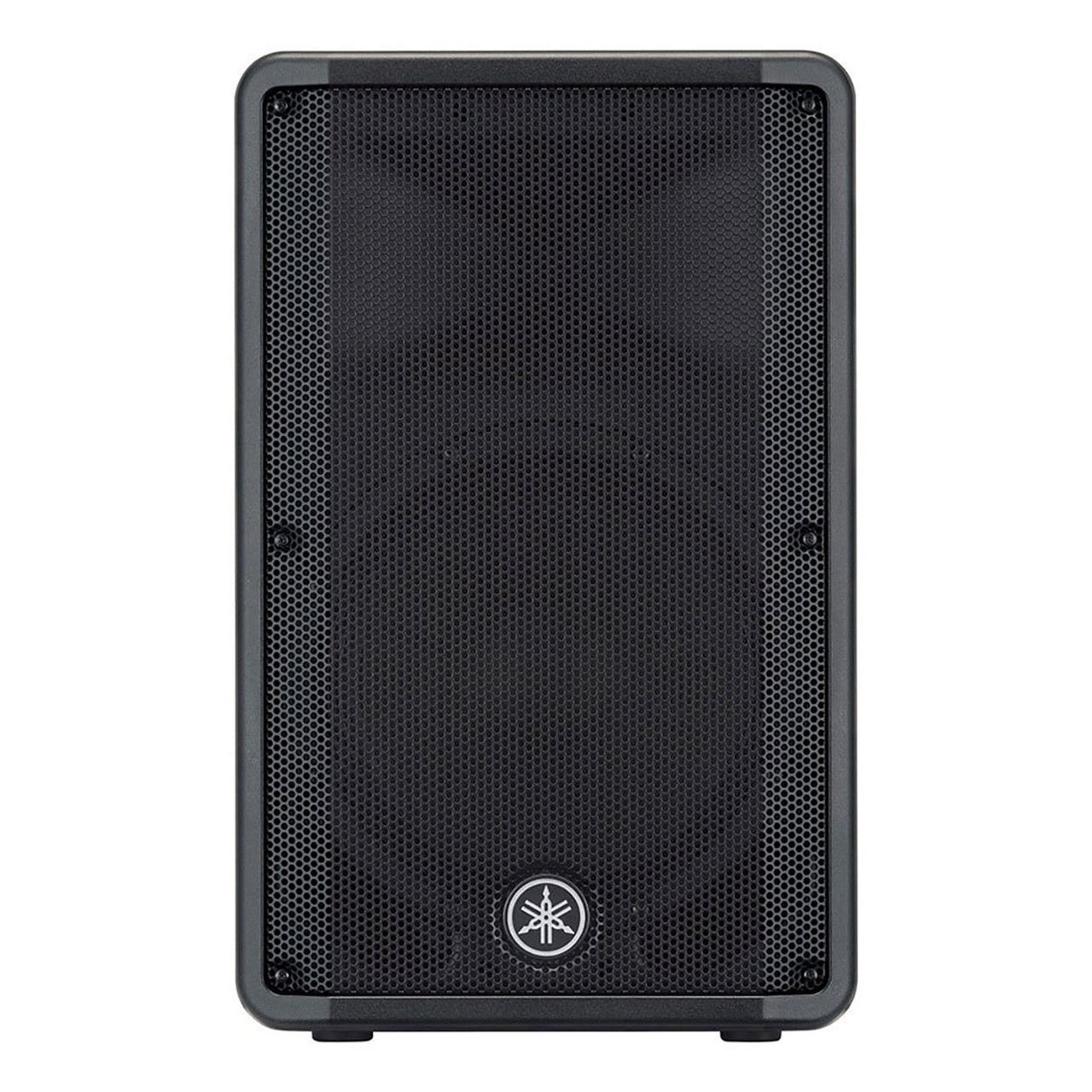

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$611.00

Our Price:

$459.99

After Savings:

$390.99

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Yamaha Summer Instant savings!Enjoy Instant Savings this summer on select Yamaha gear and products! Get yours today through Markertek while the savings last!


DBR12 - Overview

The Yamaha DBR12 achieves best-in-class SPL of up to132dB and delivers the lowest frequency in its lineup. The DBR15 delivers outstanding performance for the main front-of-house sound for the live performance or DJ events that require highly prominent low and more power.

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band's live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.

  • Features:

    • High-Efficiency 1000W Class-D Amplifiers
    • Custom Designed Transducer
    • A Rugged, Highly Portable Cabinet
    • Easy-to-use Onboard 2-Channel Mixer

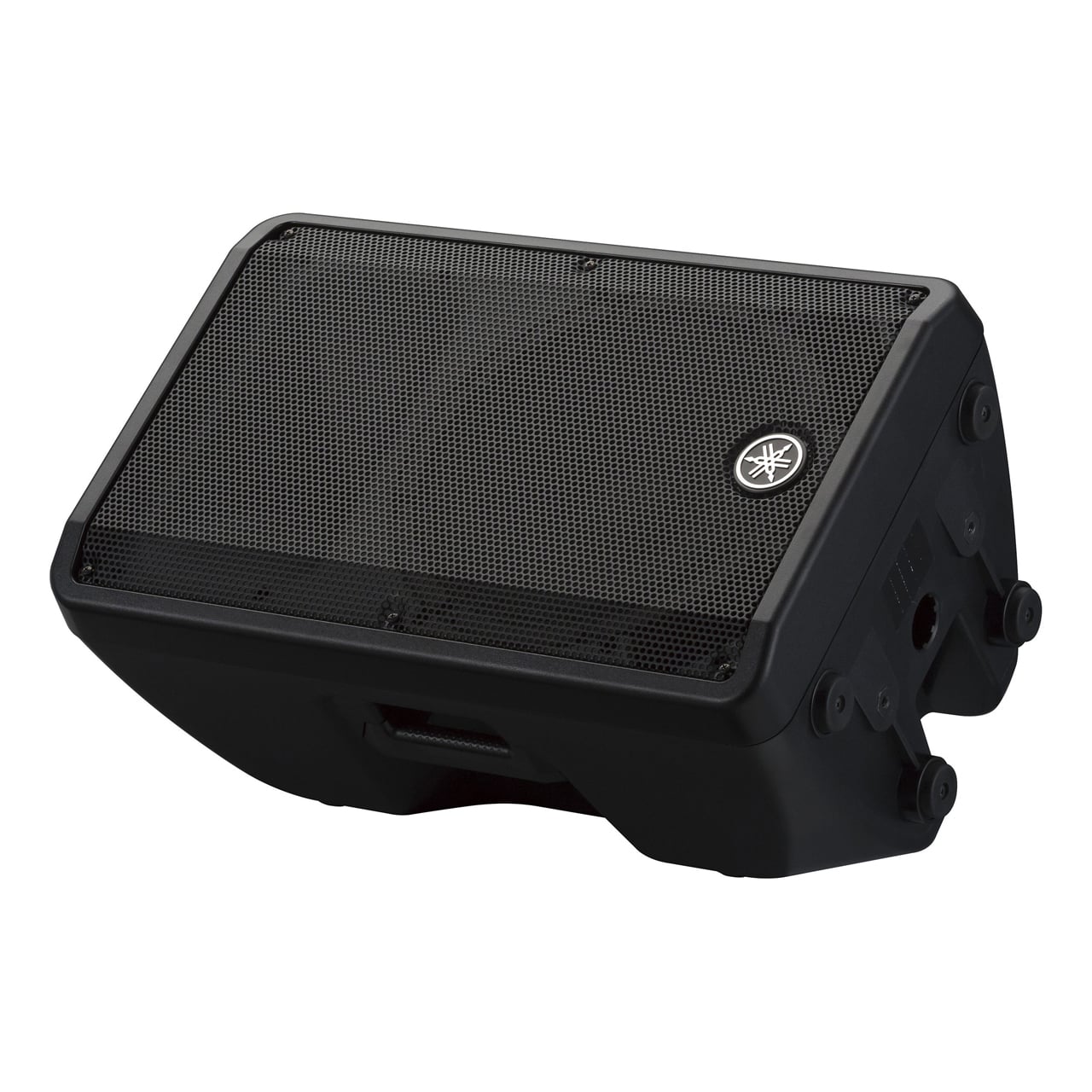

    • Smart Enclosure Design for Floor Monitoring
    • Rigging Points for Installation Applications

  • Specifications:

    • Speaker Type: 2-way, Bi-amp powered speaker, Bass-reflex type
    • Frequency Range (-10dB): 52Hz - 20kHz
    • Nominal Coverage:
      • H: 90°
      • V: 60°
    • Components:
      • LF:
       - Diameter: 12" cone
       - Voice Coil: 2"
       - Magnet: Ferrite
      • HF:
       - Diaphragm: 1.4"
       - Type: 1" throat compression driver
       - Magnet: Ferrite
    • Crossover: 2.1kHz: FIR-X tuning (linear phase FIR filter)
    • Output Power:
      • Dynamic: 1000W (LF: 800W, HF: 200W)
      • Continuous: 465W (LF: 400W, HF: 65W)
    • Maximum Output Level (1m; on axis): 132dB SPL
    • I/O Connectors:
      • Input 1: 1x Combo
      • Input 2: 1x Combo + 2x RCA pin (Unbalanced)
      • Output: 1x XLR3-32 (CH1 Parallel Through or CH1+CH2 Mix)
    • Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
    • Heat Dissipation: Fan cooling, 4 speeds
    • Power Requirements: 100V, 100V - 120V, 220V - 240V, 110V/127V/220V (Brazil), 50/60Hz
    • Power Consumption:
      • 74W (1/8 Power Consumption)
      • 18W (Idle)
    • Cabinet Material: Plastic
    • Finish: Black
    • Handle: 2x Side
    • Flying and Mounting Hardware:
      2x Bottom
      1x Rear (Fit for M8 x 15mm eyebolts)
    • Pole Socket: 35mm (Bottom 1x)
    • Dimensions: 17.9" x 27.6" x 14.9"
    • Weight: 42.6lbs

  • Item Includes:

    • 1x Yamaha DBR12 Powered Loudspeaker
    • 1x AC Power Cord

  • Warranty:

    • 1 Year Limited Warranty
