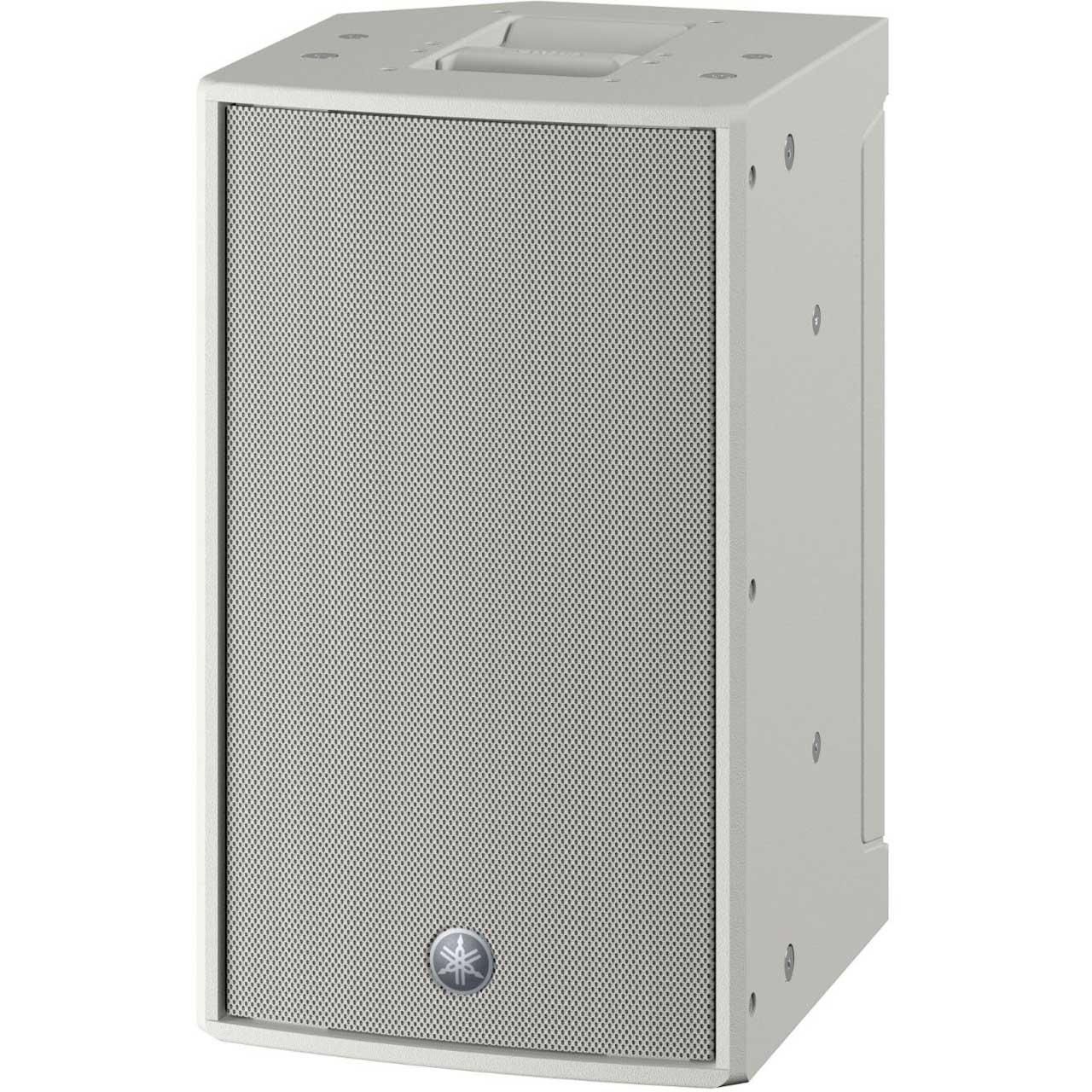

Yamaha DZR10-DW 2000 Watt Dante Powered Speaker w/ 10in LF/2in Titanium Compression Driver Rotatable 90x60 Horn - White

ITEM #: YMH-DZR10-DW MFG #: DZR10-DW

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$2,549.00

Our Price:

$1,699.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    DZR10-DW - Overview

    The Yamaha DZR10-DW is a Dante-equipped 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 137dB. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10-D realizes a truly professional sound delivered with a level of power that belies its compact, lightweight design.

    Power and Performance. Integrated.
    Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency bass sound reproduction -- the DZR delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design.

    How Low Can You Go?
    Not for the faint of heart, the newest DXS XLF's go deeper than any model before, with an extended low frequency of 30Hz -- perfect for professional touring musicians, DJ's, and sound engineers who need that extra-low, thundering bottom end that you just can't get from other subwoofers in this class. Flexible DSP and a bass-reflex cabinet design with a wide, flared port ensure your lower frequencies maintain outstanding clarity and musicality even when the volume is cranked.

    Finish
    The fact that speakers must sound good goes without saying, but in permanent installations they have to look good and match the interior of the venue, too. Yamaha DZR Series Speakers and DXS XLF subwoofers are available in black or white.

    • Features:

      • 2-way powered loudspeaker with a 2" HF and a 10" LF
      • Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today's audio engineering demands
      • High power 2000W Class-D amplifier module
      • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
      • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
      • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
      • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
      • D-Contour and highly reliable protection circuits
      • Floor monitoring setting
      • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
      • Optional speaker cover(SPCVR-DZR10)
      • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement
      • Durable Black or White finish

    • Specifications:

      • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
      • Frequency range (-10dB): 44Hz - 20kHz
      • Coverage area: H90° x V60° (Rotatable)
      • Components: LF: 10" Cone, 3" Voice Coil, Neodymium magnet, HF: 2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
      • Crossover: 1.8kHz (FIR-X)
      • Sampling frequency rate: Internal: 96kHz and FIR Filter
      • A/D D/A Converters: 96kHz AD/DA
      • Maximum output level (1m; on axis): 137dB SPL
      • SRC: Yes

        Power rating
      • Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
      • Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
      • Continuous: 950W (LF: 850W, MF/HF: 100W)

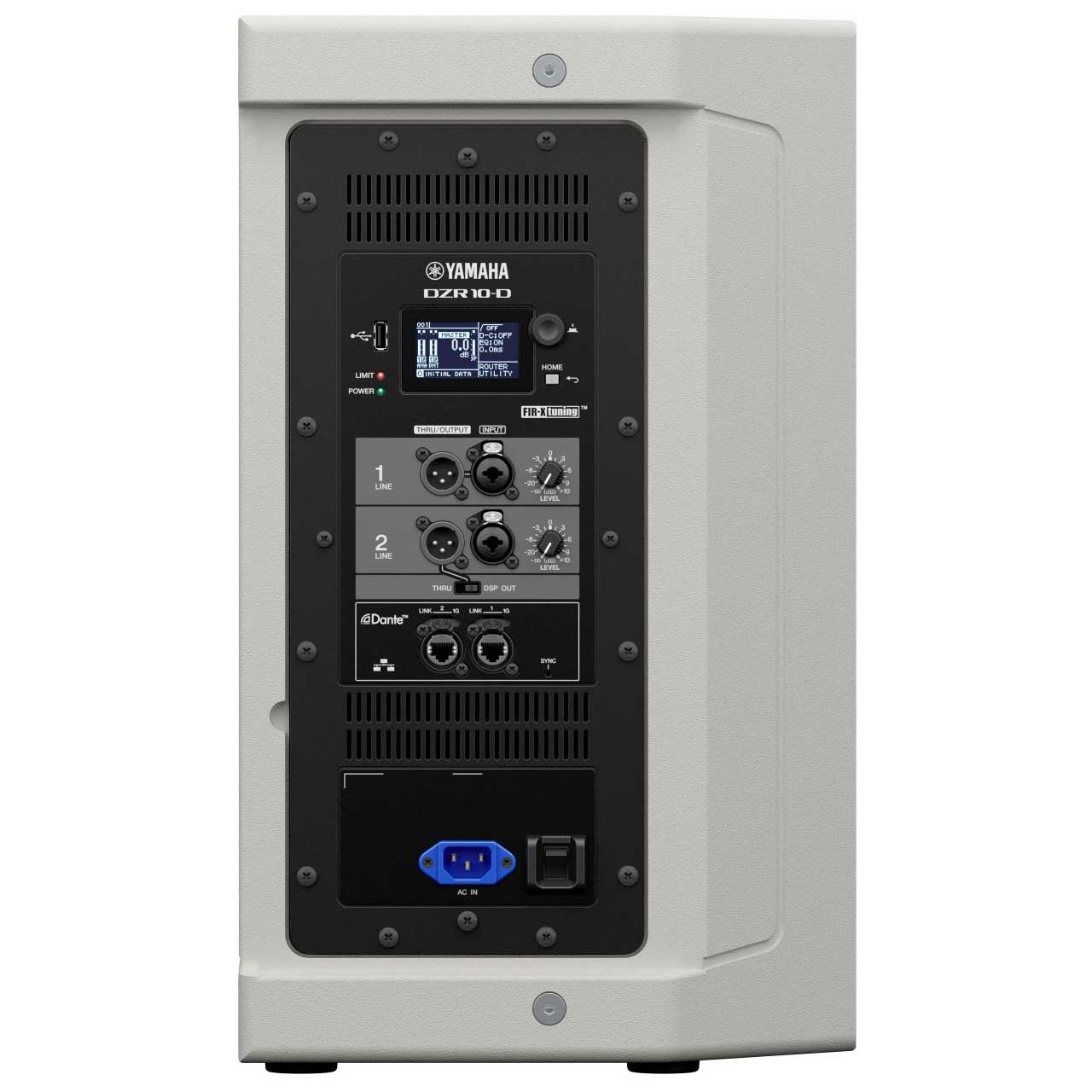

        I/O Connectors
      • Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
      • Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
      • Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
      • AC: IEC AC inlet x1 (V-Lock)

      • Amplifier class: Class-D
      • Cooling: Fan cooling, Variable speeds
      • Power consumption: 45W (Idle), 150W (1/8)
      • Handle: Aluminium die-cast, Top x1, Side x1
      • Rigging: M10 x8, M8 x2
      • Dimensions: 12.4" x 21.1" (with rubber feet) 13.6"
      • Net weight: 39.5lbs
      • Options: U-bracket: U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
      • Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White
      • Floor Monitor Angle: 50°
      • Pole socket: Ø35 mm x2 (0° or -7°)

    • Item Includes:

      • 1x Yamaha DZR10-DW 2000Watt Dante Powered Speaker with 10in LF/2in Titanium Compression Driver Rotatable 90x60 Horn - White

    • GTIN:

      0889025127639
