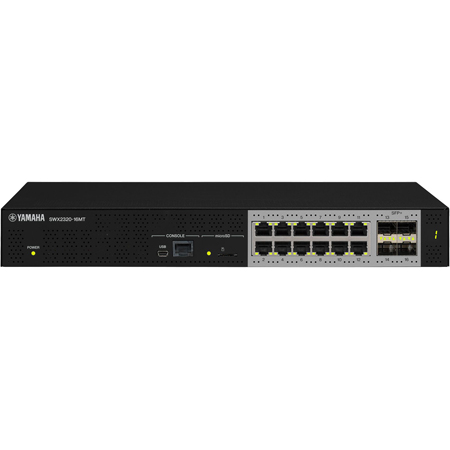

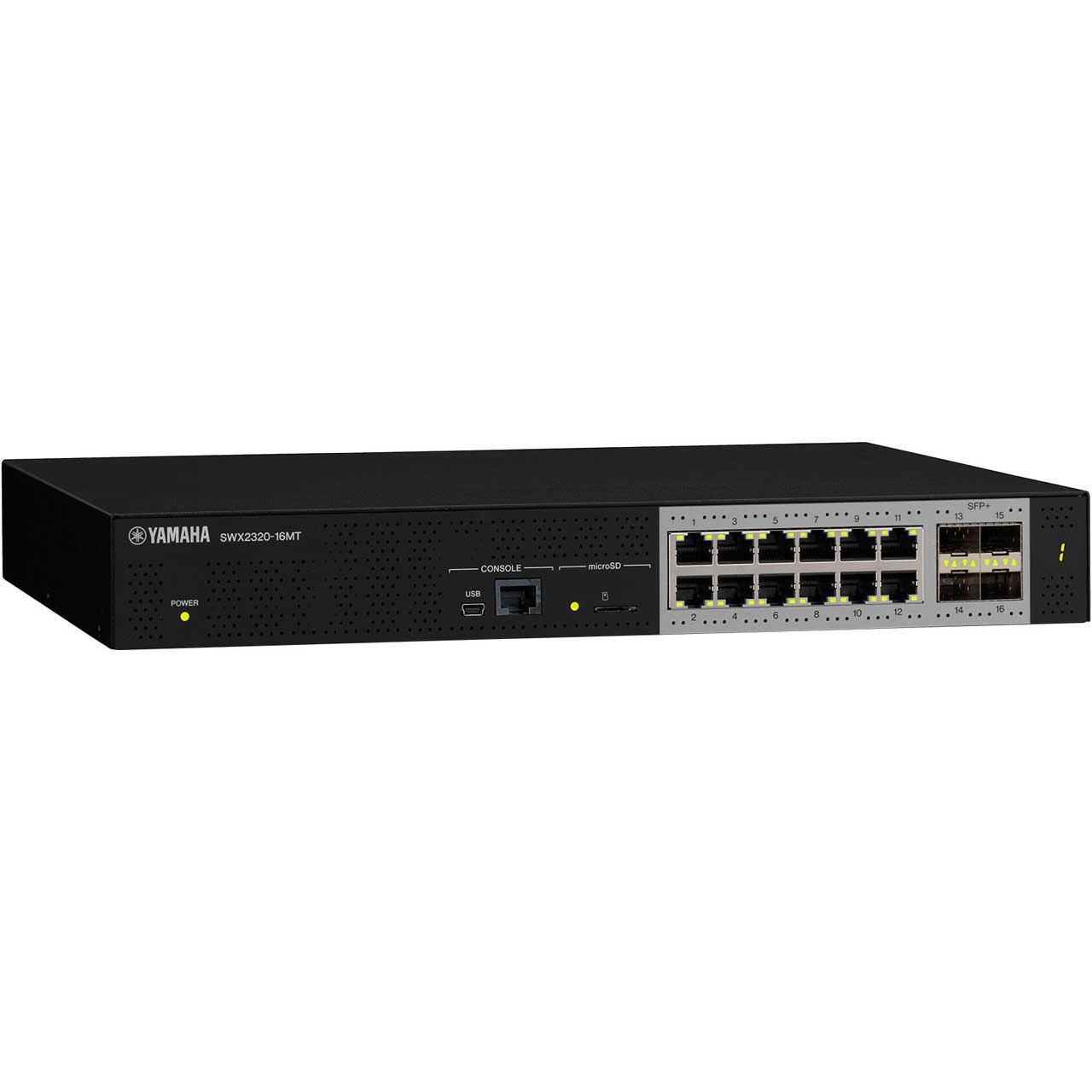

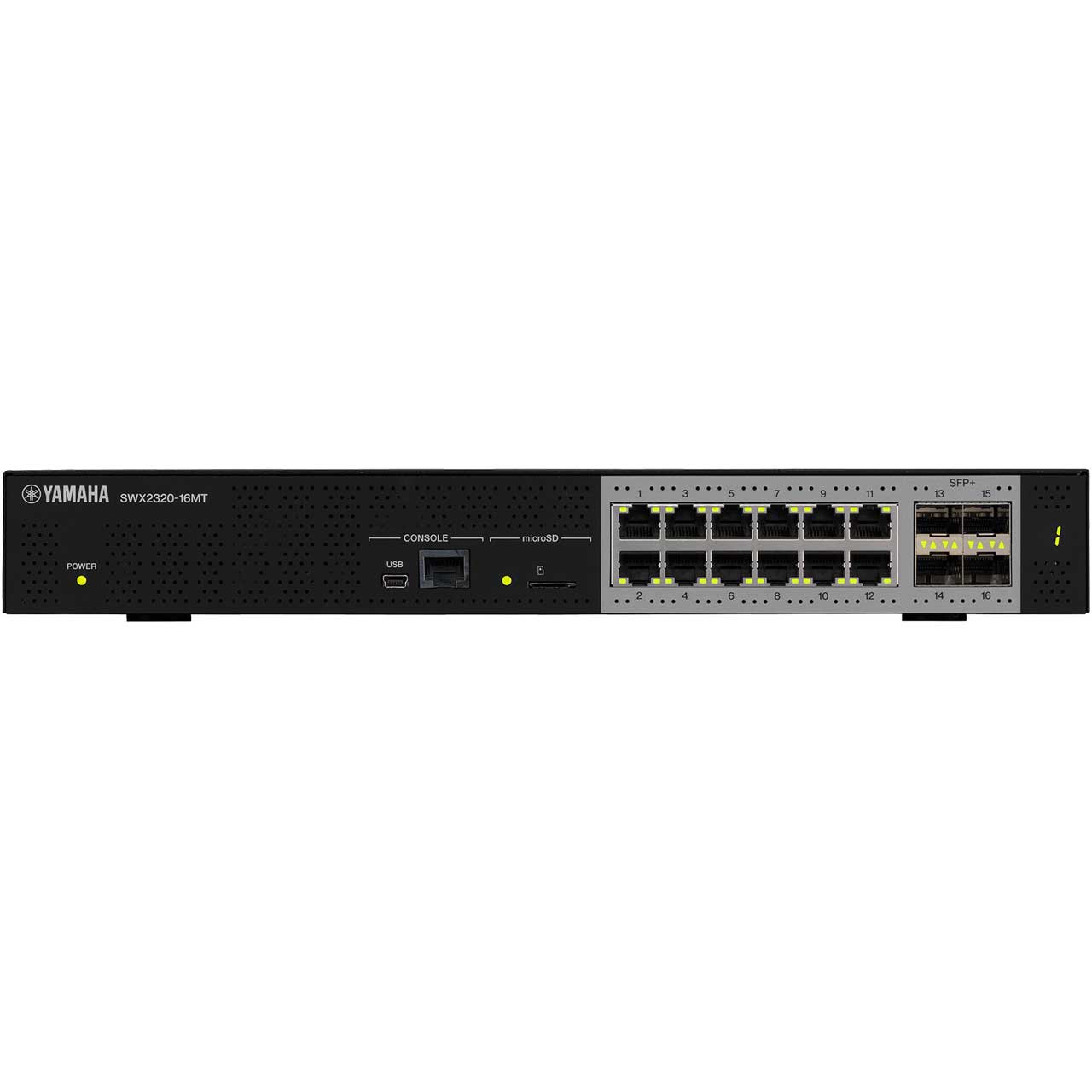

Yamaha SWX2320-16MT 16-Port L2 MultiGigabit Dante Network Switch with 4 SFP+ Ports

ITEM #: YMH-SWX2320-16MT MFG #: SWX2320-16MT

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,288.00

Our Price:

$2,099.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    SWX2320-16MT - Overview

    10-Gigabit/Multi-Gigabit switches that can be employed flexibly to meet the varied needs of high-capacity networks
    Strengthening backbone networks has recently become a critical concern for businesses, concert halls and other installations as the demand for ability to handle high-quality video and audio with low latency increases. As our first switches to support 10-Gigabit/Multi-Gigabit Ethernet, these new models in Yamaha's lineup are ideal for strengthening backbone networks that require high speed and capacity. The new L3 intelligent switches allow the construction of systems capable of handling increased traffic of media that spans multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. These new additions to our lineup support Yamaha LAN Monitor and come with a range of features optimal for Dante systems, expanding on the Dante optimization functions of our existing products.

    Create high-speed, high-capacity networks with 10-gigabit and multi-gigabit speeds
    The LAN ports of the SWX2320-16MT and SWX3220-16MT support five speeds (100M/1G/2.5G/5G/10Gbps) and optimize network speed as appropriate to the devices connected. As demand for speed and capacity grows because of rising numbers of wireless devices, greater audiovisual communication traffic, and increasing access to large files, faster LAN switches allow smooth handling of loads that would congest 1 Gbps networks. Networks that already use Cat5e or Cat6 cables can be accelerated to up to 5 Gbps by replacing their GbE switches with these new models. 10 Gbps networks can be created by using Cat6A cables with these models.

    One-click Dante Optimization
    IGMP and QoS settings for SWX2320-16MT/SWX3220-16MT switches can be automatically optimized for Dante network operation by simply clicking the "Dante optimization" button in the web-based GUI. These network settings are not critical in simple systems, but proper configuration is essential to ensure maximum stability in larger Dante networks.

    Network Visibility and Smart Management (Yamaha LAN Monitor)
    Effective Dante network management hinges on a range of parameters such as network traffic, switch status, and individual Dante device information. The dedicated Yamaha LAN Monitor computer application provides a comprehensive single-screen view of all necessary parameters when used with SWP/SWR/SWX series switches. We refer to this type of graphical overview as "network visbility." You can even take a snapshot of the normal network status and set an alarm to warn you if any of the parameters changes, so that problems can be identified and resolved quickly and easily. The Dante Controller application can also be launched from the Yamaha LAN Monitor with a single click, providing a total Dante network solution on a single computer.

    Intelligent Security Management
    Augmenting the VLAN functionality included in the SWX2320-16MT/SWX3220-16MT is built-in RADIUS server function. By setting up one switch as a RADIUS server and linking other switches to it, unauthorized network access can be effectively blocked for enhanced security, even in complex large-scale installations. Device authentication can be set up quickly and easily via a web-based GUI.

    Support for PTPv2 TC time synchronization of 1 æsec or less
    To provide the high-precision time synchronization necessary for synchronized audio and video playback and other applications, IEEE 1588 PTPv2 TC (Transparent Clock) is now supported with 1 Gbps/10 Gbps networks. This feature adds delay time data to PTP messages as they pass through the switches, enabling synchronization precision between devices of 1 æsec or less when real-time performance is required.

    • Features:

      • Available ports : 12 multi-gigabit ports (100M/1G/2.5G/5G/10G) and 4 SFP+ ports
      • In-built RADIUS server for advanced security management
      • PTPv2 TC (Transparent clock) supported
      • Yamaha LAN Monitor supported

    • Specifications:

      • General Specs:
      • LAN ports:
      • Standard: IEEE802.3 (100BASE-TX/ 1000BASE-T/ 2.5GBASE-T/ 5GBASE-T/ 10GBASE-T)
      • Number of ports: 12
      • Communication mode: Auto negotiation
      • Connector type: RJ-45
      • Polarity: Automatic detection of straight/cross, or fixed at straight
      • Indicators: POWER, microSD, STACK ID, LAN port (LINK/ ACT, SPEED), SFP+ port (LINK/ ACT, SPEED)
      • MAC address: Indicated in product label on top panel of unit

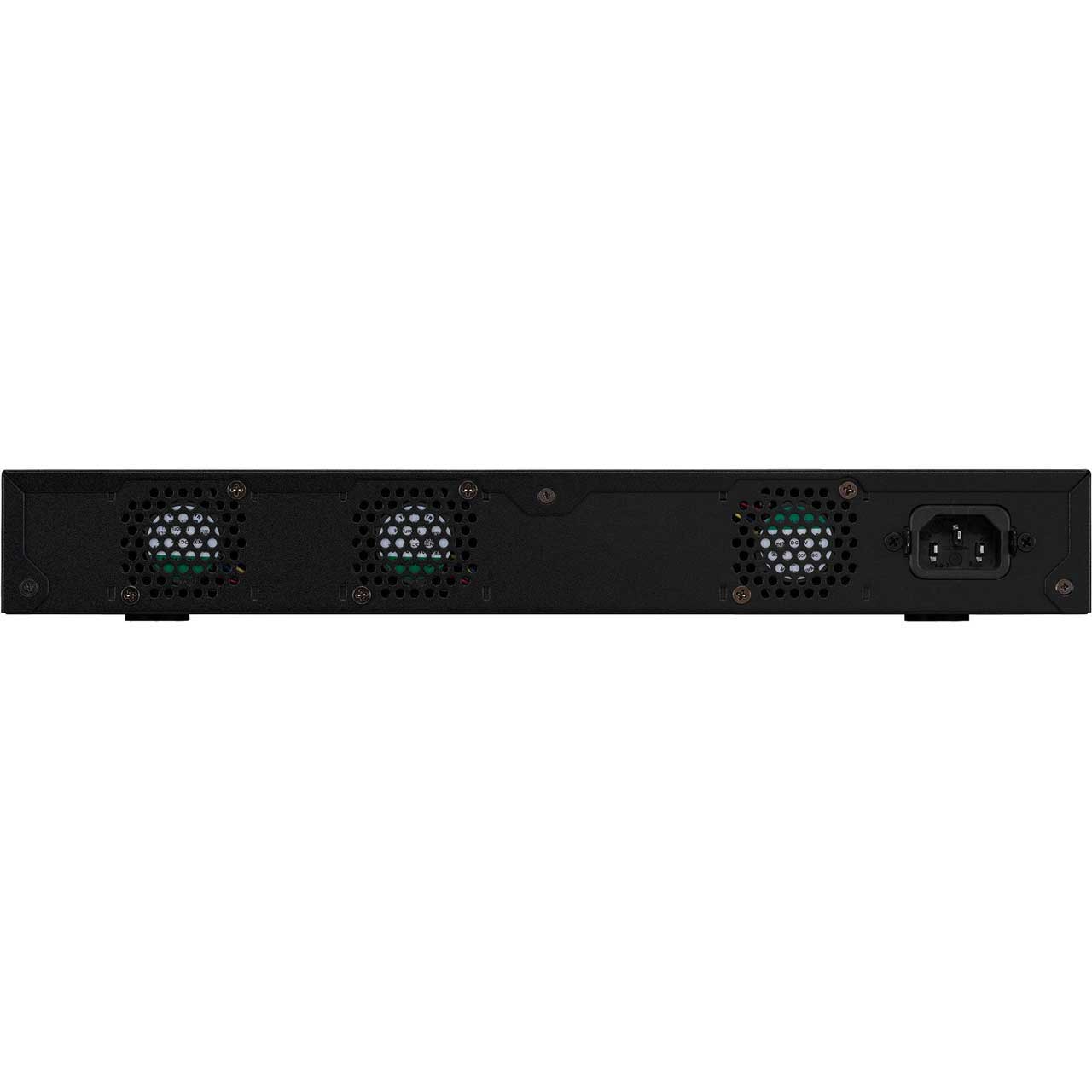

      • Number of fans: 3
      • Operating environment: Ambient temperature: 0-50 °C, Ambient humidity 15-80% (non-condensing)
      • Storage environment: Ambient temperature: -20-60 °C, Ambient humidity 10-90% (non-condensing)
      • Dimensions (WxHxD): 330 x 44 x 250mm
      • Weight: 2.7kg
      • Accessories: Manual (Read this first), power cord, power cord clamp, legs, dust covers, 19-inch rack mount bracket,
        wall mount bracket and screws

        SFP+ Ports:
      • Standard: IEEE 802.3z (1000BASE-SX/ 1000BASE-LX), IEEE 802.3ae (10GBASE-SR/ 10GBASE-LR)
      • Number of ports: 4
      • Power supply voltage, frequency: AC100 - 240V, 50/60Hz
      • Maximum power consumption: 84 W

        Console Ports:
      • Standard: RS-232C, USB 2.0
      • Connector type: RJ-45, USB mini-B (5-pin)
      • Data transmission speed: 9600 (default value) / 19200/ 38400/ 57600/ 115200 bit/s

        MicroSD slot:
      • Standard: microSD/microSDHC
      • File System: FAT/FAT32

    • Item Includes:

      • 1x SWX2320-16MT Switch
      • 1x Manual (Read This First)
      • 1x Power Cord
      • 1x Power Cord Clamp
      • 1x Legs
      • 1x Dust Covers
      • 1x 19-Inch Rack Mount Bracket

    • GTIN:

      0889025133302
