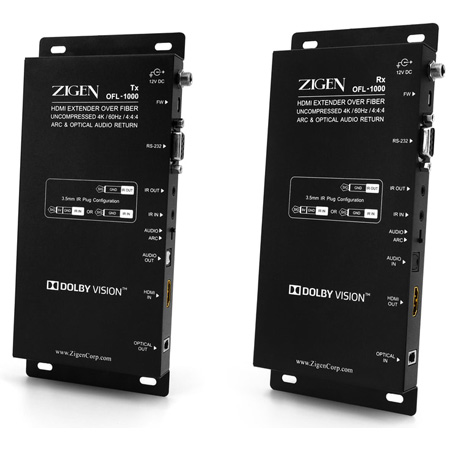

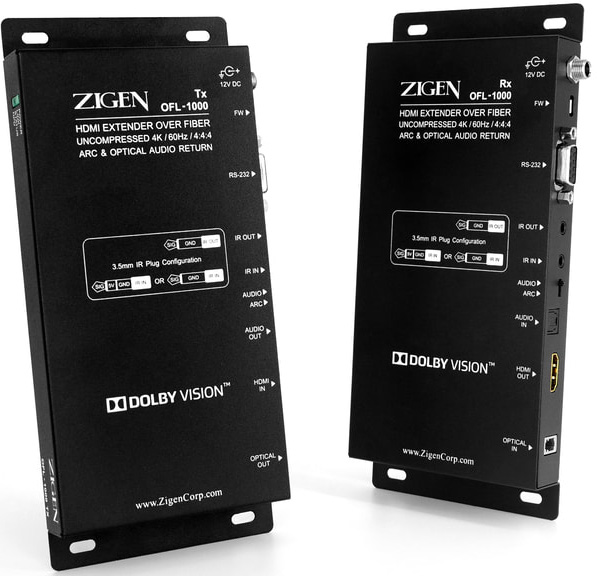

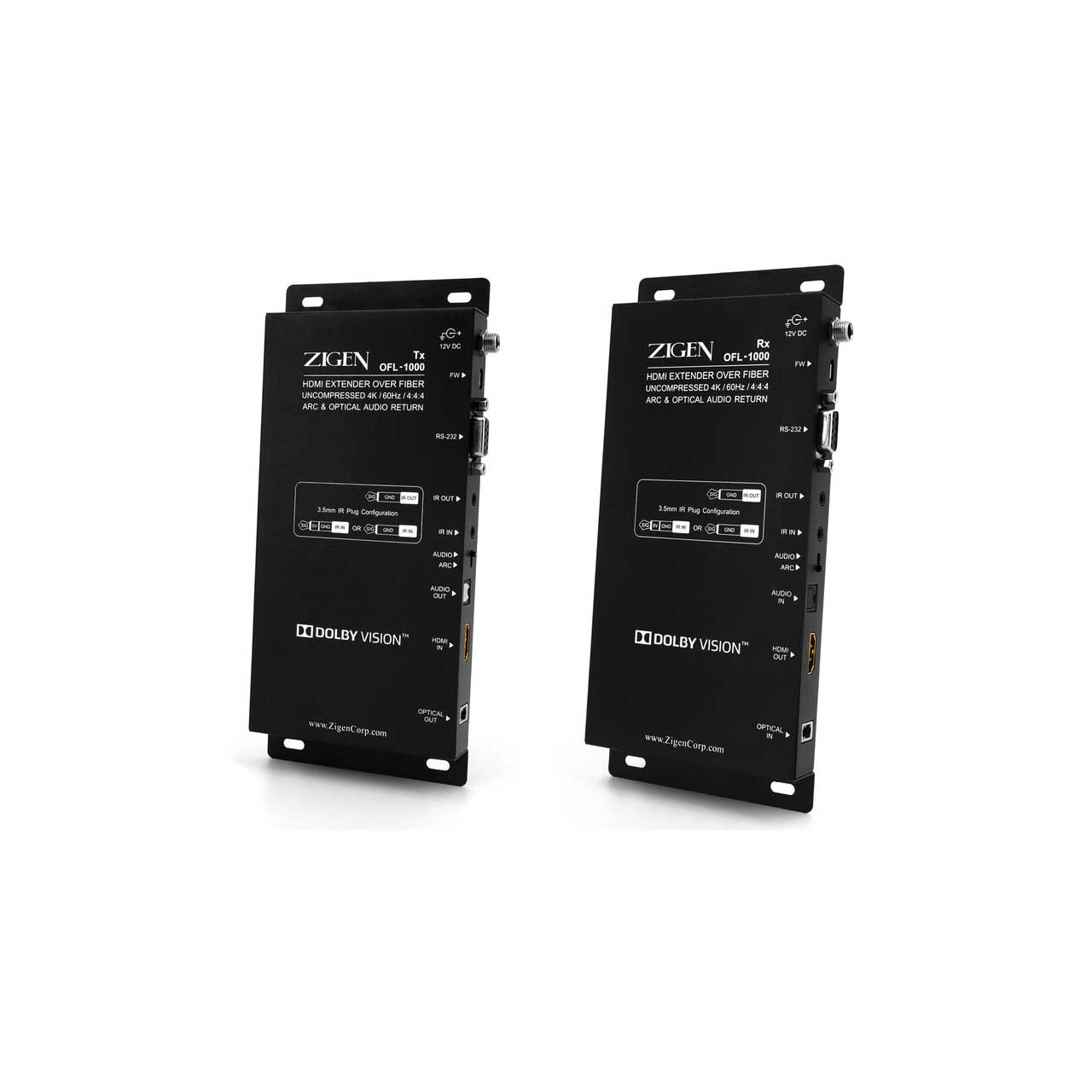

Zigen OFL-1000 4K60Hz 18G Uncompressed Fiber Extender Set - Bi-Directional IR RS232 supports HDR-10/ARC/Dolby Vision
  • Zigen OFL-1000 4K60Hz 18G Uncompressed Fiber Extender Set - Bi-Directional IR RS232 supports HDR-10/ARC/Dolby Vision
  • Zigen OFL-1000 4K60Hz 18G Uncompressed Fiber Extender Set - Bi-Directional IR RS232 supports HDR-10/ARC/Dolby Vision

Questions? Ask a Markertek Expert:
800-522-2025 Email

Zigen OFL-1000 4K60Hz 18G Uncompressed Fiber Extender Set - Bi-Directional IR RS232 supports HDR-10/ARC/Dolby Vision

Manufacturer: Zigen Corp

Item #: ZIG-OFL-1000   •   MFG #: ZIG-OFL-1000




Our Price:$1,825.00

free ship


Availability:
More on the way, usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Zigen OFL-1000 is the latest innovative product from Zigen. Extend 18-G Uncompressed HDMI up to - 6560ft. on SM or 1000ft. over single multi mode OM3/OM4 Optical Fiber. With bi-directional IR, RS232 and ARC. Robust and cost effective - the OFL-1000 is the perfect Uncompressed HDMI extender for all of your high value contents requiring 24/7 flawless operation and 18GBPS transmission over long distances.


    • Features

      • Extend Uncompressed HDMI signals up to 300 meters/1000-ft on OM3/OM4 multi mode
      • 600 MHz HDMI 2.0 (2160P60 4:4:4) and HDCP 2.2 on all I/O
      • Supports 8-bit, 10-bit, 12-bit per pixel
      • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
      • Advanced EDID Management
      • Supports Uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby Atmos, Dolby TrueHD, DTS HD-Master Audio and more
      • Supports HDR-10, HDR-10+, Dolby Vision
      • Supports CEC
      • Bi-directional IR
      • Bi-directional RS-232 - Control device or remote peripherals

    • Specifications

      • Transmitter
      • Input: 1x HDMI In
      • Input Connector: 1x Type-A female HDMI
      • Output: 1x Toslink connector, 1x Audio Out
      • Output Connector: 2x LC connector; 1x Optical Out
      • Control 3.5mm: 1x IR In, 1x IR Out
      • Control DB-9 Connector: 1x RS-232

        Receiver
      • Input: 1x Toslink connector, 1x Audio In
      • Input Connector: 1x LC connector, 1x Optical In
      • Output: 1x HDMI Out
      • Output Connector: 1x Type-A female HDMI
      • Control 3.5mm: 1x IR In, 1x IR Out
      • Control DB-9 Connector: 1x RS-232

        General
      • Video Resolution: Up to 4Kx2K 60Hz 4:4:4 Dolby Vision
      • Audio Format: Supports PCM, Dolby Digital, DTS, DTS-HD, Dolby Atmos
      • HDMI Standard: 2.0a/b
      • HDCP Version: 2.2
      • HDR 10, HDR-10+, HLG: Supported
      • CEC Pass-Through: Supported
      • EDID Bypass: Supported
      • HPD: Supported
      • Transmission Distance: =300m via multi-mode OM3/OM4 fiber cables.
      • Transmission Distance: =2000m via single-mode fiber cables.
      • Operation Temperature: 23°F - 131°F (-5°C - 55°C)
      • Storage Temperature: -13°F - 158°F (-25°C - 70°C)
      • Relative Humidity: 10% - 90%
      • Power Supply Input: AC 100 - 240V, 50/60Hz; Output: 12V DC 1A.
      • Power Consumption: 9W (max)
      • Dimension (WxHxD): 5.3" x .79" x 3.5" (135mm x 20.3mm x 90mm)
      • Net Weight: TX/RX: 6.17oz (175g)

    • Item Includes

      • 1x Transmitter (Tx)
      • 1x Receiver (Rx)
      • 2x Tx Mounting Ears with 4 Screws
      • 2x Rx Mounting Ears with 4 Screws
      • 8x Plastic Cushions
      • 1x User manual
      • 2x Power adapter 12-VDC / 1.5-A
      • 2x RS-232 (DB-9) Cables
