Zigen ZIG-POC-70U 4K60Hz USB & HDMI Extender Set with Bi-Directional IR & RS232 - Supports HDR-10

ITEM #: ZIG-POC-70U MFG #: ZIG-POC-70U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ZIG-POC-70U

ZIG-POC-70U - Overview

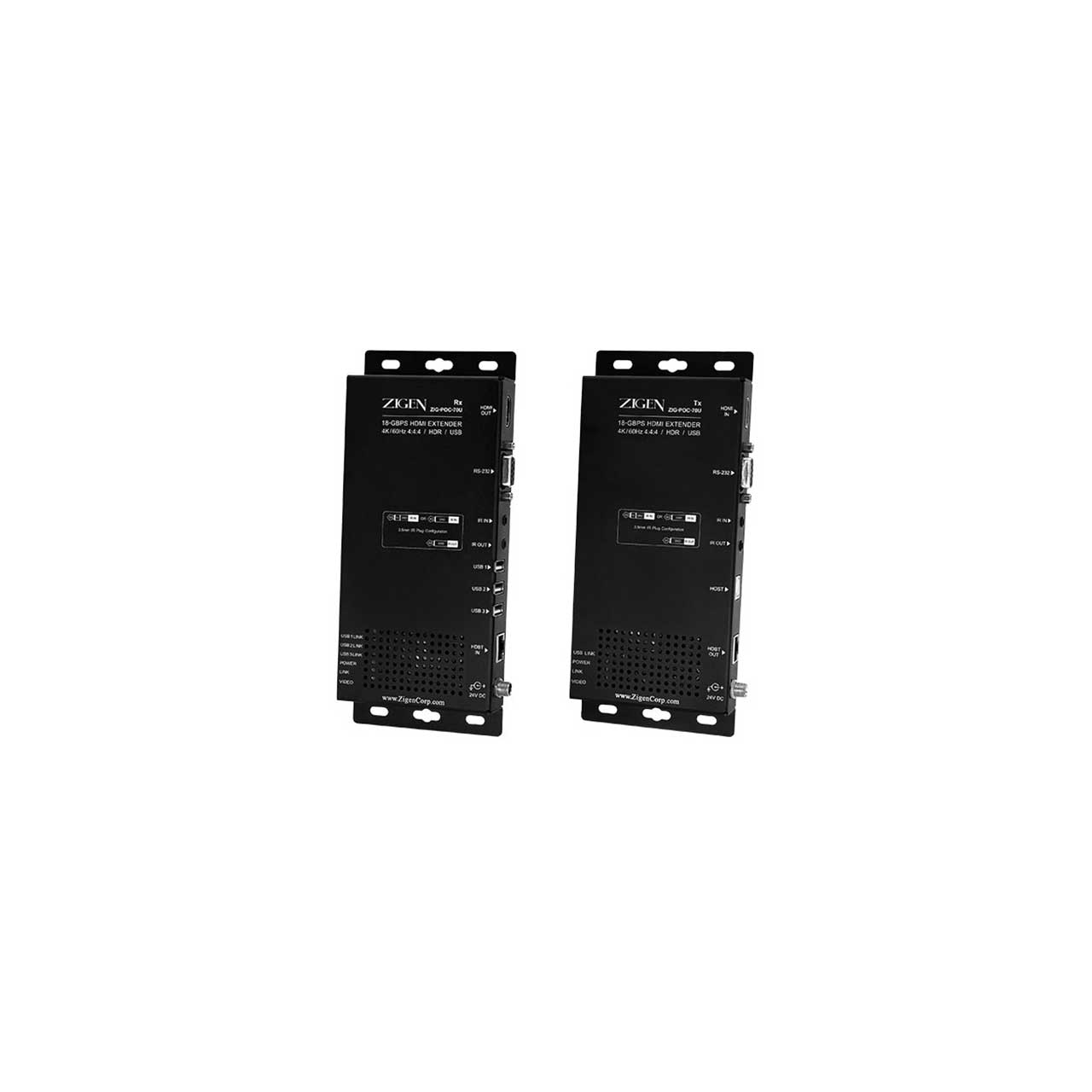

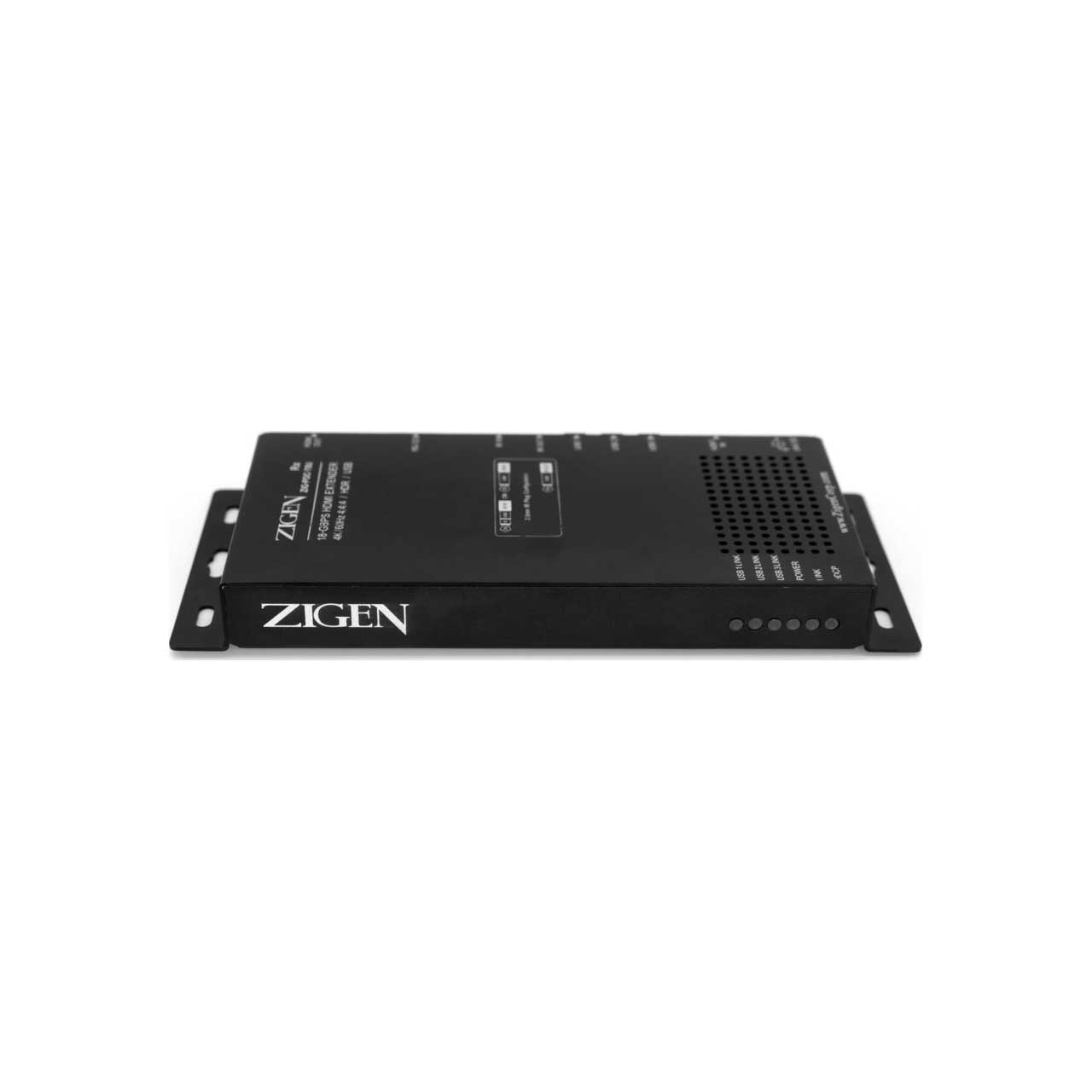

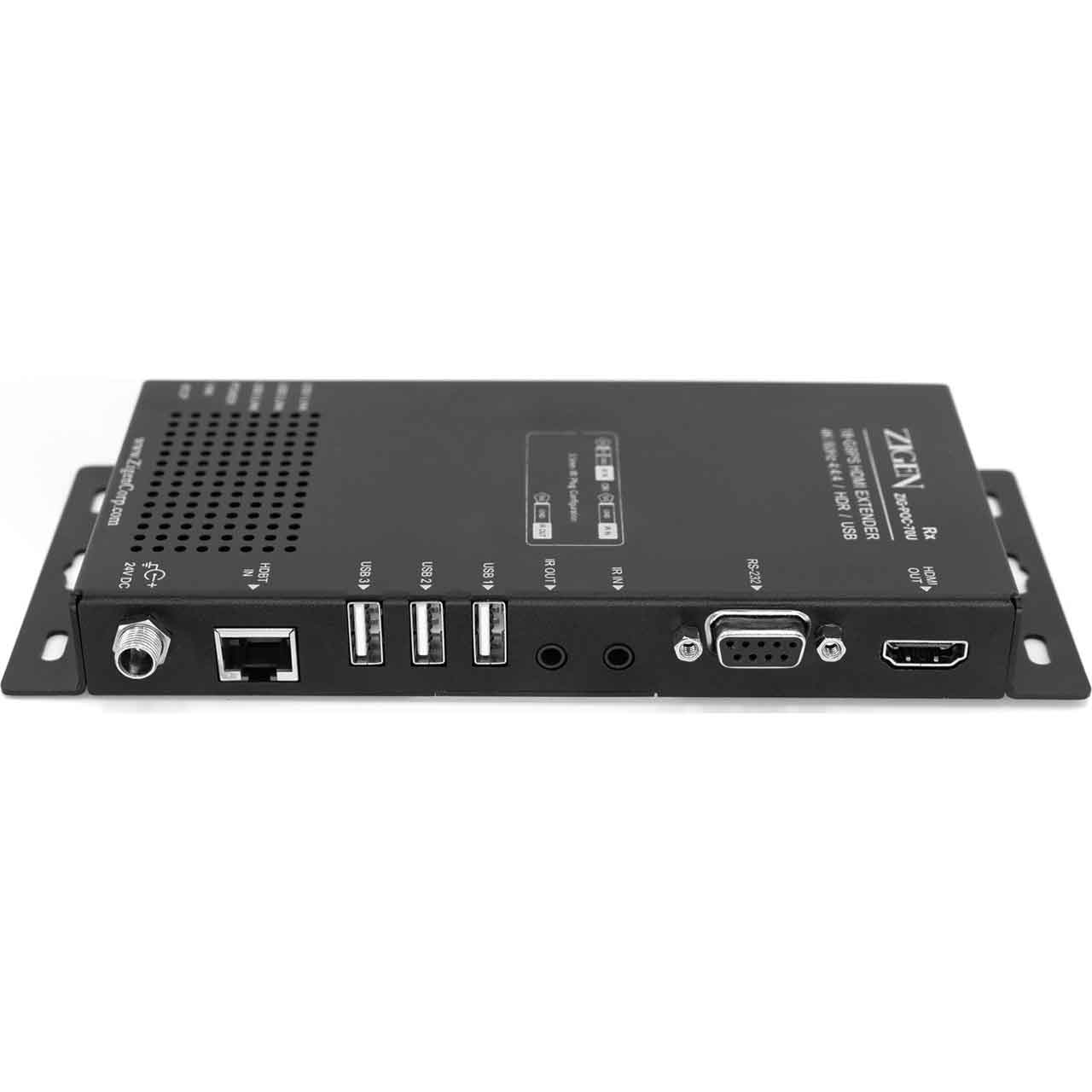

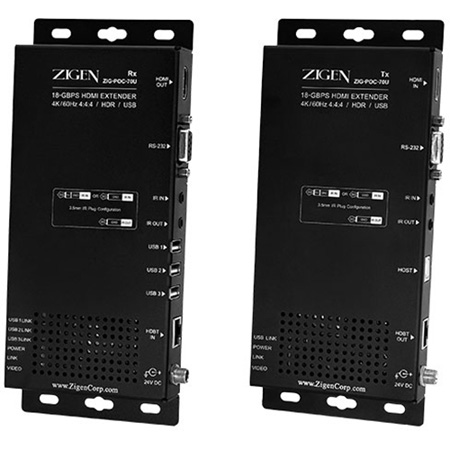

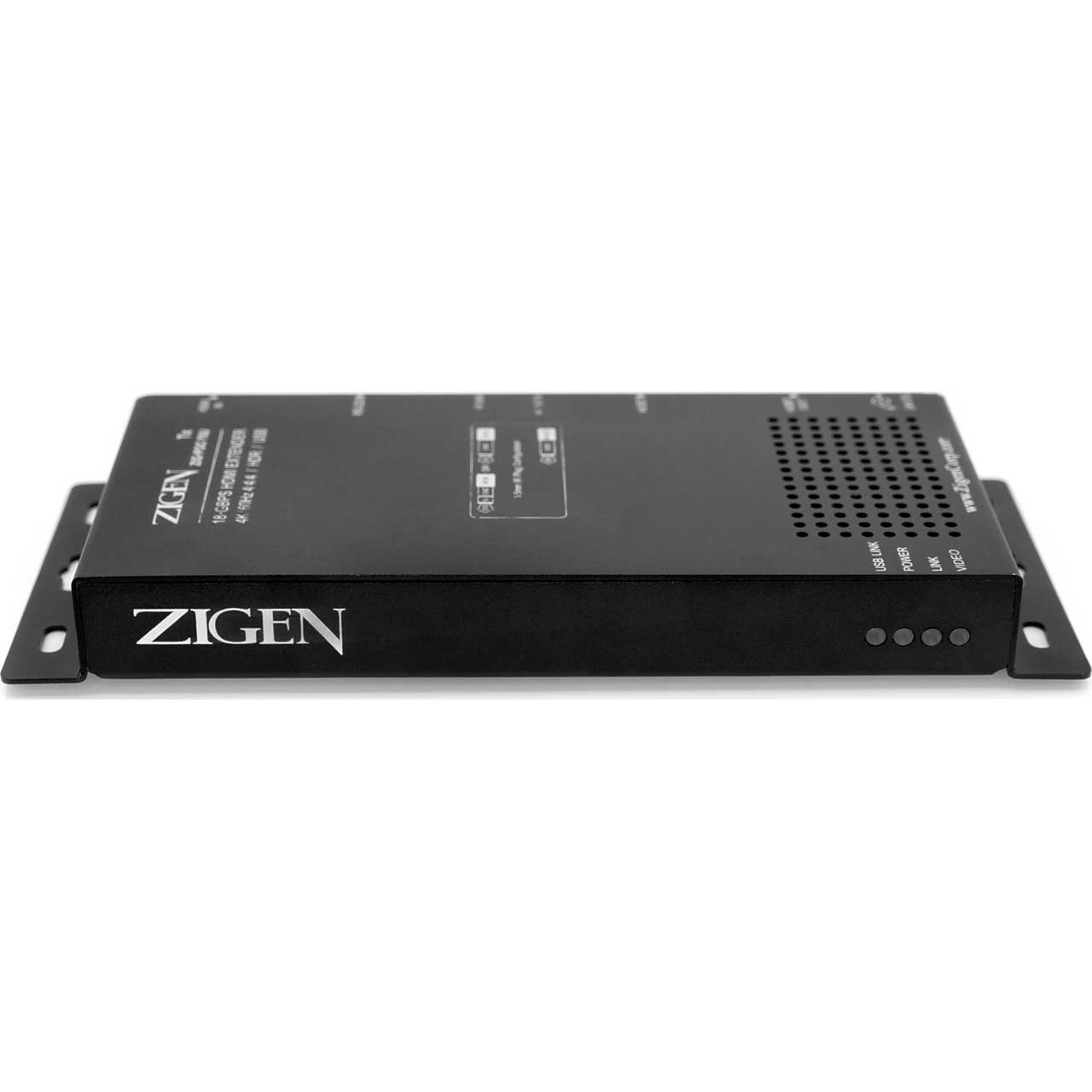

The ZIG-POC-70U is an ultra-thin HDMI2.0 and USB 2.0 Extender set consisting of a transmitter and receiver. The device extends 1080p/4K HDMI 2.0 with USB-2.0, bi-directional IR, and RS-232 over single CAT-6a cable up to 70m/40m using PoC. The receiver contains a 3-port USB hub to support various KVM applications.

This extender is equipped with visually lossless video compression technology called (DSC) to ensure HD transmission of HDR-10 and 4K@60Hz/4:4:4 over CAT-6a cable.

  • Features:

    • ULTRA HD 4K Certified HDBaseT Extender
    • HDMI 2.0 (4096x2160@60 Hz (YUV 4:4:4, 8-bit)
    • Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
    • HDCP 1.4 / 2.2
    • Autonomous EDID management
    • Supports Dolby Vision, HDR-10, HDR-10+ and HLG
    • USB 2.0 (3-Port Hub)
    • Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus DTS HD-Master and more.
    • Supports all frequency band IR control (Bi-directional transfer)
    • Supports dual voltage IR 5-volt / 12-volt
    • Supports bi-directional RS-232 transfer.
    • Supports CEC pass-through
    • RJ-45 ports support HDBaseT up to 230-feet / 70-meter for 1080p
    • RJ-45 ports support HDBaseT up to 115-feet / 35-meter for 4K


  • Specifications:

    • Video
    • HDMI Input and Output: HDMI 2.0
    • Extension Transport: POC
    • Max. Resolution HDMI 2.0: (4096x2160@60 Hz (YUV 4:4:4, 8-bit)
    • HDCP: 1.4 / 2.2
    • EDID: Autonomous EDID mangement
    • HDR: Dolby Vision, HDR-10, HDR-10+ and HLG
    • Compression: DSC (Display Stream Compression)
    • Maximum Throughput: 18-GBPS

      General
    • ESD Protection: Human body model: ±8kV (air-gap discharge), ±4kV (contact discharge)
    • Cable Distance: 70-M (Max.) for 1080p
    • Cable Distance: 35-M (Max) for 4K
    • AUDIO Support: Support Dolby Atmos, Dolby TrueHD, Dolby Digital Plus DTS HD-Master and more.
    • USB-2.0: 3-Port HUB
    • IR IN /OUT: Supports dual voltage IR 5-volt / 12-volt
    • RS-232: Supports bi-directional RS-232 transfer.
    • CEC Support: Yes
    • Housing: Aluminum
    • Weight: Tx ~ 182g | Rx ~ 182g
    • Universal Power Adapter: 110~240-VAC / DC 24-VDC with lock
    • Power source: PoC
    • Power consumption: 20W (MAX)


  • Item Includes:

    • 1x Transmitter
    • 1x Receiver
    • 1x User manual
    • 1x Power adapter DC 48V with lock
    • 1x IR receiver
    • 1x IR emitter
    • 4x 4 x Screws
    • 8x 8 x Foot pads
    • 2x 2 x Captive screw connectors?
