    TL-DA14-F2 - Overview

    The need to 'split' an HDMI signal is quite common. In residential applications, splitters are often used for sending a single cable box to multiple displays. In office applications, splitters are often used for sending a single computer to multiple monitors. In education applications, splitters are often used to send a video source to both a desktop monitor and a ceiling mounted projector. There are lots of use patterns, and they all revolve around the need to take a single HDMI source and send it to multiple destinations.

    The TechLogix TL-DA14-F2 splits a single source to four destinations (typically displays or projectors).

    The TL-DA14-F2 is an 18Gbps HDMI splitter with four simultaneous outputs. Compatible with HDMI 2.0a & HDCP 2.2/1.4 sources and devices, the TL-DA14-F2 supports video resolutions up to 8k30 (4:2:0 8bit).

    The TL-DA14-F2 will support 4k video with HDR1, xvYCC, x.v.Color, and Deep Color.

    The TL-DA14-F2 can downscale video2 on each output individually to match the connected display's highest compatible resolution. This feature is required when mixing 4k and 1080p displays in the same installation. Advanced EDID management puts you in control of what resolution the source will output.

    • Features:

      • Advanced EDID management
      • Automatic downscaling per output
      • Supports HDMI 2.0, [email protected] 4:4:4
      • HDCP 2.2 compliant
      • 18Gbps video bandwidth

    • Specifications:

      • I/O Connections

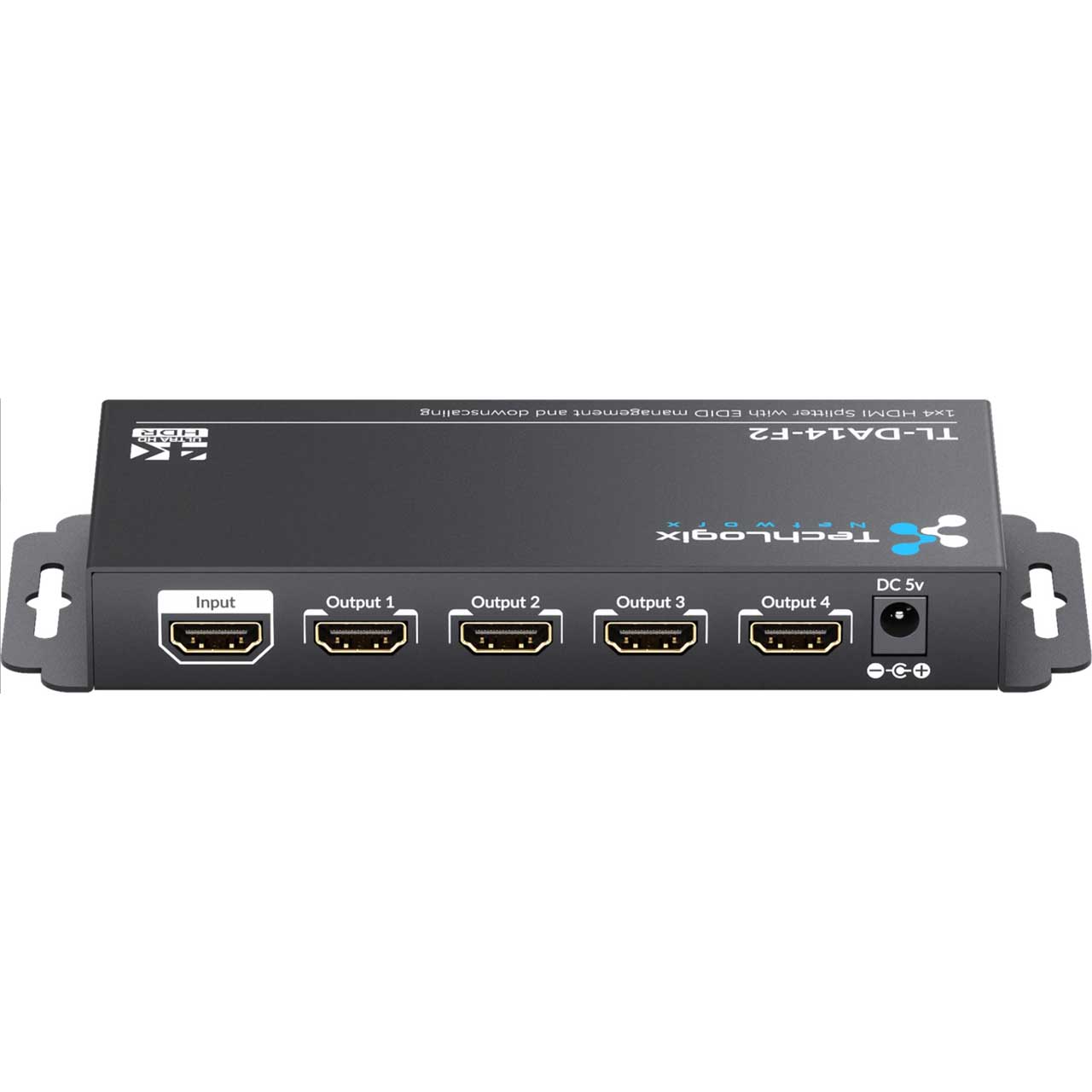

      • HDMI Input: One HDMI type A receptacle
      • HDMI Outputs: Four HDMI type A receptacle
      • DC 5V Power: One micro USB Type B port

        Supported Video and Audio
      • Resolutions:
        480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p, 4Kx2K (60Hz 4:2:0
        10bit, 60Hz 4:4:4 8bit), 8kx4k (30Hz 4:2:0 8bit)
      • Video Compliance: HDMI 2.0a, HDCP 2.2
      • Bandwidth: Single-link 600MHz (18 Gbps)
      • Embedded Audio Compatibility: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio,
        LPCM, SACD, MPCM
      • Maximum Passive HDMI Distance: 33 Feet
      • Input DDC Signal: 5.0 volts p-p (TTL)
      • Input Video Signal: 0.5 ~ 1.0 volts p-p

        Chassis and Environmental
      • Enclosure: Painted steel
      • Dimensions (W x H x D): 5.3 x 2.4 x 0.8 Inch
      • Shipping Dimensions (W x H x D): 10.4 x 6.7 x 3 Inch
      • Weight: 8.1 oz
      • Shipping Weight: 1.7 Lbs
      • Operating Temperature: 32° ~ +104°F
      • Operating Humidity: 20% ~ 90% Non-condensing
      • Storage Temperature: -4° ~ +140°F
      • Storage Humidity: 20% ~ 90% Non-condensing

        Power, ESD, Regulatory
      • Maximum Power Consumption: 10W
      • Power Supply: 5V at 2A DC
      • Regulatory: CE, FCC

        Other
      • Standard Warranty: 3 Year

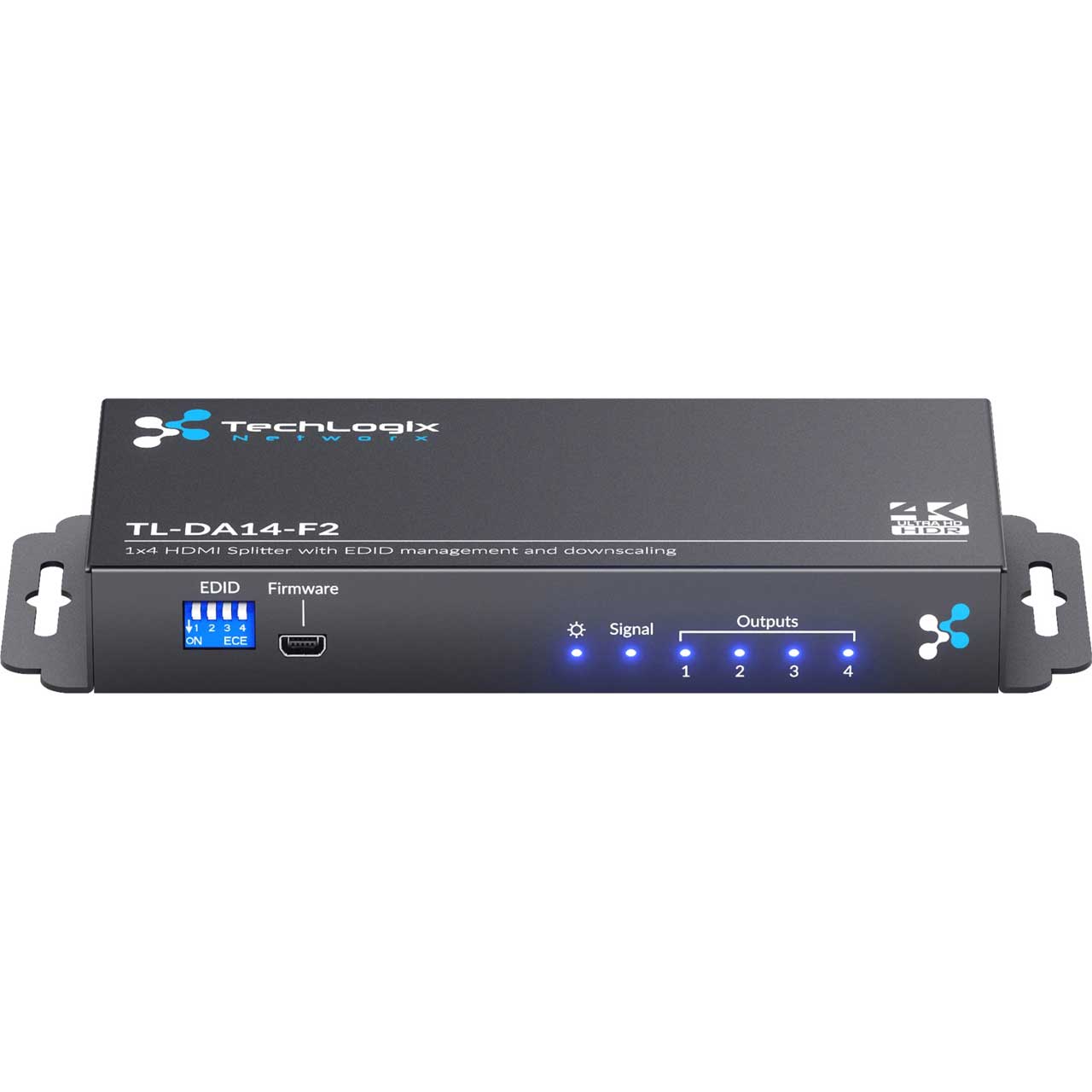

      • Indicators: 1 Power, 1 Input status , 4 Output connection status
      • Firmware Update: Via Mini-USB (Front Panel)
      • Included Items: User Manual Card, Power adaptor

    • Warranty:

      • 3 Years
