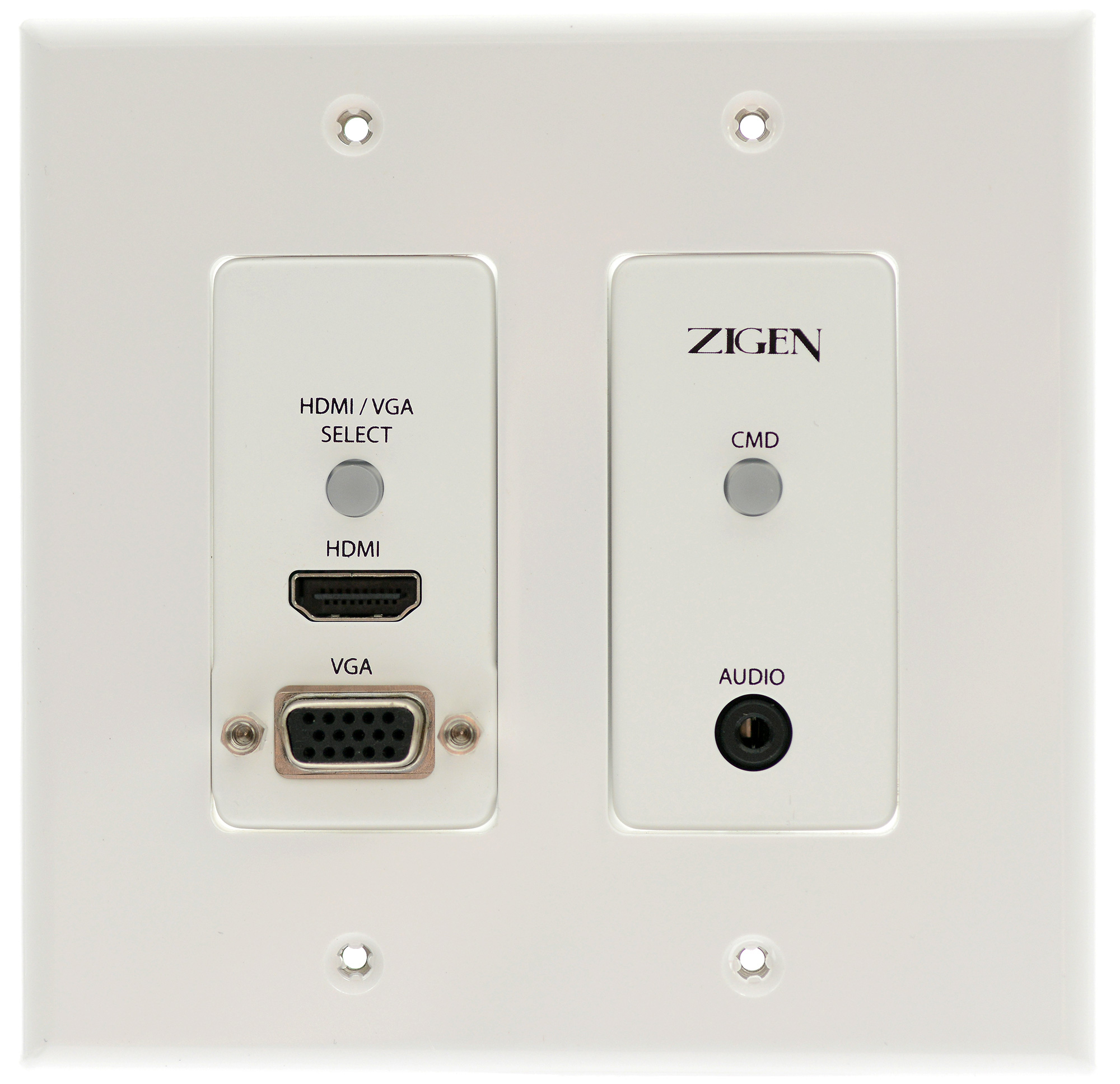

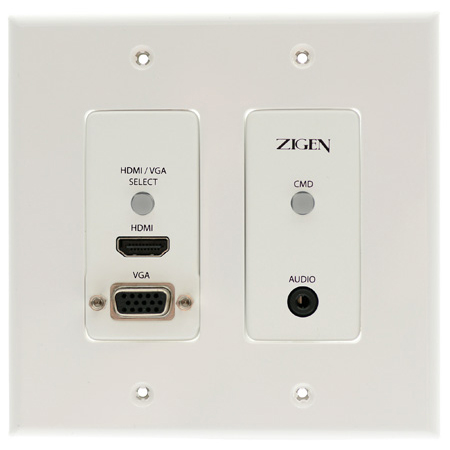

Zigen ZIG-POEWP-100 HDMI/VGA Auto-Switching Wallplate HDBaseT Transmitter
  • Zigen ZIG-POEWP-100 HDMI/VGA Auto-Switching Wallplate HDBaseT Transmitter
  • Zigen ZIG-POEWP-100 HDMI/VGA Auto-Switching Wallplate HDBaseT Transmitter
  • Zigen ZIG-POEWP-100 HDMI/VGA Auto-Switching Wallplate HDBaseT Transmitter

Questions? Ask a Markertek Expert:
800-522-2025 Email

Zigen ZIG-POEWP-100 HDMI/VGA Auto-Switching Wallplate HDBaseT Transmitter

Manufacturer: Zigen Corp

Item #: ZIG-POEWP-100TX   •   MFG #: ZIG-POEWP-100TX




Our Price:$399.00

free ship


Availability:
In Stock
i
Item is Available for immediate shipping from our warehouse.



    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

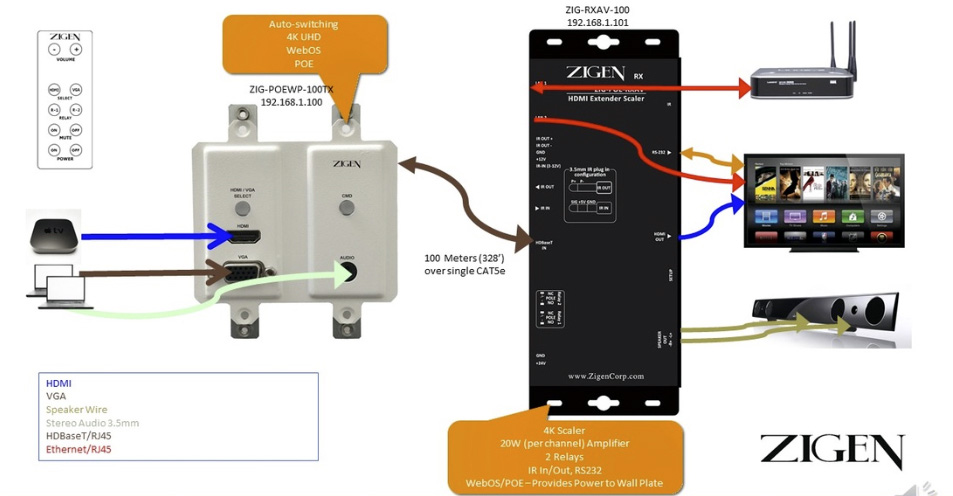

    The Zigen ZIG-POEWP-100TX can be used stand-alone as an HDBaseT wall-plate transmitter, but really shines when paired with the ZIG-RXAV-100 receiver/scaler & audio amplifier. A perfect "no-control" control system using "on-connection" technology to fire up projectors, drop screens and control lighting in small rooms - BYOD and in seconds collaborate with your colleagues with full audio and video in stunning 4K UHD. A must for conference rooms and huddle spaces.

    Typical Applications:
    Small classrooms, conference rooms and huddle rooms at lectern, table, or wall where power is not readily available - receives power over Ethernet
    For controlling basic AV assets from instructor/user location - for example - turning on projectors & lights, dropping screens, etc. when connecting a BYOD device and then shutting devices down when the presentation is complete.
    In wall installation of this dual-gang Decora style wall plate accents any environment making the install look professional and neat.


    • Features

      • HDMI and VGA w/Audio inputs - VGA can be configured as Component, Y/C or C.
      • 48V IEEE POE - remote or source
      • WebOS setup and control - or control from ZIG-RXAV-100 hand-held remote - simple automation or integrate into 3rd party controller.
      • Supports HDMI 1.2, 1.3 and 1.4 with 48-bit deep color
      • Supports digital video formats in 480i, 480p, 720p, 1080i, 1080p, 1920x1200, 2K and 4K. 4K/2K, 30Hz 24bpp. 4K/2K, 60Hz, 24bpp with 4:2:0 pixel format
      • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio and more.
      • Supports IR, RS-232
      • Supports HDCP 1.4 & 2.2

    • Specifications

      • Inputs
      • HDMI x 1
      • VGA x 1 - multi-port - supports YPbPr and Composite video
      • 3.5mm Audio port - follows VGA port
      • Power - On back - 5VDC direct or IEEE POE from RX or switch

        Outputs
      • HDBasetT x 1 - RJ45 - note port is dual use so it can be used as an Ethernet port when programming or controlling the device.
      • Distance between TX and RX: Full HDBaseT - 328' or 100M @ 2160P60 4:2:0 8-bit

        Copy Protection Compliance
      • HDCP - Yes - 1.4 & 2.2

        Video Bandwidth
      • 10.2 Gbps
      • Video Timings: 480i, 480p, 720p, 1080i, 1080p, 1920x1200, 2K and 4K. 4K/2K, 30Hz 24bpp.
      • 4K/2K, 60Hz, 24bpp with 4:2:0 pixel format

        Audio
      • Up to Dolby TrueHD and DTS Master Audio

        Wall Mountable
      • Yes - 2 gang Decora style

    • Item Includes

      • 1 x ZIG-POEWP-100TX
      • 1 x User Manual
