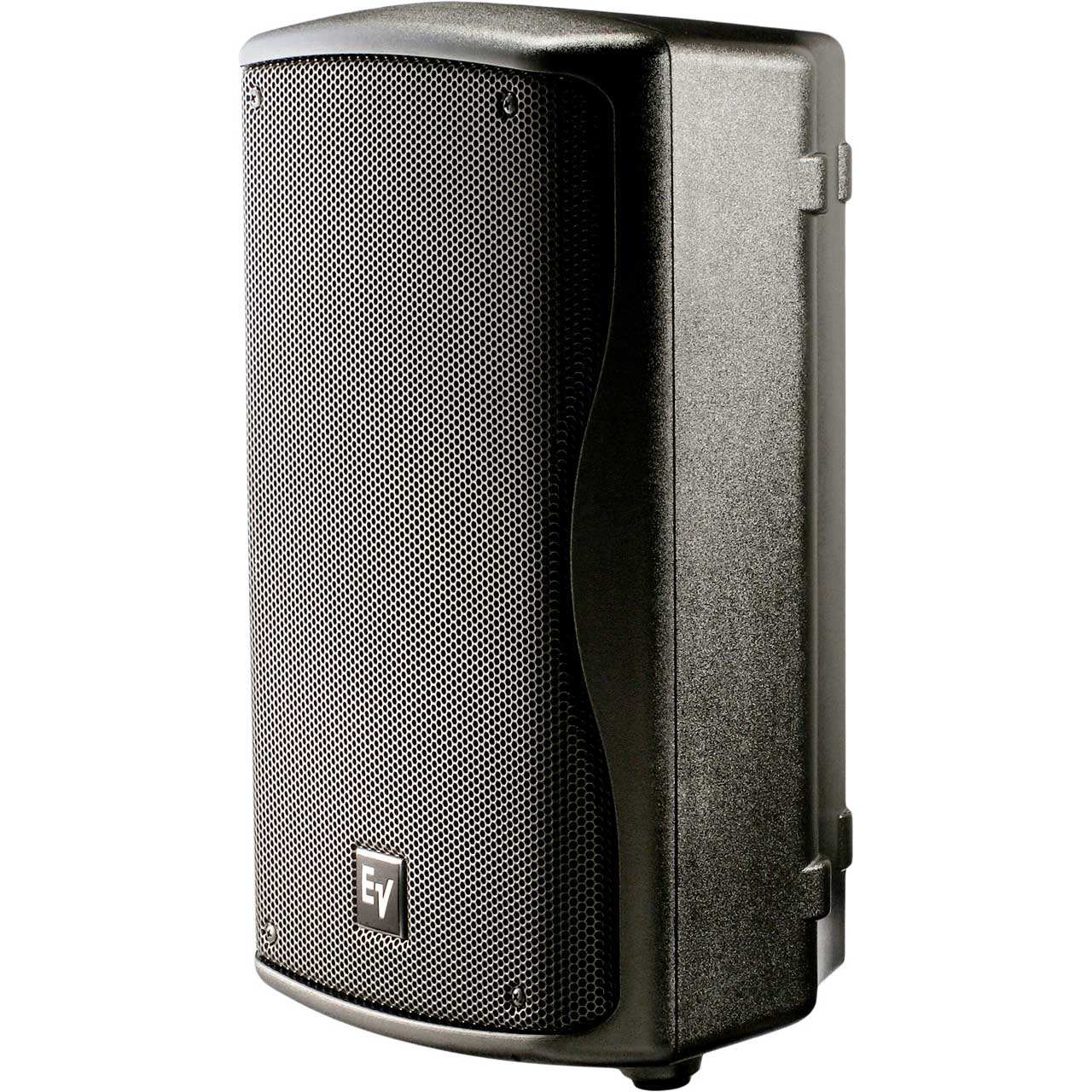

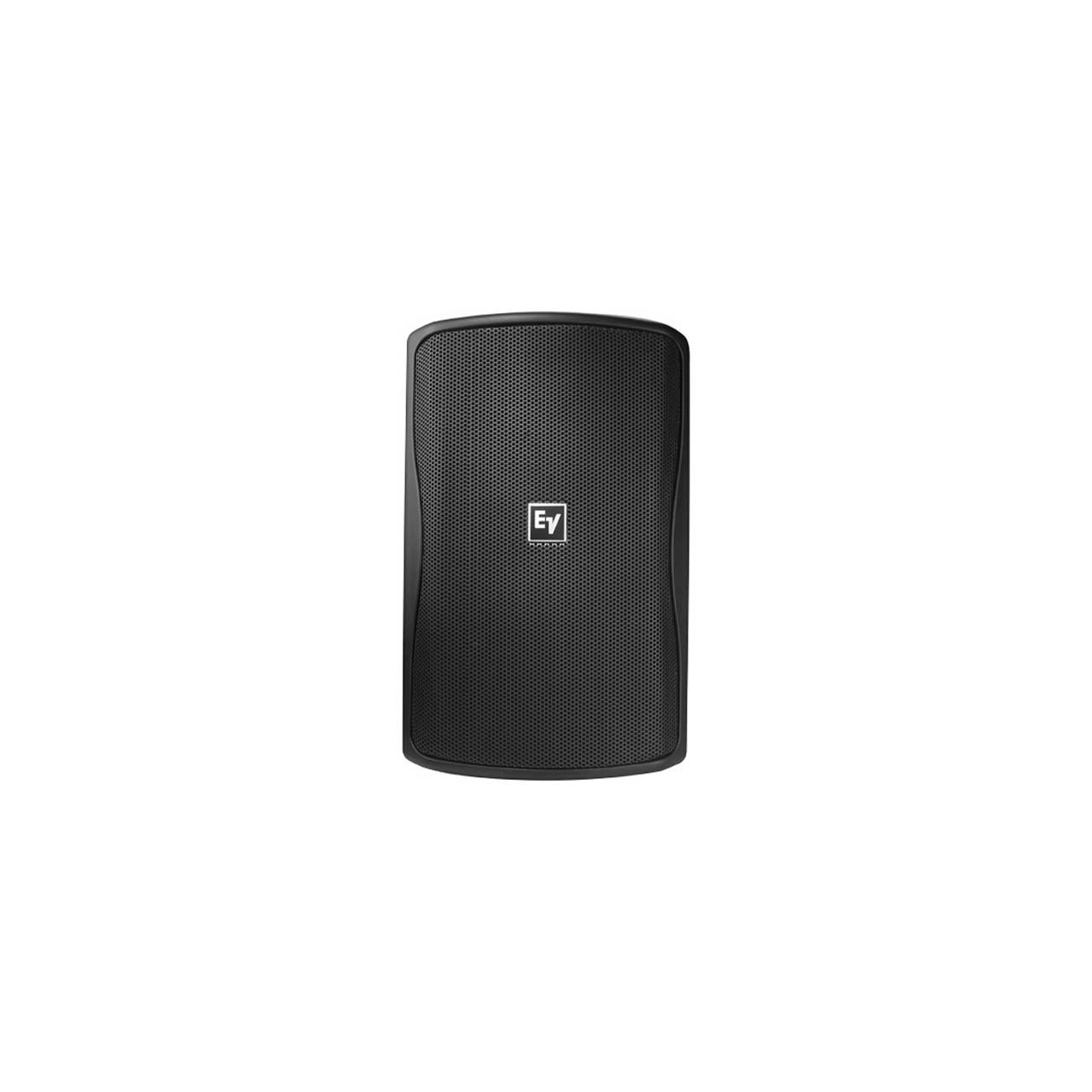

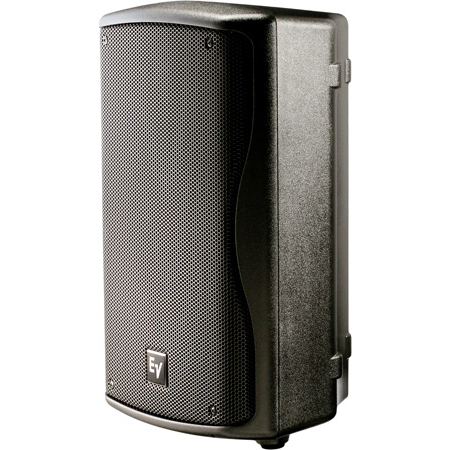

Electro Voice ZX1i-100T 100w Max 70V/100V 8in 2-Way Speaker System Black

ITEM #: ZX1I-100T MFG #: 301852001

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$824.00

Our Price:

$779.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    301852001 - Overview

    The Electro-Voice ZX1i is the new standard of no compromise audio performance and versatility in an easy to install, compact sound reinforcement package.

    The enclosure geometry has been engineered to provide maximum rigidity and acoustic performance. The velocity compensated port design overcomes the limitation of many small cabinet loudspeakers and enables exceptional low-frequency response without vent noise.

    ZX1i installation is incredibly simple with the included QuickSAM mounting system. The QuickSAM system is a unique, integrated mounting bracket which is virtually foolproof. It allows the installer to simply snap the speaker onto the bracket, then tighten it to the desired position. For array mounting, there is an optional array bracket kit available which allows multiple units to be mounted together for a variety of configurations.

    All Zx1i "t" versions use a special circuit that, when in transformer mode, re-configures the network to a current actuated Hi-Pass filter at the transformer primary. It gently rolls off the lowest frequencies to maintain a safe load on the amplifier without affecting the higher (vocal) frequencies and the program continues without interruption. Low frequency current is limited through the transformer eliminating low frequency saturation.

    Automatic Saturation Compensation allows many speakers to be run on a distributed line with a 50Hz Hi-Pass filter before the amplifier, regardless of the number of speakers on the same line (the number of tapped watts cannot exceed the amplifier rating). With the same 50Hz Hi-Pass, 10 speakers on transformers will have the same full sound as a single speaker at 8 ohms. Speakers sold individually.

    • Features:

      • Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket Included.
      • Patented ASC (Automatic Saturation Compensation) on Transformer Versions.
      • EV8L 8 inch Weatherized Cone High-Output LF Transducer.
      • DH2005 1 inch Exit True Compression Driver.

    • Specifications:

      • Frequency Response (-3 dB): 60 Hz - 20 kHz1
      • Frequency Range (-10 dB): 48 Hz - 20 kHz1
      • Rec. Hi-pass Frequency: 40 Hz
      • Axial Sensitivity: 92 dB (1W/1m)1
      • Max Calculated SPL: 121 dB
      • Coverage (H x V): 100 x 100
      • Rated System Power: 200 W Cont.2, 400 W Prog., 800 W Peak
      • LF Transducer: EV8L, 203 mm (8 in) Driver
      • HF Transducer: DH2005, 25 mm (1 in) Exit Compression Driver Crossover
      • Frequency: 1.7 kHz
      • Nominal Impedance: 8 Ω
      • Minimum Impedance: 6 Ω
      • "T" Version Wattage Taps: 70V - 6, 12.5, 25, 50, 100, 8 Ω by p0V - 12.5, 25, 50, 100, 8 Ω bypass
      • Connectors: 4-Pin Phoenix Connector Enclosure Material: ABS resin
      • Suspension: Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
      • Grille: Polyester Powder Coated, 18GA Galvanized Steel
      • Dimensions (H x W x D): 451 mm x 282 mm x 263 mm / (18 in x 11 in x 10 in)
      • Net Weight: 8.4 kg (18.5 lb) without Transformer: 10.4 kg (23.0 lb) with Transformer
      • Shipping Weight: 10.2 kg (22.5 lb) without Transformer / 12.3 kg (27.0 lb) with Transformer

    • GTIN:

      0800549682527
