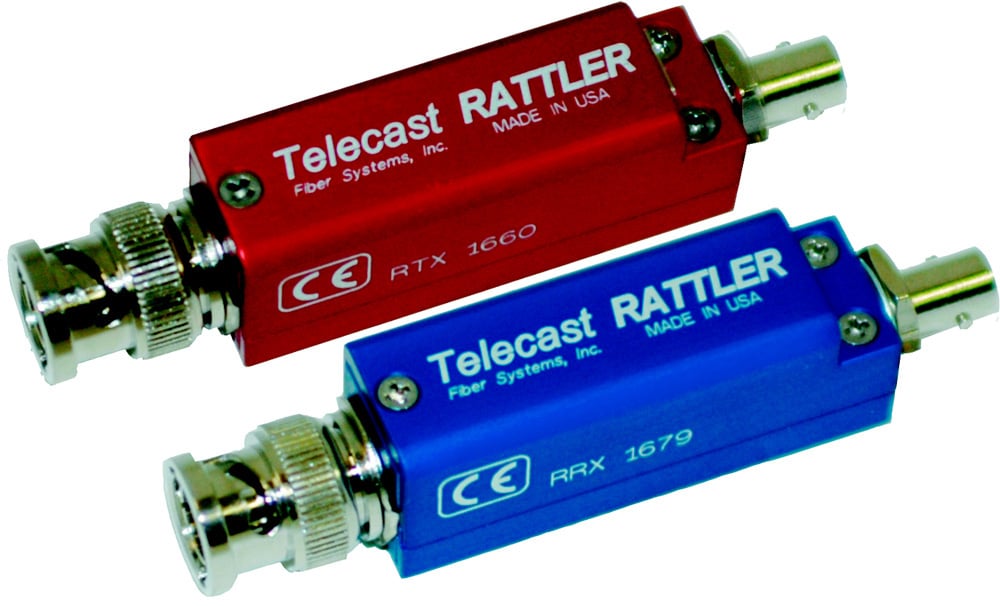

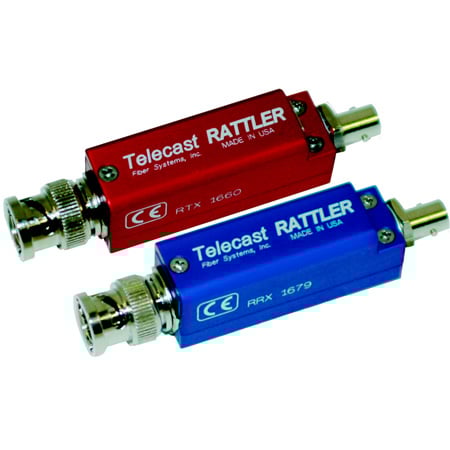

Telecast Rattler 1.5Gbs HD/SDI ST Fiber Optic Transmitter and Receiver Kit

Item #: RATTLER-KIT   •   MFG #: RATTLER-KIT



This item is no longer available. Please email or call us and we we'll be happy to help you with an appropriate substitute.




Share!





The Rattler mini 1.5Gbps HD/SDI Fiber Modules from Telecast Fiber Systems are a great fiber transport product, and very identifiable in the field as a Telecast, Engineers at TV stations world-wide should buy at least one pair out of their maintenance budget just to cover that longer run!

The Rattler TX accepts a 75ohm coaxial input up to 1.5Gb/s and converts it into an optical stream via a standard ST connector. The RX unit reconverts the uncompressed signal back to a BNC video output. You can now transport that HD signal for up to 30km's! (19 Miles)


  • Specifications

    • Video
    • Transmission method: Digital
    • Input level: 800 mV (peak to peak)
    • Input Impedance: 75 ohms
    • Coax Equalization @ 1.485 Gbps: 100m
    • Output Impedance: 75 ohms
    • Bit-Error Rate (@ -22 dBm) : 10(-11)
    • Jitter (pathological data pattern) : < 0.2 UI
    • Rise/Fall Times: < 270 ps

    • Transmission
    • Operating wavelength: 1310nm
    • Video connector in/out: BNC
    • Optical connector: ST
    • Optical Source: Laser Diode
    • Optical detector: PIN-TIA Diode
    • Transmitter output: -7 dBm
    • Receiver sensitivity: -22 dBm
    • Link Margin/Distance: 15 dB/20 km
    • Fiber type: Single mode or multimode


      Mechanical/Environmental
    • Dimensions (LxWxH): 3.2" x 0.65" x 0.75"
    • Weight: Each end 1.8 oz
    • Input Voltage: 5-16 VDC
    • Power Connector: mini USB, female
    • Power Consumption, each end: (typ.) 600mW
    • Indicators: Power, signal, link, optical power
    • Temperature Range operating: -25° C to +55°C
    • Humidity Range: 0 to 95%RH, non-condensing

  • Item Includes

    • 1 Rattler 1.5G Transmitter
    • 1 Rattler 1.5G Receiver
    • 2 GRPS-01-B Domestic 110/240VAC Power Supplies
    • 1 Pelican Case
