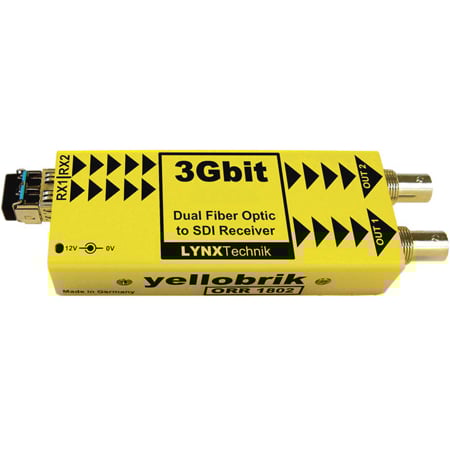

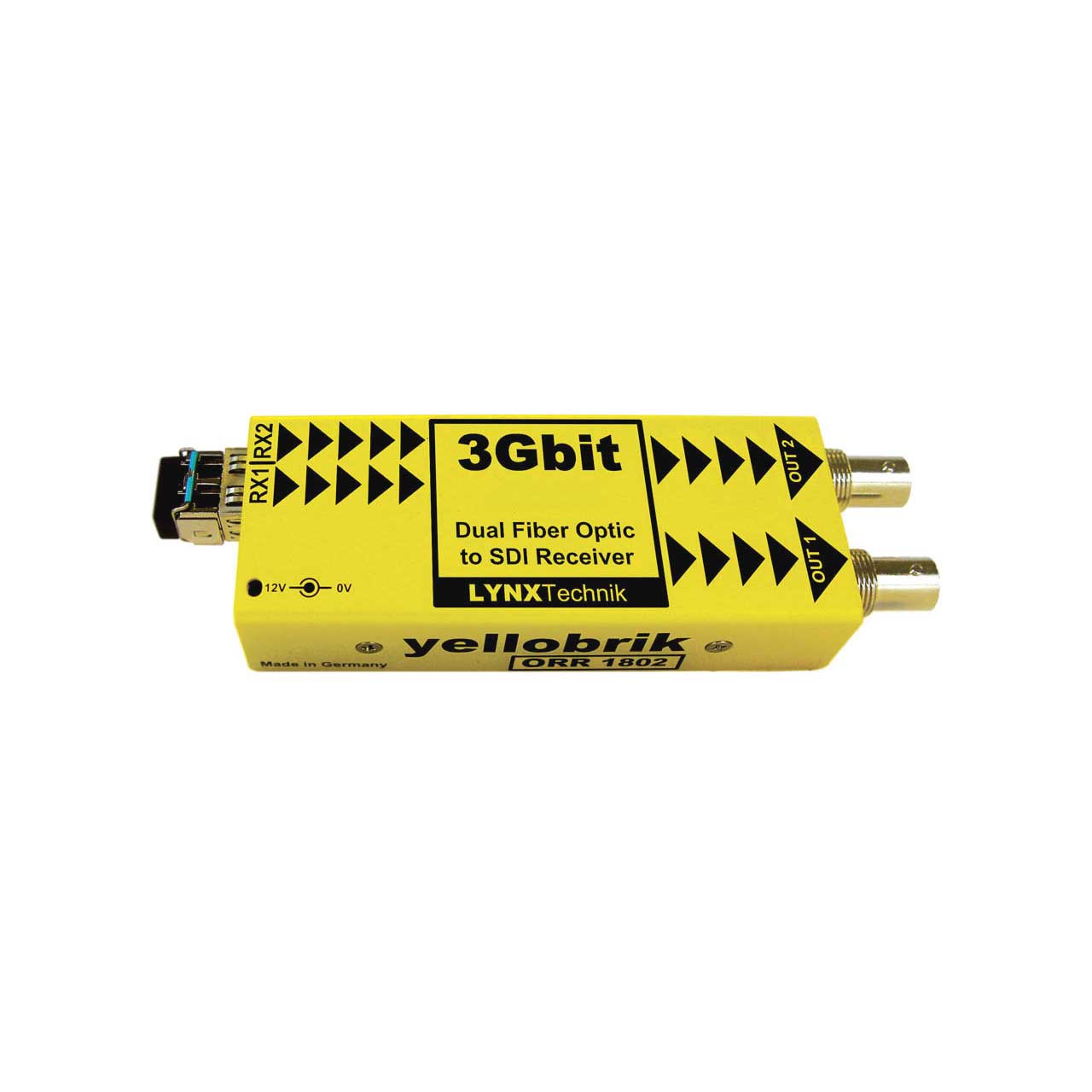

LYNX Technik Yellobrik ORR 1802 SD/HD/3G - Dual Channel Fiber to SDI Converter Receiver w/ LC Duplex Singlemode SFP

ITEM #: LNX-ORR-1802 MFG #: ORR 1802

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$599.00

Our Price:

$569.05

Availability: In Stock
iAvailability Description Popup


    ORR 1802 - Overview

    SD/HD/3G - Dual Channel Fiber to SDI Converter

    The LYNX Technik ORR 1802 is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.

    When paired with an SDI optical transmitter (e.g. yellobrik OTT 1812, OTX 1812, OTX 1842 etc) you have a very cost-effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.

    The ORR1802 has two completely independent channels and each will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI fiber source prior to electrical conversion. The module is fully compatible with 3Gbit Level A and Level B formats.

    • Features:

      • Dual channel
      • Supports SDI video inputs up to 3Gbit/s (1080p60)
      • 3Gbit Level A and Level B support (all formats)
      • Auto reclocking 270Mbit / 1.5Gbit / 3Gbit
      • Error free optical reception
      • 1260nm to 1620nm wavelength input range
      • Duplex LC/PC singlemode optical connection
      • Supports hot swapping and hot plugging

    • Specifications:

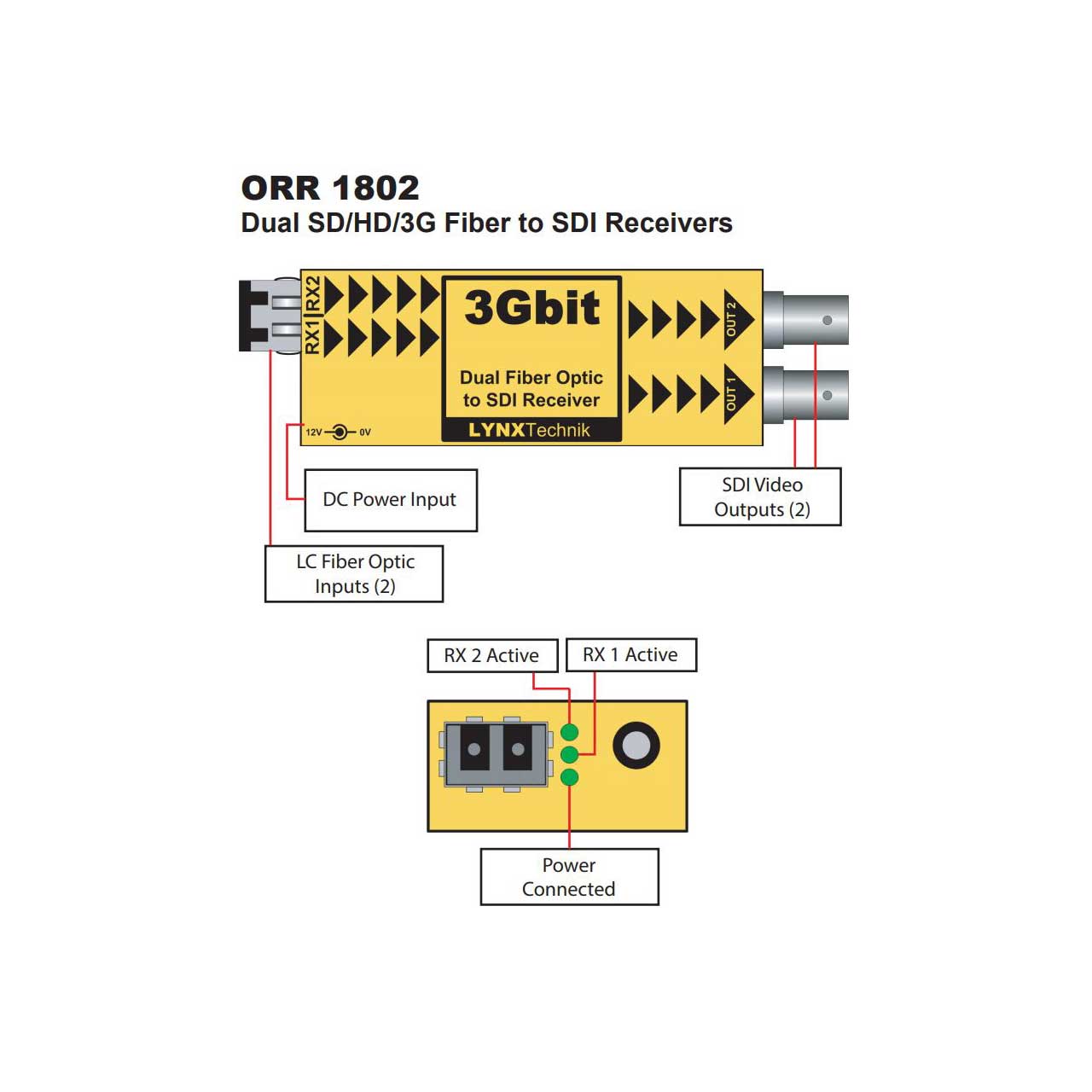

      • Fiber Inputs
      • 2 x fiber optic Inputs (one for each channel)
      • Duplex (single mode) using LC/PC Connections
      • SMPTE 297M - 2006
      • Hot pluggable
      • Input range (wavelength) 1260nm to 1620nm
      • RX sensitivity -3dBm to -16dBm
      • RX active LED on side of module
      • (SMF) Singlemode fiber

        SDI Outputs
      • 2 x SDI video on 75 Ohm BNC connector (two independent channels)
      • SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
      • Multi-standard operation from 270Mbit/s to 3Gbit/s
      • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz

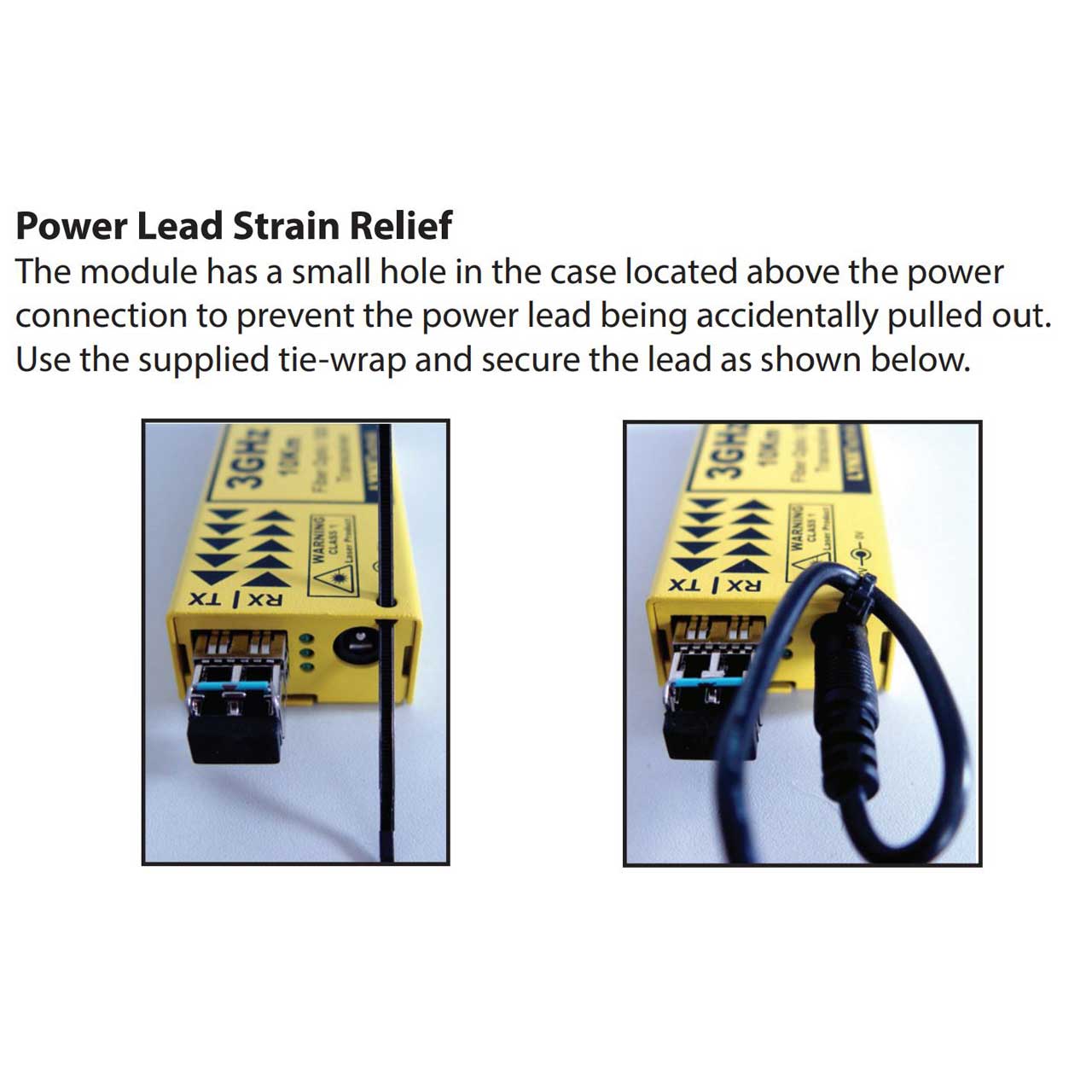

        Physical
      • Size: 140 x 42 x 22mm (5.51 x 1.65 x 0.86") including connectors
      • Weight: 125g (4.4oz)
      • Ambient: 41 - 104°F / 90% Humidity (non condensing)
      • Power: +12VDC @ 2.2W nominal - ( supports 9 - 14VDC input range )

    • Item Includes:

      • 1 x ORR 1802 Module
      • 1 x AC Power Supply
      • 2 x Module Mounting Brackets
      • 1 x Duplex LC Singlemode SFP

    • Options

      :

      • LC/ST DUP – Dual LC to ST Fiber connector adapter cable
      • LC/SC DUP – Dual LC to SC Fiber connector adapter cable
      • P-TAP 1000 – P-TAP battery power adapter lead
      • XLR-1000 – 4 Pin XLR camera battery power adapter lead

    • GTIN:

      4250479318021
