VAC 11-114-102 1x2 Composite Video DA

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

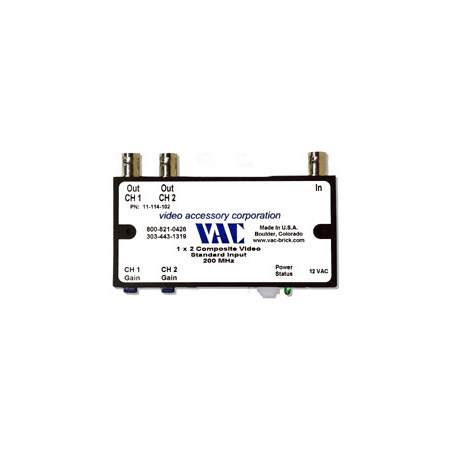

    VAC 11-114-102 1x2 Composite Video DA

    Manufacturer: VAC

    Item #: 11-114-102   •   MFG #: 11-114-102



    List Price:$258.00
    Our Price:$242.95

    free ship


    Availability:
    Direct Ship from manufacturer, contact us for availability
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      VAC 11-114-102 1x2 Composite Video DA, Std. Input, Ind. Var. Gain, BNC Connectors, 12V AC


      • Specifications

        • Bandwidth DC - 200 MHz @ -3dB (1Vpp input signal)
        • Input Signal Level 0.5 - 2.0 Vpp (within -1V to +1V range from ground)
        • Input Configuration Standard (75 Ohm)
        • Input Coupling DC
        • Input Connectors BNC
        • Output Connectors BNC 2 Outputs
        • Gain Individual Variable
        • Output Series Impedance 75 Ohms
        • Mounting Two threaded 6-32 inserts
        • Power Supply 12V AC
        • Power Connector Type P5 Connector
        • Power Status Power LED indicator
        • Temperature -40°C to 50°C
        • Humidity 0% - 95%
        • Dimensions 2.2" x 4.4" x 0.65"
        • 56mm x 112mm x 17mm
        • (Epoxy only without connectors)
        • Shipping Weight 2 lbs
        • (Includes wall transformer)
