VAC 11-114-108 1x8 Composite Video DA with BNCs

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

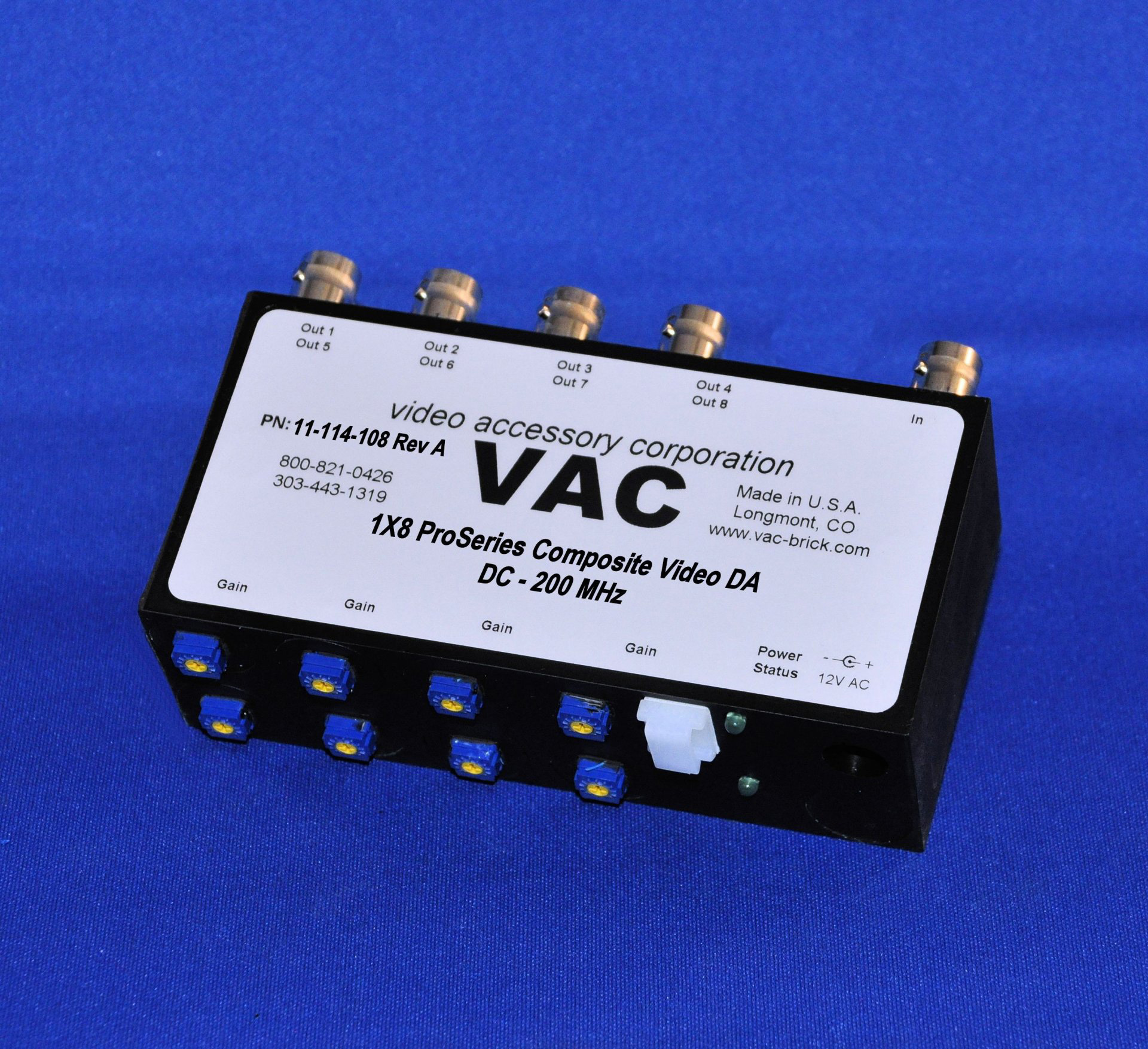

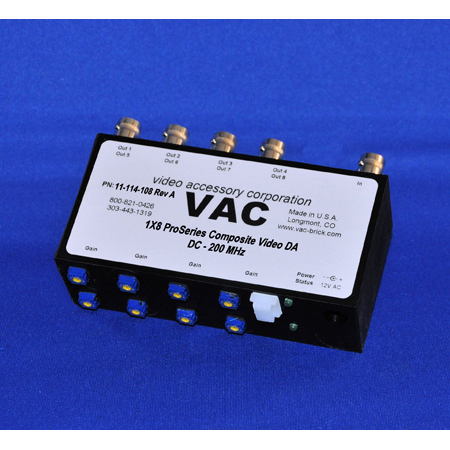

    VAC 11-114-108 1x8 Composite Video DA with BNCs

    Manufacturer: VAC

    Item #: 11-114-108   •   MFG #: 11-114-108



    List Price:$375.00
    Our Price:$352.95

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.



      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      VAC composite video distribution amplifiers are compact, reliable, and high-quality for broadcast, professional AV, security, military, and manufacturing applications.

      Exceptionally flat gain characteristics across the entire bandwidth.


      • Features

        • True 75 Ohm BNC connectors provide accurate matching to coax cable input and outputs
        • Sophisticated power supply circuitry to eliminate interference from noisy or poorly regulated power sources
        • Exceptionally flat gain characteristics across the entire bandwidth to provide the highest quality signal reproduction
        • Epoxy encapsulated "Brick" is virtually impervious to environmental extremes
        • Designed to the demanding needs of broadcast engineers, rugged enough for military applications, and competitively priced

      • Specifications

        • # Channels: 1
        • Inputs/Channel: 1
        • Outputs/Channel: 8
        • Input 1 Signal Type: Composite Video
        • Input 1 Coupling: DC
        • Input Configuration 1: Standard 75 Ohms
        • Gain Configuration: Individual
        • Input 1 Connector: BNC
        • Output 1 Signal Format: Composite Video
        • Output 1 Coupling: DC
        • Output Configuration1: Standard 75 Ohms
        • Output 1 Connectors: BNC
        • Power Connector: P5
        • Input Voltage 1: 12 VAC
        • Height: 1.4"
        • Width: 4.4"
        • Depth: 2.2"
        • Low Operating Temp (C): -40
        • High Operating Temp (C): 50
        • Power Bypass: NO
        • Mounting: Two 6-32 Inserts

      • Item Includes

        • 11-114-108 composite DA
        • Power supply
