    VAC 11-144-104 1x4 Composite Video DA

    Manufacturer: VAC

    Item #: 11-144-104   •   MFG #: 11-144-104


    List Price:$292.00
    Our Price:$274.49

    free ship
    Availability: Direct Ship From Manufacturer
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.

      California Residents:
      Cancer and Reproductive Harm -


      1x4 Composite Video DA, Diff. Loop-thru Input, Ind. Var. Gain, BNC Connectors, 12V AC

      • Specifications

        • Bandwidth DC - 200 MHz @ -3dB (1Vpp input signal)
        • Input Signal Level 0.5 - 2.0 Vpp (within -1V to +1V range from ground)
        • Input Configuration Differential Loop-Thru
        • Input Coupling DC
        • Input Connectors BNC
        • Output Connectors BNC 4 Outputs
        • Gain Individual Variable
        • Output Series Impedance 75 Ohms
        • Mounting Two threaded 6-32 inserts
        • Power Supply 12V AC
        • Power Connector Type P5 Connector
        • Power Status Power LED indicator
        • Temperature -40°C to 50°C
        • Humidity 0% - 95%

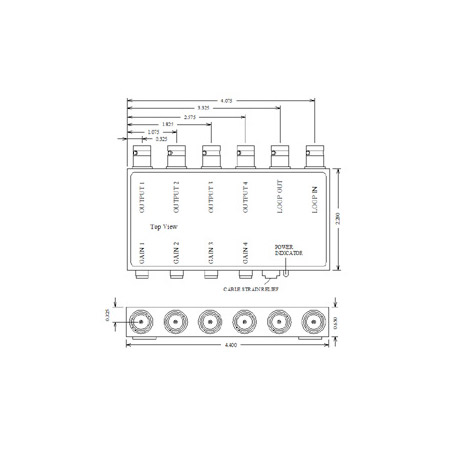

        • Dimensions 2.2" x 4.4" x 0.65"
        • 56mm x 112mm x 17mm
        • (Epoxy only without connectors)
        • Shipping Weight 2 lbs
