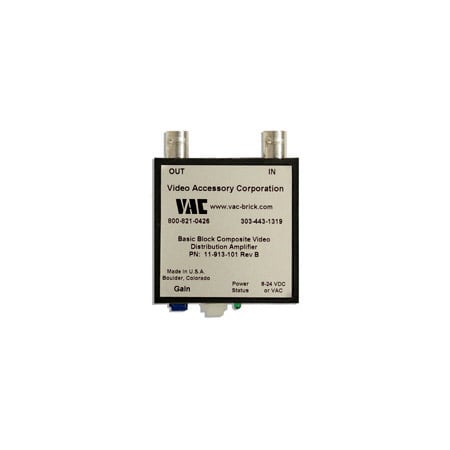

VAC 11-913-101 Composite Video DA 1X1 Standard Input with Variable Gain

ITEM #: 11-913-101 MFG #: 11-913-101

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the 11-913-101

11-913-101 - Overview

VAC 11-913-101 Composite Video DA 1X1 Standard Input with variable gain with one adjustable gain output.

  • Features:

    • Low Cost
    • 5 Year Warranty
    • Broadcast Specs
    • Rugged and Compact
    • Drive Long Cables
    • DC to 50 MHz frequency response
    • One adjustable gain output
    • NTSC, PAL or SECAM


  • Specifications:

    • Bandwidth: DC - 200 MHz @ -3dB (1Vpp input signal)
    • Input Signal Level: 0.5 - 2.0Vpp (within -1V to +1V range from ground)
    • Input Configuration: Standard (75 Ohm)
    • Input Coupling: DC
    • Input Connectors: BNC
    • Output Connectors: BNC 1 Outputs
    • Gain: Global Variable
    • Output Series Impedance: 75 Ohms
    • Mounting: Two threaded 6-32 inserts
    • Power Supply: 8-24V AC/DC
    • Power Connector: Type P5 Connector
    • Power Status: Power LED indicator
    • Temperature: -40°C to 50°C
    • Humidity: 0% - 95%
    • Dimensions: 2.2" x 2.2" x 0.65"56mm x 56mm x 18mm (Epoxy only without connectors)
    • Shipping Weight: 1 lbs (Includes wall transformer)
