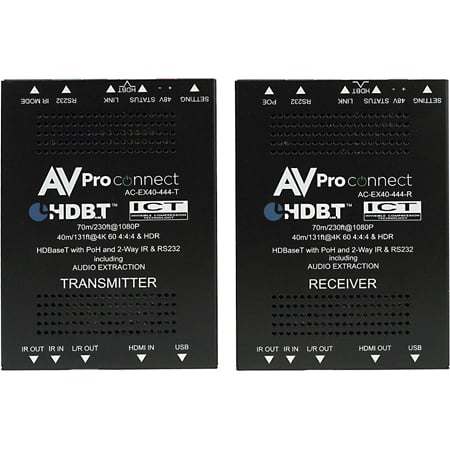

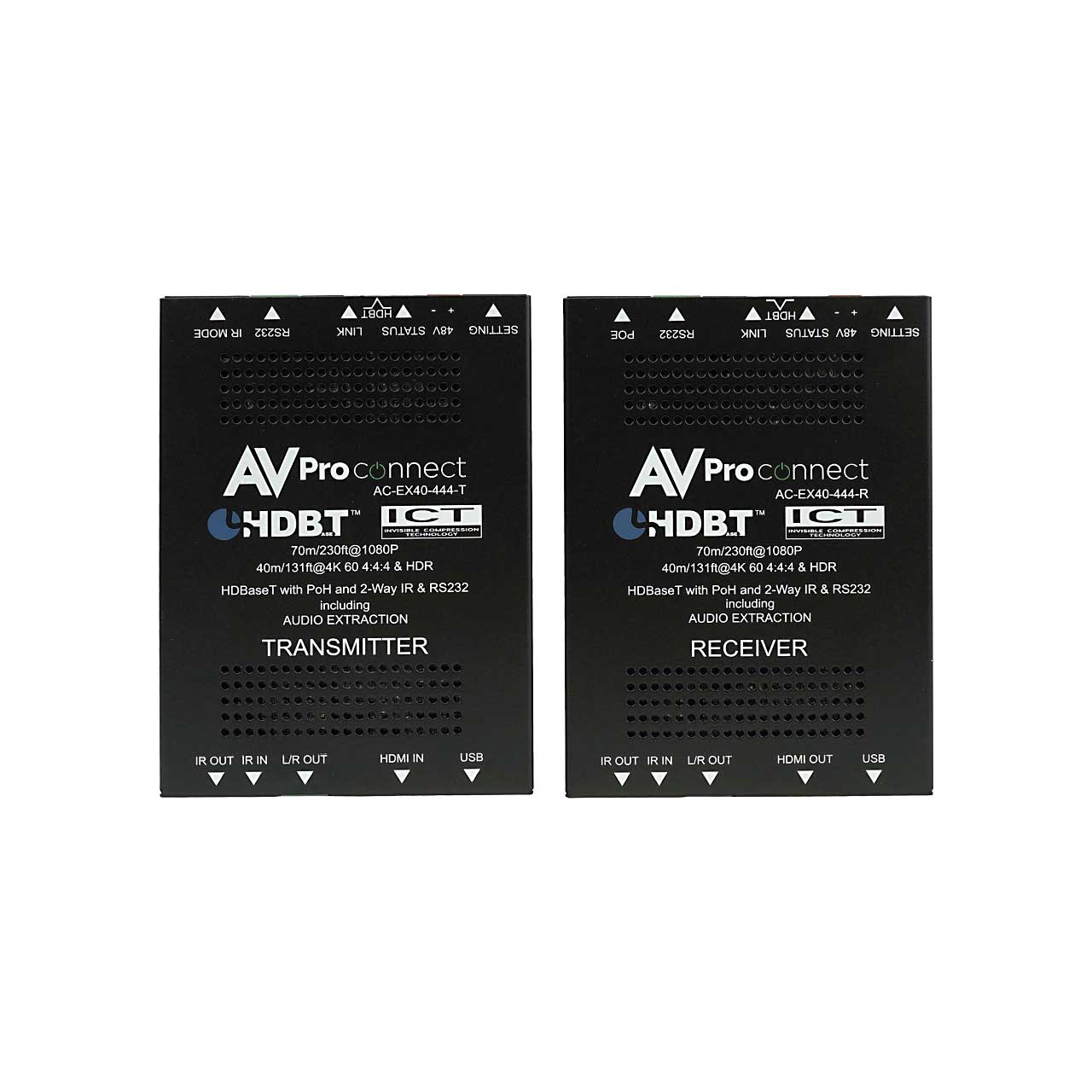

AVPro Edge AC-EX40-444-KIT 4K60 (4:4:4) w/ HDR 40 Meter Extender Kit with Tx and Rx

ITEM #: AC-EX40-444-KIT MFG #: AC-EX40-444-KIT

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:


Availability: More on the Way
iAvailability Description Popup

    AC-EX40-444-KIT - Overview

    The AC-EX40-444 is a revolutionary 4K60 4:4:4, HDR and 18Gbps supported HDBaseT extender over single CAT-5e/6a/7 UTP/STP.

    AVPro Edge presents its first 18Gbps over copper extender. Using ICT (Invisible Compression Technology) we have achieved what was thought to be impossible. We can deliver a virtually lossless high bandwidth 4K HDR signal with support for all signals up to 18Gbps. Deep Color and HDR Metadata remain intact making the transmission free of artifacts like banding. Other similar devices will deliver a sub-par image that has very visible banding and color shifting.

    Key Benefits Include:

    Invisible Compression Technology: ICT is a revolution in HDMI extension technology. This proprietary technology can compress high bandwidth HDMI signals into a more manageable size to fit through a CAT Cable "pipe". The ICT algorithm can manage all flavors of HDR including 4:4:4, 4:2:2, and 4:2:0 as well as signals up to 18Gbps and 4K 60Hz 4:4:4. The architecture of ICT allows it to be compatible with all chroma subsampling types, color spaces and HDMI Deep Color up to 12 Bit. Our technology is unique because it is truly invisible. It is not only invisible to the human eye, it is invisible to HDMI test gear and other sink devices, what comes in is what goes out. What makes ICT special is that we preserve HDR Metadata and color information and depth in its full, original, integrity. Other compression technologies sacrifice these to save space and it will cause very visible banding, color shifting and motion artifacts in the image.

    This technology is backed by extensive testing in side by side comparisons of ICT vs direct connected sources. The setup is two identical displays and a single source. The source is split and sent to both displays, one using ICT and one with an 18Gbps cable. The movie is shown in HDR and evaluators are brought in to determine which one is compressed. The results are conclusive, it is invisible. Even to the most trained eye.

    Extend 4K 604:4:4 and HDR Signals: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT-5E/6A cables are available widely and can be reworked easily by the installer or end-user. Additionally, using CAT cable allows the user to change components as technology changes. By using AC-EX40-444, the transmission distance for HD 1080P is up to 70 meters (230ft) and UHD,4K resolution the distance reaches an impressive 40 meters (115ft).

    Down Scaling: The AC-EX40-444 has a scaling circuit built into the transmitter. The scaler can scale 4K (and HDR) - 1080P. A common application for this is when you have a 4K distribution and you have one or two displays that are older. You can use the extender to scale down where you need to and not have to reduce the entire system. The AC-EX40-444 does the heavy lifting, eliminating the need to add additional boxes. This is an ideal choice for extension for projects requiring an 18G matrix like the AC-MX1616-AUHD.

    Total EDID Management: The AC-EX40-444 has robust EDID control. EDID management allows you to manage the input device and request specific video resolutions and/or audio codecs. The following EDID options are available:
    EDID Bypass
    1080P 2CH Audio
    1080P 8CH Audio
    4K60 4:2:0 2CH Audio
    4K60 4:2:0 8CH Audio
    4K60 4:4:4 HDR 2CH Audio
    4K60 4:4:4 HDR 8CH Audio
    The EDID Copy Function allows you to copy and save from any display or projector you want to.

    On Board Troubleshooting: This unit allows you to generate a 1080P or 4K test pattern to identify external problems (source, repeater, displays, etc...). You can now be sure that your wiring is correct and get to the bottom of problems quickly should they arise.
