AIDA-PTZ3-X20L - Overview

The PTZ3-X20L is a compact and versatile HD 3G-SDI Broadcast PTZ Camera that makes it easy to connect and control where it matters most. The PTZ3-X20L is built around a professional 2 Megapixel 1/2 8-inch sensor with a smooth 20X Optical Power Zoom block module with 12X Digital boost. The camera features built-in OSD for customizable image settings and is equipped with various video outputs, such as 3G/HD-SDI, HDMI, DVI (HD), and Composite. Remote operation and control through VISCA protocol (RS-232C) or serial connections, RS-422/485 via terminal block, makes it highly compatible with most integrated control systems and workflows.

  • Features:

    • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
    • Advanced digital image processor provides vivid and detailed images with full access feature sets.
    • Motion-compensated temporal noise reduction filter leads to effective noise reduction for motion
    • video without blur.
    • 3G/HD-SDI, HDMI, DVI (HD) and Composite for versatility and seamless video performance.
    • Power Optical Zoom capability up to 20X and boosted with 12X digital zoom.
    • Compatible with other industry leading products, conforming with SMPTE 424M/292M standard.
    • Auto White Balance and shutter speed provides the optimized performance in a variety of situations.
    • Built-in OSD controls for customizable image settings.
    • Versatile and compact.


  • Specifications:

    • Operation Temp: 32° F - 104° F
    • Dimension: 155mm x 160m x 170mm / 6.10" x 6.92" x 6.69"
    • Weight: 1.35kg / 2.97lbs
    • Power: 12VDC (+9 - +15VDC)
    • Image Sensor: 1/2.86" Progressive CMOS
    • Sensor Size: 5.346mm x 3.003mm (16:9)
    • Effective Pixels: Horizontal: 1920, Vertical: 1080
    • Pixel Size: 2.75 µm x 2.75 µm
    • White Balance: Auto, Indoor, Outdoor, One Push, ATW, & Manual
    • Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
    • Focus: Auto, Manual
    • Shutter Speed: 1 to 1/10,000 Sec.
    • Protocol: VISCA, PELCO-D

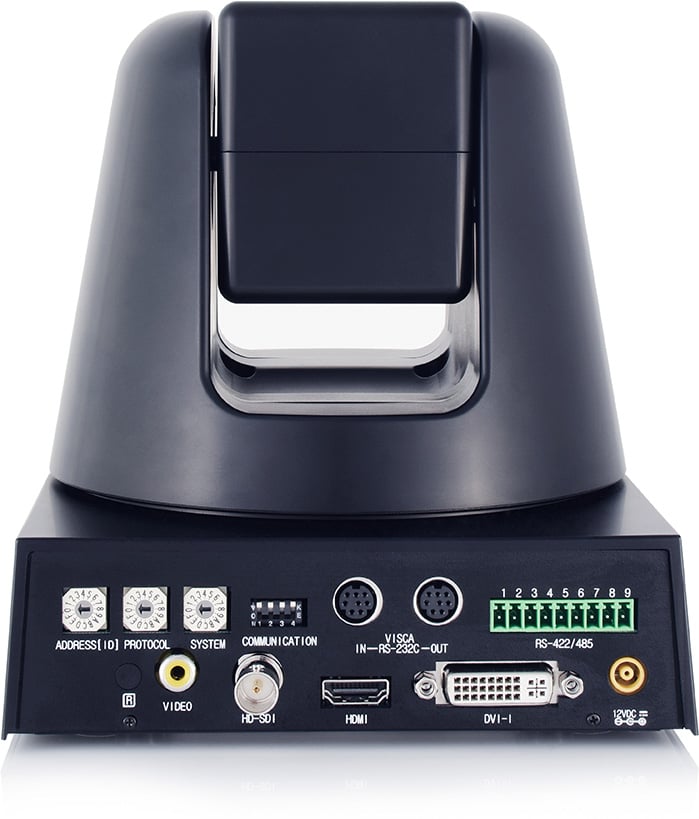

    • Interface: RS-232C IN & OUT, RS-422/485 Remote Controller
