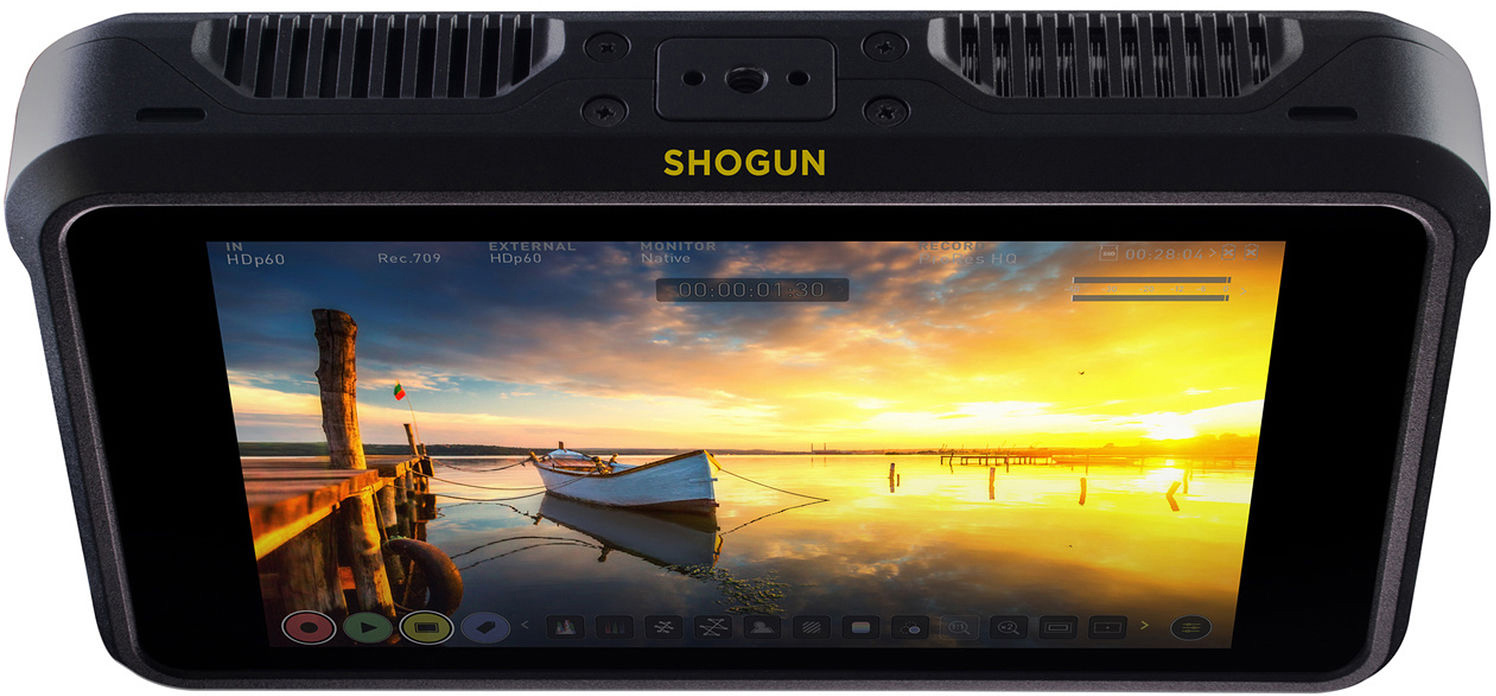

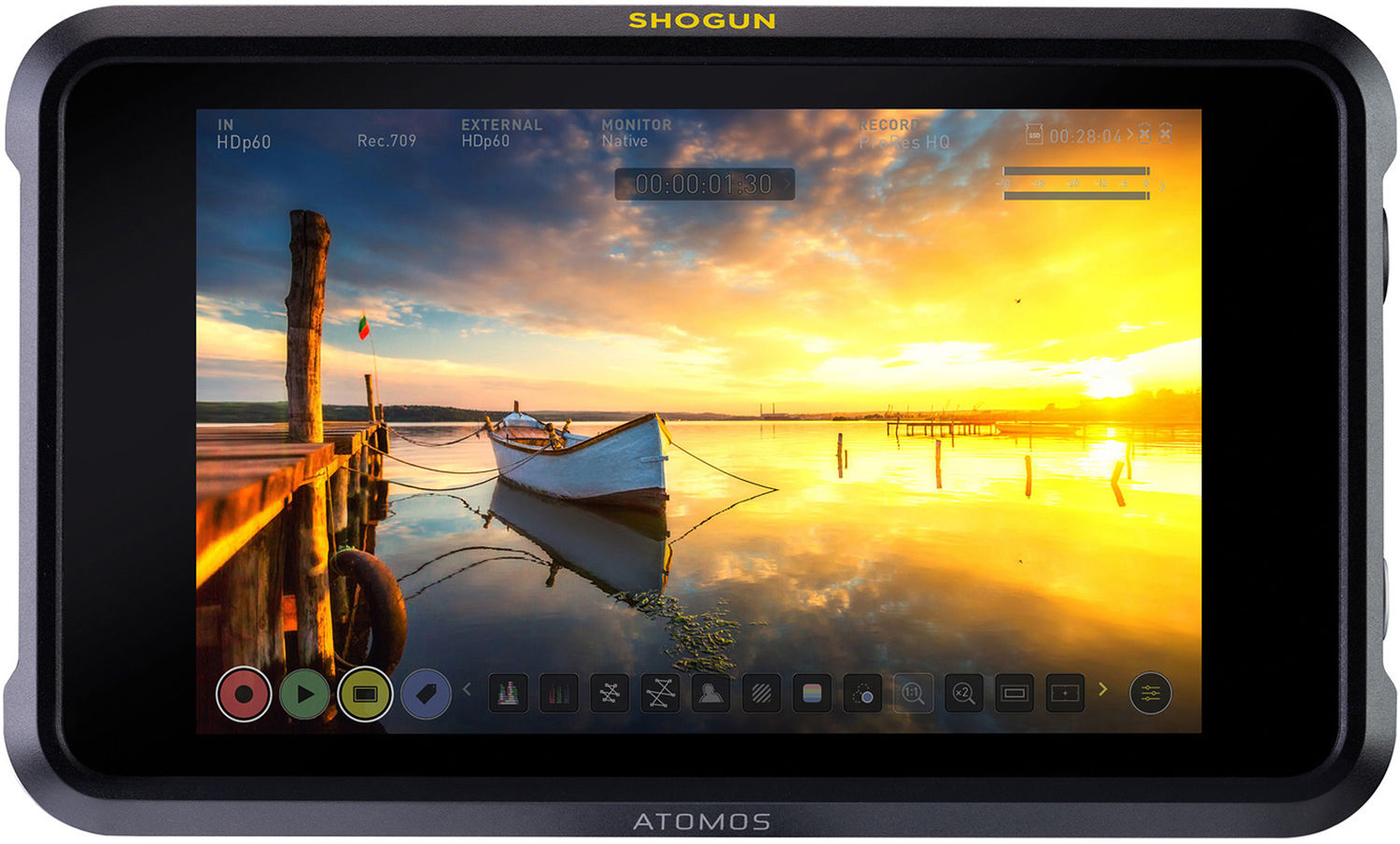

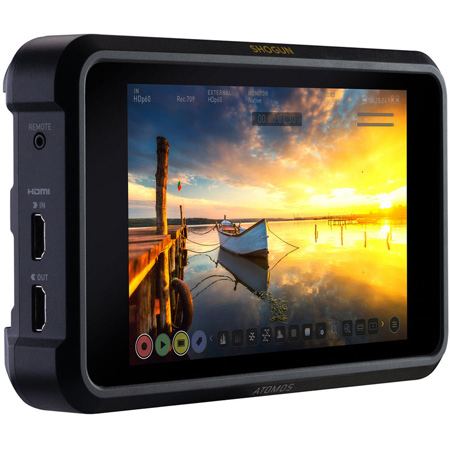

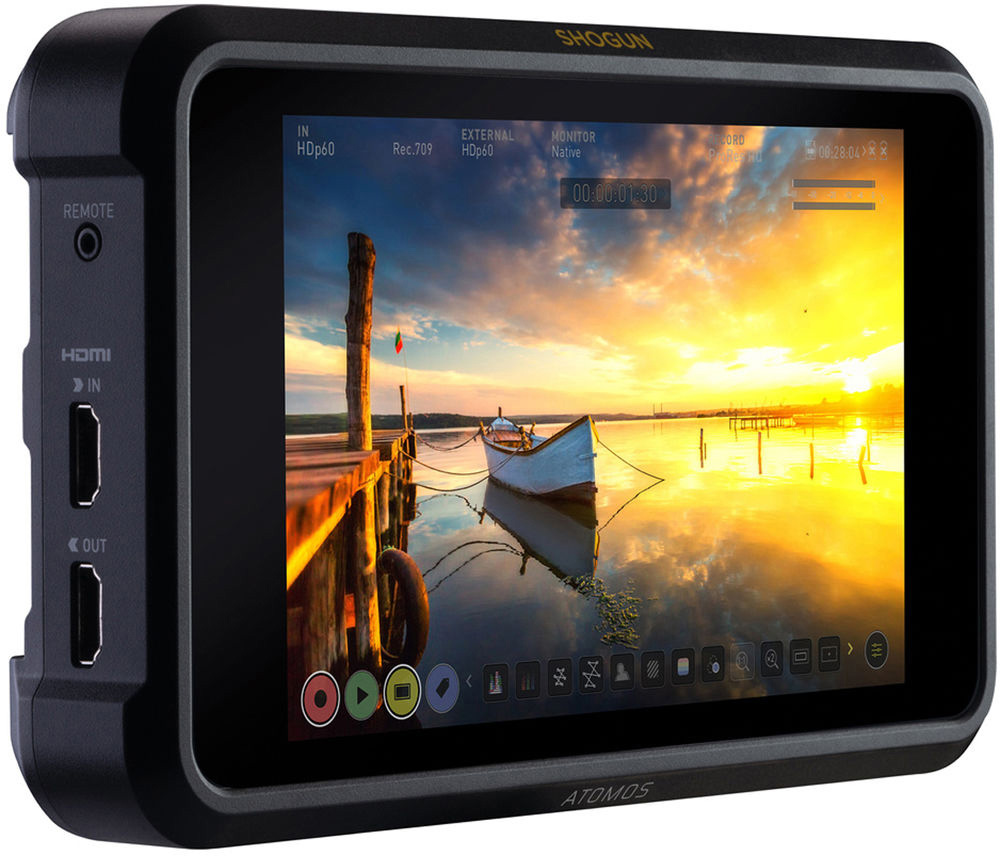

Atomos SHOGUN7 7-Inch 1500nit Display HDR Pro/Cinema Monitor-Recorder-Switcher


Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATO-SHOGUN7

SHOGUN7 - Overview

Unbelievable HDR, real-time Dolby Vision monitoring
Atomos Shogun 7 is a precision HDR monitor-recorder-switcher designed for the film and video professional. It can be used as either a stand-alone field monitor, recorder and switcher for event, documentary and live in-the-field storytelling; or as a tool for large-scale on-set episodic TV, film and cinema productions where multiple crew members such as focus pullers, grips and cinematographers require a consistent visual reference across the field monitor ecosystem. Shogun 7's portable size lets you monitor, analyze and tag while on set; and check how your content will look in your audience's home via real-time Dolby Vision output. With Shogun 7 you're not locked into any format, camera manufacturer or pipeline. It is a completely flexible master recording and production station.

Live multi-cam has never been more portable
Monitor, record and switch between 4 live HD SDI video streams and one program stream for flexible in-the-field directing. Enjoy the freedom of asynchronous switching and gen lock in & out to connect to existing infrastructure. Atomos Shogun 7 offers up to HDp60 SDI ISOs x 4 recording. Once you've finished capturing your streams, just import the Atomos xml file into your NLE and your timeline populates with all your edits in place. Audio is also taken care of, with each ISO and program record, we insert the mixed analog stereo channels and embed 2 channels of digital audio in each recorded stream. The program stream always records the analog feed and switches between audio inputs for the on-camera audio to match the switched feed.

Single-camera storytelling in 4K, or 2K slow-mo
Capturing in 4K is now becoming a requirement for content streaming providers. With the latest HDMI 2.0v you can capture up to 4Kp60 on any available camera, or via Quad Link, Dual Link or Single Link. If slow motion capture is important to your production, Shogun 7 lets you capture 2K up to 240p. You can tag on-the-fly while recording for direct-to-edit look up in Final Cut Pro X, Adobe Premiere* and Avid Media Composer.

Atomos technology brings the real world to your monitor
Introducing Dynamic AtomHDR technology, designed by Atomos to yield a 1,000,000:1 screen contrast ratio. With the Atomos Shogun 7 blacks and colors are rich and deep. Images appear to `pop' with added dimensionality and detail. The incredible Atomos screen uses a unique combination of advanced LED and LCD technologies which together offer deeper, better blacks than rival OLED screens, but with the much higher brightness and vivid color performance of top-end LCDs. Objects appear more lifelike than ever, with complex textures and gradations beautifully revealed.

  • Specifications:

    • Power
    • Operating power: 10 - 33W
    • Compatible batteries: Atomos NP-F series and supporting accessories
    • Input voltage (battery): 6.2V to 16.8V
    • Battery time (based on 2 x 7.4V): 5200mAh - up to 1.5hrs (monitor & record 4K 30p)
    • 7800mAh - up to 2.2hrs (monitor & record 4K 30p)
    • DC In: 1 x DC in (6.2 - 16.8V)

    • Size: 7.2"
    • Resolution: 1920 x 1280
    • PPI: 325
    • Aspect ratio: 16:9 native
    • Color Gamut: Up to Wide color gamut (105% DCI-P3)
    • Look up table (LUT) support: 3D LUT (.cube format)
    • Anamorphic de-squeeze: 2x, 1.5x, 1.33x
    • Technology: Dynamic AtomHDR zoned backlight
    • IPS LCD

      Dynamic AtomHDR Technology
    • Backlight: Direct LED
    • Zones: 360 direct backlight individual LEDs
    • LEDs: Wide Color Calibrated D65 or D95
    • Bit depth: 10-bit (8+2 FRC)
    • Color: DCI-P3 105%
    • Brightness: 1500nit (+/- 10%)
    • Control: On the fly real-time brightness analysis for LED control
    • HDR Conversion: Log/RAW to HLG or PQ

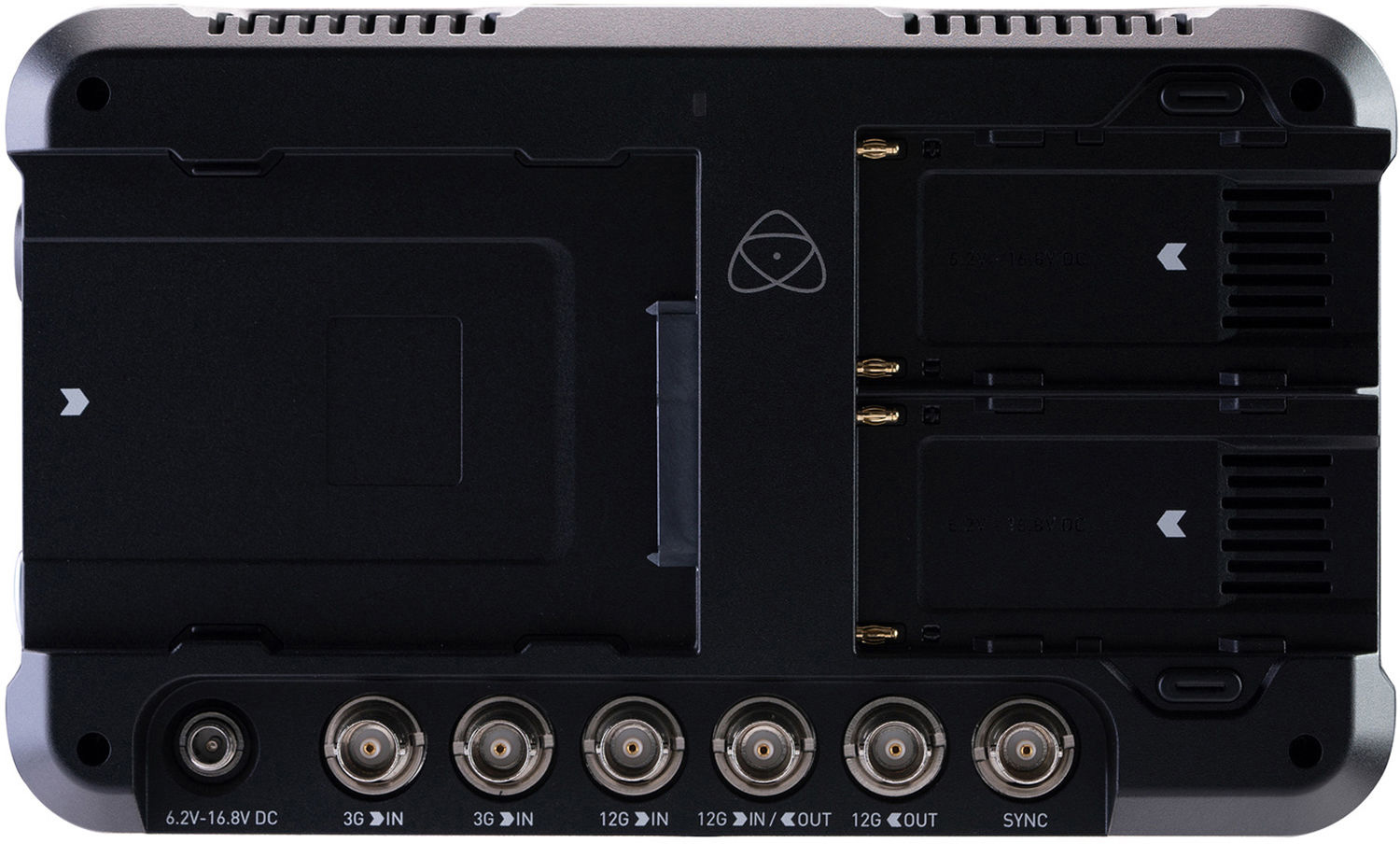

      Video Input/Loop Out
    • HDMI: HDMI 1 x HDMI (2.0)
    • SDI: Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI
    • Signal: Uncompressed true 10-bit or 8-bit 422(camera dependent)
    • Genlock: Genlock input signal and output signal

      Video Output (Play Out)
    • HDMI: 1 x HDMI (2.0)
    • SDI: 2x 4K-SDI 12G or HD-SDI 3G/6G
    • Signal: Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

      Audio In/Out (48kHz PCM Audio)
    • HDMI: 2 or 8ch 24-bit, camera dependent
    • SDI: 12ch 48kHz 24-bit
    • Audio: 2ch balanced XLR analogue in/out
    • Dynamic range >90dB
    • Max signal level +24dBu
    • Max analogue gain +52dB
    • 48V Phantom Power for Mic
    • Headphone out: 3.5mm 2ch.

      Supported Codecs & Frame Rates (Record & Playback)
    • Raw to:
    • ProRes RAW
    • ProRes
    • CinemaDNG (CDNG up to 30p only)
    • Avid DNxHD
    • Sony FS700, FS-5, FS-7, FS-7MkII
    • 4K DCI; 24/25/30/50/60p
    • 4K UHD; not supported in camera
    • 2K; 24/25/30/50/60/100/120/200/240p
    • 1080; not supported in camera
    • FS700, FS-5, FS-7, FS-7MkII Canon C300MKII/C500 CDNG
    • 4K DCI; 24/25/30p
    • 4K UHD; 24/25/30p
    • 2K; not supported in camera
    • 1080; not supported in camera
    • Panasonic VaricamLT, EVA1
    • 5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)
    • 4K DCI; 24/25/30/50/60p
    • 4K UHD; 24/25/30/50/60p
    • 2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera
    • Supported base resolution & FPS from cameras
    • 4K DCI: 23.98/29.9/59.94p
    • 4K UHD: 23.98/29.9/59.94p
    • 2K DCI: 23.98/29.9/59.94p
    • 1080p: 23.98/29.9/59.94p

      Onboard Processing
    • Pulldown removal: 24/25/30pSF > 24/25/30p (2:2 pulldown)
    • 60i > 24p (3:2 pulldown)
    • 4K UHD downscale for HD monitoring: Yes - Loop-out and playback (Not available in RAW)

      Remote Start/Stop
    • HDMI: Auto HDMI Trigger
    • Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard
    • SDI: SDI trigger camera selectable
    • Other: LANC control - Slave

    • Without batteries & media: 1.56lb (709g)
    • Dimensions (WxHxD): 8.4 x 5 x 1.77" (214 x 127 x 45mm)
    • Construction: Polycarbonate ABS
    • Mounting points: 1/4"-20 screw mount. 1x top and 1x bottom
  • Item Includes:

    • Shogun 7 unit
    • Master Caddy II x 1
    • 12V-3A AC power supply
    • Carry Case
    • Quick Start guide
  • GTIN:
