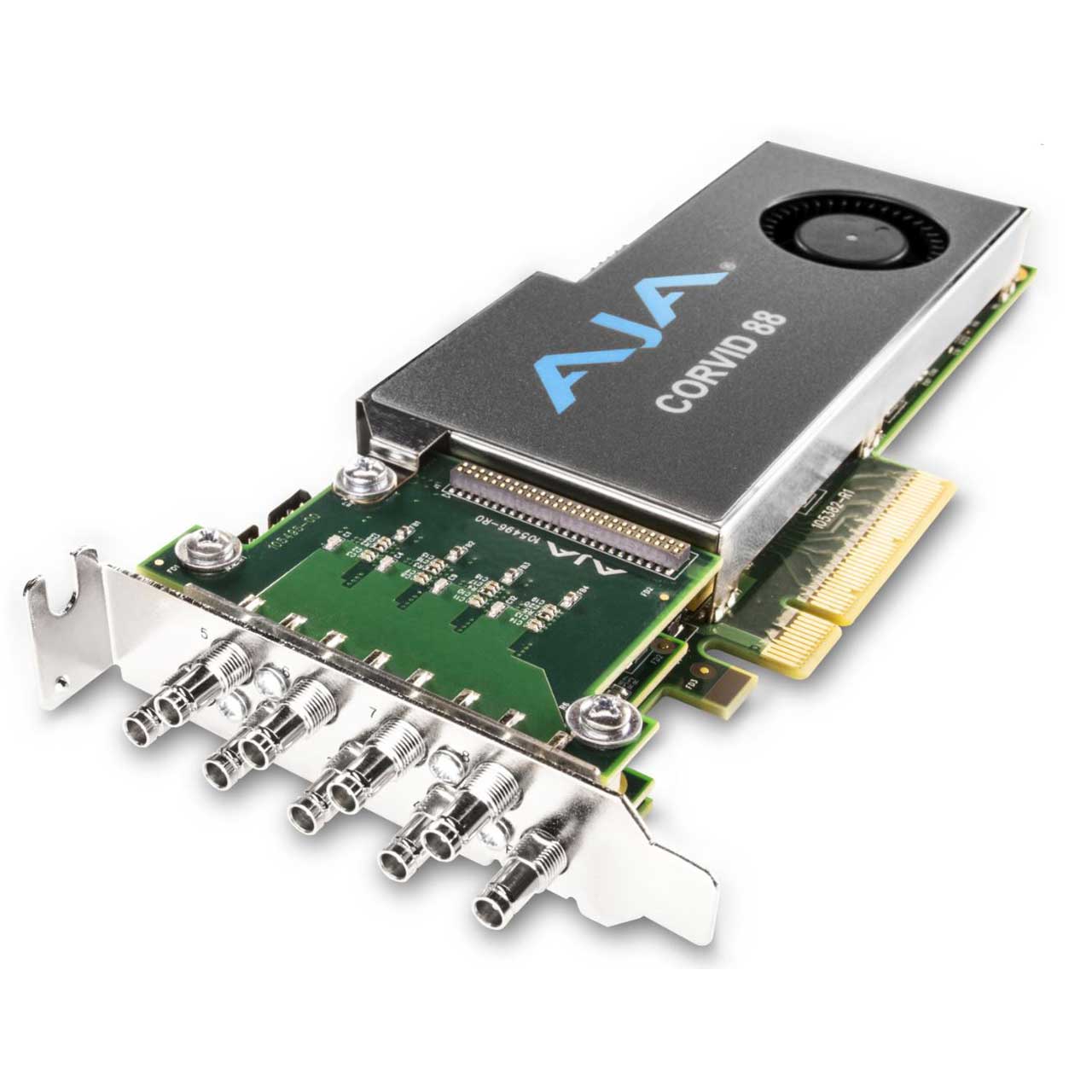

AJA Corvid 88-T 8 Channel 3G-SDI Standard PCIe I/O card - Fan Included

ITEM #: AJA-CORVID88-T MFG #: CORVID 88-T

close - X

free ship

Our Price:

$3,169.00

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup


    CORVID 88-T - Overview

    High Density I/O in Any Format!

    The AJA CORVID 88-T helps you maximize your video and audio I/O capacity! The CORVID-88 T is a 4K capable, 8-Channel, Raster Independant,Standard PCIe I/O card. With the CORVID 88 you can configure each SDI connection individually as an input or output and then mix formats for up to eight HD or SD channels on a single card. Need higher resolutions? Once each BNC connection on Corvid 88 is set they can support a different video format, as long as all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.

    Corvid 88 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with Corvid 88, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 88 extremely flexible for your current and future needs.

    Corvid 88 provides a built-in RS-422 connection and a single, external, switchable LTC/Reference Input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to Corvid 88.
