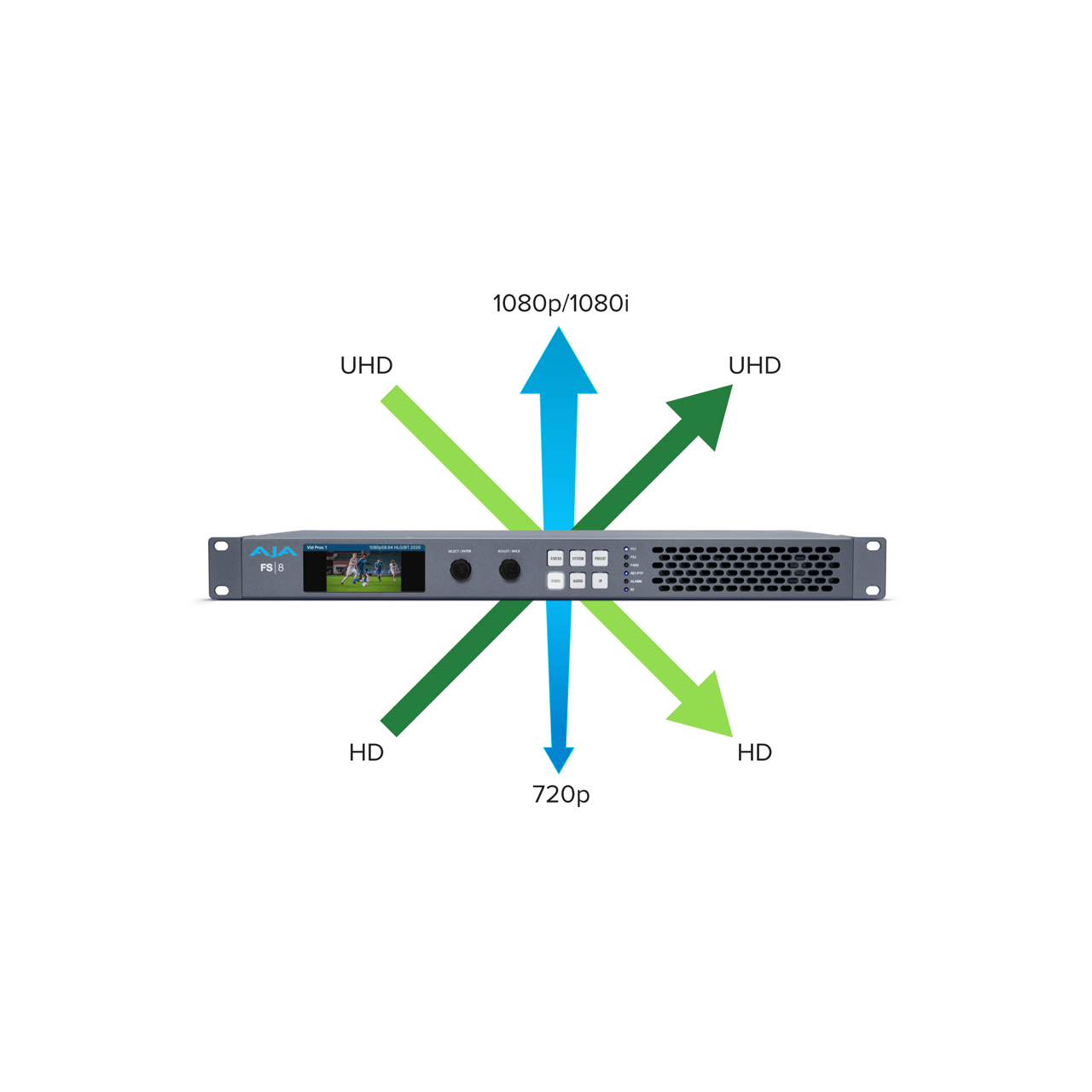

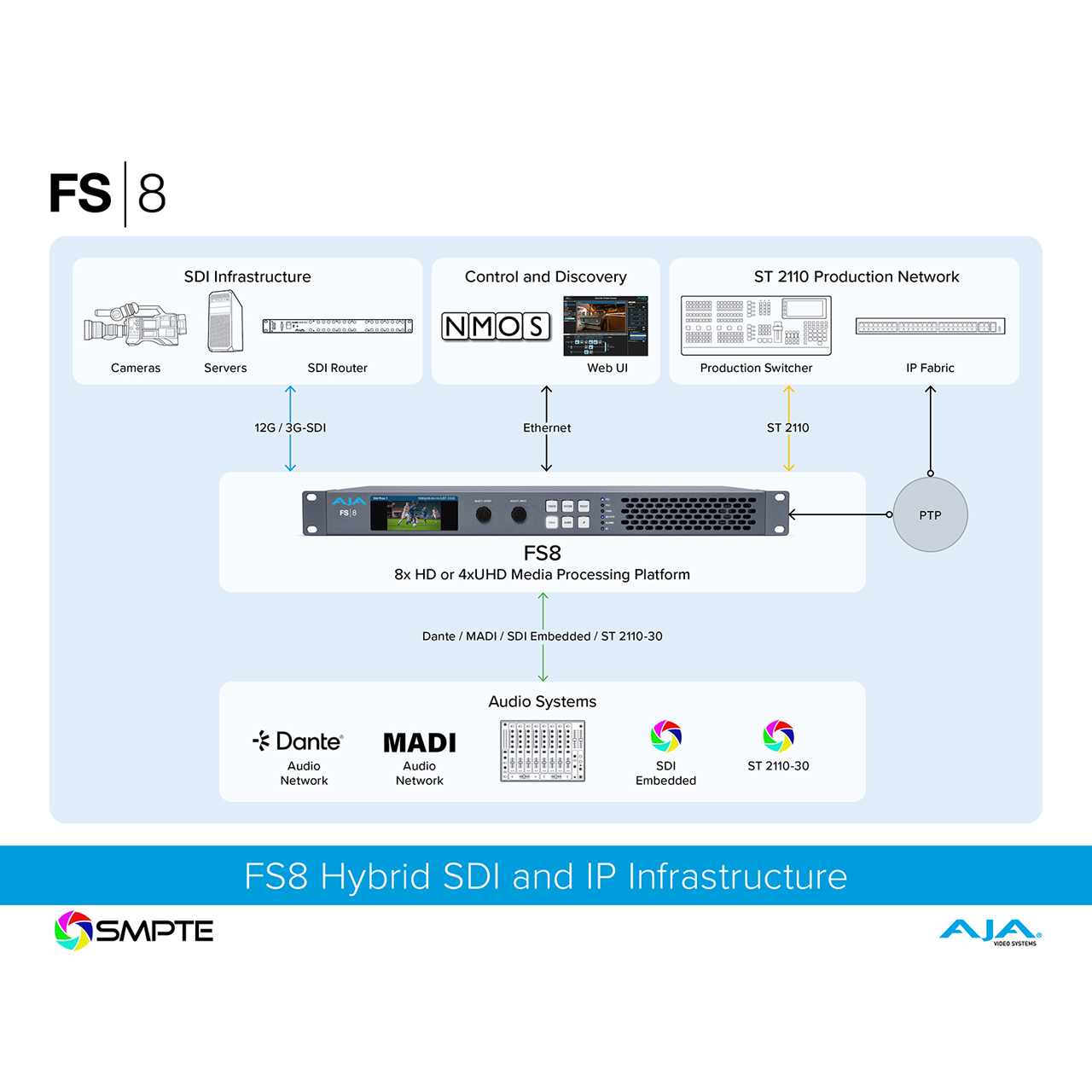

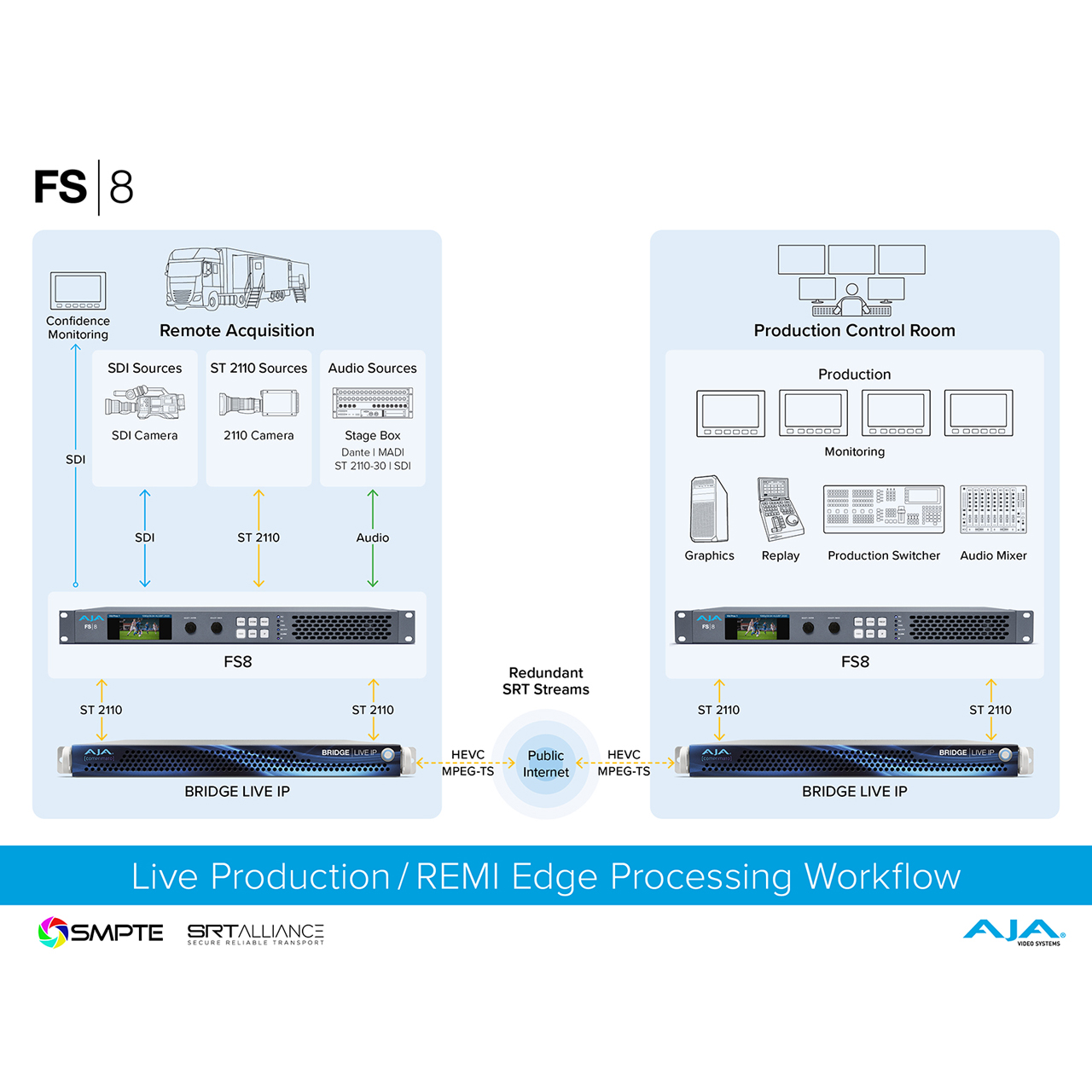

The AJA FS8 is the powerhouse multi-channel frame synchronizer and converter engineered to prepare SDI and SMPTE ST 2110 signals for production. FS8 combines frame synchronization, up/down/cross-conversion, frame-rate conversion, HDR/WCG processing, 3D-LUT-based and live color management, audio processing, delay management, and metadata handling, along with SDI to/from IP gateway, in a single, 1RU device. It is designed for cine-live productions, broadcast, production trucks, flypacks, live venues, studio and remote production environments where every downstream device must receive a predictable, standards-compliant signal, ensuring interoperability in even the most complex workflows.

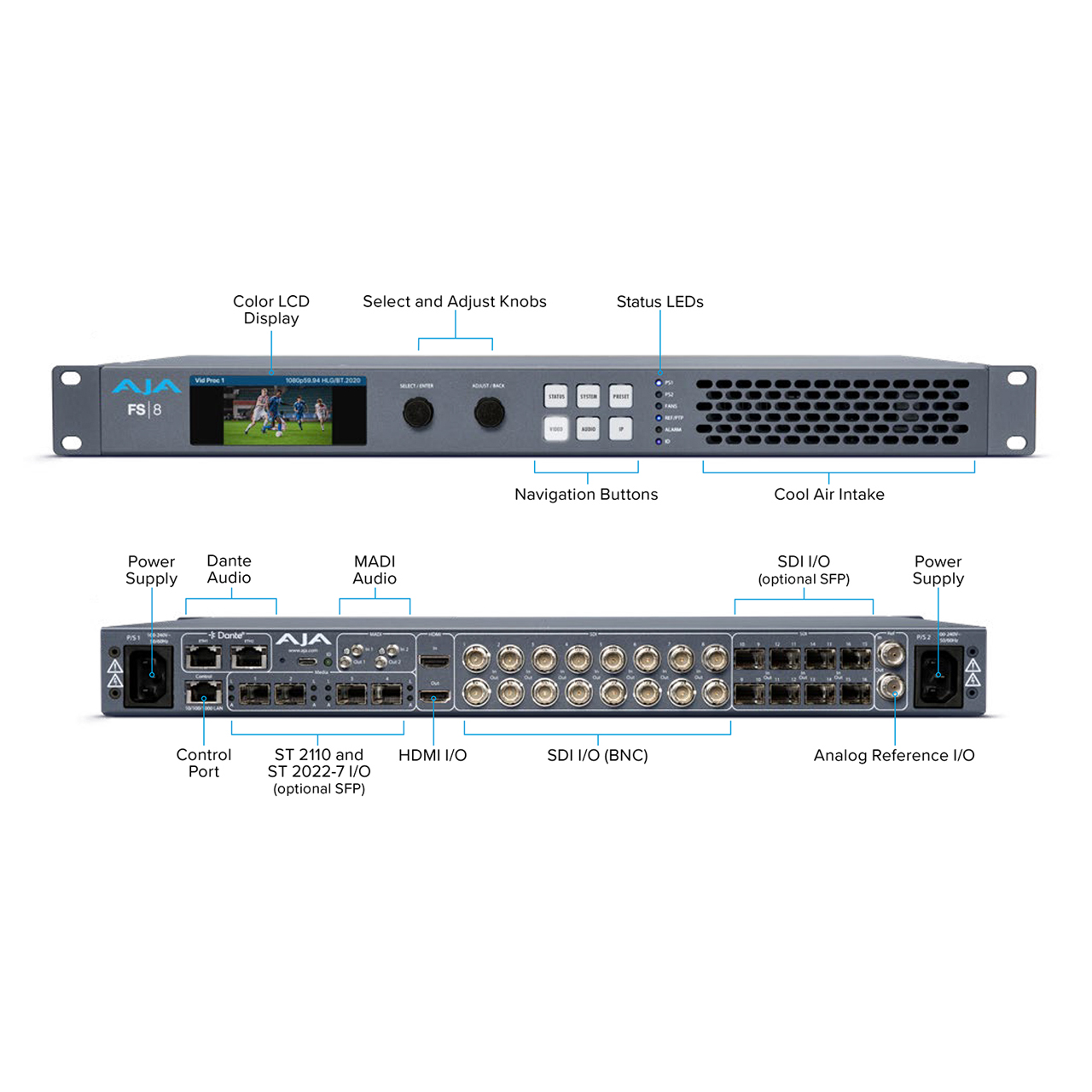

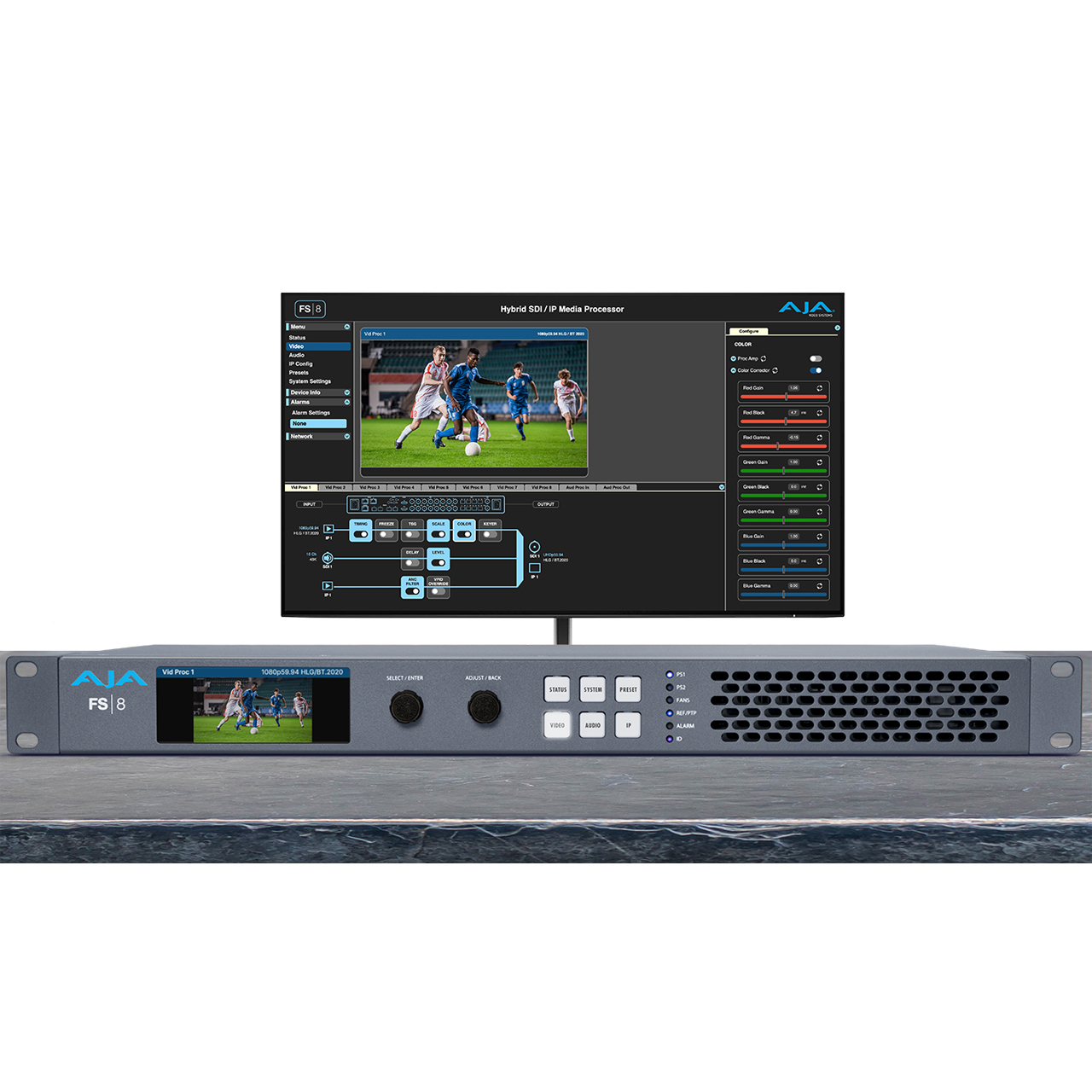

FS8 features 8 independent channels of HD video processing with up to 4 channels of UHD video processing in an all new, easy-to-operate, visual node pipeline within a rich web interface. The video processors are fed from up to 16x 12G-SDI inputs (8x 12G-SDI BNCs plus 8x via optional SDI HD-BNC or Fiber SFPs) and 8x HD or 4x UHD ST 2110-20 (4x 25 GbE SFP) inputs for a total combination of up to 16 inputs. FS8 has full input and output signal routing, allowing any I/O port to be assigned to any processing channel. Audio connectivity has also been expanded from embedded SDI and MADI with the addition of Dante audio and ST 2110-30 audio connectivity building a massive 459x448 mono audio matrix!
Designed to solve real production challenges, the FS8 has a robust suite of tools for configuration and troubleshooting signal paths including a built-in test signal generator with custom text overlay on each output for verifying processing and downstream routing without adding additional sources.
