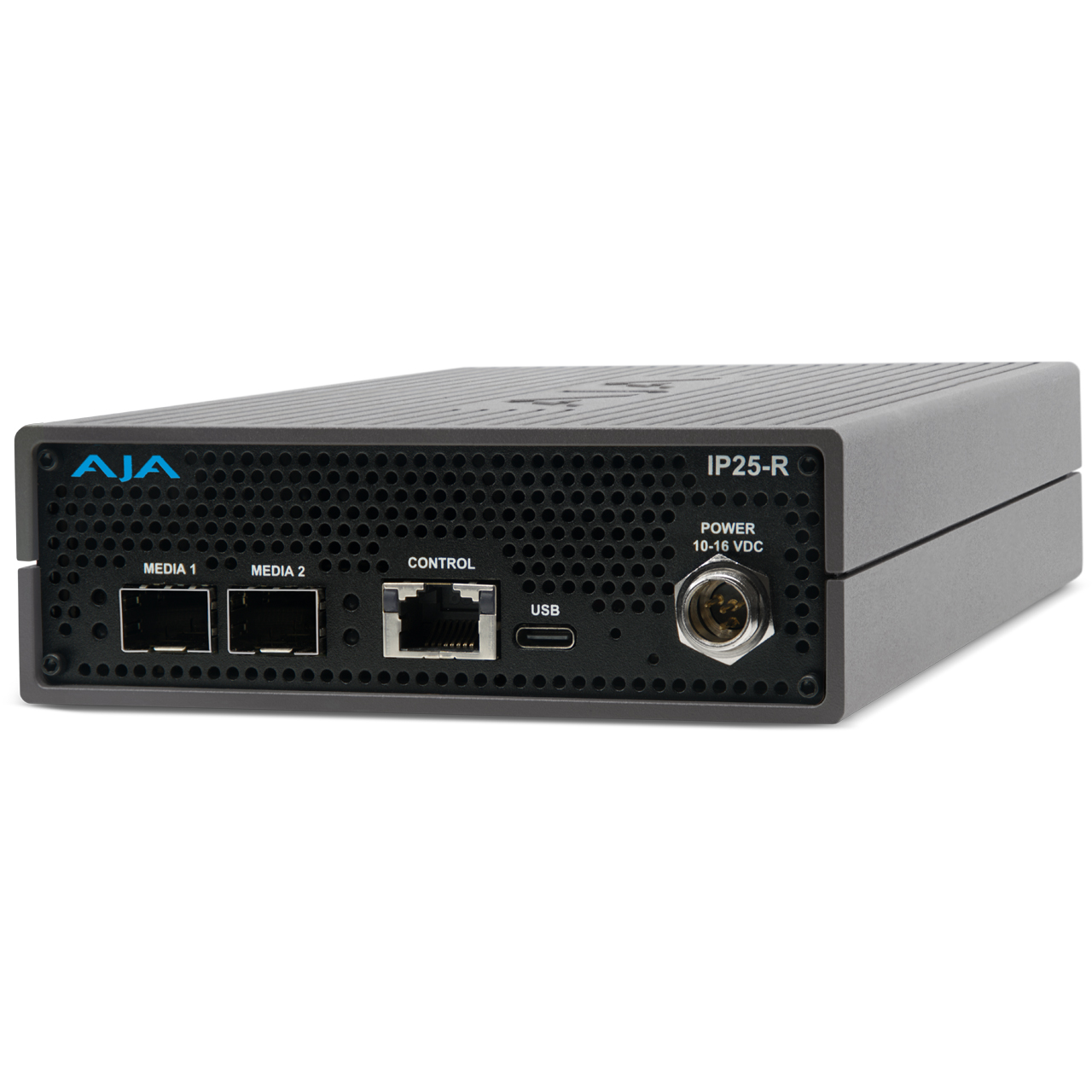

The AJA IP25-R is a next-generation IP Converter that seamlessly bridges SMPTE ST 2110 IP video networks with traditional SDI and HDMI infrastructures. Engineered for professional broadcast, production, and live event workflows, the IP25-R offers dual 10/25 GigE network ports, four 12G-SDI BNC outputs, and two HDMI 2.0 outputs, delivering pristine video up to 4K DCI (4096x2160p60) with ultra-low latency.

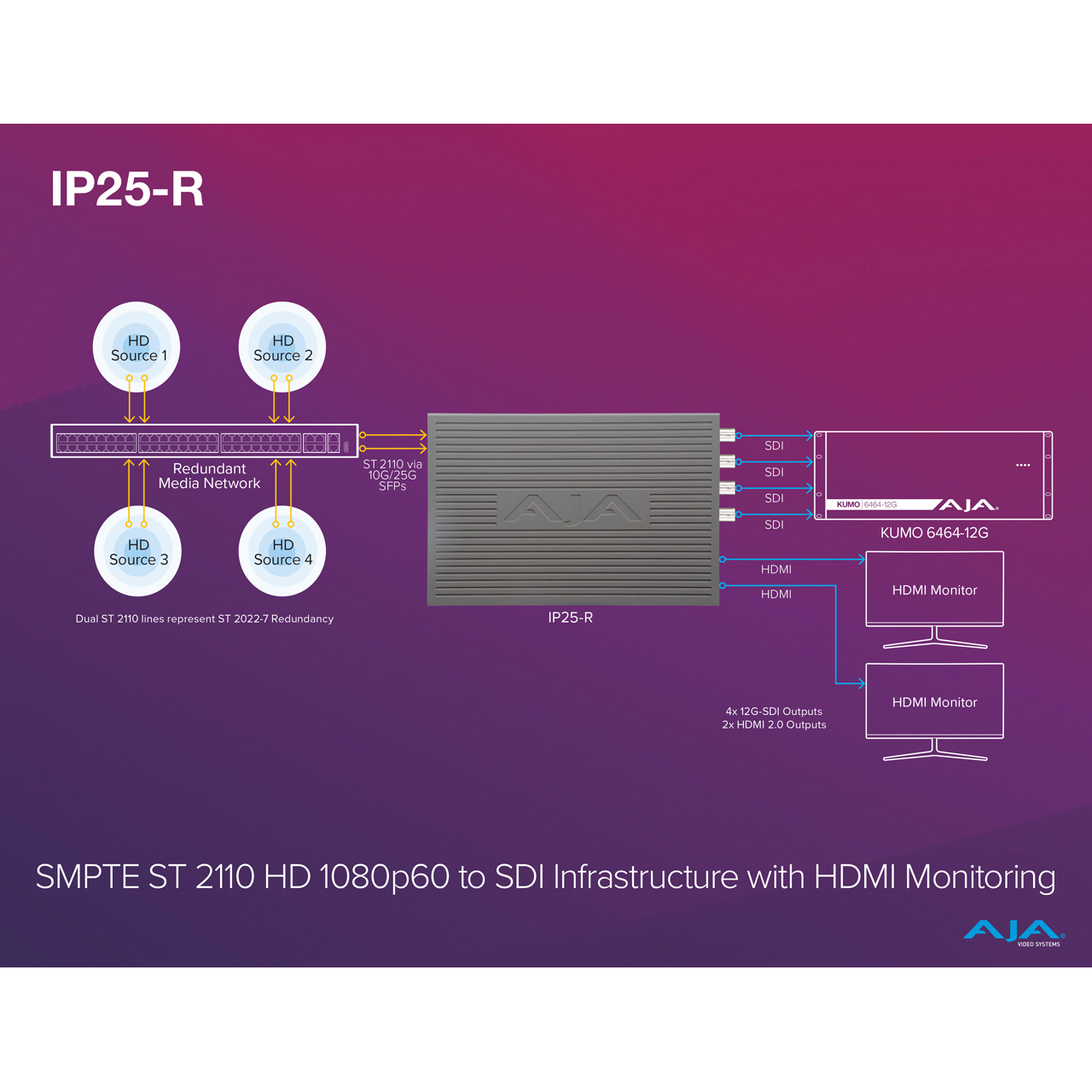

Built for today's demanding IP production environments, the IP25-R offers powerful conversion capabilities with full SMPTE compliance, making it ideal for integration into hybrid SDI/IP facilities. De-encapsulate ST 2110 video, audio, and ancillary data with frame-accurate synchronization and output them via baseband SDI and HDMI for confidence monitoring, playout, or routing.

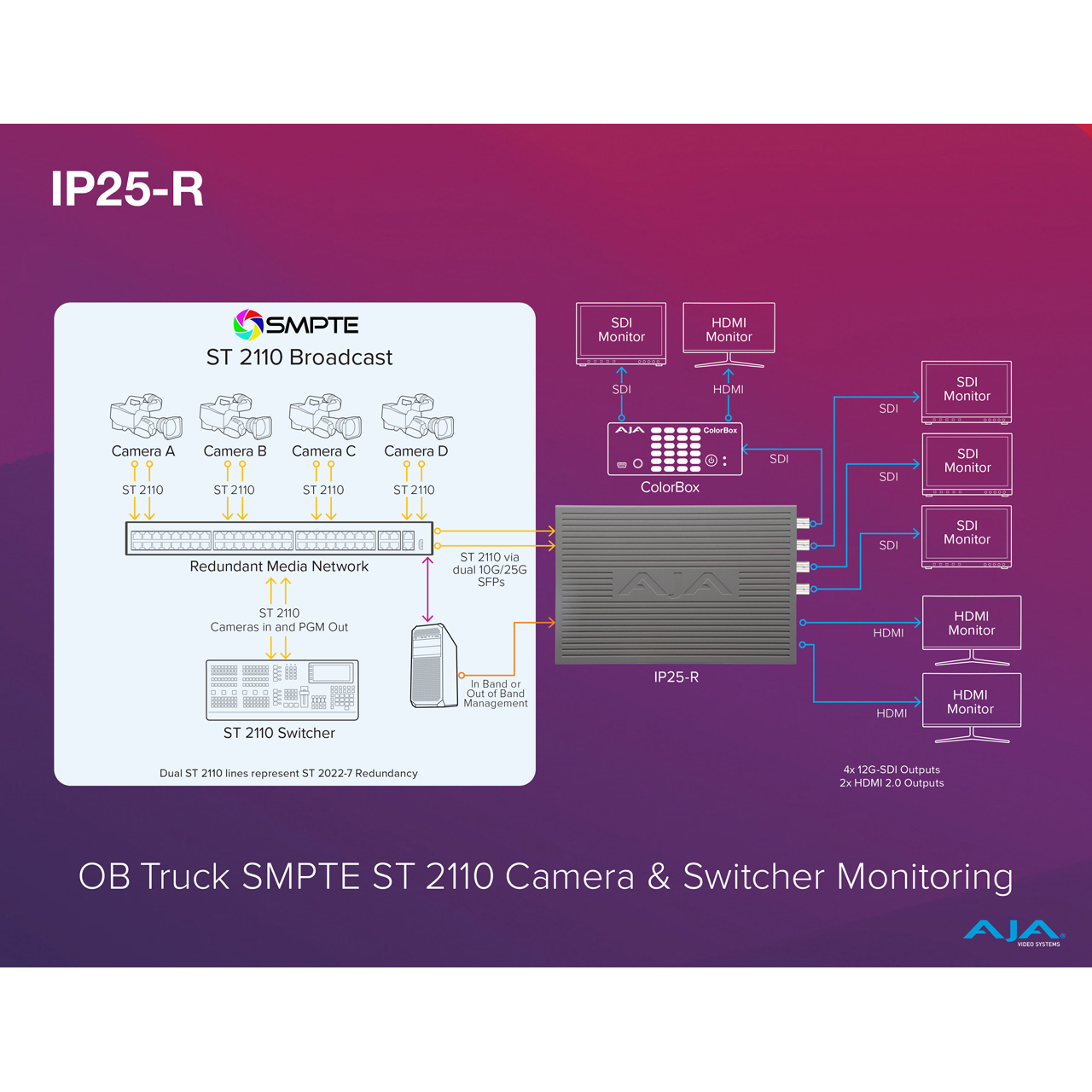

The IP25-R features dual SFP28 cages for ST 2022-7 seamless protection switching, ensuring uninterrupted signal delivery across redundant IP networks. This makes the IP25-R an ideal choice for critical applications such as network operations centers (NOCs), OB trucks and remote production, live event monitoring, stadium and in-venue AV systems, and broadcast control rooms.
Configure the IP25-R through an intuitive web browser interface, with options for both in-band control over the media network and out-of-band control via the RJ45 1 GigE port. This simplifies deployment in almost any IP infrastructure.
Whether you're upgrading broadcast infrastructure or deploying IP-based monitoring in the field, the IP25-R offers a reliable, compact, and standards-compliant solution for ST 2110 IP to baseband conversion. Perfect for facilities moving to IP workflows while maintaining SDI/HDMI compatibility.
