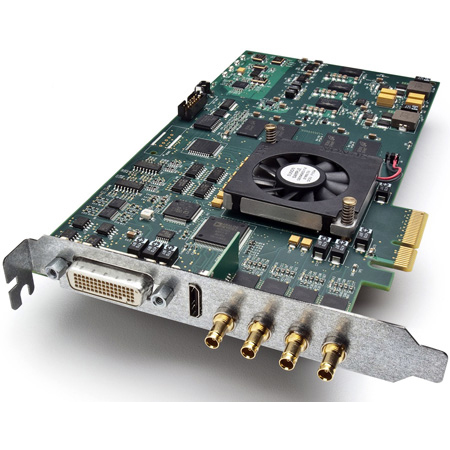

AJA Kona 3G 2K/3G/Dual-Link HD/HD/SD 10-bit PCIe Card

ITEM #: AJA-KONA3G MFG #: KONA 3G

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-KONA3G

KONA 3G - Overview

The professional's choice for uncompressed SD, HD, Dual Link HD, 2K, and 3G KONA 3G has the unparalleled features top of the line video professionals expect from AJA Desktop solutions.

KONA 3G features 10-bit Uncompressed video I/O, the newest HDMI 1.4a support for 3D workflows, 16-channel SDI embedded audio I/O, and up to 16-channel AES digital audio I/O (8 with breakout cable or 16 with optional K3G-Box). Add to that realtime hardware-based up/down/cross conversion for efficiently working with a wide variety of SD and HD, 3G, dual-link HD, even 2K formats, a hardware downstream keyer for compositing graphics without rendering, and so much more.

3D Stereoscopic flexibility
KONA 3G offers you the most affordable and simplest path through 3D Stereoscopic workflows.

Through SDI, you can output Discrete Left and Right Eye feeds with a simple Stereo button choice in the AJA control panel. In addition, all the muxed feeds for SDI stereo monitoring are accessible through tight integration with CineForm's stereo codecs in Apple FCP and Adobe CS5 timelines for Side by Side, Top Bottom and so much more.

Through HDMI 1.4a, you can utilize more affordable 3D monitors for Side by Side, Top Bottom and Frame Packed needs.

KONA 3G offers you Stereo Simplicity.

Broadcast-quality conversions
KONA 3G features full 10-bit, broadcast-quality, motion-adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since all conversion functionality on the KONA 3G is hardware-based, it's available all the time on ingest or playback.

Uniquely, the KONA 3G can even cross-convert 720p 23.98 to 1080PsF 23.98. Cross-conversion is particularly valuable in today's multi-format HD post environment where being able to produce pristine 720p or 1080i signals at-will helps streamline dailies and deliverables creation.

Internal SD/HD hardware downstream keyer
The AJA KONA 3G features a powerful hardware downstream keyer that can place graphic files with an alpha channel over the video being input to the board-or a selectable color matte, or the contents of the card's framebuffer (ex: AJA TV/Apple Final Cut Pro). The downstream keyer can also key a QuickTime video clip that has an alpha channel by playing it in realtime, via the supplied AJA TV application, over live video coming into the card.

Connectivity
For SDI video, the card features two 3G/HD/SD-SDI inputs and two outputs, HDMI 1.4a monitoring output, LTC input and output, one connection for Genlock input, and configurable 3x BNC HD/SD analog video output. Also included is a 9-pin connector for RS-422 machine control. If you're using a Digital Betacam, DVCPro50, HDCAM, DVCPRO HD, D5, or HDCAM SR VTR-or any other professional device-you'll have the proper connections.

Dual link HD support
KONA 3G supports Dual Link 4:4:4 HD-SDI, with full bandwidth 4:4:4 RGB at 10-bits for 1080i, 1080p, 1080PsF and 720p formats. KONA 3G can also convert between 4:4:4 and 4:2:2 formats for single link HD-SDI monitoring and output.
