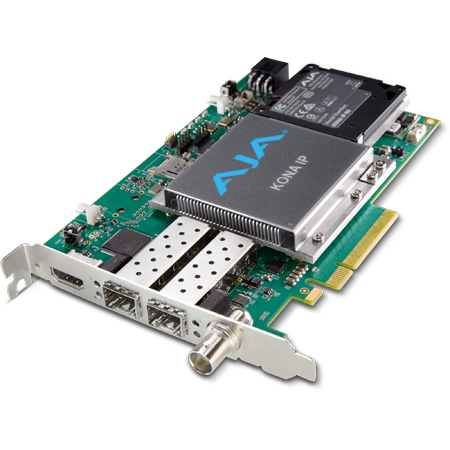

AJA KONA IP 4K Desktop Video and Audio I/O Card with Flexible IP Connectivity

ITEM #: AJA-KONAIP MFG #: KONA IP

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-KONAIP

KONA IP - Overview

Simple, Compatible 4K I/O for IP Pipelines

The AJA KONA IP brings all of the expertise, power, quality and reliability behind the AJA KONA product line, to the world of Video over IP for 4K/UltraHD and 2K/HD workflows.

KONA IP offers a flexible video and audio I/O platform with support for up to 4K/UltraHD with SMPTE ST 2110, support for up to 2K/HD with 2022-6 and the ability to take advantage of 2022-7 redundant delivery in for high availability architectures.

On the desktop, KONA IP seamlessly supports Appler FCP, Adober Premierer Pro, Avidr Media Composerr, AJA Control Room and other leading editorial, effects and production tools. For creative users the experience of using favored applications remains unchanged, with some differences only in setting up for capture or output with the same AJA Control Panel creative users are used to.

For developers, the same AJA SDK used for SDI and HDMI devices is also used for KONA IP, meaning zero delay in writing applications and creating systems with this powerful PCIe capture and output card.

And for any critical/enterprise scale media production installations, the additional peace of mind that comes with a 3 year warranty, advance replacement and support via phone is standard with all KONA cards.

AJA offers full compatibility for the new Apple Mac Pro, including support for AJA Control Room with Metal compatibility as well as extensive support for a range of applications.

  • Features:

    • 4K/UltraHD Input or Output, and 2K/HD/SD I/O, 10-bit up to 50/60p
    • SMPTE ST 2110 up to 4K/UltraHD, ST 2022-6 up to 2K/HD
    • ST 2022-7 Tx support up to 2K/HD

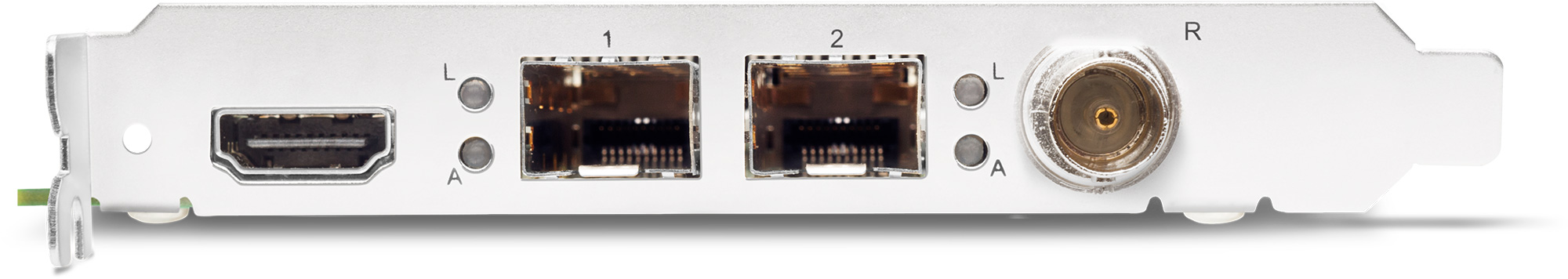

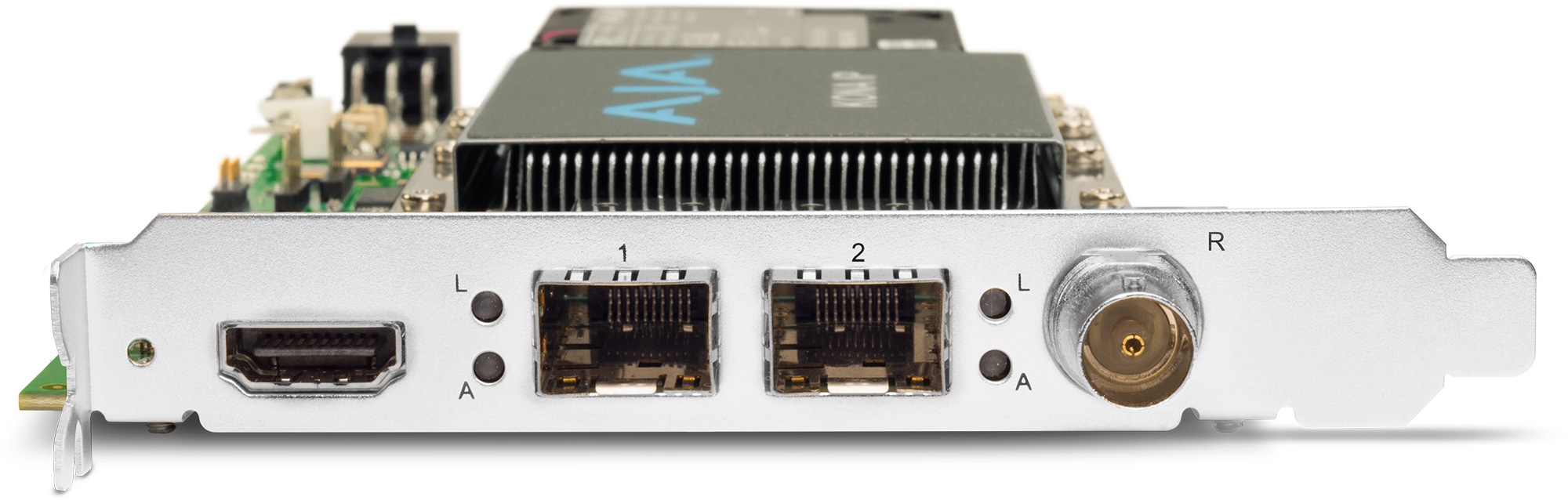

    • 2x 10 GigE SFP connections for multi-channel I/O
    • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit and HFR workflows supported
    • Local baseband monitoring via HDMI 1.4b
    • 48 kHz 16 and 24-bit embedded audio, 16-channel IP, 8-channel HDMI
    • PQ, HLG, HDR10 and Dolby Vision supported (application dependent)
    • HDR Metadata Capture and Auto Playback Detection
    • NMOS 1.3, PTP and LLDP Support, plus Reference/LTC Input

  • Specifications:

    • Video Formats
    • (4K)** 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (UltraHD)** 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50*, 59.94*, 60*
    • (2K) 2048 x 1080PsF 23.98, 24, 25
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94
    • (HD) 720P 50, 59.94, 60
    • (SD) 625i 50
    • (SD) 525i 59.94
    • *SMPTE ST 2110 only
    • **2SI over IP via ST 2110-23 only
    • Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.

      Media Transport Interfaces
    • SMPTE ST 2110 (-10, -20, -21, -23, -30, -40), 2022-6
    • 2x SFP+ Cages - SFPs not included
    • Recommended 10GigE SFP+ modules:
    • Arista Networks SFP-10G-SR Compatible 10GBASE-SR
    • Fiberstore SFP-10GSR-85 10G SFP+ 850nm
    • Finisar FTLX1471D3BCL (for single mode 1310nm)
    • Mellanox MFM1T02A-SR 850nm 10G

      Video Input IP
    • SMPTE ST 2110, 2022-6
    • Single channel* input available when using ST 2110 or ST 2022-6 to receive 2K/HD
    • 4-channels input available when using ST 2110-23 to receive 4K/UltraHD**
    • ANC support
    • Rx support for Narrow Senders**
    • *Capture and simultaneous monitoring is supported up to 2K/HD
    • **SMPTE ST 2110 only

      Video Output IP
    • SMPTE ST 2110, 2022-6
    • Single channel* output available when using ST 2110 or ST 2022-6 to transmit 2K/HD
    • 4-channels output available when using ST 2110-23 to transmit 4K/UltraHD**
    • ANC support
    • Tx support for ST 2022-7 up to 2K/HD
    • Tx support for Narrow Receivers**
    • *Capture and simultaneous monitoring is supported up to 2K/HD
    • **SMPTE ST 2110 only
      Video Output Digital
    • HDMI v1.4b
    • 30/36-bits/pixel, RGB or YUV, 2.25 Gbps
    • 4K/UltraHD, 2K/HD and SD
    • 2K/HD downsample available when working with 4K/UltraHD via ST 2110-23

      HDR
    • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
    • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G
    • Note: HDR support is application dependent. Check with your software manufacturer for compatibility.

      Audio Input IP
    • Up to 16-channel embedded audio, 24-bit per channel, 48 kHz synchronous

      Audio Output IP
    • Up to 16-channel embedded audio, 24-bit per channel, 48 kHz synchronous

      Audio Output Digital
    • 8-channel HDMI embedded audio, 48 kHz sample rate, synchronous

      Downstream Keyer
    • Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

  • Warranty:

    • Three year warranty

  • GTIN:

    0812321030440
