ADJ COB101 Cannon Wash ST LED Par Can with RGBA COB and an 80-Degree Beam Angle

ITEM #: AMDJ-COB101 MFG #: COB101

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AMDJ-COB101

COB101 - Overview

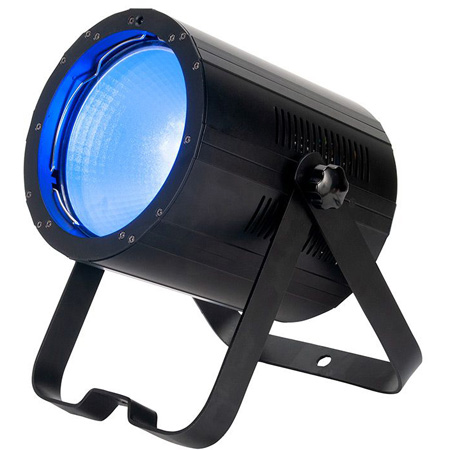

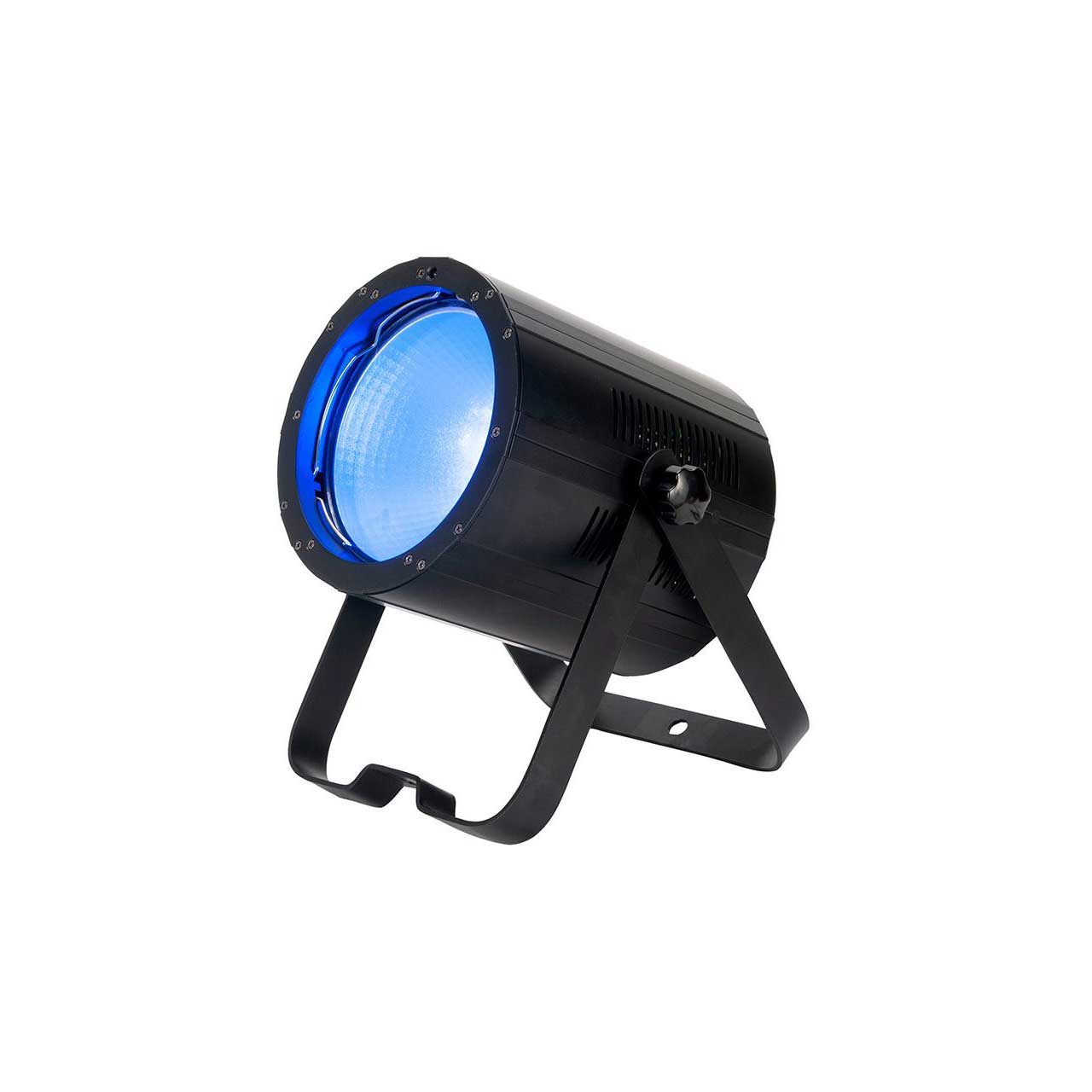

The ADJ COB101 Cannon Wash ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced RGBA COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no RGBA shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors and churches. The COB LED engine on the COB Cannon Wash ST is a QUAD RGBA 4-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls and ceilings.

The COB Cannon Wash ST comes in a black casing and has massive 80-degree beam angle. Easily replaceable 40-degree and 50-degree lens are included so that the beam angle may be changed.

It has 7 DMX Channel modes for programming flexibility, built-in color macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX and locking power connections to daisy-chain fixtures, and a 4-button DMX display. COB Cannon Wash ST may run in its stand-alone mode from built-in programs, sound actively or from a DMX controller.

  • Features:

    • Flicker Free operation (No flickering on camera)
    • Produces powerful, smooth RGBA color mixing with rich palettes of color
    • Use as Wash/par or Pixel Mapped for a stunning visual effect
    • Scissor yoke allows fixture to be mounted on truss or set on the ground
    • Optional Barn Doors (BAR001) sold separately
    • Run all night - No duty cycle

  • Specifications:

    • Optical:
    • Light Source: 1x 150-Watt COB (Chip on Board) Quad LED (RGBA: 4-IN-1, rated at approximately 50,000 hrs)
    • Light Output: 1970 LUX @2M; 474 LUX @4M (40-degree beam), 1472 LUX @2M; 373 LUX @ 4M (50-degree beam), 996 LUX @2M; 238 LUX @4M (80-degree beam)
    • 80-degree beam angle
    • Includes lens kit to change to 40-degrees or 50-degrees beam angle

      Connections:
    • 3-pin & 5-pin connectors for DMX linking
    • Locking power In & Out connections to daisy chain power (up to 3 fixtures)

      Control:
    • 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)
    • 64 built-in color macros

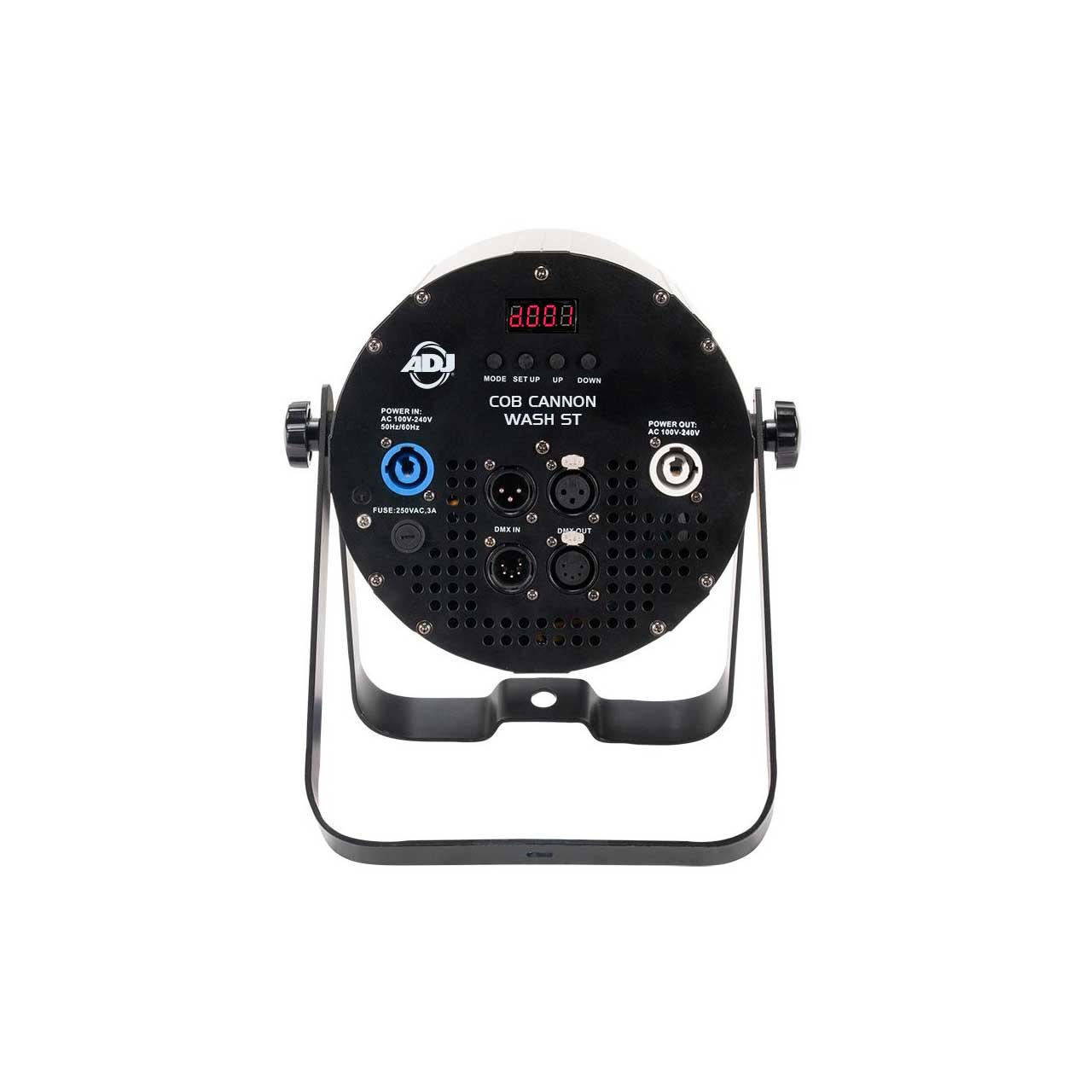

    • 4-button digital DMX display on rear panel
    • Compatible with the ADJ UC IR remote control (sold separately)
    • LED pulse and strobe effect
    • Electronic Dimming: 0 - 100%
    • 6 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
    • Refresh Rate: 1KHzELECTRICAL:
    • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
    • Power Draw: 132W max
    • Daisy chain up to 3 fixtures maximum

      Dimensions / Weight:
    • Dimensions (LxWxH): 13"x 10"x 7.5" / 330x256x190mm
    • Weight: 9 lbs. / 4.1 kg

  • Item Includes:

    • 1x ADJ COB101 Cannon Wash ST LED Par
    • 1x Power Cord

  • Warranty:

    • 2 Years

  • GTIN:

    0818651025538
