Amphenol 034-1061 75 Ohm HD-BNC Right Angle Crimp Plug RG-179 Fits Belden 179DT

ITEM #: AMPH-034-1061 MFG #: 034-1061

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$27.66

Our Price:

$23.05

Add to Wish ListLeasing Options
Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    034-1061 - Overview

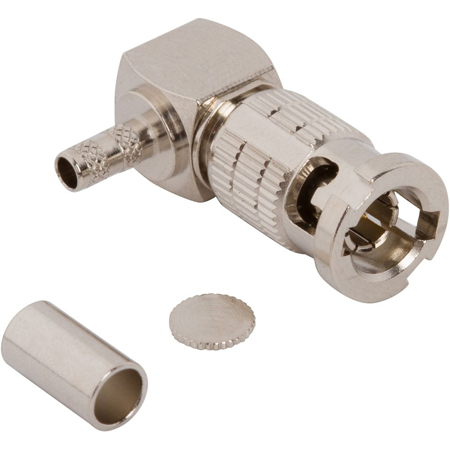

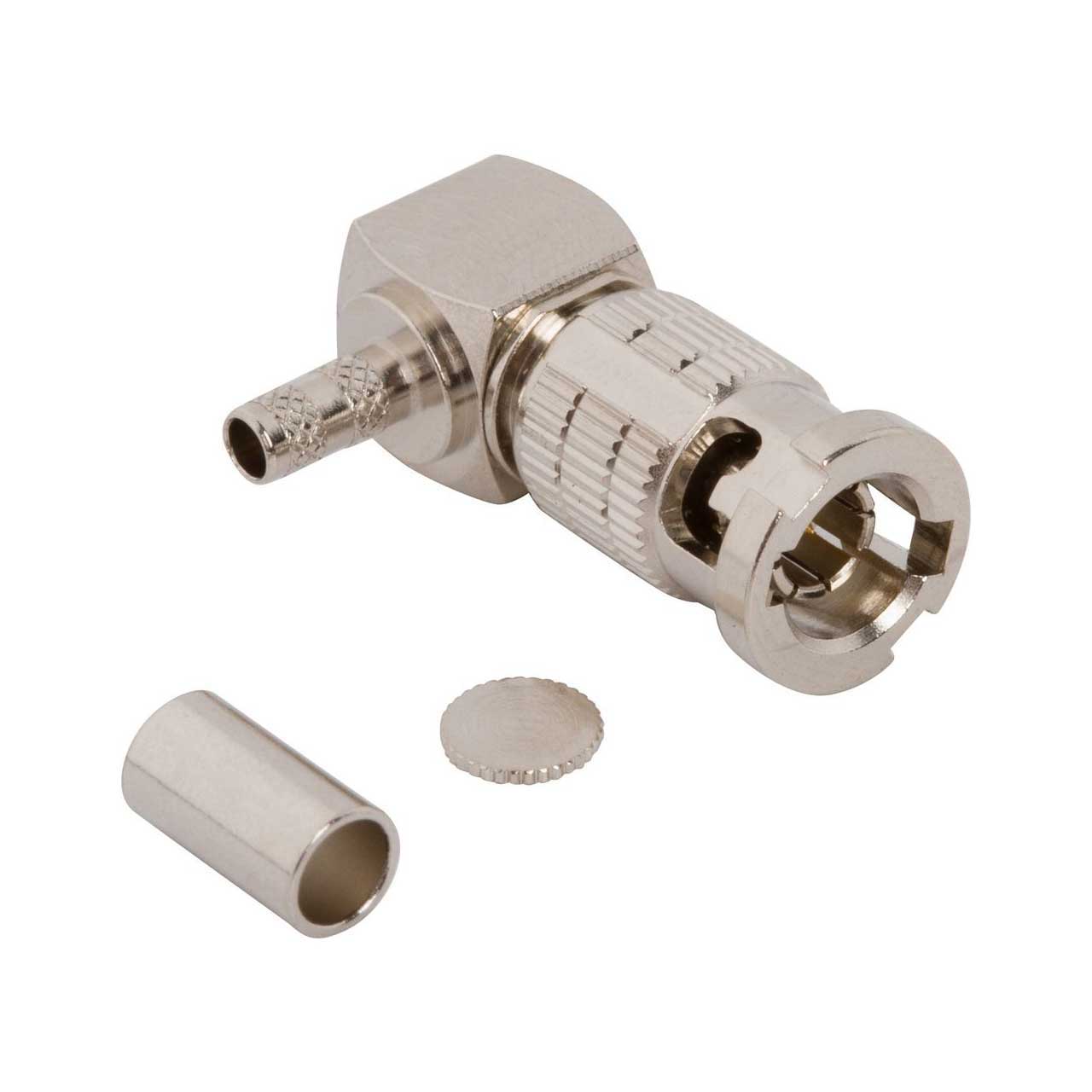

    Amphenol 034-1061 is an RF Connector HD-BNC Right Angle Crimp Plug. It's RG-179 and fits Belden 179DT 75 Ohm cable.

    • Specifications:

      • Body Finish: Nickel
      • Body Material: Brass
      • Cable Type (Terminates to): RG-161, RG-179, RG-187, Belden 179DT, Belden 1520A, Belden 1521A, Belden 1522A, Belden 9221
      • Contact Finish: Gold
      • Contact Material: Phosphor Bronze
      • Contact Termination: Crimp
      • Coupling Mechanism: Bayonet
      • Export Control Classification Number: EAR99
      • Frequency (Max GHz): 4
      • Gender: Plug
      • IP Rating: Not Rated
      • Impedance (Ohms): 75
      • Insulator Material: PTFE
      • Isolated: No
      • Low PIM: No
      • Mil Qualified: No
      • Non Magnetic: No
      • Orientation: Right Angle
      • Panel Mounting Feature: Not Applicable
      • Ports: 1 (Single Port)
      • Size Category: Miniature
      • Temp (Max Degrees Celsius): 85
      • Temp (Min Degrees Celsius): -40
      • Termination Style: Cable - Crimp
