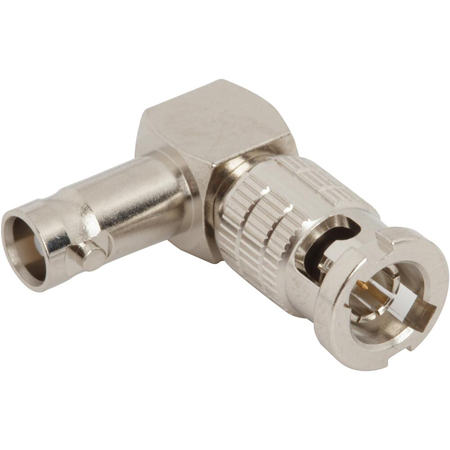

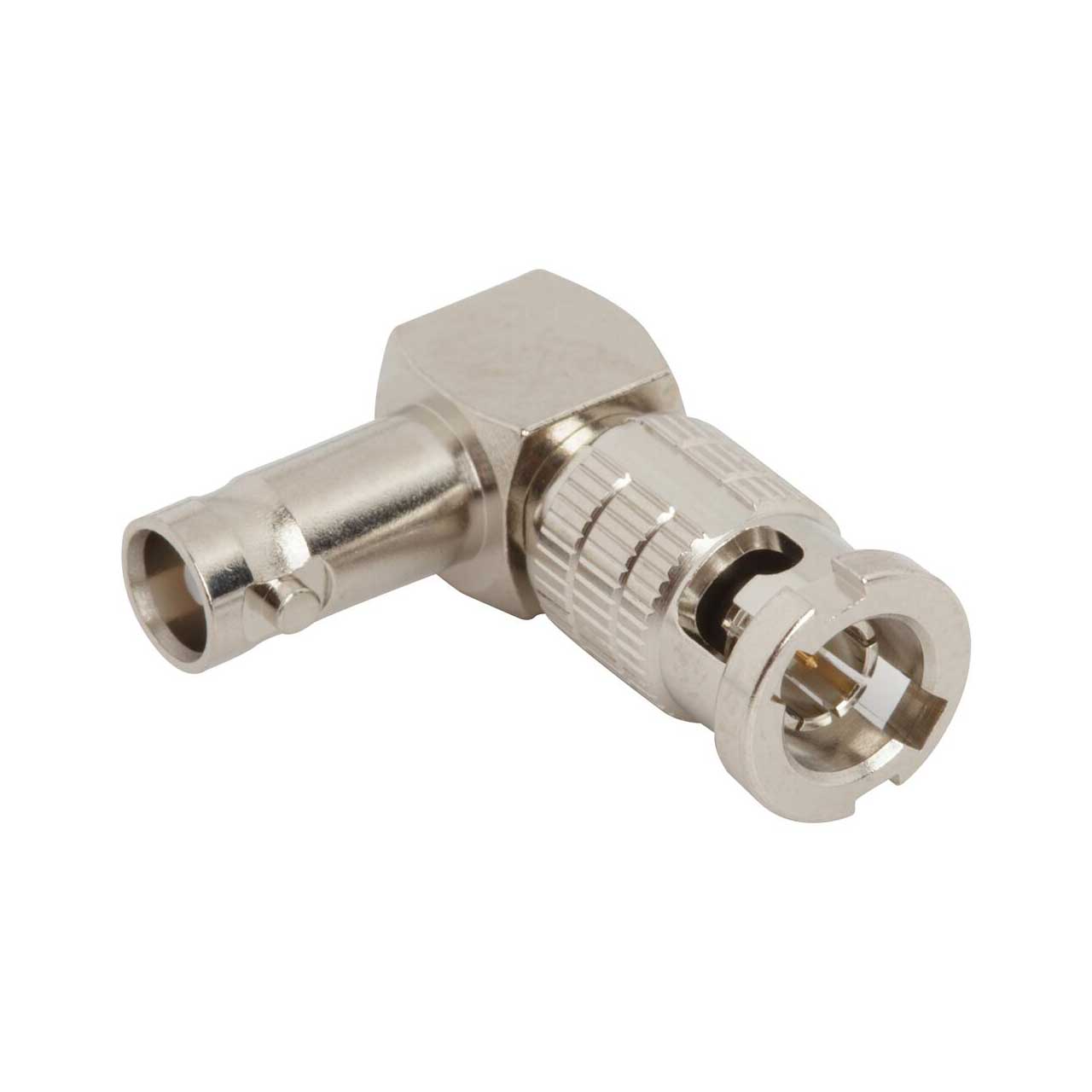

Amphenol 034-1111-12G HD-BNC Plug to HD-BNC Jack 75 Ohm Right Angle 12G Optimized

034-1111-12G - Overview

• Specifications:

  • Adapter Side 1 Series: HD-BNC
  • Adapter Side 1 Style: Jack
  • Adapter Side 2 Series: HD-BNC
  • Adapter Side 2 Style: Plug
  • Body Finish: Nickel
  • Body Material: Brass
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze and Beryllium Copper
  • Export Control Classification Number: EAR99
  • Frequency (Max GHz): 18
  • IP Rating: Not Rated
  • Impedance (Ohms): 75
  • Insulator Material: PTFE
  • Isolated: No
  • Low PIM: No
  • Mil Qualified: No
  • Non Magnetic: No
  • Orientation: Right Angle
  • Panel Mounting Feature: Not Applicable
  • Temp (Max Degrees Celsius): 85
  • Temp (Min Degrees Celsius): -40


• Item Includes:

  • 1x Amphenol 034-1111-12G HD-BNC Plug to HD-BNC Jack 75 Ohm Right Angle 12G Optimized
