Amphenol 242229-75 Adapter 1.0/2.3 Jack to BNC Jack Bulkhead - 75 Ohms

ITEM #: AMPH-242229-75 MFG #: 242229-75

free ship

We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.

Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


242229-75 - Overview

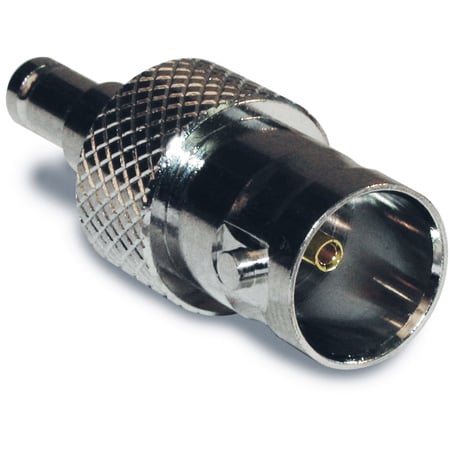

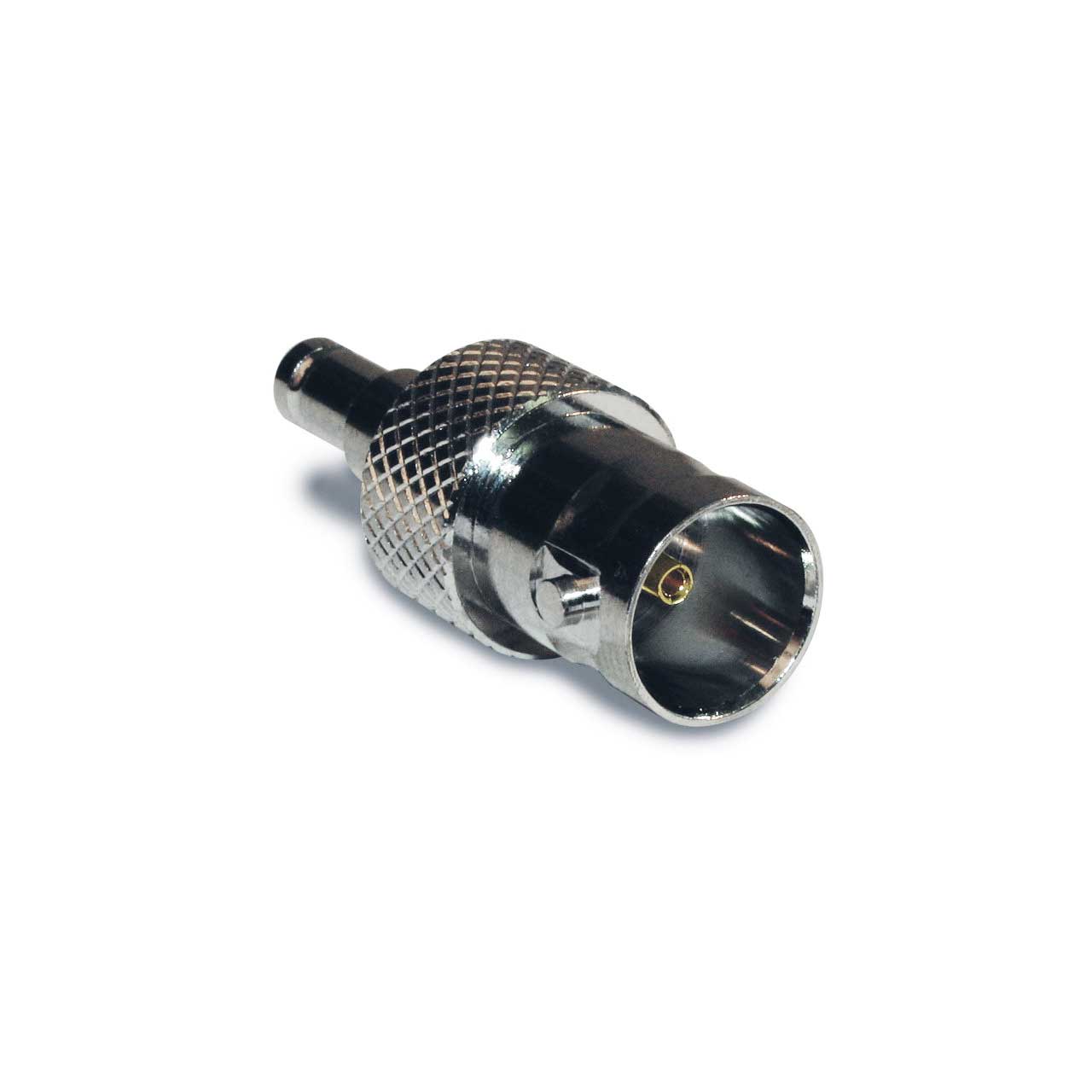

The Amphenol 242229-75 is an adapter coaxial connector BNC jack, female socket to 1.0/2.3 jack, female socket 75Ohm.

  • Specifications:

    • Adapter Series: BNC to 1.0/2.3
    • Center Gender: Female to Female
    • Convert From (Adapter End): BNC Jack, Female Socket
    • Convert To (Adapter End): 1.0/2.3 Jack, Female Socket
    • Impedance: 75Ohm
    • Style: Straight
    • Mounting Type: Free Hanging (In-Line)
    • Fastening Type: Bayonet Lock, Snap-On
    • Frequency - Max: 3GHz
    • Center Contact Plating: Gold
    • Body Material: Brass
    • Body Finish: Gold; Nickel
    • Center Contact Material: Beryllium Copper
    • Dielectric Material: Polytetrafluoroethylene (PTFE)
    • Operating Temperature: -65°C ~ 165°C
