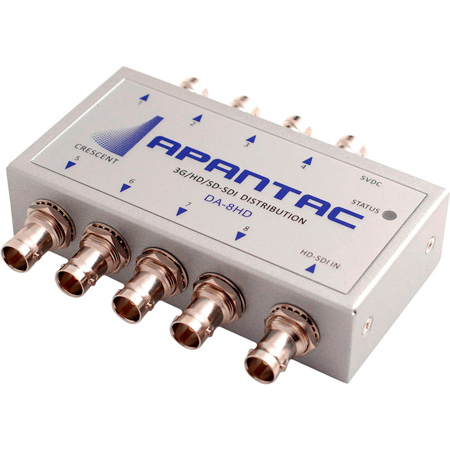

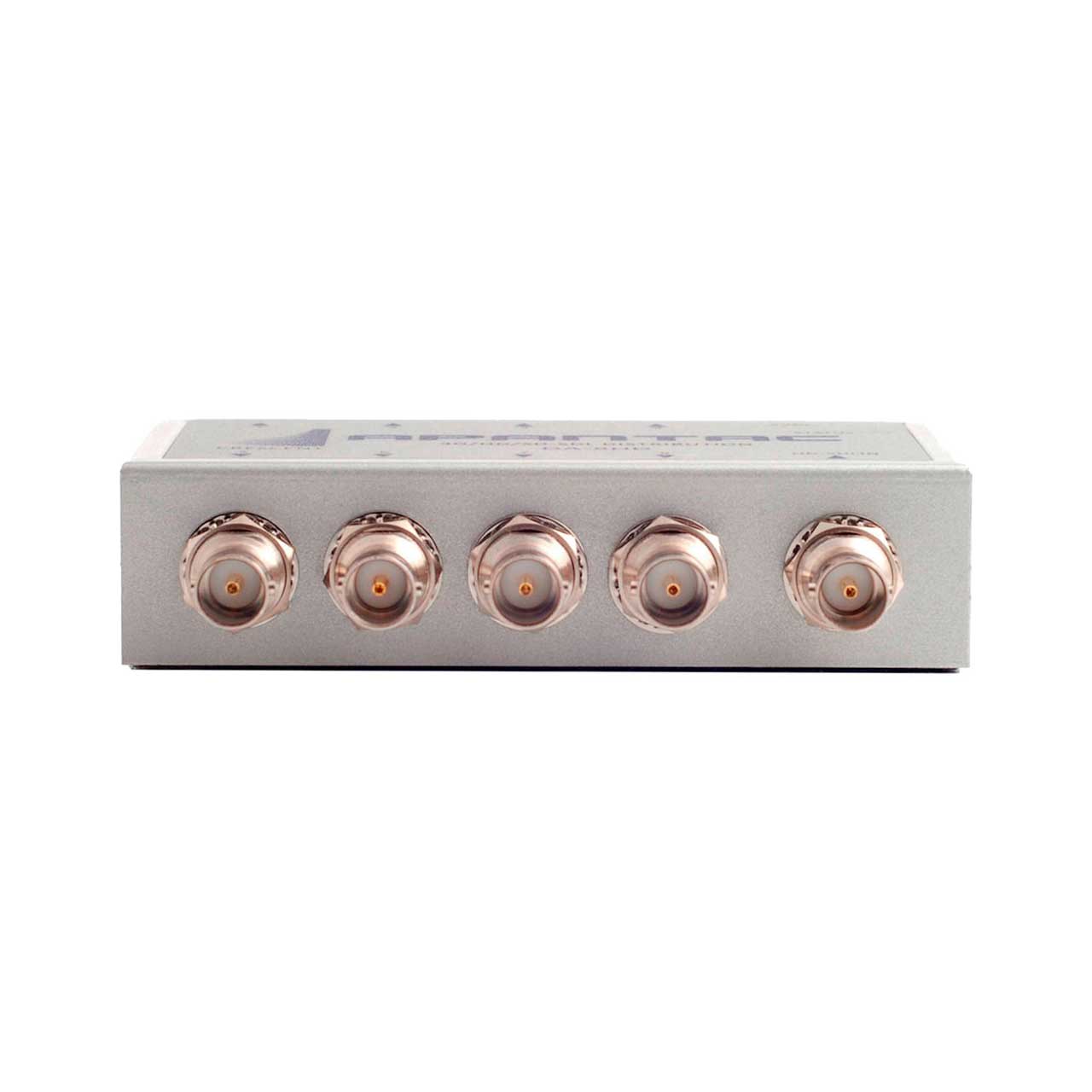

Apantac DA-8HD Stand alone One to Eight Reclocking SDI Distribution Amplifier

ITEM #: APA-DA-8HD MFG #: DA-8HD

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$370.00

Our Price:

$349.00

Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


DA-8HD - Overview

Stand alone One to Eight Reclocking SDI Distribution Amplifier. SMPTE 424M, SMPTE 292M, SMPTE 344M, and SMPTE 259M compliant. Data rates: 125 Mbps to 2.97 Gbps. Reclocking can be disabled (internal Dip Switch) - On by default. Equalizes up to 120 meters of Belden 1694A at 2.97 Gbps, up to 140 meters of Belden 1694A at 1.485 Gbps, or up to 400 meters of Belden 1694A at 270 Mbps. Supports DVB-ASI at 270 Mbps for output 1 and 3. Comes with 5 VDC, 1A Power Supply (Connector locking mechanism). 62x113x29 mm (WxDxH) - Magnetic base

DA-8HD - Required Accessories

    DA-8HD - Recommended Accessories
