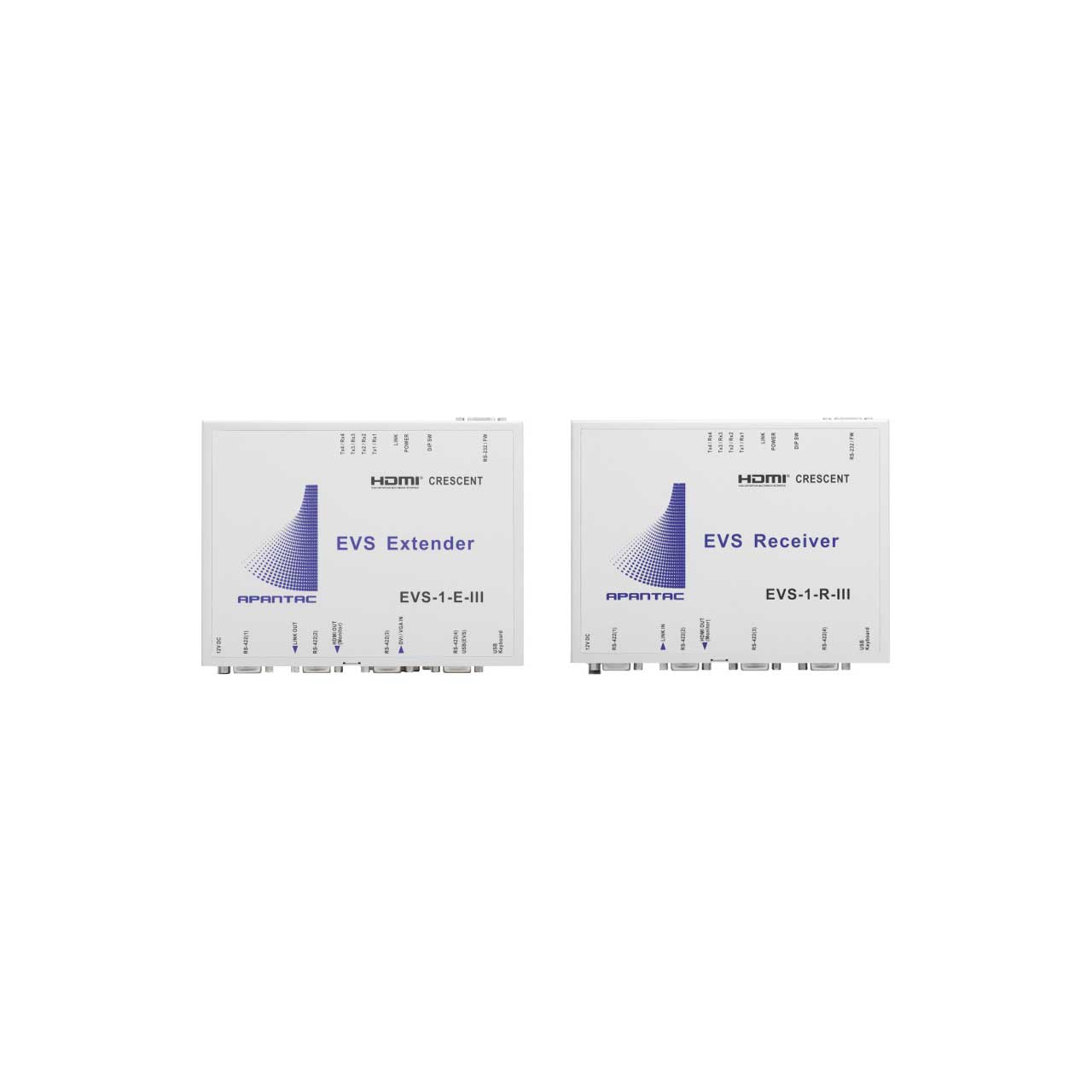

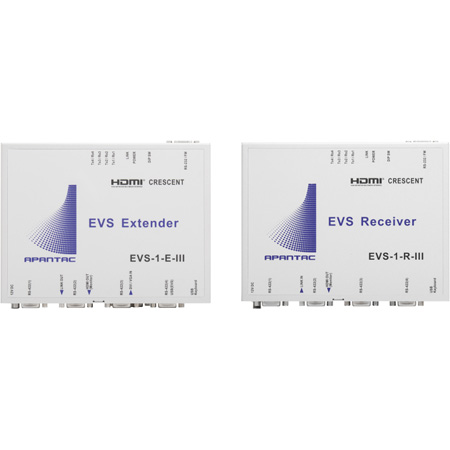

Apantac EVS-1SET1-III Extender and EVS-1-R-III Receiver Set - Up to 330 Feet over CATx Cable

EVS-SET-1-III - Overview

• Features:

  • Supports 4K@24/25/30Hz (4:4:4) and 4K/60 (4:2:0) and 1080p (12bit) up to 100 meters.
  • VGA resolution from 800x600 to 1080P. (Need a passive DVI-to-VGA adapter or DVI-A Cable)
  • Supports DVI-D (Single Link) and DVI-A
  • Supports RS-232(Bi-direction transfer) baud rate up to 115200 bps.
  • Supports Long Reach Mode (Video Resolution Max. 1920x1080p@60Hz / 8bit, Cable Distance Max. 150 Meters)
  • Support USB 1.0/1.1 EVS keyboard.
  • Support USB (only keyboard) connection to EVS XT-3.
  • Local console port (Monitor + USB keyboard)
  • Auto console selection between Local and Remote.
  • RS422 support full-duplex data communication with baud rate up to 19200 bps.
  • Support RS422 pin: Tx, Rx, RESET.
  • RS422 pin: "RESET", keeps High when EVS-extender power off to prevent EVS-extender reset EVS in power off status and disconnect status.


• Specifications:

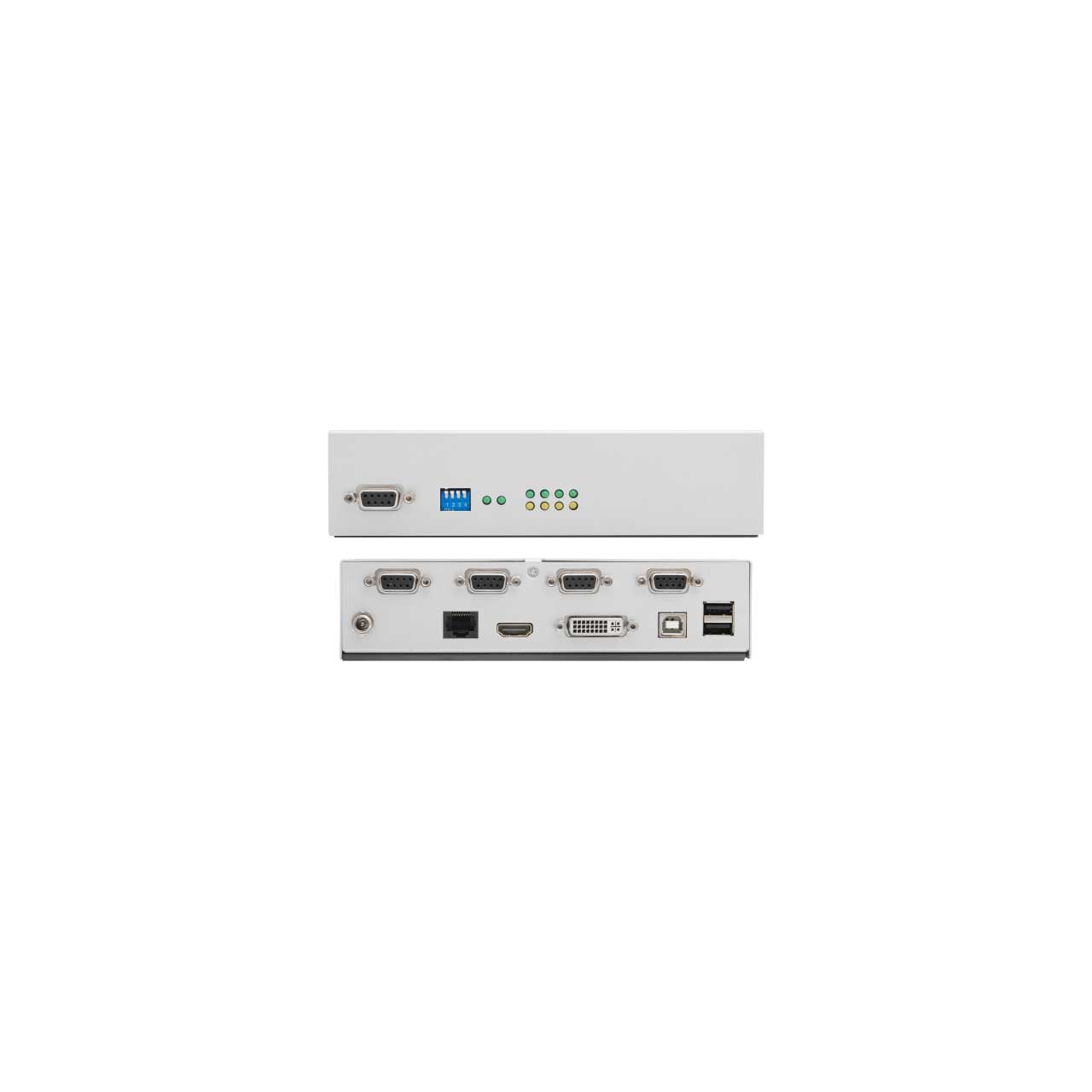

  • EVS-1-E-III
  • HDMI Connector: HDMI A-Type Female x1
  • DVI Connector DVI-I(24+5P): Female x1
  • RJ45 Connector: RJ-45 Jack x1
  • USB Connector: USB A Type Female x2, USB B Type Female x1
  • DC Jack: V
  • RS422 Connector: DB9 Female x4
  • RS232 Connector: DB9 Female x1
  • DIP SW: 4 Pin x1
  • LED: LED(G) x6, LED(Y) x4
  • Max. Resolution: 4K@30Hz / 1080p@60Hz
  • Cable Distance: 100/150 m (Max.)
  • Patching Distances: 5m + 90m + 5 m
  • Power Adapter: DC 12V with lock
  • Enclosure: Meta
  • Dimensions(LxWxH): 181 x 138 x 44 mm
  • Weight: 1148g

    EVS-1-R-III
  • HDMI Connector: HDMI A-Type Female x1
  • DVI Connector DVI-I(24+5P): None
  • RJ45 Connector RJ-45: Jack x1
  • USB Connector:USB A Type Female x2
  • DC Jack: V
  • RS422 Connector: DB9 Female x4
  • RS232 Connector: DB9 Female x1
  • DIP SW: 4 Pin x1
  • LED: LED(G) x6, LED(Y) x4
  • Max. Resolution: 4K@30Hz / 1080p@60Hz
  • Cable Distance: 100/150 m (Max.)
  • Patching Distances: 5m + 90m + 5 m
  • Power Adapter: DC 12V with lock
  • Enclosure: Meta
  • Dimensions(LxWxH): 181 x 138 x 44 mm
  • Weight: 1125g


• Item Includes:

  • 1x EVS Extender Local Unit
  • 1x EVS Extender Remote Unit
  • 1x User manual
  • 2x Power adapter DC 12V with lock
