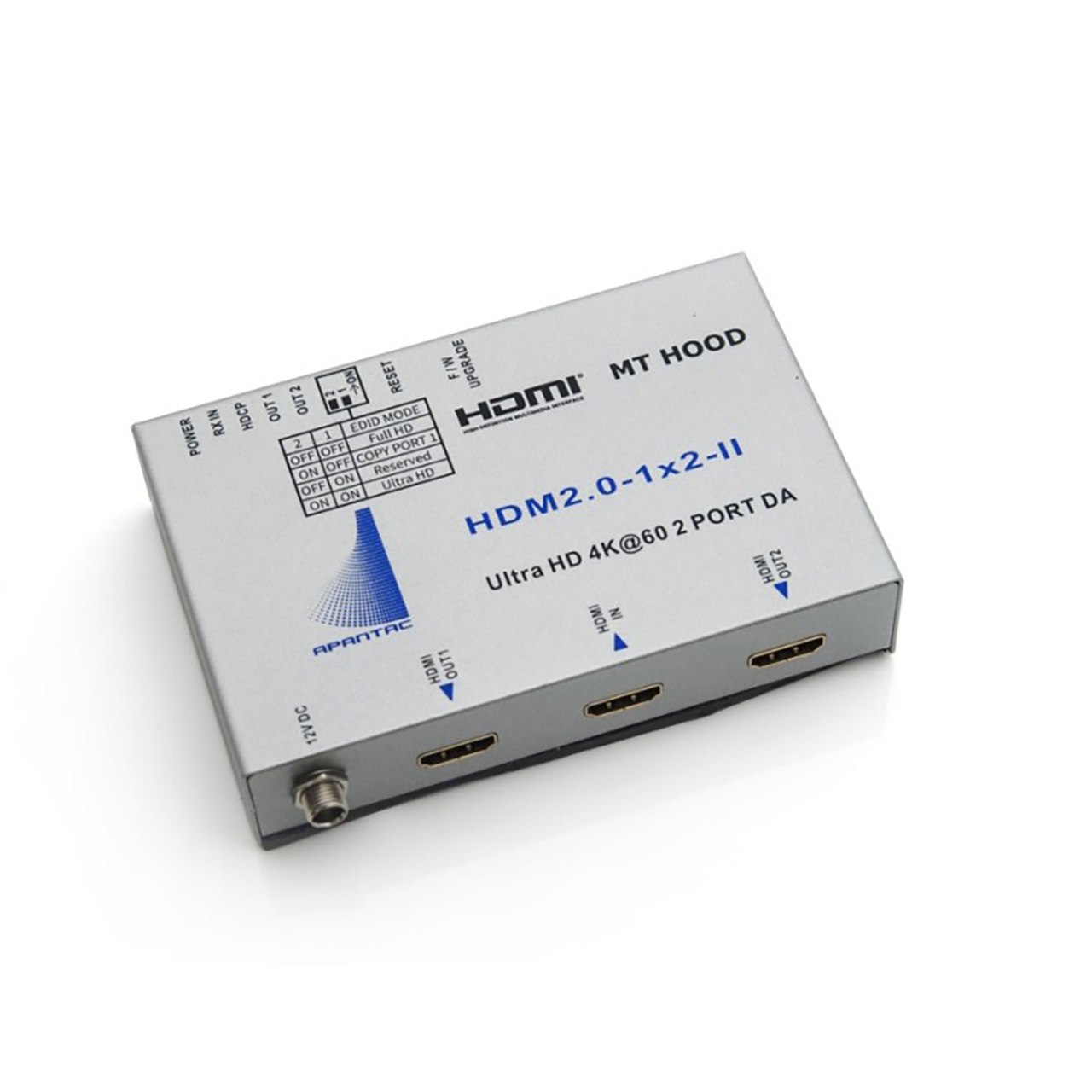

Apantac MT HOOD Series HDM2.0-1X2-II - 1x2 HDMI 2.0 Splitter/Distribution Amplifier

HDM2.0-1X2-II - Overview

• Features:

  • Supports resolution up to 4Kx2K@60Hz (4:4:4)
  • Supports pixel clocks up to 600 MHz
  • Supports HDR
  • HDCP 1.4/2.2 compliant
  • Supports 3D pass-through
  • Supports EDID mode selection
  • Supports Daisy chain (cascading)
  • Supports LPCM, Dolby True HD and Dolby Digital
  • Cascadable for input expansion up to 8 levels
  • Patent Pending Intelligent EDID managementTechnology (iDOTT) that supports built-in down scaler, chroma re-sampler and color space conversion


• Specifications:

  • Function: HDM2.0-1x2-II
  • HDMI Input: 1
  • HDMI Output: 2
  • Micro USB: 1
  • DIP Switch: EDID Mode Selection
  • Max Resolution: 4Kx2K@6-Hz (4:4:4 8bit, 4:2:0 12bit)
  • HDCP Compliance: HDCP 1.4/2/2
  • Audio Support: LPCM, Dolby True HD, Dolby Digital/Plus/EX, DTS, DTS-HD
  • Cable Reach: 32.8ft (10m)
  • Power Supply: 12V/1A DC
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Humidity: 0% - 80% RH, Non-Condensing
  • Weight: 10.4oz (295g)
  • Dimensions (LxWxH): 4.88" x 3.27" x 0.98" (124mm x 83mm x 25mm)


• Item Includes:

  • 1x HDM2.0-1x2-II
  • 1x User manual
  • 1x Power adapter DC12V with lock
