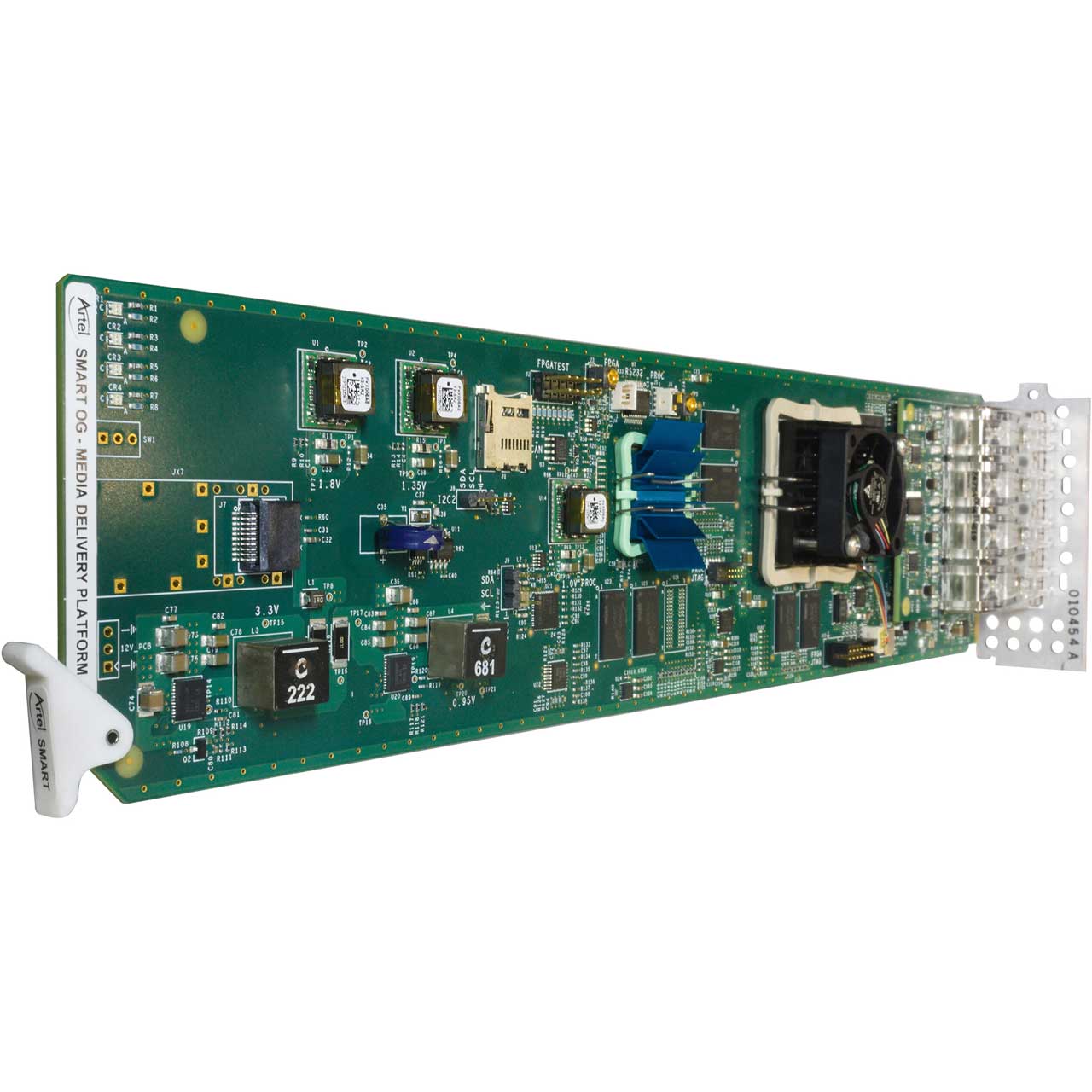

Artel SMART-OG openGear Four Channel 12-SDI-over-IP JPEG2000 Gateway

SMART-OG - Overview

• Features:

  • Four channels of JPEG2000 Video-Over-IP (JPEG-XS in future release)
  • Two 1GigE/10 GigE data trunks
  • Two SFP+ spares for future use
  • Contribution Quality Transport of 2160p, 1080p, 1080i, 720p and SD-SDI

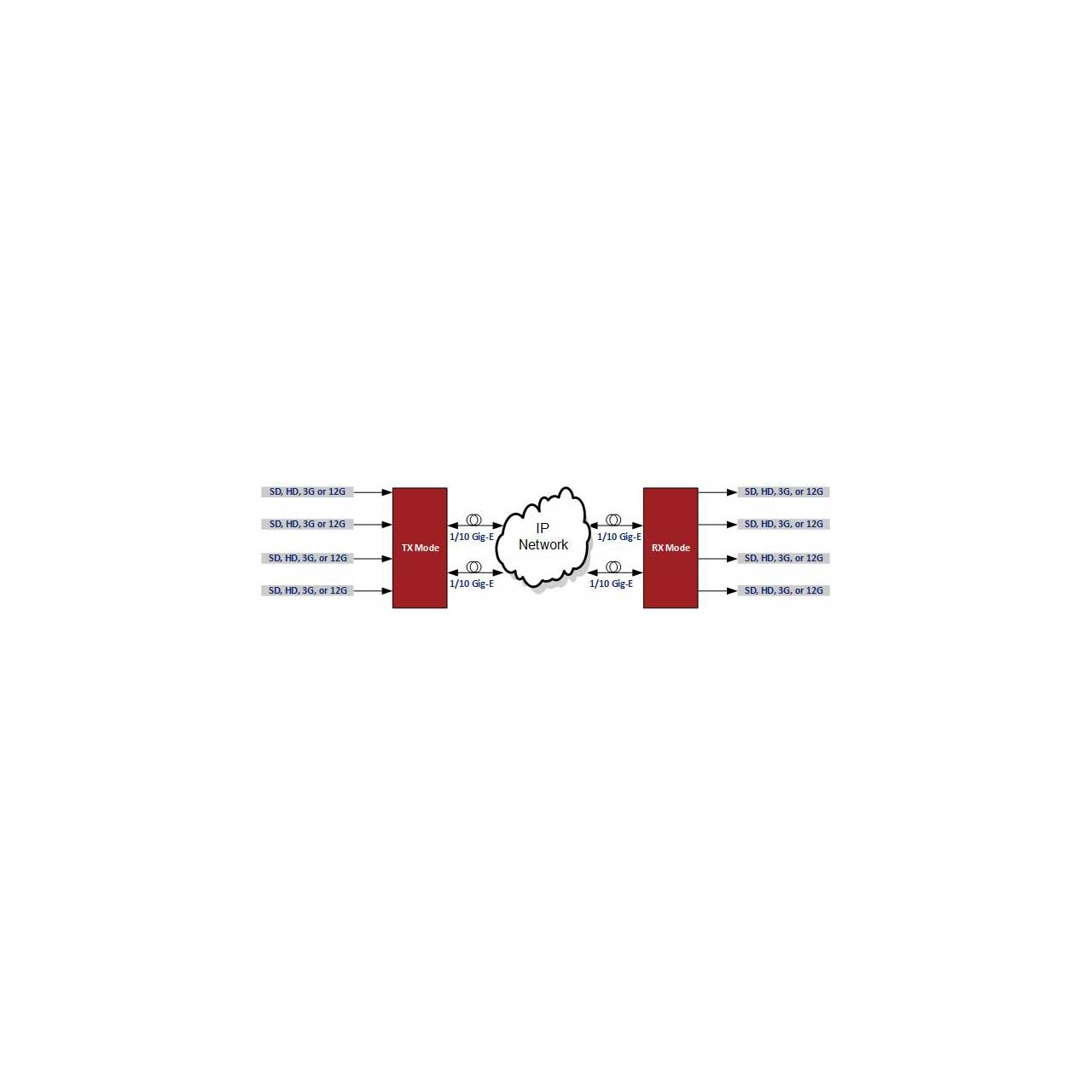

  • Module can be configured as Video-to-IP Encoder or IP-to-Video Decoder
  • Fully transparent carriage of SDI/SDTI including ancillary data and up to 8 audio channel pairs
  • VLAN tagging capabilities
  • Supports unicast or multicast


• Specifications:

  • Video Interface
  • Signal Formats (Auto Sensing):
    12Gb/s 2160p 12G-SDI (SMPTE ST2082-10 Mode 1)
    2.970 Gb/s 3G-SDI (ST 424:2012)
    1080p50, 1080p59.94
    720p50, 720p59.94
    270 Mb/s SD-SDI (ST 259:2008)
    625/50, 525/59
  • Connectors: 4 Rear HD-BNC 75 Ohm (input or output)
  • Return Loss:
    >4dB up to 11888 MHz
    >15 dB, 5-1485 MHz
    >10 dB, 1485-2970 MHz
  • Cable Equalization for Belden 1694A Type Cable:
    0-60 meters (11.88Gbps)
    0-100 meters (5.94 Gbps)
    0-150 meters (2.97 Gb/s)
    0 to 200 meters (1.485 Gb/s)
    0 to 400 meters (270 Mb/s)

    1G/10G Ethernet Network Interface (Trunk)
  • Type: Ethernet SFP+ Optical and Electrical (2)
  • Optical Connectors: LC
  • Format: 1 Gig-E/10 Gig-E

    Environmental
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Ambient Storage Temperature: -40°F - 176°F (-40°C - 80°C)
  • Relative Humidity: 10% - 95% (non-condensing)
  • Power Dissipation: under 30 Watts


• Item Includes:

  • 1x SMART openGear Media Delivery Platform
