Attero Tech unDX4I-C 4x2 Ch 2 Gang US Wall Plate 4 Mic/Line In (XLR) - Phoenix I/O - PoE - White & Black Inserts

ITEM #: ATEC-UNDX4I-C MFG #: UNDX4I-C

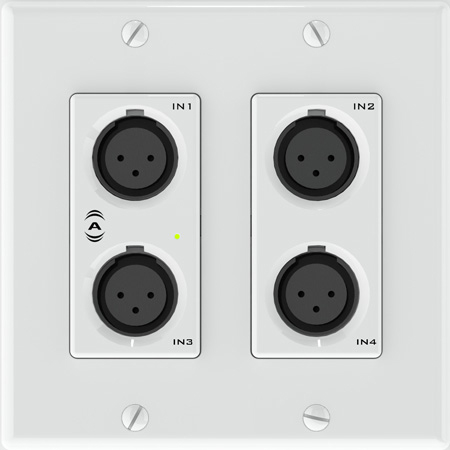

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ATEC-UNDX4I-C

UNDX4I-C - Overview

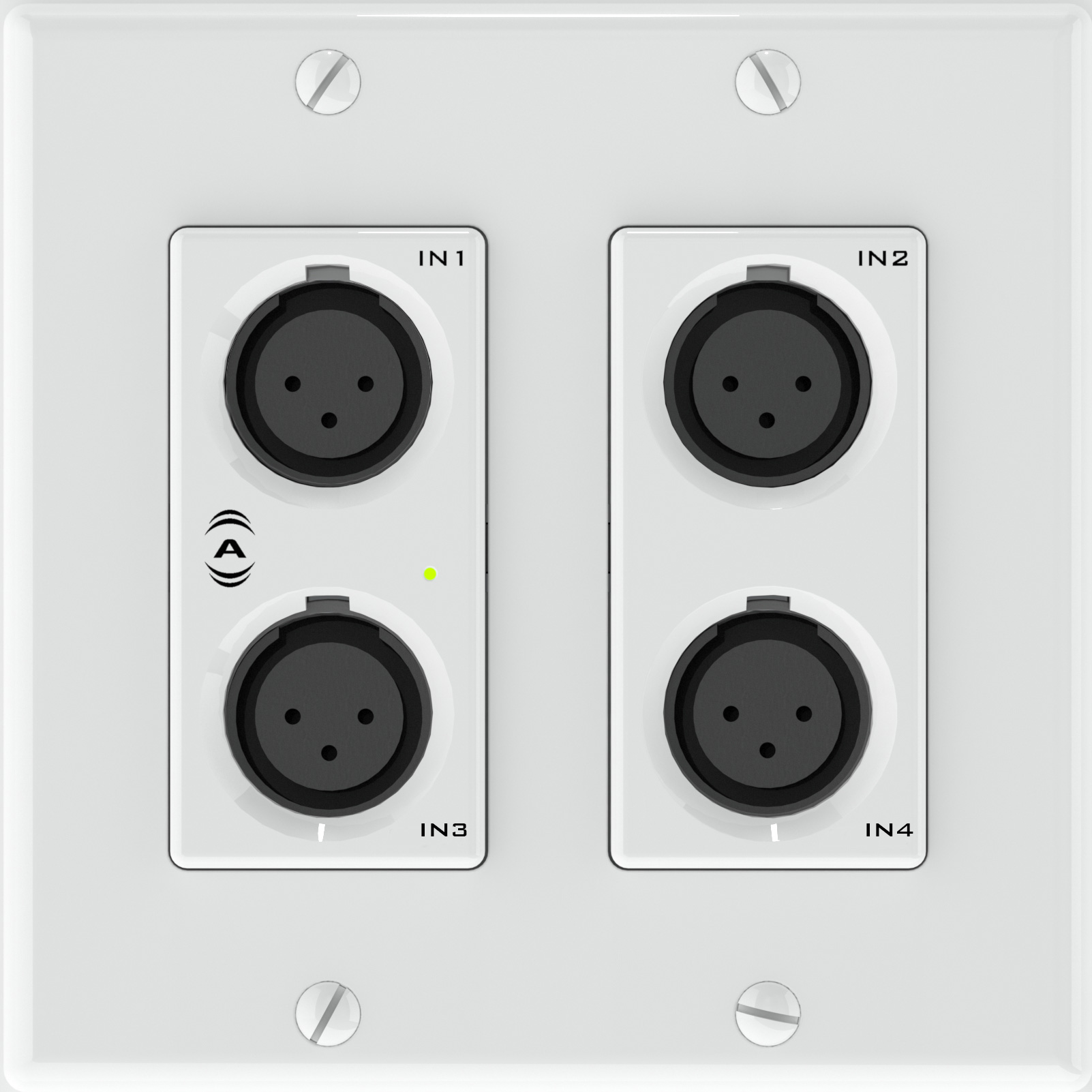

The Attero Tech unDX4I Dante™ Audio Interface is a cost effective multi-IO wall box. The unDX4I features four balanced mic/line XLR inputs and outputs can be used simultaneously and all audio channels are available separately. The unDX4I is designed to fit into most dual gang US junction boxes and is PoE enabled, so all connectivity (power and data) is provided by a single CAT-5 cable. The unDX4I's size and I/O density make it easy to put Dante™ connectivity wherever it's needed - near the audio source or sink - thereby eliminating costly and interference prone analog wiring.

  • Features:

    • 4 Mic/Line balanced analog inputs supporting 0dB, +25dB, and +40dB gain
    • 2 side mounted line level balanced analog outputs on depluggable connectors
    • Input gain and +48V phantom power controllable via software over the network
    • Powered by IEEE 802.3af PoE
    • Black and white inserts and Decora plates included


  • Specifications:

      Audio Inputs (XLR)
    • Input Type: Balanced and RF filtered 3-pin depluggable
    • Gain: 0dB, +25dB, +40dB, software selectable
    • Maximum Input Levels
      • +12dBu @ 0dB gain
      -13dBu @ +25dB gain
      -28dBu @ +40dB gain
    • Phantom Power: +48V, software selectable
    • Input Impedance: >1.8K ohms at any gain setting

      Audio Inputs (RCA, Jack)
    • Input Type: Unbalanced RF filtered line level stereo, each summed to mono

      Audio Outputs (XLR)
    • Output Type (XLR): Balanced line level with automatic muting on loss of Dante signal
    • Output Gain: 0dB
    • Maximum output level: +12dBu
    • Audio Outputs (Jack):
    • Output Type (Jack): Unbalanced line level with automatic muting on loss of Dante signal
    • Maximum output level: +12dBu

      Audio Performance:
    • Frequency Response: +/- 1dB, 20Hz - 20kHz
    • EIN -115dBu (+40dB gain)
    • Noise: <-90dBu @ 0dB gain
    • System THD: <0.01% at any gain, input signal 3dB below maximum

      Dante Network
    • Physical Level: Standard Ethernet
    • Connector: Single RJ-45
    • Cable Quality: CAT-5
    • Transmission Speed: 100Mbps

      Power Requirements
    • IEEE802.3af PoE
    • Power Consumption: Less than 3W

      Weights & Dimensions
    • Dimensions: 2.75"H x 3.60"W x 1.88"D
    • Operating Temperature: 0 OC - 40 OC

      Compliance
    • FCC CFR 47 Parts 15B, ICES-003, CE (EN55022), RoHS


  • Warranty:

    • 5 Year
