ATEN CL5816NCKIT 16-Port 19 Inch LCD KVM Kit with 16-USB/PS2 Combo KVM Cable

ITEM #: ATEN-CL5816NCKIT MFG #: CL5816NCKIT

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,566.00

Our Price:

$2,160.35

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CL5816NCKIT - Overview

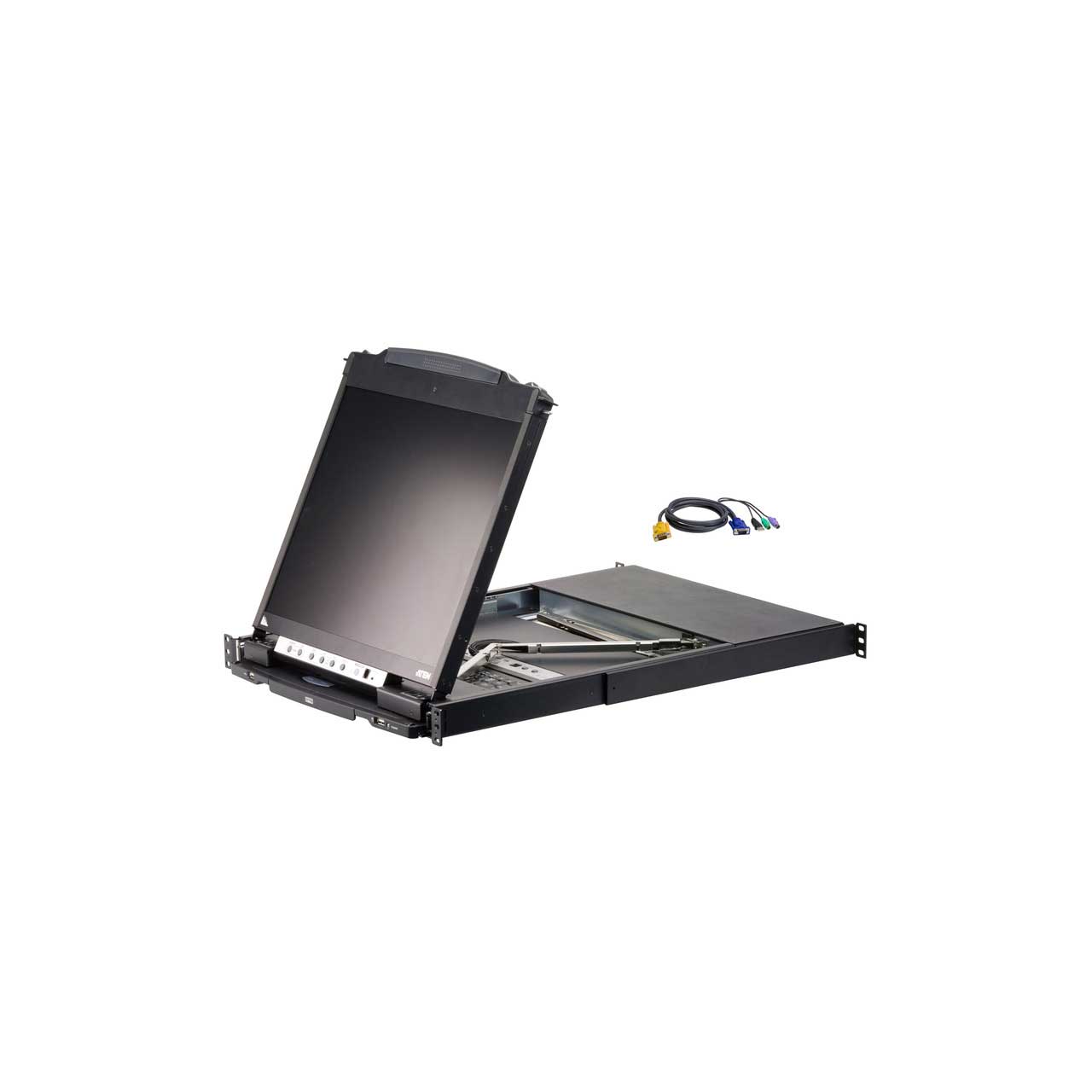

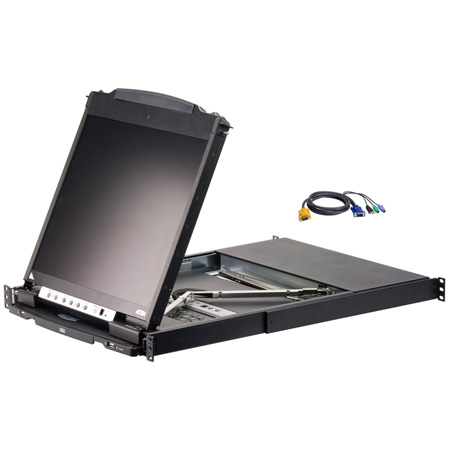

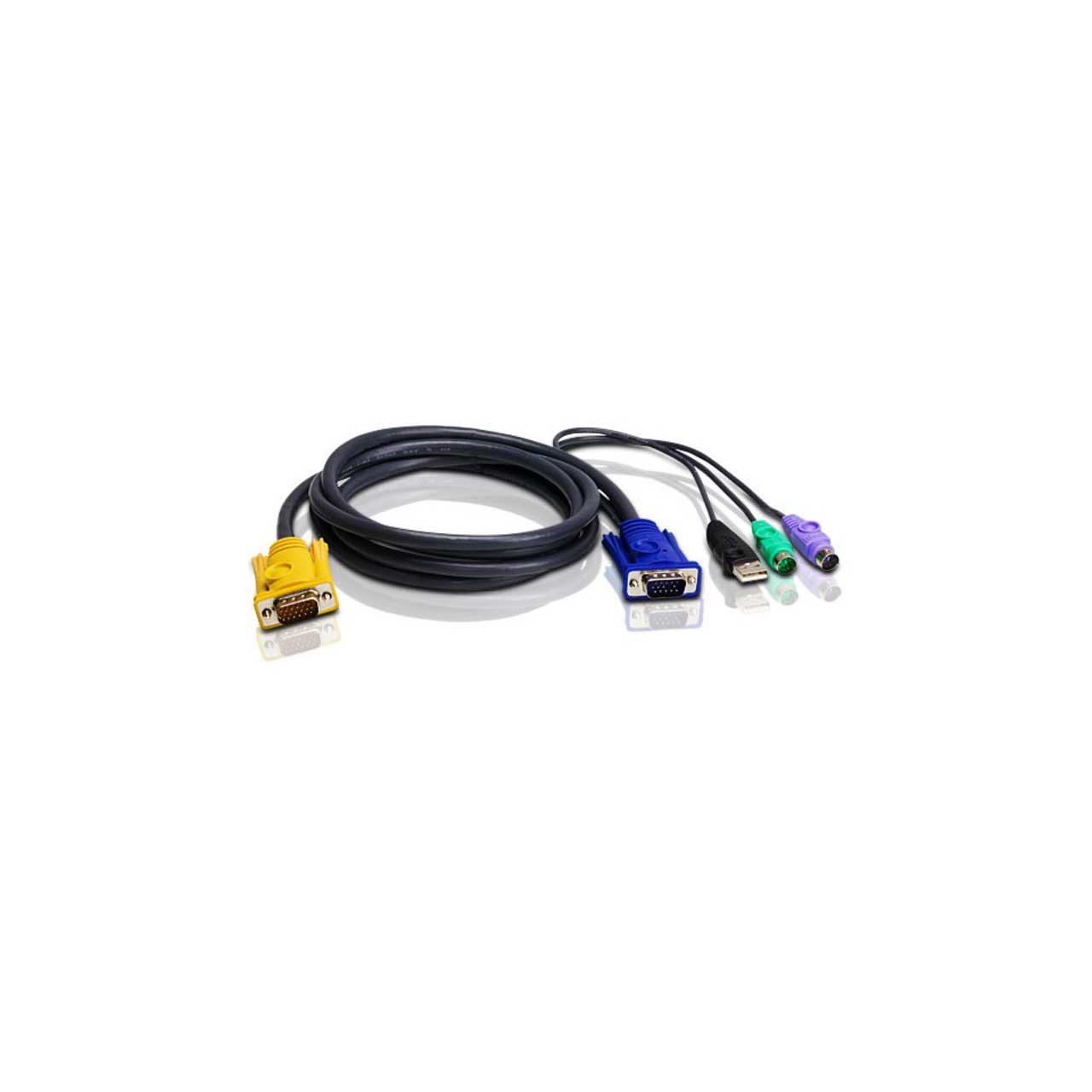

    CL5816NCKIT 16-Port 19 inch LCD KVM kit with a 16-USB/PS2 Combo KVM Cable
    The CL5816N Slideaway™ Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.

    The CL5816N 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection push button switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down push buttons located on the monitor module.

    The CL5816N supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5816N supports USB peripheral devices to be used with the attached computers. A single CL5816N can control up to 16 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 512 computers can all be controlled from a single keyboard, monitor, and mouse console.

    • Features:

      • Integrated KVM console with 19" LCD in a Dual Rail housing
      • Space saving technology - up to two consoles (one bus) control up to 8 computers
      • Daisy-chain up to 31 additional units*- control up to 256 computers from two consoles (one bus)
      • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
      • Supports USB peripherals for computers connected to the top tier
      • LCD module rotates up to 120 degrees for a more comfortable viewing angle
      • Console Lock - enables the console drawer to remain securely locked away in position when not in use
      • Multiplatform support - Windows, Linux, Mac, and Sun
      • Supports multimedia USB keyboards for PC, Mac and Sun
      • Auto PS/2 and USB interface detection
      • Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
      • Extra console port - manage computers in the LCD KVM switch from an external console (monitor, USB keyboard, and USB mouse)
      • Supports external USB mouse
      • Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz
      • No software required - convenient computer selection via front panel pushbuttons, hotkeys, and multilingual on-screen display (OSD) menus
      • Auto-senses station's position on daisy chained installations; no need for manual dip switch setting; front panel led indicates station's position
      • Port names automatically reconfigured when station sequence is changed
      • Two level password security - only authorized users can view and control computers
      • LCD power button helps save energy and prolong display's life
      • Supports one administrator and four user accounts with separate profiles
      • Auto Scan mode enables continuous monitoring of user-selected computers
      • Broadcast support - commands from the keyboard can be broadcast to all available computers on the installation
      • Hot pluggable - add or remove computers without having to power down the switch
      • Beeper on/off via hotkey and OSD
      • Firmware upgrades to all the chained KVM switches at the same time via the daisy chain cable
      • * Compatible KVM Switches:ACS1208A, ACS1216A,CS1708A,CS1716A

    • Specifications:

      • Computer Connections
      • Direct: 16
      • Max: 512 (via daisy chain)

        Port Selection
      • OSD, Hotkeys, Pushbuttons

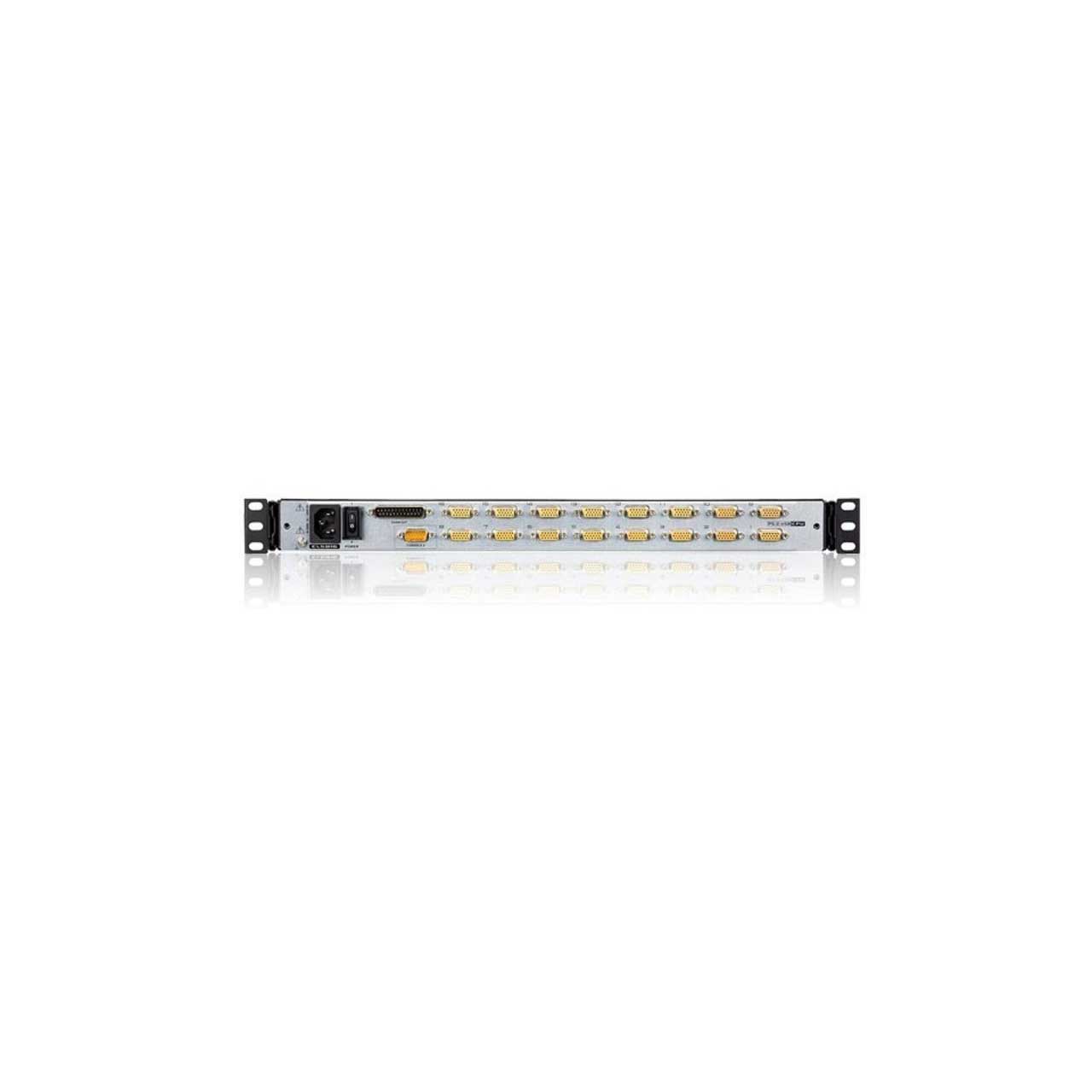

        Connectors
      • External Console Port 1 x SPHD-18 (Male)
      • External Mouse Port 1 x USB Type-A (Female)
      • KVM Ports 16 x SPHD-17/18 (Female)
      • Daisy Chain 1 x DB-25 (Male)
      • FW Upgrade 1 x RJ-11 (Female)
      • Power 1 x 3-prong AC Socket
      • USB 1.1 Hub 1 x USB Type-A (Female)

        Switches
      • Reset 1 x Semi-recessed Pushbutton
      • Power 1 x Rocker Switch
      • Firmware Upgrade 1 x Slide Switch
      • LCD Adjust 4 x Pushbutton
      • LCD On/Off 1 x LED Pushbutton (Orange)
      • Port Selection 2 x Pushbutton (LCD Module)
      • 16 x Pushbutton (Keyboard Module)
      • Station Selection 2 x Pushbutton

        LEDs
      • On Line 16 (Orange)
      • Selected 16 (Green)
      • Station ID 2 x 7-segment LED Display (Yellow)
      • Power 1 (Dark Green)
      • Lock Num 1 (Green)
      • Caps 1 (Green)
      • Scroll 1 (Green)

        Emulation
      • Keyboard / Mouse PS/2, USB

        Video
      • 1280 x 1024 @ 75 Hz; DDC2B

        Scan Interval (OSD Select)
      • 1-255 sec.

        I/P Rating
      • 100-240 VAC, 50/60 Hz, 1 A

        Power Consumption
      • 120V, 26W / 230V, 26.8W

        Environment
      • Operating Temp. 0-50°C
      • Storage Temp. -20-60°C
      • Humidity 0-80% RH, Noncondensing

        Physical Properties
      • Housing: Metal + Plastic
      • Weight: 14.76 Kg
      • Dimensions (L x W x H): 48.00 x 68.04 x 4.40 cm

    • Item Includes:

      • 1x CL5816N
      • 4x 2L5301UP
      • 8x 2L5302UP
      • 4x 2L5303UP
      • 1x 5-in-1 Console Cable
      • 1x Firmware Upgrade Cable
      • 1x Power Cord (6ft.)
      • 1x Grounding Wire (4ft.)
      • 1x User Manual
      • 1x Quick Start Guide
      • 1x Standard Rack Mounting Kit

    • GTIN:

      0881317509062
