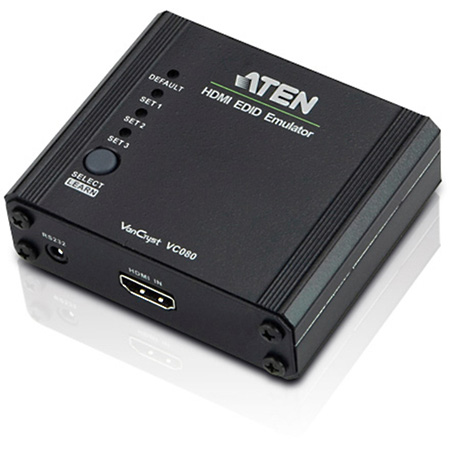

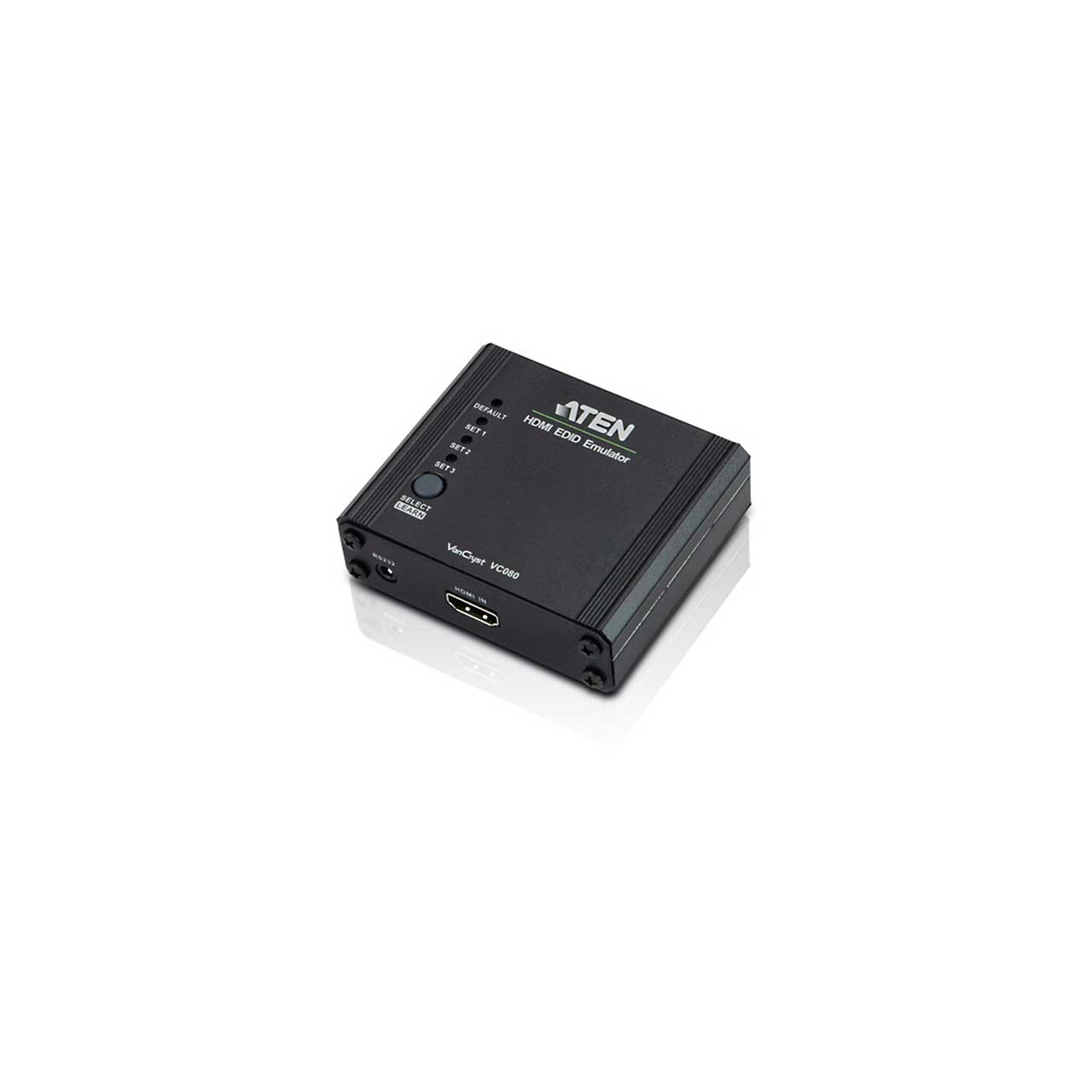

ATEN VC080 HDMI EDID Emulator

ITEM #: ATEN-VC080 MFG #: VC080

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$90.00

Our Price:

$74.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    VC080 - Overview

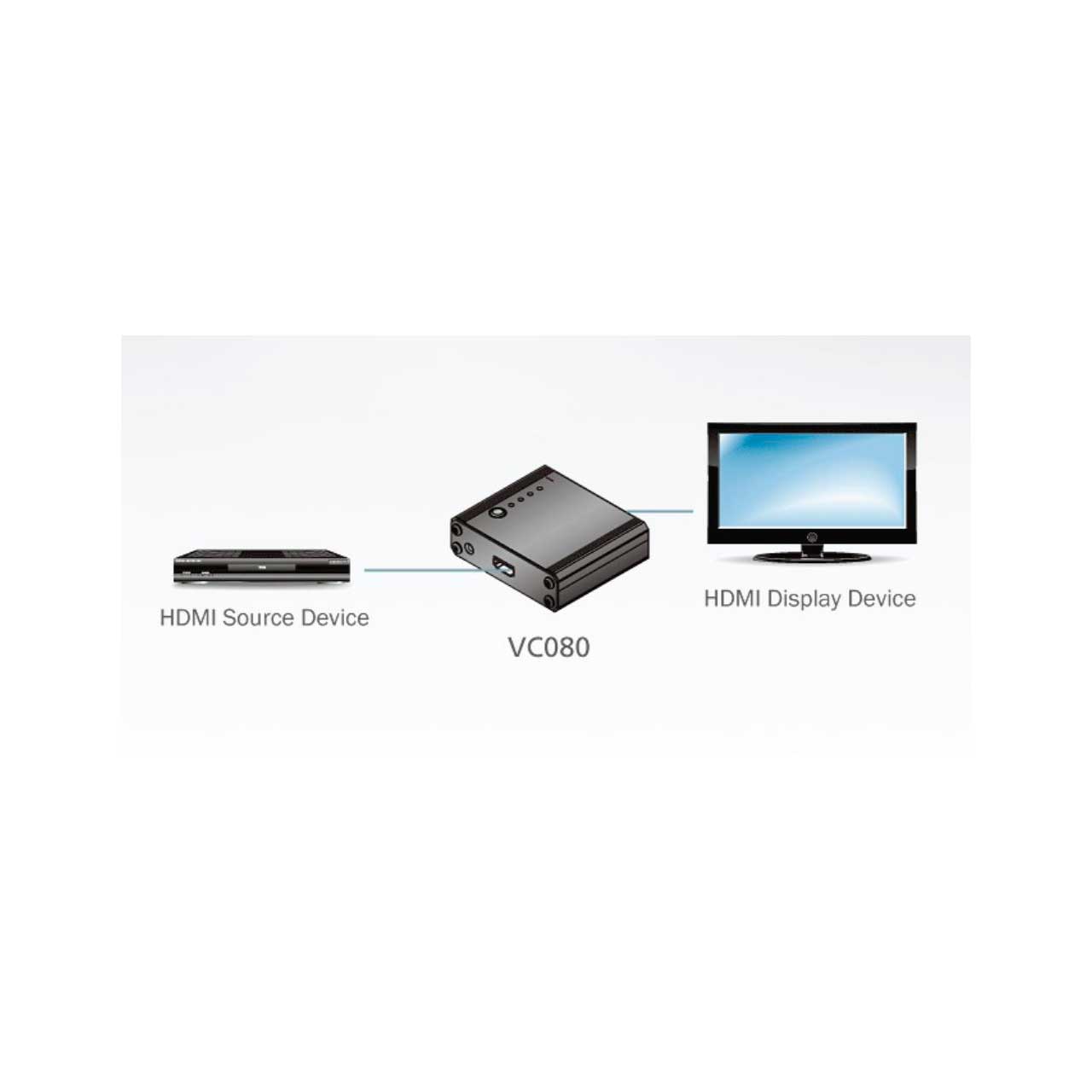

    The ATEN VC080 is a HDMI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a HDMI source device to efficiently optimize video resolution.

    The ATEN HDMI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

    • Features:

      • Superior video quality - HDTV resolutions of 480i, 480p, 720i, 720p, 1080i, 1080p (1920 x 1080); VGA, SVGA, XGA, SXGA, UXGA and WUXGA (1920 x 1200)
      • EDID Wizard - allows a user an easy way to manage EDID settings
      • Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
      • EDID mode selection - Default, Learning , Programming
      • HDMI (3D, Deep Color), HDCP compatible
      • Supports Dolby True HD and DTS HD Master Audio
      • Automatically manages EDID communication between connected devices
      • Signaling rates up to 2.25 Gbits in support of 1080p display
      • LED indication of video source devices
      • Supports wide screen
      • Supports hot-plugging
      • Non-Powered *
      • * If the video source is not receiving enough power an external power cord should be connected.

    • Item Includes:

      • 1x VC080 HDMI Emulator
      • 1x RS-232 Configuration Cable
      • 1x USB to DC Power Cord
      • 1x User Instructions

    • GTIN:

      0672792004193
