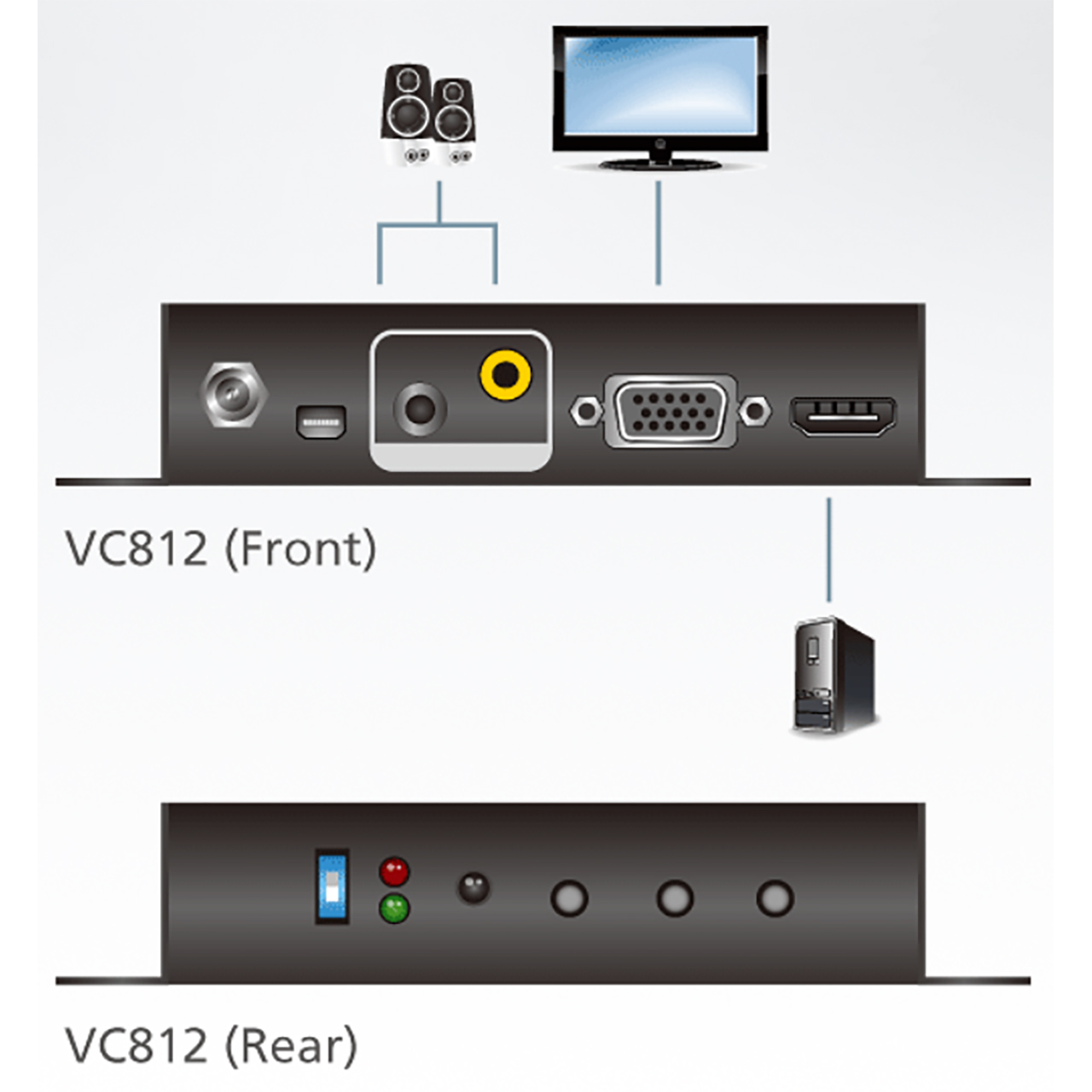

The ATEN VC812 HDMI to VGA converter with Scaler offers an easy and convenient way of converting HDMI input signals into analog video (VGA). The VC812 enables you to use a non-HDMI display to access HDMI content. It supports input resolutions 480p, 720p, 1080p, 1080i, and up to 1900 x 1200 PC input resolution. It has both analog and digital audio outputs, as well as one stereo audio output.
You can operate the VC812 via the built-in On-Screen Display (OSD), which can be controlled through accessible front panel pushbuttons. In addition, the VC812 comes with a Utility Tool, which can be installed on a computer connected to the VC812's mini USB port.
The OSD and Utility Tool enable you to configure the screen resolution, color space setting, picture quality and multiple other functions for optimizing the display.
Note: The VC812 does not support HDCP.
Requirements:
• Source Device(s): HDMI Type A connector, PC or laptop with Mini USB port (for configuration via VC812 Utility Tool)
• Display Device: VGA based video device with HDB and HDB-15 male connector
• Cables: HDMI Type A cable, HDB-15 cable (for VGA based video display device), RCA audio cable (for Coaxial audio device), 3.5mm stereo cable (for Stereo audio device), USB-to-Mini USB cable (for configuration via VC812 Utility Tool)
