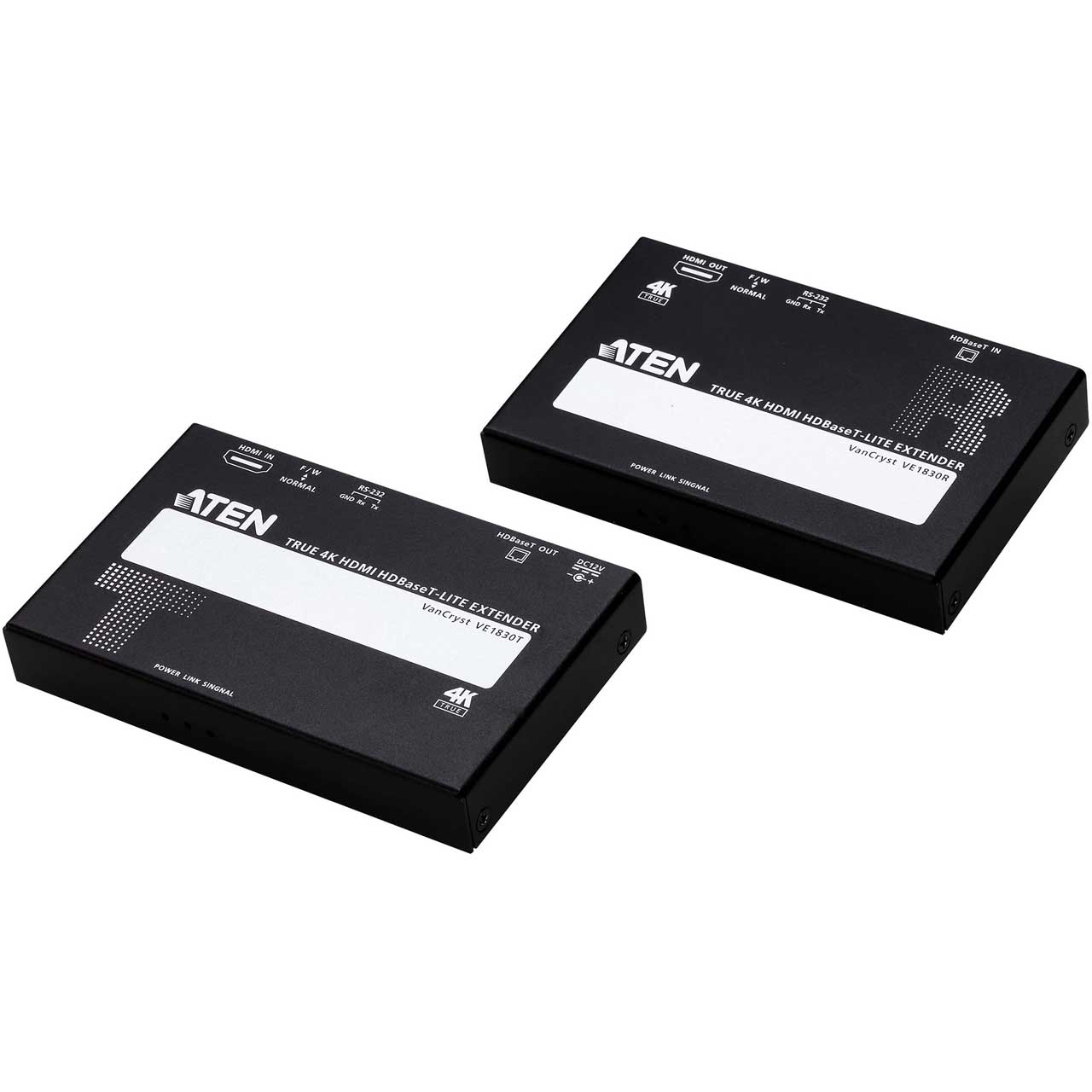

ATEN VE1830 True 4K HDMI HDBaseT-Lite Extender Kit - (True 4K@35m) (HDBaseT Class B)

VE1830 - Overview

• Features:

  • HDMI 2.0a (3D, Deep Color, True 4K); HDCP 2.2 compliant
  • Superior video quality
  • Extends True 4K HDMI signals (3840 x 2160 @ 60Hz 4:4:4) up to 35 m
  • Extends Full HD 1080p signals up to 70 m
  • Supports HDR10+
  • Features PoC (Power over Cable) - supplies power from the VE1830T unit to the VE1830R unit
  • Features RS-232 serial port for connecting peripherals such as touch screens, and barcode scanners
  • Plug-and-play
  • Compact size for space saving
  • Rack-mountable with attached rack mounting kit in the package


• Specifications:

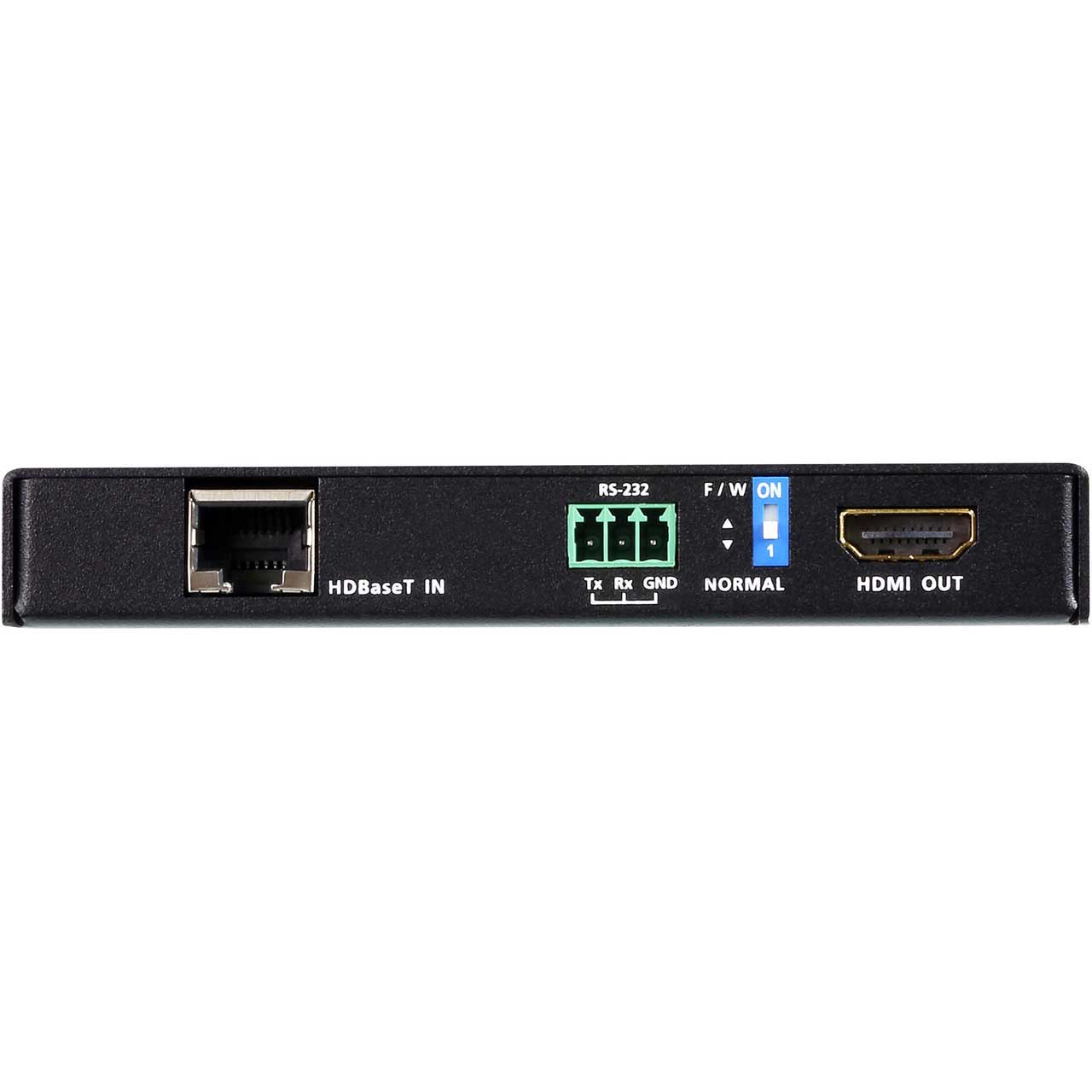

  • VE1830 Receiver
    Video Input
  • Interfaces: N/A
  • Impedance: N/A
  • Max. Distance: N/A

    Video Output
  • Interfaces: 1 x HDMI Type A Female (Black)
  • Impedance: 100 Ω

    Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
  • Max. Pixel Clock: 340 MHz
  • Compliance: HDMI 2.0 (3D, Deep Color, 4K); 4K HDR, HDCP2.2 Compatible, Consumer Electronics Control (CEC)
  • Max. Resolutions / Distance: Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6), Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6)
  • Supported Resolutions: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6), 1080P@60m (Cat 5e/6)

    Audio
  • Input: N/A:
  • Output: 1 x HDMI Type A Female (Black)

    Connectors
  • Unit To Unit: 1 x RJ-45 Female
  • Power: 1 x RJ-45 Female (Power over Cable, power supply from VE1830T)

    Control
  • RS-232 Channel: Connector: 1 x Terminal Block, 3 pole
  • Power Consumption: BTU

    Switches
  • Firmware Upgrade: 1 x Slide Switch - ON/OFF

    Environmental
  • Operating Temperature: 0 - 40°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing

    Physical Properties
  • Housing: Metal
  • Weight: 0.12 kg ( 0.28 lb )
  • Dimensions (L x W x H): 11.86 x 7.19 x 1.68 cm (4.67 x 2.83 x 0.66 in.)

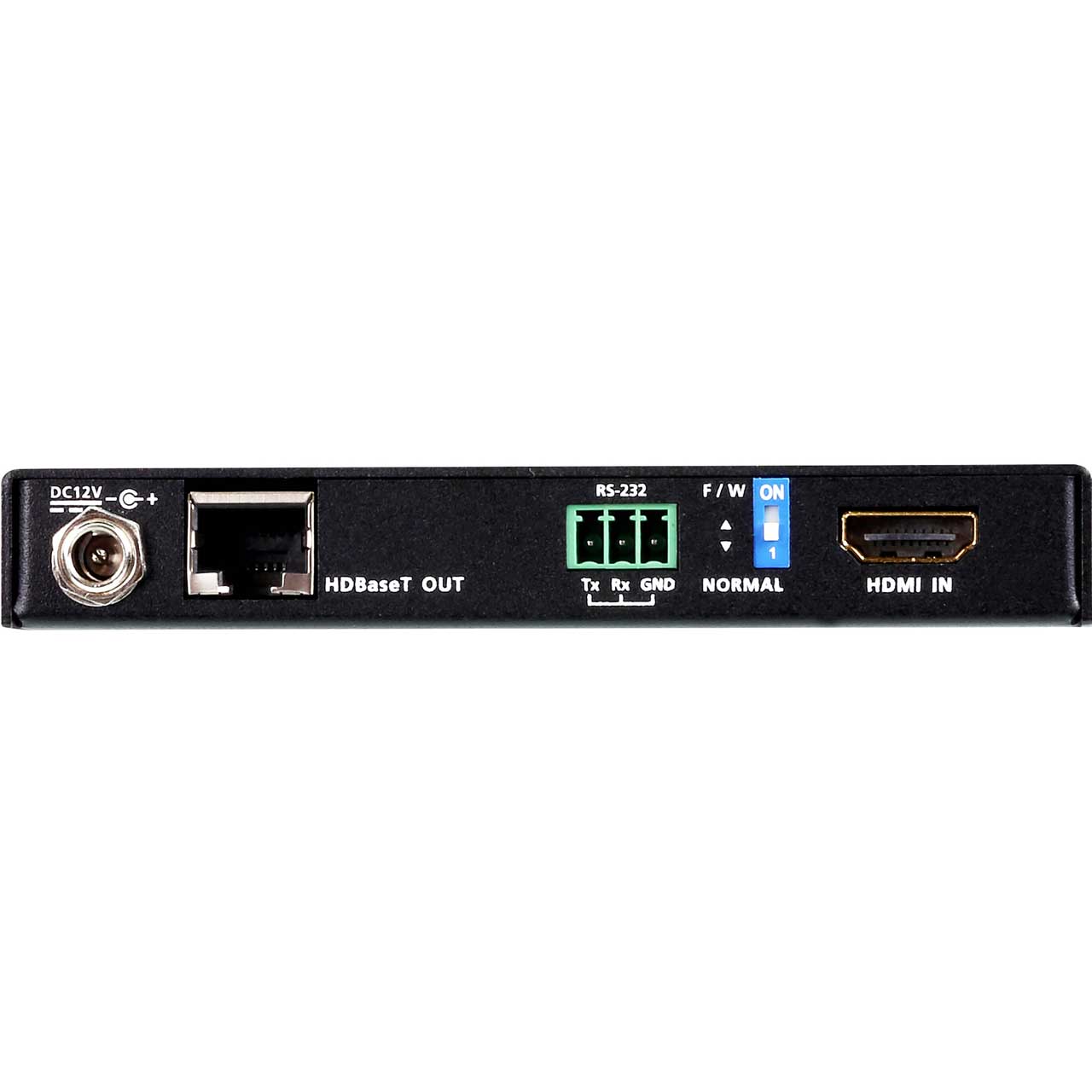

    VE1830 Transmitter
    Video Input
  • Interfaces: 1 x HDMI Type A Female (Black)
  • Impedance: 100 Ω
  • Max. Distance: 1.8 m

    Video Output
  • Interfaces: N/A
  • Impedance: N/A

    Video
  • Max. Data Rate: 10.2Gbps (3.4Gbps per lane)
  • Max. Pixel Clock: 340 MHz
  • Compliance: HDMI 2.0 (3D, Deep Color, 4K); 4K HDR, HDCP2.2 Compatible, Consumer Electronics Control (CEC)
  • Max. Resolutions / Distance: Up to True 4K: 3840 x 2160 @ 60Hz (4:4:4) @35m (Cat 5e/6), Up to 1080p@70m (Cat6a/ATEN 2L-2910 Cat6)
  • Supported Resolutions: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) @35m (Cat5e/6), 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) @35m (Cat5e/6), 1080P@60m (Cat 5e/6)

    Audio
  • Input: 1 x HDMI Type A Female (Black)
  • Output: N/A

    Connectors
  • Unit To Unit: 1 x RJ-45 Female
  • Power: 1 x DC Jack (Black) with locking

    Control
  • RS-232 Channel: Connector: 1 x Terminal Block, 3 pole
  • Power Consumption: 12.432WBTU

    Switches
  • Firmware Upgrade: 1 x Slide Switch - ON/OFF

    Environmental
  • Operating Temperature: 0 - 40°C
  • Storage Temperature: -20 - 60°C
  • Humidity: 0 - 80% RH, Non-Condensing

    Physical Properties
  • Housing: Metal
  • Weight: 0.15 kg ( 0.35 lb )
  • Dimensions (L x W x H): 11.86 x 7.19 x 1.68 cm (4.67 x 2.83 x 0.66 in.)


• Item Includes:

  • 1x VE1830T True 4K HDMI HDBaseT-Lite Extender Transmitter
  • 1x VE1830R True 4K HDMI HDBaseT-Lite Extender Receiver
  • 2x RS-232 Terminal Blocks
  • 1x Power Adapters
  • 1x User Instructions


• GTIN:

  0672792005978
