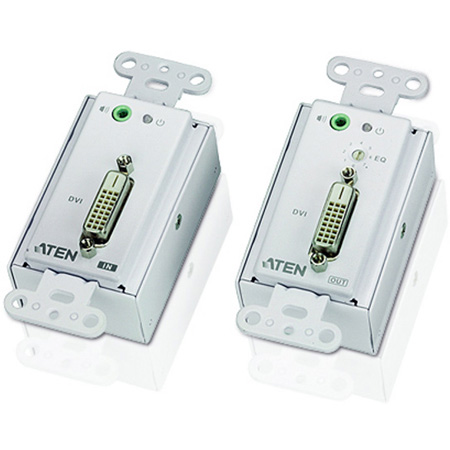

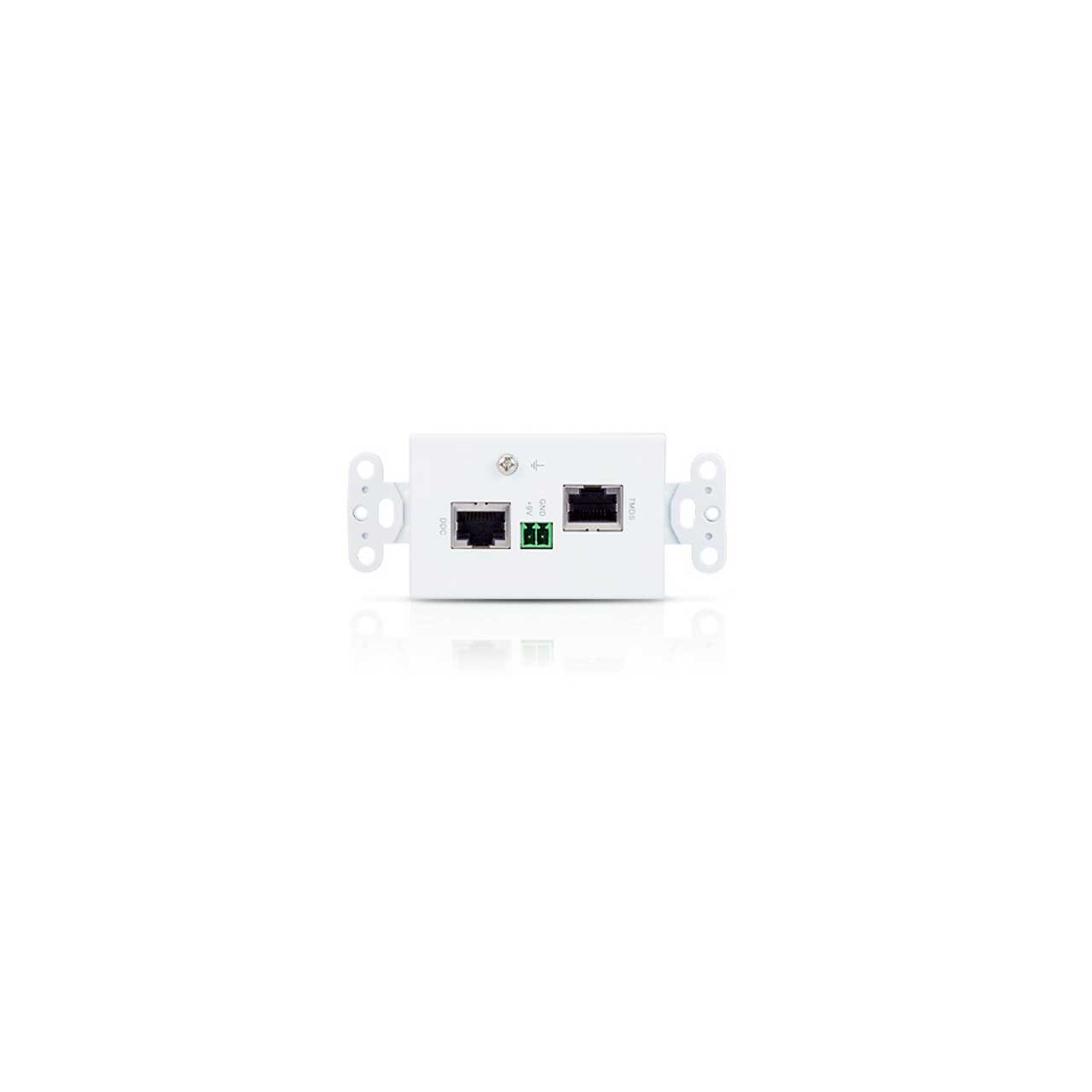

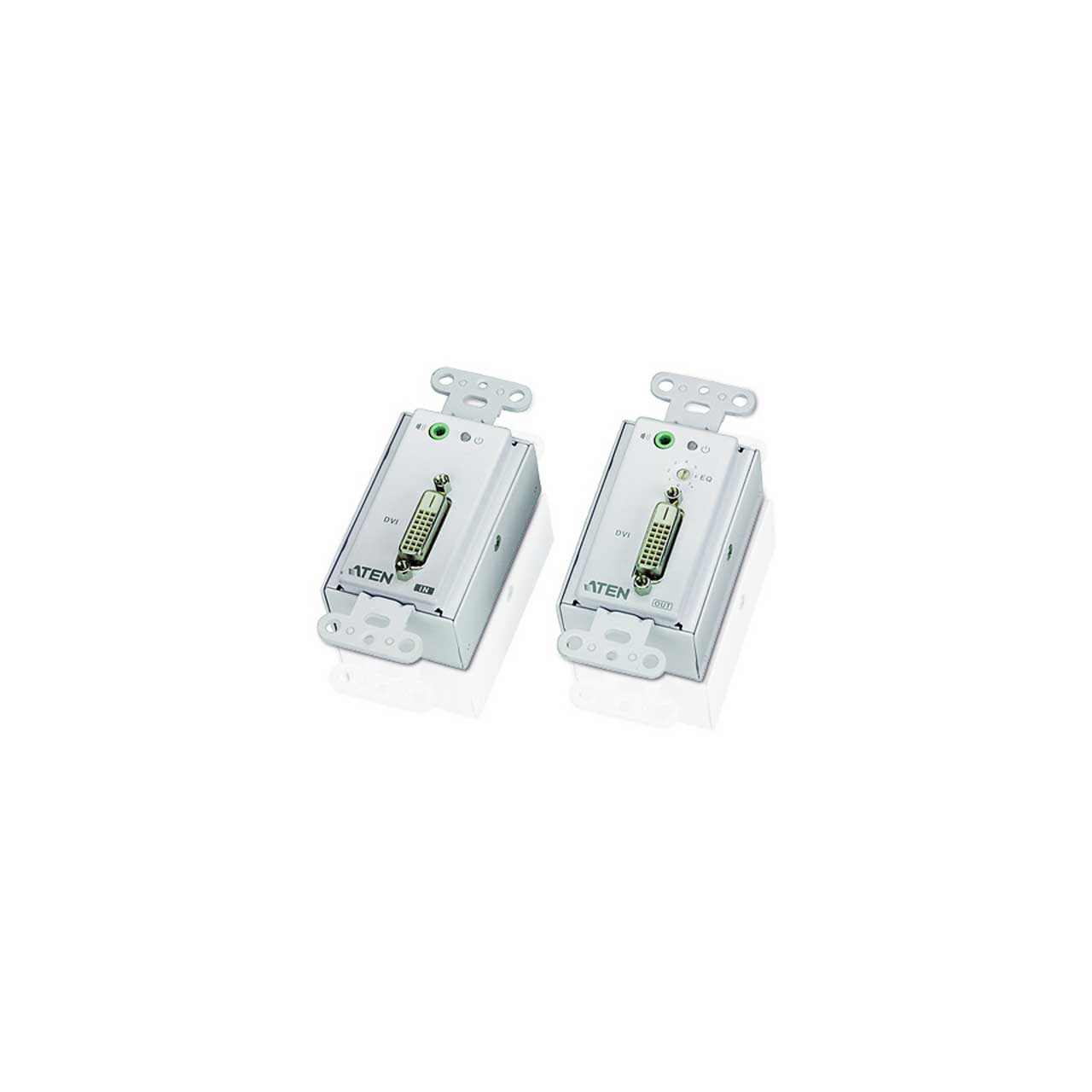

ATEN VE606 DVI Over Cat5 Extender Wallplate
  • ATEN VE606 DVI Over Cat5 Extender Wallplate
  • ATEN VE606 DVI Over Cat5 Extender Wallplate
  • ATEN VE606 DVI Over Cat5 Extender Wallplate

Questions? Ask a Markertek Expert:
800-522-2025 Email

ATEN VE606 DVI Over Cat5 Extender Wallplate

Manufacturer: ATEN

Item #: ATEN-VE606   •   MFG #: VE606



List Price:$195.00
Our Price:$182.85

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The VE606 DVI Over Cat 5 Extender Wall Plate extends DVI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.

    The VE606 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE606’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.


    • Features

      • Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
      • Remotely powered from either the Transmitter or Receiver side**
      • Extends the distance between DVI source and DVI display
      • Superior video quality – up to [email protected] 130 feet(40m), [email protected] 200 feet(60m)
      • 8 segment equalization adjustment switch optimizes display quality
      • Supports wide screen formats
      • Supports hot-plugging
      • Decora type design is easily configurable to fit various wall plates
      • LED indication of power sources / connection status
      • Supports stereo audio
      • Built-in 8KV/15KV ESD protection
      • Easy installation
      • Wall mountable type for a neat and cleaner installation
      • Plug-and-play – no software installation required
        Note:
      • * The second Cat 5e cable connection is required to remotely power on either the Transmitter or Receiver.
      • ** A power adapter is provided with this package, and can be used at either the Transmitter or Receiver side, which in turn remotely powers the other unit.

    • Specifications

      • Function VE606R VE606T
      • Video Input
      • Interfaces N/A 1 x DVI-D Female (White)
      • Impedance N/A 100Ω
      • Video Output
      • Interfaces 1 x DVI-D Female (White) N/A
      • Impedance 100Ω N/A
      • Video
      • Max. Data Rate 6.75 Gbps (2.25 Gbps Per Lane) 6.75 Gbps (2.25 Gbps Per Lane)
      • Max. Pixel Clock 225 MHz 225 MHz
      • Compliance HDCP Compatible HDCP Compatible
      • Max. Resolutions / Distance Up to 1920 x [email protected]; 1280 x [email protected] Up to 1920 x [email protected]; 1280 x [email protected]
      • Audio
      • Input N/A 1 x Mini Stereo Jack Female (Green)
      • Output 1 x Mini Stereo Jack Female (Green) N/A
      • Power
      • Connectors 1 x Terminal Block (Green) 1 x Terminal Block (Green)
      • Consumption 9 VDC, 2.9W 9 VDC, 2.9W
      • Environmental
      • Operating Temperature 0 - 50°C 0 - 50°C
      • Storage Temperature -20 - 60°C -20 - 60°C
      • Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing

    • Item Includes

      • 1x VE606T DVI Over Cat 5 Extender Wall Plate
      • 1x VE606R DVI Over Cat 5 Extender Wall Plate
      • 1x Terminal Block Connector
      • 1x Power Adapter
      • 1x User Instructions

    • Warranty

      • 3 Years

    • GTIN:

      0672792004650
