ATEN VE801T HDMI HDBaseT-Lite Transmitter (HDBaseT Class B)-TAA Compliant - 1 Input Device

ITEM #: ATEN-VE801T MFG #: VE801T

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$125.17

Our Price:

$112.65

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    VE801T - Overview

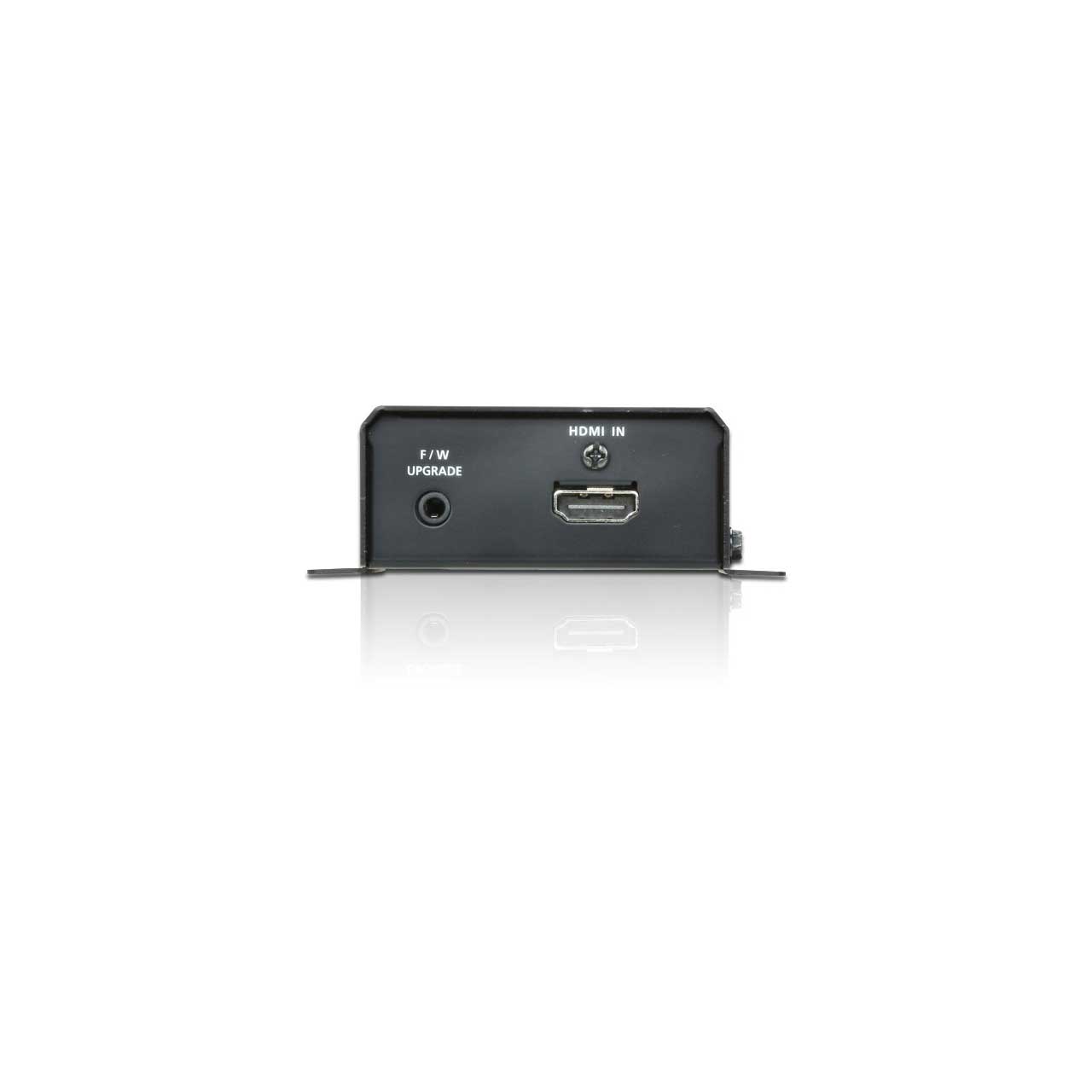

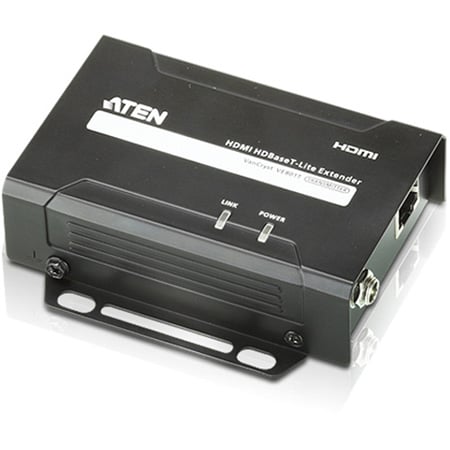

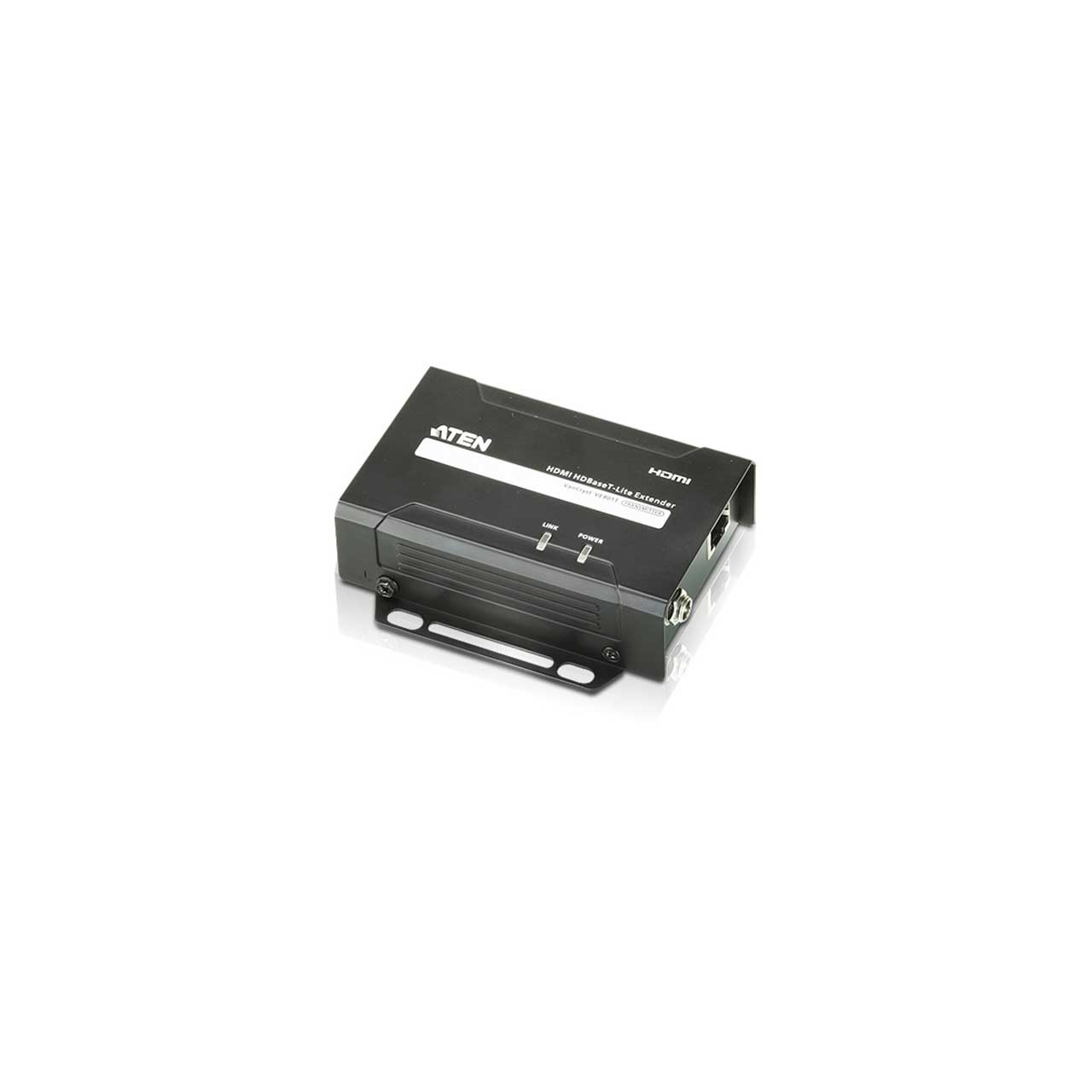

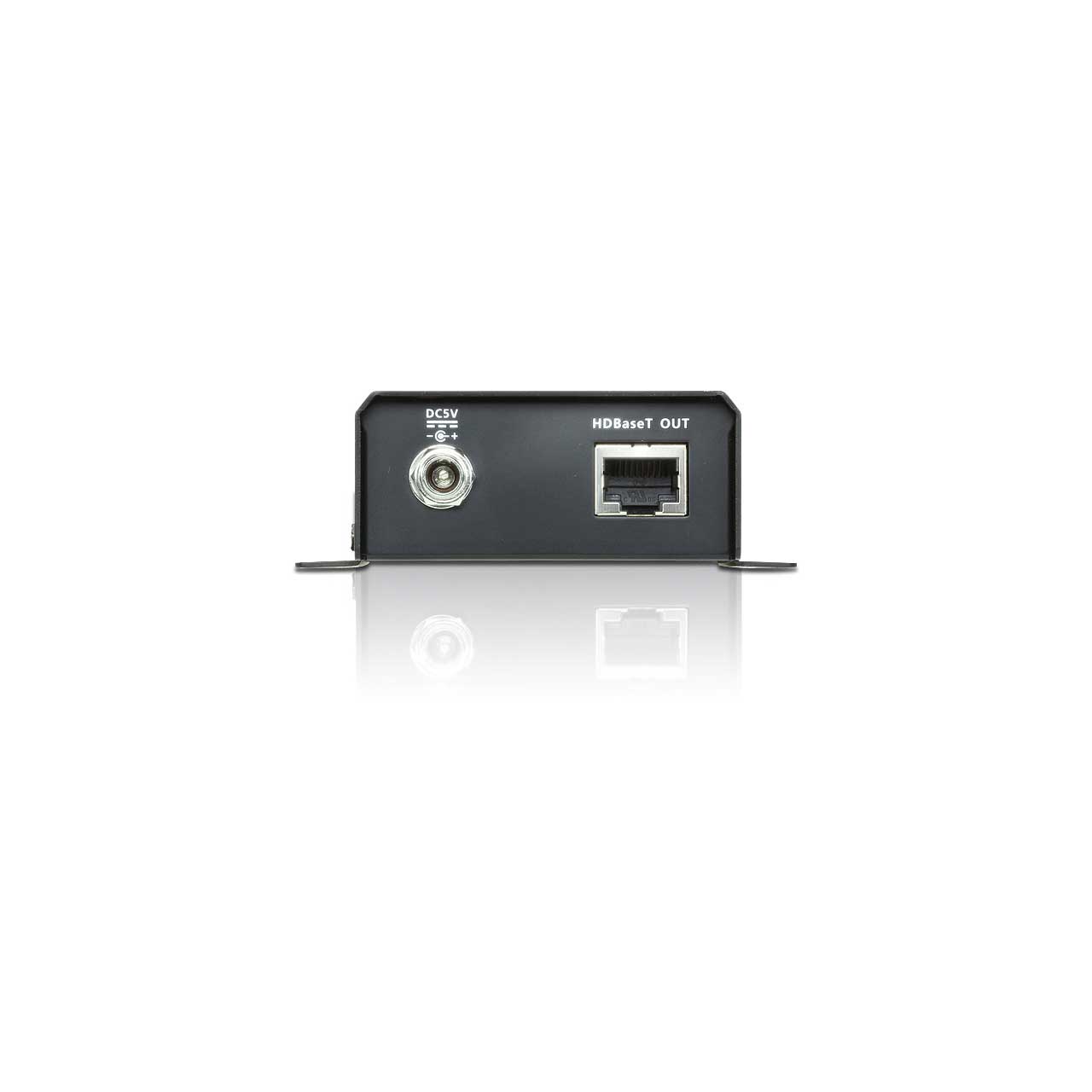

    The VE801T HDMI HDBaseT-Lite Transmitter from ATEN connects with the VE801R HDBaseT receiver to extend signals up to 230 feet from the source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio, and it is HDCP compatible. The VE801T all-in-one design provides an easy method for mounting the device in almost any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801T is suitable for digital entertainment centers or almost any installation that requires improved HDMI video quality to be extended for great distances. The VE801T is a HDBaseT Class B compatible device.

    • Features:

      • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
      • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using
        HDBaseT technology
      • EDID Expert - configures optimum EDID settings for smooth power-up, high-quality display and use
        of the best resolution across different screens
      • Rack- Mountable

    • Specifications:

      • Video Output
      • Interface: 1 x HDMI Type A female (black)
      • Impedance: 100 ohms
      • Maximum Distance: 5.9 Feet (1.8 m)

        Video
      • Maximum Data Rate: 10.2 Gbps (3.4 Gbps per lane)
      • Maximum Pixel Clock: 340 MHz
      • Compliance: HDMI (3D, Deep Color, 4K)

        Audio
      • Input: 1 x HDMI Type A female (black)
      • Output: 1 x HDMI Type A female (black)

        Power
      • Connector: 1 x DC jack / locking (black)
      • Consumption: 5 VDC, 1.85 W
      • Operating Temperature: 32 to 122°F
      • Storage Temperature: -4 to 140°F
      • Humidity: 40 to 85% RH, non-condensing
      • Housing: Metal
      • Dimensions (LxWxH): 4.5 x 3.54 x 1.18 Inches
      • Weight: 0.53 lb (0.24 kg)

    • GTIN:

      0672792006166
