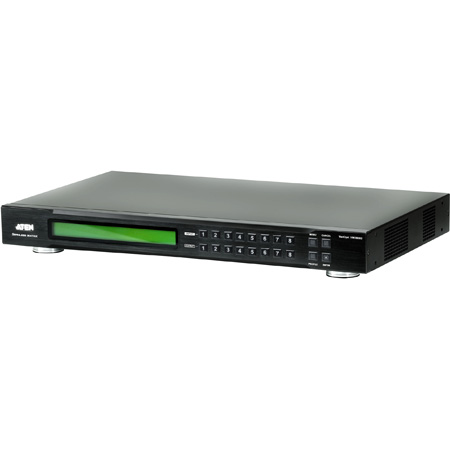

ATEN VM5808D 8x8 DVI Scaling Matrix and Video Wall with Fast Switching

ITEM #: ATEN-VM5808D MFG #: VM5808D

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    VM5808D - Overview

    While HDMI-compliant devices are becoming more popular, the majority of traffic control centers and other large-scale, centralized control rooms still rely on DVI display devices.

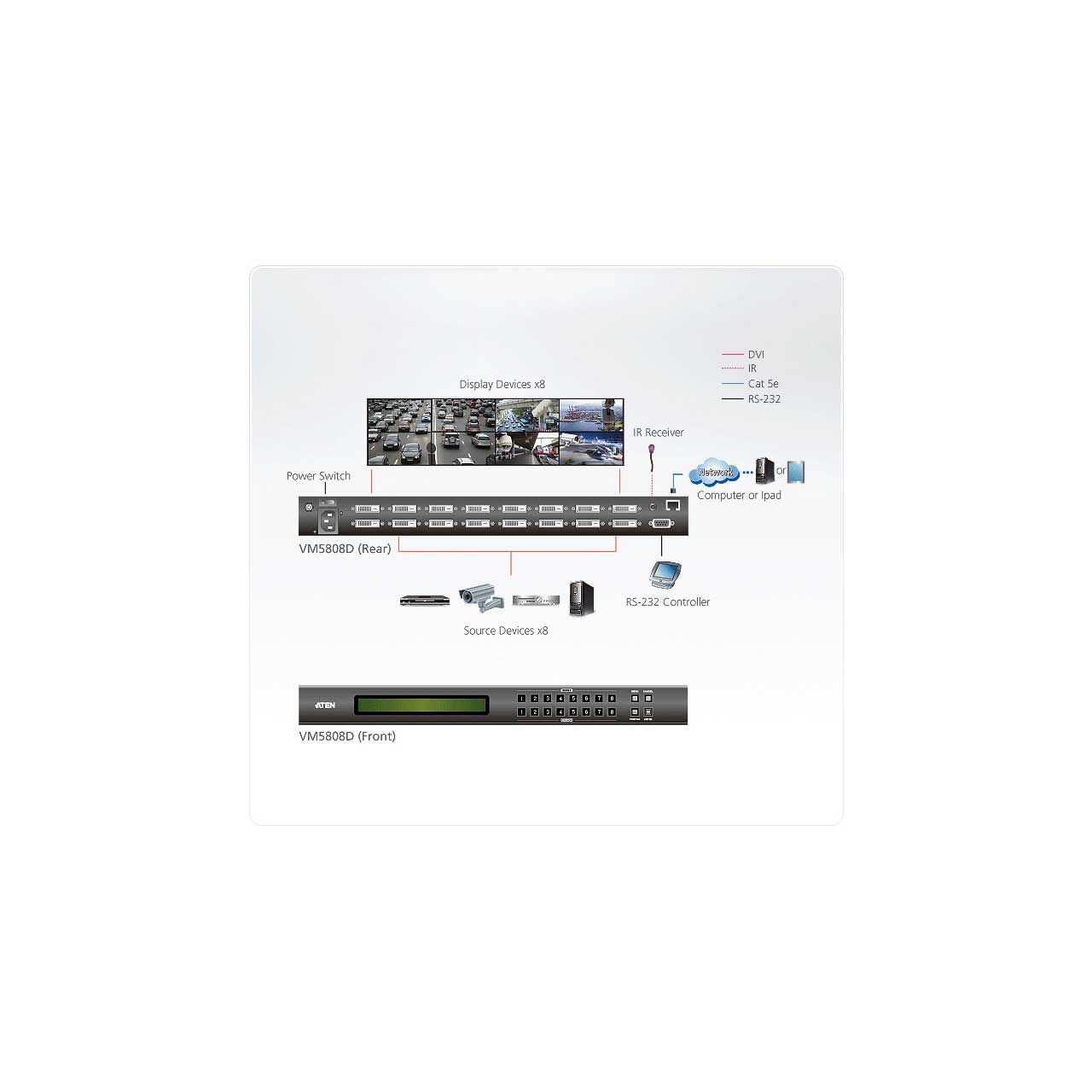

    In order to avoid signal instability, quality deterioration and other factors associated with interface converters, ATEN created the VM5808D: A seamless matrix switch for DVI signals that offers an easy and affordable way to route any of 8 DVI video sources to any of 8 DVI displays.

    The VM5808D includes seamless switching that employs an FPGA matrix architecture to ensure continuous video streaming, real-time control and stable signal transmission. With a built-in high-performance scaler, the VM5808D easily converts various input resolutions into a array of output resolutions, giving viewers the best image quality across all displays. The switch also integrates video wall functionality with an easy-to-use web GUI that lets you create 16 connection profiles for convenient layout customization.

    The VM5808D is the ideal solution for any control center streaming multiple sources to multiple displays.

    • Features:

      • 8x8 DVI I/O connections

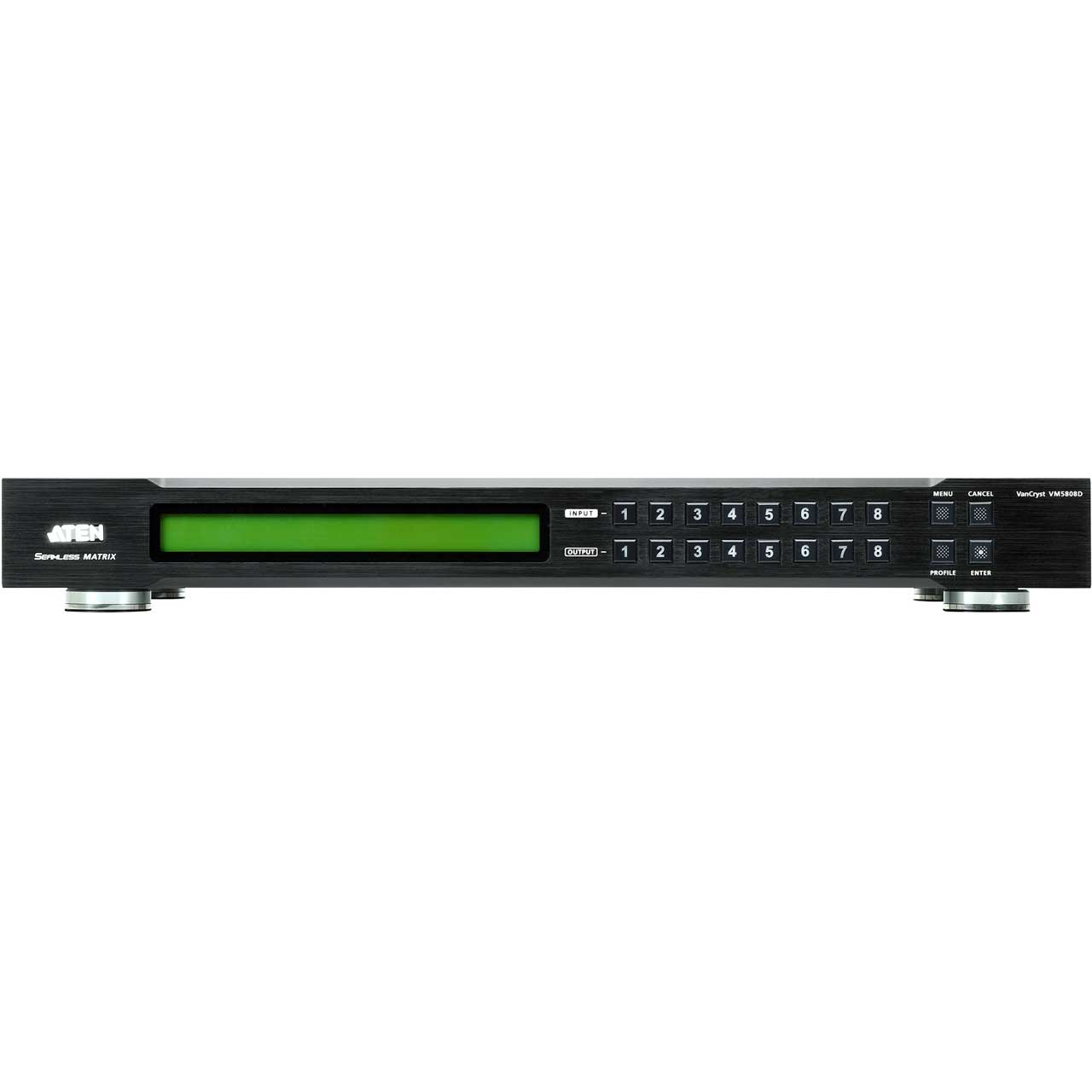

      • Configuration and Control via pushbuttons / IR Remote Control
      • System Operation via bi-directional RS-232 serial controller / Browser Graphical User Interface (GUI) / Telnet
      • Extends IR transmission via IR extension cable
      • Built-in Scaler on each output port converts input resolutions into the display’s native resolution, supports scaling 1920 x 1200 resolutions up or down
      • Seamless Switch - ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions
      • Video Wall - features up to 16 video wall profiles for custom screen layouts via point-n-click web GUI
      • EDID Expert - configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screen
      • Firmware Upgradeable
      • Rack Mountable (1U Design)
    • Specifications:

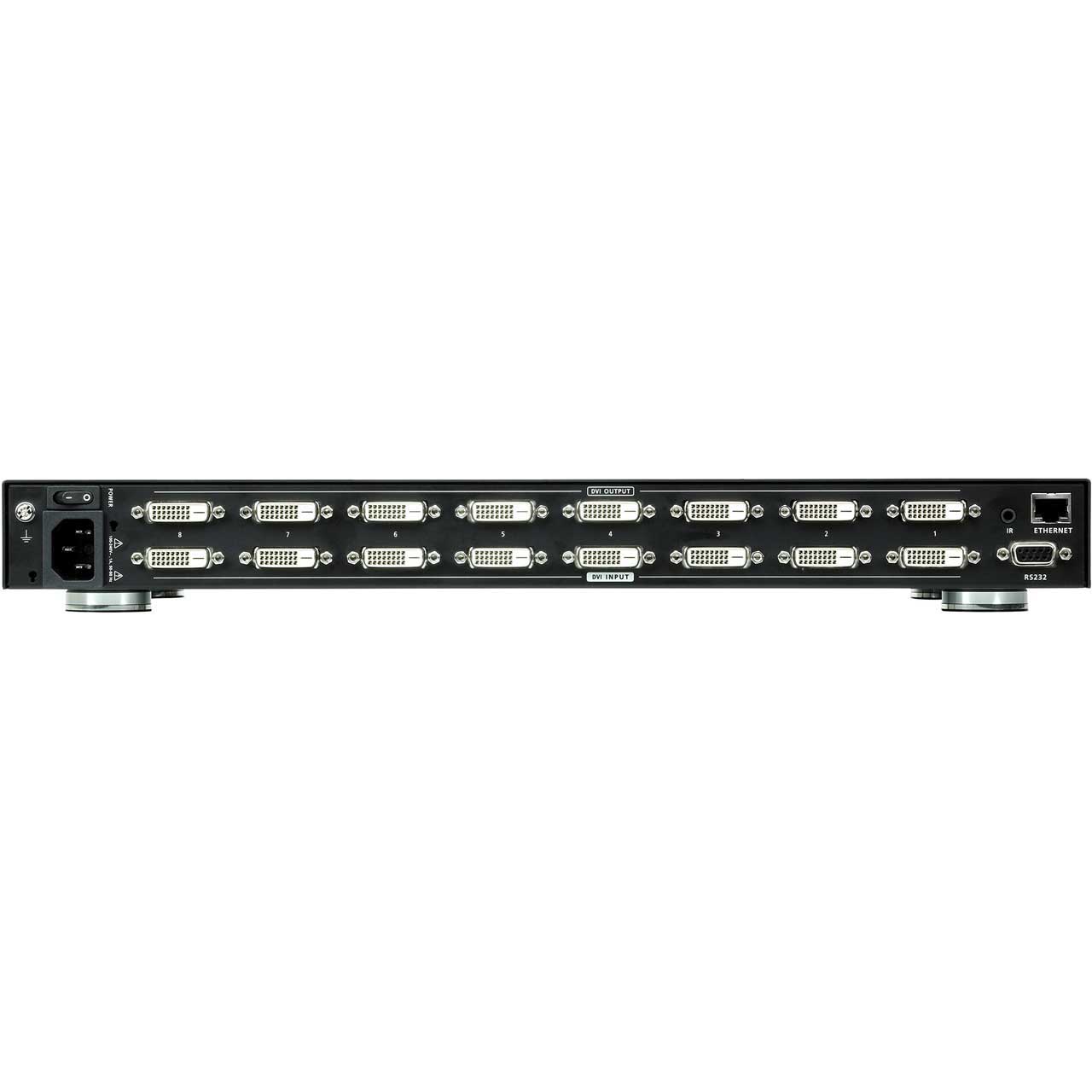

      • Video Input Interface 8 x DVI-D Female (White)
      • Impedance 100Ω
      • Max Distance 1.8 m
      • Video Output Interface 8 x DVI-D Female (White)
      • Impedance 100Ω
      • Video Max Data Rate 6.75 Gbps (2.25 Gbps Per Lane)
      • Max Pixel Clock 225 MHz
      • Compliance HDCP 1.4 Compatible
      • Max. Resolutions Up to 1920 x 1200
      • Max. Distance Up to 5m
      • Control RS-232 Connector: 1 x DB-9 Female (Black)
      • Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bit: 1,
      • Parity: No, Flow Control: No
      • IR 1 x Mini Stereo Jack Female (Black)
      • Ethernet 1 x RJ-45 Female (Black)
      • EDID Settings EDID Mode: Default / Port 1/ Remix / Customized
      • Power Connector: 1 x 3-Prong AC Socket
      • I/P Rating: 100-240VAC; 50-60Hz; 1.0A
      • Consumption: 120VAC, 56.4W; 230VAC, 55.9W
      • Environment Operating Temp. 0-50°C
      • Storage Temp. -20°C - 60°C
      • Humidity 0% - 80% RH, Non-condensing
    • Warranty:

      • 3 Years
    • GTIN:
