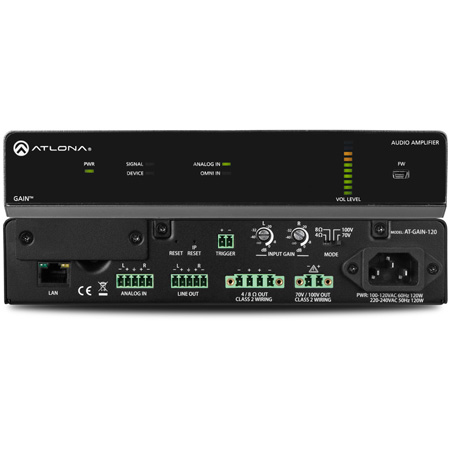

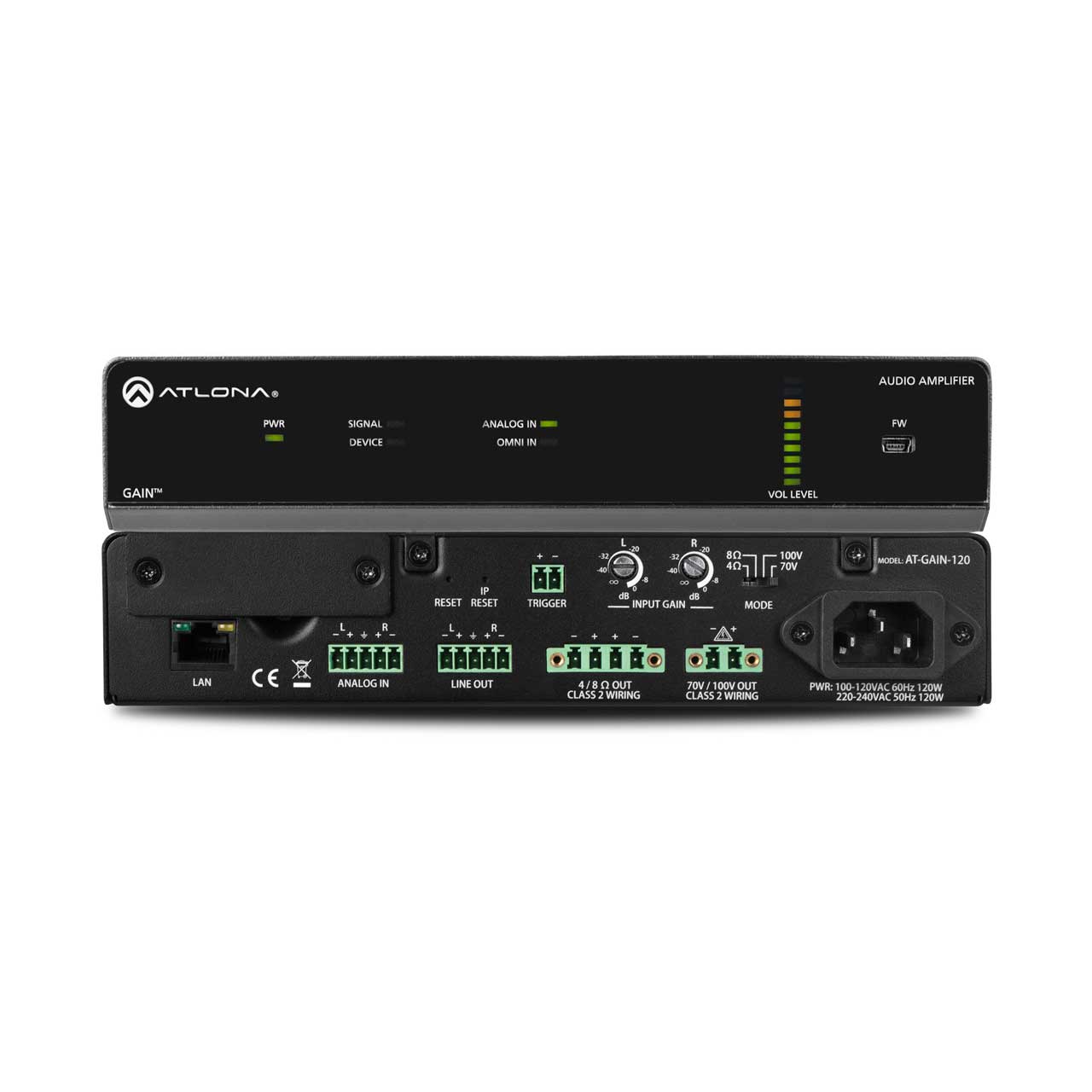

Atlona AT-GAIN-120 Stereo / Mono Audio Power Amplifier - 120 Watts

ITEM #: ATNO-AT-GAIN-120 MFG #: AT-GAIN-120

Primary Image
Free Shipping with $49 Minimum Order

Our Price:

$980.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    AT-GAIN-120 - Overview

    The Atlona Gain™ 120 (AT-GAIN-120) is a compact power amplifier designed for low or high impedance applications. A mode selector switch allows the Gain 120 to deliver two channels of 60 watts each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts. This Class D amplifier is energy efficient and ENERGY STAR qualified, and is also convection cooled to allow installation in conference rooms and quiet installation environments without the need for fans. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system. The Gain 120 is controllable via TCP/IP or external trigger, and can be integrated with Atlona AV switchers and OmniStream™ AV systems for a wide variety of sound reinforcement applications.

    Please Note: The ATNO-AT-RACK-1RU rack shelf is a required accessory to ensure a proper, secure rack installation.

    Networked Audio Interface Available
    Available for the Gain 120 is the AT-GAIN-NET networked audio card, featuring an AES67 and Dante dual-channel audio bridge. The AT-GAIN-NET adds the capability to accept two channels over a network from a Dante or AES67-equipped DSP, as well as Atlona OmniStream AV encoders.

    Applications:

  • Meeting rooms, conference rooms, training rooms, and classrooms - The Gain 120 can receive audio from an AV switcher or DSP, and then feed the audio to program speakers on the front wall, or a distribution of ceiling speakers.
  • Facility audio systems - The Gain 120 can be integrated with a centralized audio distribution system for paging and background music, as well as audio content targeted to specific zones.
    • Features:

      • Selectable low or high impedance operation
      • 2 x 60 watts @ 4 or 8 ohms
      • 1 x 120 watts @ 70 or 100 volts
      • Class D efficient amplifier design
      • ENERGY STAR qualified
      • Convection cooled - no need for fans
      • Optional AES67 / Dante networked audio interface (AT-GAIN-NET) - receives two-channel audio from OmniStream AV encoders or compatible audio devices
      • Available AT-RACK-1RU rack shelf - required accessory for rack installation
      • Automatic standby, configurable from 5 to 25 minutes of inactivity, to minimize power consumption
      • Rear panel input level controls
      • Integrated protection circuitry automatically activates in the event of clipping, short circuit, thermal overload, and more
      • Low inrush current to prevent audible "thumps" when multiple amps are powered on simultaneously
      • Balanced line level output for pass-through to an additional amplifier or audio system
      • Integrated five-band equalizer
      • TCP/IP control of volume level, muting, and EQ
      • Ideal for IP-based control from Atlona Velocity™ Control System
      • Trigger port ideal for occupancy sensor or control system to remotely power down amplifier or wake from standby
      • Front panel signal status LEDs for power, signal presence, real-time volume level, device identification, and internal protection activation
      • Rack-mountable 1U, half rack width enclosure

    • Specifications:

      • Connectors, Controls, and Indicators
      • Input: 1 - RJ45 (AT-GAIN-NET network audio card, only), 100 Mbps
      • LAN: 1 - RJ45
      • Analog in: 1 - 5-pin captive screw, balanced: 20 k Ω, unbalanced: 10 kΩ
      • Line out: 1 - 5-pin, 3.5mm
      • TRrigger: 1 - 2-pin captive screw
      • 4 / 8 Ω out: 1 - 4-pin, 5.08 mm lock-down screw connector
      • 70V / 100V out: 1 - 5-pin, 3.5mm
      • FW: 1 - mini-USB, type-B
      • Input gain: 2 - Rotary pots, L/R channel
      • Mode: 1 - Slider switch, 4-pole, 4 Ω / 8 Ω / 70 V / 100 V
      • Reset: 1 - Push button, tact-type
      • IP reset: 1 - Push button, tact-type
      • Power: 1 - IEC power receptacle
      • Power: 1 - LED indicator, green
      • Signal: 1 - LED indicator, green
      • Device ID: 1 - LED indicator, green
      • Analog in: 1 - LED indicator, green
      • NET audio: 1 - LED indicator, green
      • Vol level: 1 - Multi-LED indicator

        Input Signal
      • Analog Input: Balanced: 20 kΩ, unblanced: 10 kΩ
      • CMRR: 51 dB / 58 dB
      • Detection Threshold: 0 dBV = 2.218 dBu

        Output Signal
      • Distributed speakers (mono): 70 V / 100 V
      • Program speakers (stereo): 4 Ω / 8 Ω, line-level
      • Power: 70 V = 120 Vrms (bridge mode)
      • 100 V = 120 Vrms (bridge mode)
      • 4 / 8 Ω = 60 W per channel

        Audio Processing
      • D/A Conversion: 24-bit, selectable sampling rate
      • Audio Formats: 24-bit uncompressed, selectable at 44.1, 48, 88.2, and 96 kHz sampling rate
      • Latency: 2 ms
      • Signal Processing: Volume, Auto on/off signal sensing, 80 Hz HPF
      • Network Audio Transport: Dante, AES67
      • Equalization: 5-band, adjustable: 40 Hz, 150 Hz, 500 Hz, 2 kHz, and 10 kHz bands
      • Range: -10 dB to +10 dB

        Audio Performance
      • Frequency Response: 20 Hz - 20 kHz, ±2 dB @ 4 Ω load
      • THD + N: < 0.1% @ 1kHZ, 3 db below clipping
      • SNR: > 90 dBA WTD
      • Damping Factor: < 90 @ 8 Ω
      • Amplifier Type: Class D

        Temperature
      • Operating: 32°F to 122°F / 0°C to 50°C
      • Storage: -40°F to 158°F / -40°C to 70°C
      • Humidity (RH): 90%, non-condensing

        Power
      • Standby Mode: Powers down after 5-25 minutes (adjustable) of no signal; complies with ENERGY STAR power
      • consumption limits of < 0.5 W in standby mode
      • Consumption: 120 W (max.)
      • Standby Consumption: normal standby < 0.5 W
      • network standby < 2 W
      • Supply: 100 - 240 V AC, 50/60 Hz, 120 W

        Dimensions
      • H x W x D: 1.69 x 8.66 x 12.99 inch / 43 x 220 x 330mm

        Weight
      • Device: 19.84lbs / 9 kg

        Certification
      • Device: CE, RoHS, WEEE, FCC, ENERGY STARr

    • GTIN:

      0846352005207
