    AT-OME-SW21-TX-WPC - Overview

    The Atlona AT-OME-SW21-TX-WPC is a 2x1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It sends video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 330 feet (100 meters). The OME-SW21-TX-WPC features a US one-gang, wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Part of the OmegaT Series of integration products for modern AV communications and collaboration, the OME-SW21-TX-WPC is HDCP 2.2 compliant. The USB-C input is ideal for AV interfacing with newer Mac, Chromebook, and Windows PCs, as well as smartphones and tablets. With a matching HDBaseT receiver, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-SW21-TXWPC includes USB 2.0 and USB-C PC host interfaces, plus a USB 2.0 interface for a peripheral device such as a speakerphone, microphone, or keyboard and mouse. This transmitter is ideal for use with Omega Series receivers as well as switchers with HDBaseT inputs.

    Complete system integration
    The OME-SW21-TX-WPC and OME-SR21 or OME-EX-RX together provide a compact, yet comprehensive and cost-effective integration solution.

    Remote AV source connections
    This transmitter is ideal for extending AV connectivity from an OME-PS62 in a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.

    Video Conferencing
    The OME-SW21-TX-WPC and a compatible Omega Series receiver or switcher are ideal for soft codec and web-based conferencing applications, with the ability to integrate with PCs, cameras, speakerphones, and microphones.

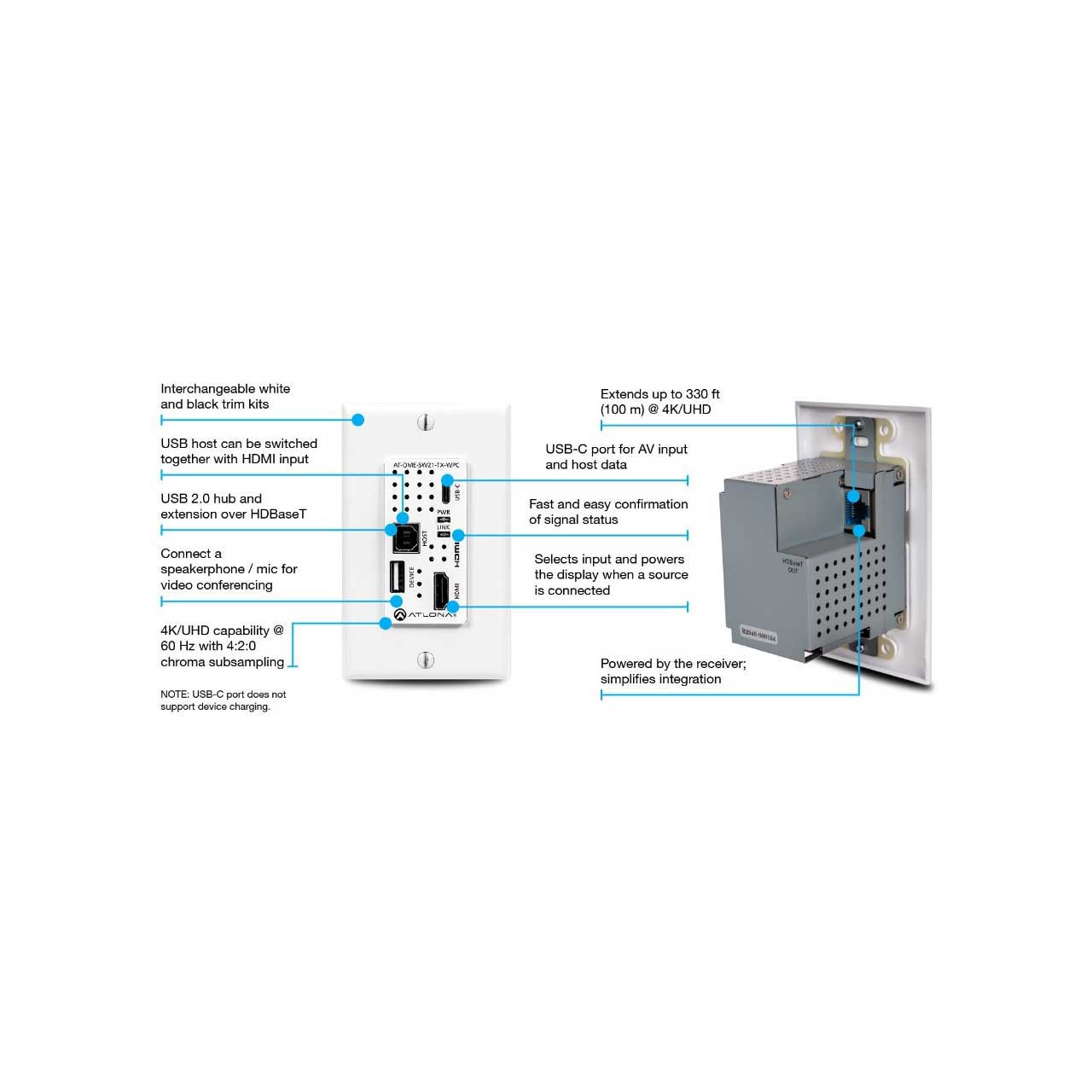

    • Features:

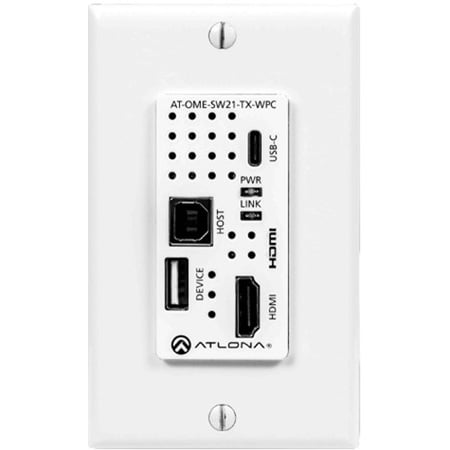

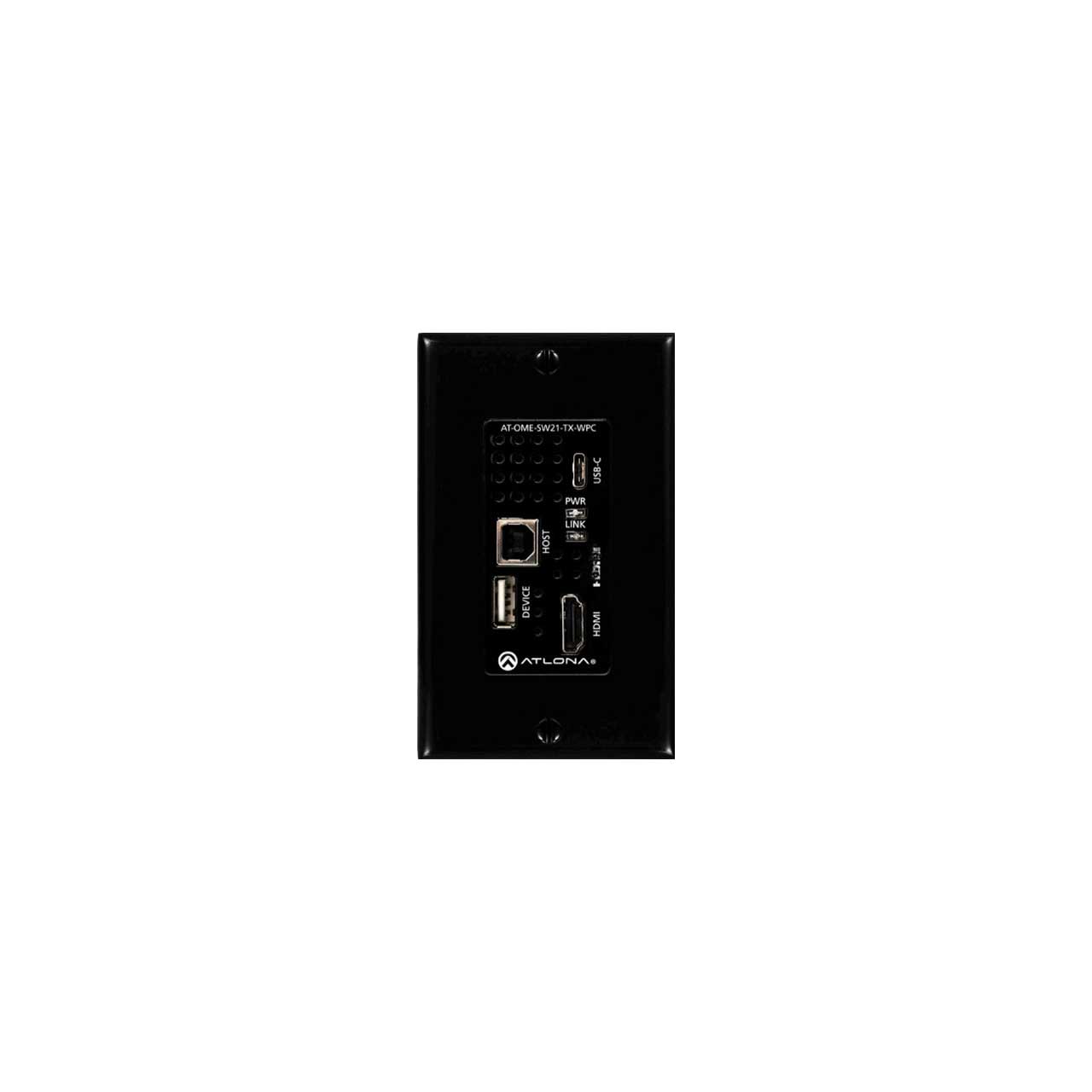

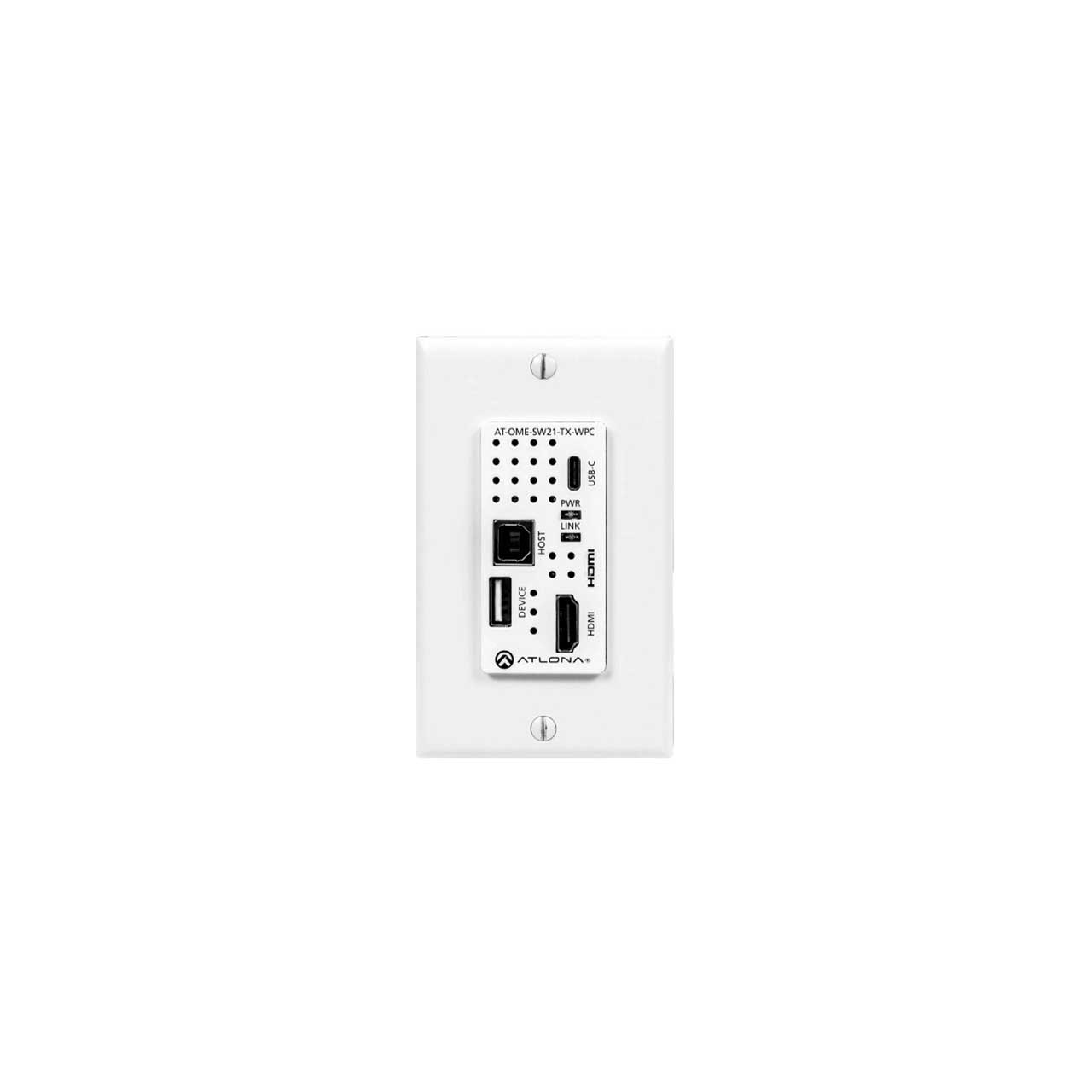

      • US one-gang enclosure for wallplate openings - interchangeable black or white trim kits
      • 2x1 HDBaseT switcher with HDMI and USB-C inputs
      • Video, audio, power, and data over category cable utilizing HDBaseT technology
      • USB 2.0 interfacing and extension up to 330 feet (100 meters)
      • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
      • Remote powering over HDBaseT
      • Automatic display control
      • Automatic input selection using hot plug detect and video detection technology
    • Specifications:

      • Video
      • Signal Type Input - DisplayPort Alternate Mode (USB-C), HDMI, Output - HDBaseT
      • Copy Protection: HDCP 1.4/2.2
      • Pixel Clock: 300MHz
      • UHD/HD/SD
        4096x2160(DCI)@60/50/30(3)/25/24 Hz
        3840x2160(UHD)@60/50/30(3)/25/24 Hz
        2560x1440@30 Hz
        24/23.98 Hz
        1920x1080i@30/29.97/25 Hz
        1280x720p@60/59.94/50/30 Hz
        720x576i/p@50 Hz
        720x480i/p@60 Hz
      • VESA (All resolutions are 60Hz)
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:0(3)
      • Color Depth: 8-bit, 10-bit, 12-bit

      • Pass-through
        PCM 2.0
        LPCM 5.1
        LPCM 7.1
        Dolby Digital
        Dolby Digital Plus
        Dolby TrueHD
        Dolby Atmos
        DTS Digital Surround
        DTS-HD Master Audio
      • Bit Rate: 24 Mbits/s max
      • Sample Rate: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz

      • Signal: 2.0
      • Maximum Data Rate: 120 Mbps

      • USB-C: 1 - USB Type-C v3.1, 24-pin female
      • HDMI: 1 - Type A, 19-pin female
      • HDBaseT OUT: 1 - RJ45
      • HOST: 1 - USB Type-B, female
      • DEVICE: 1 - USB Type-A, female

      • Consumption: 12.5 W
      • Supply: PoE via connected receiver

      • Operating: +32 to +104°F
      • Storage: -4 to +140
      • Humidity: (RH) 20% to 90%, non-condensing
    • Item Includes:

      • 1x AT-OME-SW21-TX-WPC Single Gang Wall Plate
